anonymous_namespace{soap_ctrlpt.cpp} Namespace Reference

Functions
Functions scope restricted to file
int	dom_cmp_name (const char *name, IXML_Node *node)
	Compares 'name' and node's name.
int	dom_find_node (const char *node_name, IXML_Node *start_node, IXML_Node **matching_node)
	Goes thru each child of 'start_node' looking for a node having the name 'node_name'.
int	dom_find_deep_node (const char *names[], int num_names, IXML_Node *start_node, IXML_Node **matching_node)
	Searches for the node specifed by the last name in the 'name' array.
const DOMString	get_node_value (IXML_Node *node)
	This function returns the value of the text node.
int	get_host_and_path (char *ctrl_url, const memptr *host, const memptr *path, uri_type *url)
	This function retrives the host and path from the control URL.
int	get_action_name (char *action, memptr *name)
	This function retrives the action name in the buffer.
int	add_man_header (membuffer *headers)
	Adds "MAN" field in the HTTP header.
int	soap_request_and_response (membuffer *request, uri_type *destination_url, http_parser_t *response)
	This function sends the control point's request to the device and receives a response from it.
int	get_response_value (http_message_t *hmsg, int code, char *name, int *upnp_error_code, IXML_Node **action_value, DOMString *str_value)
	This function handles the response coming back from the device.

Variables
Variable scope restricted to file
constexpr int	SOAP_ACTION_RESP {1}
	Control point SOAP status.
constexpr int	SOAP_VAR_RESP {2}
	Control point SOAP status.
constexpr int	SOAP_ACTION_RESP_ERROR {3}
	Control point SOAP status.
constexpr int	SOAP_VAR_RESP_ERROR {4}
	Control point SOAP status.

Function Documentation

dom_cmp_name()

int anonymous_namespace{soap_ctrlpt.cpp}::dom_cmp_name	(	const char *	name,
		IXML_Node *	node
	)

Compares 'name' and node's name.

Returns

On success: 0 if both are equal; 1 if not equal
On error: UPNP_E_OUTOF_MEMORY

Definition at line 88 of file soap_ctrlpt.cpp.

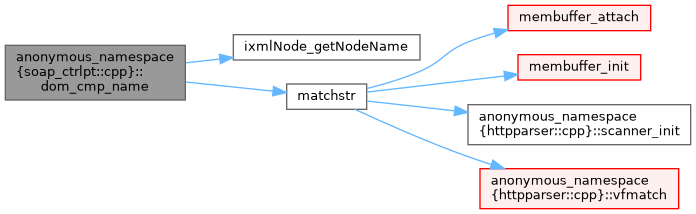

Here is the call graph for this function:

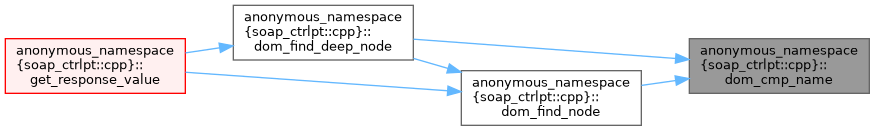

Here is the caller graph for this function:

dom_find_node()

int anonymous_namespace{soap_ctrlpt.cpp}::dom_find_node	(	const char *	node_name,
		IXML_Node *	start_node,
		IXML_Node **	matching_node
	)

Goes thru each child of 'start_node' looking for a node having the name 'node_name'.

Returns

On success: UPNP_E_SUCCESS
On error: UPNP_E_NOT_FOUND

Definition at line 125 of file soap_ctrlpt.cpp.

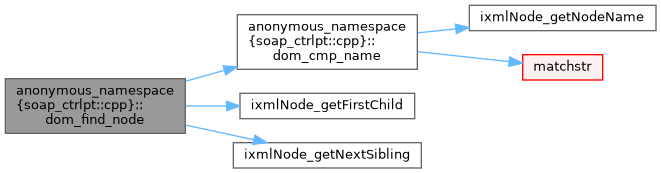

Here is the call graph for this function:

Here is the caller graph for this function:

dom_find_deep_node()

int anonymous_namespace{soap_ctrlpt.cpp}::dom_find_deep_node	(	const char *	names[],
		int	num_names,
		IXML_Node *	start_node,
		IXML_Node **	matching_node
	)

Searches for the node specifed by the last name in the 'name' array.

Returns

On success: UPNP_E_SUCCESS
On error: UPNP_E_NOT_FOUND

Definition at line 158 of file soap_ctrlpt.cpp.

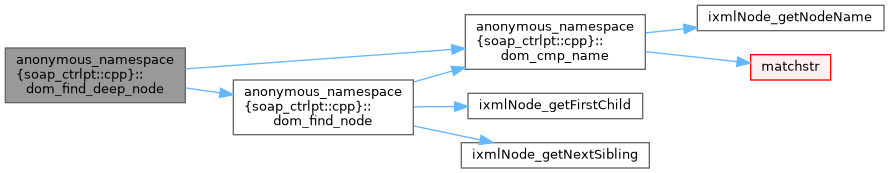

Here is the call graph for this function:

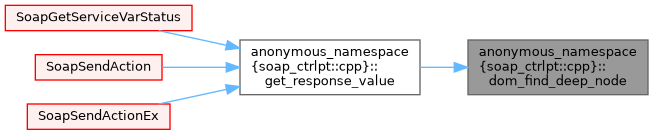

Here is the caller graph for this function:

get_node_value()

const DOMString anonymous_namespace{soap_ctrlpt.cpp}::get_node_value

(

IXML_Node *

node

)

This function returns the value of the text node.

Note

The given node must have a text node as its first child.

Returns

DOMString - string containing the node value.

Parameters

[in]

node

input node

Definition at line 201 of file soap_ctrlpt.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

get_host_and_path()

int anonymous_namespace{soap_ctrlpt.cpp}::get_host_and_path ( char *  ctrl_url, const memptr *  host, const memptr *  path, uri_type *  url  )

inline

This function retrives the host and path from the control URL.

Returns

On success: 0
On error: -1

Parameters

[in]	ctrl_url	URL
[out]	host	host string
[out]	path	path string
[out]	url	URL type

Definition at line 223 of file soap_ctrlpt.cpp.

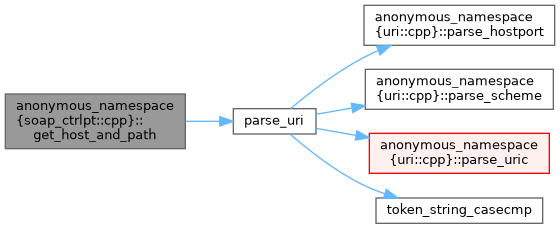

Here is the call graph for this function:

Here is the caller graph for this function:

get_action_name()

int anonymous_namespace{soap_ctrlpt.cpp}::get_action_name ( char *  action, memptr *  name  )

inline

This function retrives the action name in the buffer.

Returns

On success: 0
On error: -1

Parameters

[in]	action	String containing action name.
[out]	name	Name of the action.

Definition at line 249 of file soap_ctrlpt.cpp.

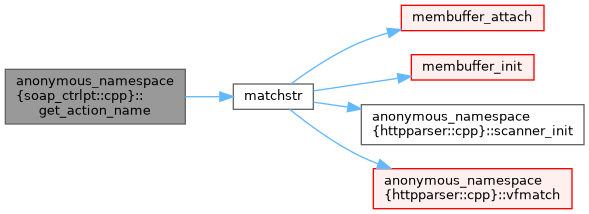

Here is the call graph for this function:

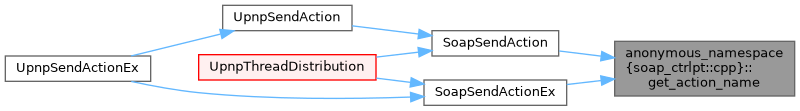

Here is the caller graph for this function:

add_man_header()

int anonymous_namespace{soap_ctrlpt.cpp}::add_man_header ( membuffer *  headers )

inline

Adds "MAN" field in the HTTP header.

Returns

On success: 0
On error: UPNP_E_OUTOF_MEMORY

Definition at line 268 of file soap_ctrlpt.cpp.

Here is the call graph for this function:

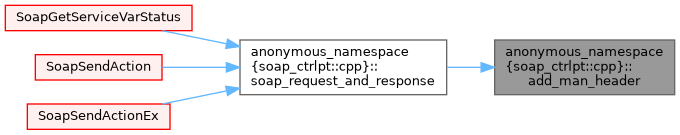

Here is the caller graph for this function:

soap_request_and_response()

int anonymous_namespace{soap_ctrlpt.cpp}::soap_request_and_response	(	membuffer *	request,
		uri_type *	destination_url,
		http_parser_t *	response
	)

This function sends the control point's request to the device and receives a response from it.

Returns

On success: 0
On error:

• UPNP_E_SOCKET_ERROR
• UPNP_E_SOCKET_CONNECT
• UPNP_E_OUTOF_MEMORY
• UPNP_E_FILE_READ_ERROR
• UPNP_E_TIMEDOUT
• UPNP_E_SOCKET_WRITE
• UPNP_E_BAD_HTTPMSG

Parameters

[in]	request	Request that will be sent to the device.
[in]	destination_url	Destination address string.
[out]	response	Response from the device.

Definition at line 305 of file soap_ctrlpt.cpp.

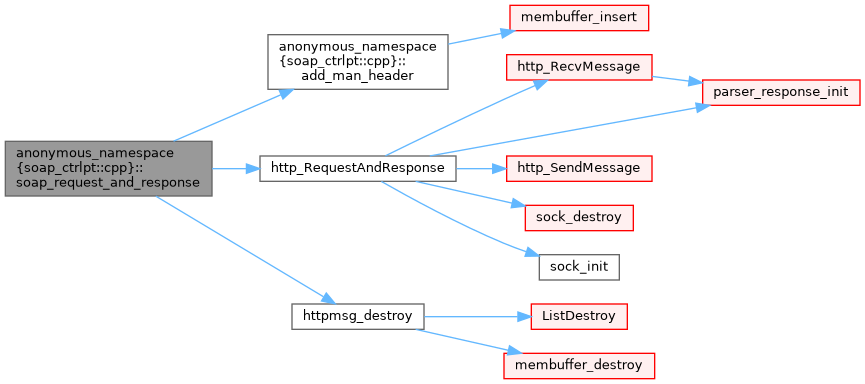

Here is the call graph for this function:

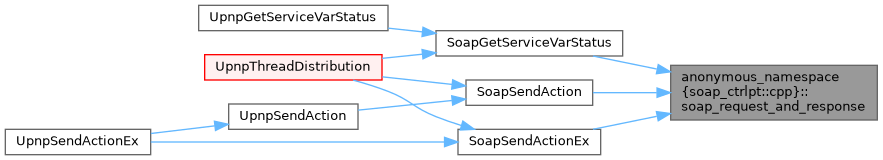

Here is the caller graph for this function:

get_response_value()

int anonymous_namespace{soap_ctrlpt.cpp}::get_response_value	(	http_message_t *	hmsg,
		int	code,
		char *	name,
		int *	upnp_error_code,
		IXML_Node **	action_value,
		DOMString *	str_value
	)

This function handles the response coming back from the device.

This function parses the response and gives back the SOAP response node.

Returns

On success: The type of the SOAP message.
On error:

• UPNP_E_BAD_RESPONSE
• UPNP_E_OUTOF_MEMORY
• SOAP_ACTION_RESP
• SOAP_VAR_RESP
• SOAP_VAR_RESP_ERROR
• SOAP_ACTION_RESP_ERROR
• HTTP error codes >400

Parameters

[in]	hmsg	HTTP response message.
[in]	code	Return code in the HTTP response.
[in]	name	Name of the action.
[out]	upnp_error_code	UPnP error code.
[out]	action_value	SOAP response node.
[out]	str_value	State varible value (in the case of querry state variable request).

Definition at line 356 of file soap_ctrlpt.cpp.

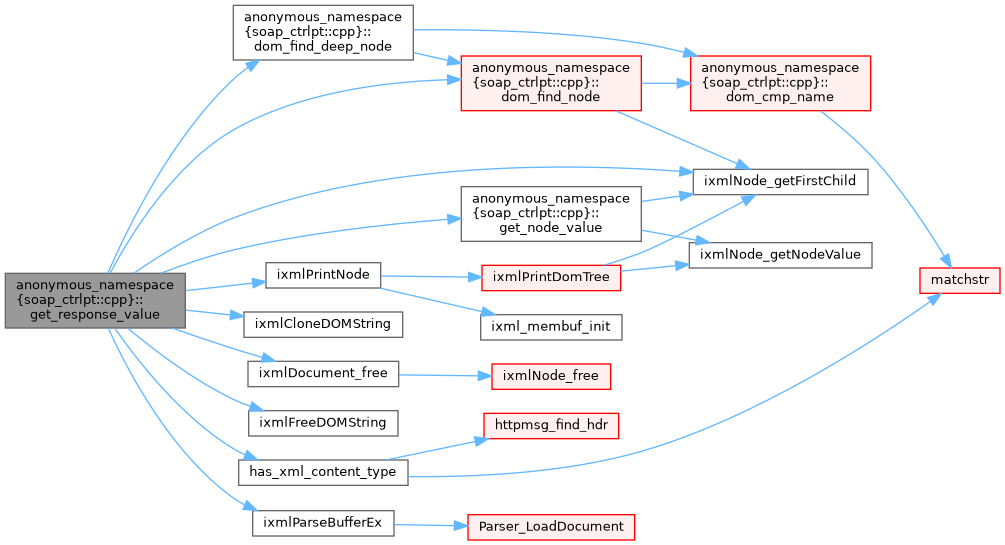

Here is the call graph for this function:

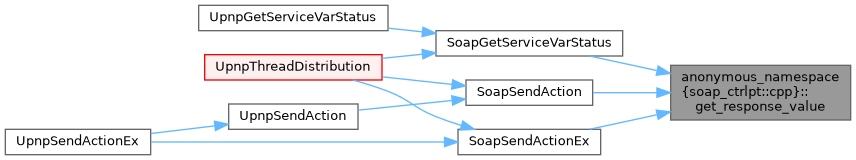

Here is the caller graph for this function:

Variable Documentation

SOAP_ACTION_RESP

constexpr int anonymous_namespace{soap_ctrlpt.cpp}::SOAP_ACTION_RESP {1}

constexpr

Control point SOAP status.

Definition at line 69 of file soap_ctrlpt.cpp.

SOAP_VAR_RESP

constexpr int anonymous_namespace{soap_ctrlpt.cpp}::SOAP_VAR_RESP {2}

constexpr

Control point SOAP status.

Definition at line 70 of file soap_ctrlpt.cpp.

SOAP_ACTION_RESP_ERROR

constexpr int anonymous_namespace{soap_ctrlpt.cpp}::SOAP_ACTION_RESP_ERROR {3}

constexpr

Control point SOAP status.

Definition at line 72 of file soap_ctrlpt.cpp.

SOAP_VAR_RESP_ERROR

constexpr int anonymous_namespace{soap_ctrlpt.cpp}::SOAP_VAR_RESP_ERROR {4}

constexpr

Control point SOAP status.

Definition at line 73 of file soap_ctrlpt.cpp.
