miniserver.hpp File Reference

Manage "Step 0: Addressing" of the UPnP+™ specification. More...

#include <httpparser.hpp>
#include <sock.hpp>
#include <UPnPsdk/socket.hpp>

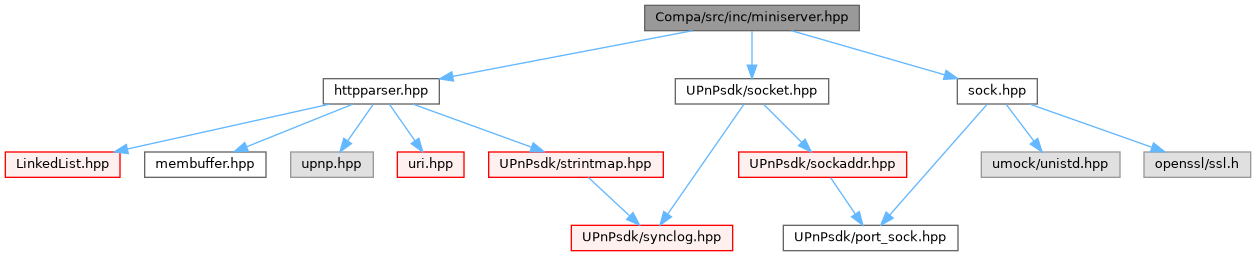

Include dependency graph for miniserver.hpp:

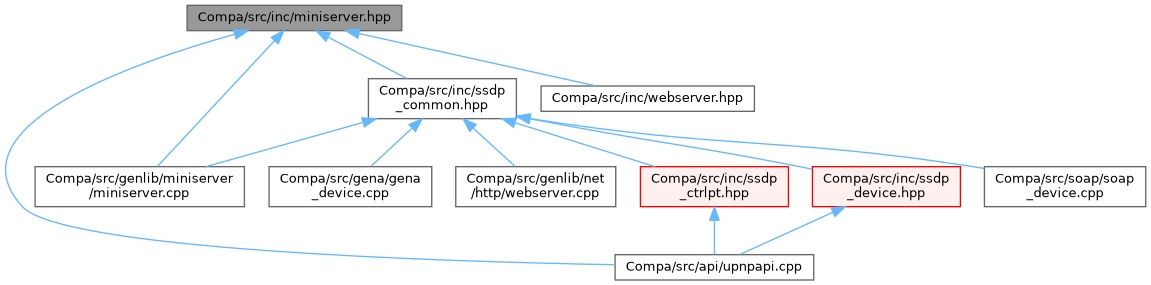

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	MiniServerSockArray
	Provides sockets for all network communications. More...

Typedefs
typedef void(*	MiniServerCallback) (http_parser_t *parser, http_message_t *request, SOCKINFO *info)
	For a miniserver callback function.

Functions
void	SetSoapCallback (MiniServerCallback callback)
	Set SOAP Callback.
void	SetGenaCallback (MiniServerCallback callback)
	Set GENA Callback.
int	StartMiniServer (in_port_t *listen_port4, in_port_t *listen_port6, in_port_t *listen_port6UlaGua)
	Initialize the sockets functionality for the Miniserver.
int	StopMiniServer ()
	Stop and Shutdown the MiniServer and free socket resources.

Variables
MiniServerCallback	gGetCallback {nullptr}
	HTTP server callback.

Detailed Description

Manage "Step 0: Addressing" of the UPnP+™ specification.

The minserver program module is encapsulated in this file and has only some public available structures and functions. All other internals are restricted to file scope using the anonymous namespace. The miniserver is started with StartMiniServer(). It mainly initializes and manages the needed network sockets, starts a new thread and runs the miniserver in it with locking and unlocking mutexes. All constructed resources with StartMiniServer() are freed with StopMiniServer(). The miniserver is stopped through a separate stop socket that sends a regular network stop message to localhost for the running miniserver in its thread. This way the blocking ::select() listing will always be triggered and can shutdown the miniserver.

Definition in file miniserver.hpp.

---

Class Documentation

MiniServerSockArray

struct MiniServerSockArray

Provides sockets for all network communications.

Definition at line 64 of file miniserver.hpp.

Collaboration diagram for MiniServerSockArray:

Class Members
SOCKET	miniServerSock4	IPv4 socket for listening for miniserver requests.
SOCKET	miniServerSock6	IPv6 LLA Socket for listening for miniserver requests.
SOCKET	miniServerSock6UlaGua	IPv6 ULA or GUA Socket for listening for miniserver requests.
SOCKET	miniServerStopSock	Datagram Socket for stopping miniserver.
SOCKET	ssdpSock4	IPv4 SSDP datagram Socket for incoming advertisments and search requests.
SOCKET	ssdpSock6	IPv6 LLA SSDP Socket for incoming advertisments and search requests.
SOCKET	ssdpSock6UlaGua	IPv6 ULA or GUA SSDP Socket for incoming advertisments and search requests.
in_port_t	stopPort	Corresponding port to miniServerStopSock. This is set with miniStopSockPort but never used.
in_port_t	miniServerPort4	Corresponding port to miniServerSock4.
in_port_t	miniServerPort6	Corresponding port to miniServerSock6.
in_port_t	miniServerPort6UlaGua	Corresponding port to miniServerSock6UlaGua.
CSocket *	pSockLlaObj
CSocket *	pSockGuaObj
CSocket *	pSockIp4Obj
SOCKET	ssdpReqSock4	IPv4 SSDP socket for sending search requests and receiving search replies.
SOCKET	ssdpReqSock6	IPv6 SSDP socket for sending search requests and receiving search replies.

Typedef Documentation

MiniServerCallback

typedef void(* MiniServerCallback) (http_parser_t *parser, http_message_t *request, SOCKINFO *info)

For a miniserver callback function.

Definition at line 111 of file miniserver.hpp.

Function Documentation

SetSoapCallback()

void SetSoapCallback

(

MiniServerCallback

callback

)

Set SOAP Callback.

Parameters

[in]

callback

SOAP Callback to be invoked.

Definition at line 1029 of file miniserver.cpp.

Here is the caller graph for this function:

SetGenaCallback()

void SetGenaCallback

(

MiniServerCallback

callback

)

Set GENA Callback.

Parameters

[in]

callback

GENA Callback to be invoked.

Definition at line 1036 of file miniserver.cpp.

Here is the caller graph for this function:

StartMiniServer()

int StartMiniServer	(	in_port_t *	listen_port4,
		in_port_t *	listen_port6,
		in_port_t *	listen_port6UlaGua
	)

Initialize the sockets functionality for the Miniserver.

Initialize a thread pool job to run the MiniServer and the job to the thread pool. If a listening port is specified to 0, then the port number is dynamically picked. Use timer mechanism to start the MiniServer, failure to meet the allowed delay aborts the attempt to launch the MiniServer.

The three parameter are only used if we have also a webserver built in. The miniserver does not need them.

I use a simple random number generator for unspecified port numbers. This is needed because I do not reuse addresses before TIME_WAIT has expired (socket option SO_REUSEADDR = false). I must use different socket addresses to be able to restart a device immediately without TIME_WAIT and that is already given with different port numbers on the same ip address.

Returns

• On success: UPNP_E_SUCCESS

• On error: UPNP_E_*

Parameters

[in,out]	listen_port4	Port on which the server listens for incoming IPv4 connections.
[in,out]	listen_port6	Port on which the server listens for incoming IPv6 LLA connections.
[in,out]	listen_port6UlaGua	Port on which the server listens for incoming IPv6 ULA or GUA connections.

Definition at line 1042 of file miniserver.cpp.

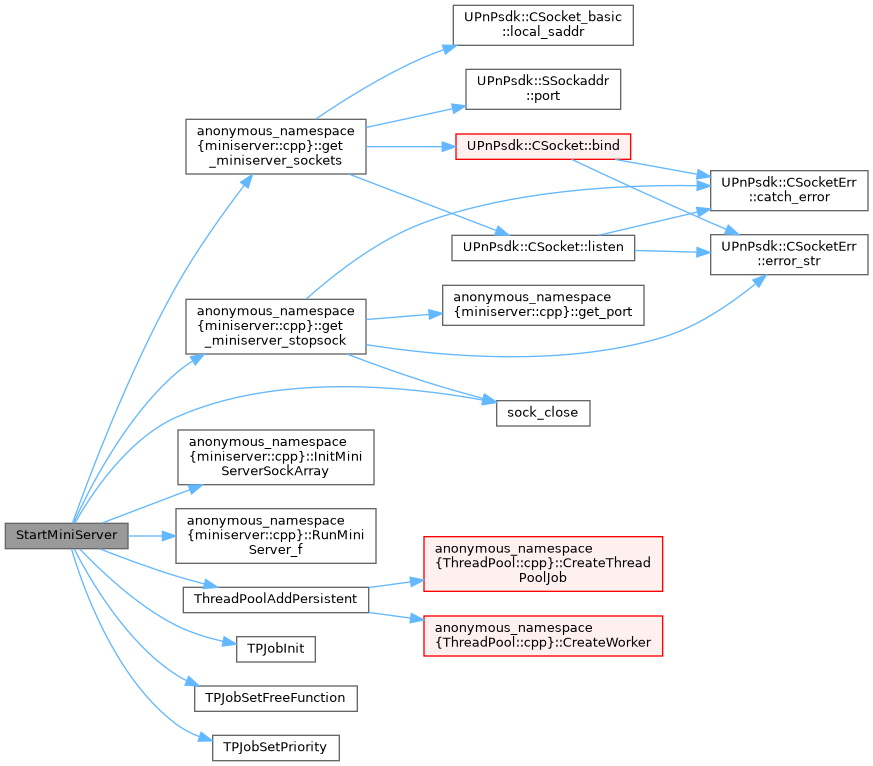

Here is the call graph for this function:

Here is the caller graph for this function:

StopMiniServer()

int StopMiniServer

(

)

Stop and Shutdown the MiniServer and free socket resources.

Returns

Always returns 0.

Definition at line 1156 of file miniserver.cpp.

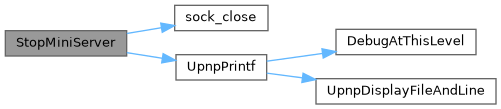

Here is the call graph for this function:

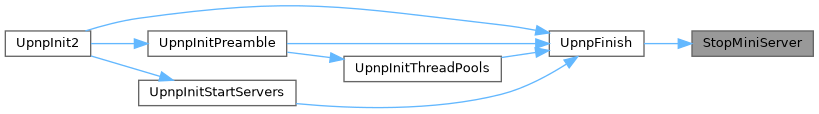

Here is the caller graph for this function:

Variable Documentation

gGetCallback

MiniServerCallback gGetCallback {nullptr}

inline

HTTP server callback.

Definition at line 115 of file miniserver.hpp.
