compa::anonymous_namespace{upnpapi.cpp} Namespace Reference

Functions
int	UpnpGetIfInfo (std::string_view a_iface="")
	Retrieve local network adapter information and keep it in global variables.
int	UpnpRegisterRootDevice3 (const char *const DescUrl, const Upnp_FunPtr Fun, const void *const Cookie, UpnpDevice_Handle *const Hnd, const int AddressFamily, const char *const LowerDescUrl)

Variables
pthread_mutex_t	sdkInit_mutex = PTHREAD_MUTEX_INITIALIZER
	Initialization mutex.
Handle_Info *	HandleTable [NUM_HANDLE]
	UPnP Device and Control Point handle table

Function Documentation

UpnpGetIfInfo()

int compa::anonymous_namespace{upnpapi.cpp}::UpnpGetIfInfo

(

std::string_view

a_iface = ""

)

Retrieve local network adapter information and keep it in global variables.

If no or empty argument given, we'll find the best suitable local network adapter for operation. The IPv6 loopback address - as specified - is handled as link local unicast address.

The local network adapter must fulfill these requirements:

• Be UP.
• Support MULTICAST.
• Have a valid IPv4 or IPv6 address.

We'll retrieve the following information from the adapter:

• gIF_NAME -> adapter name (by input or found).
• gIF_INDEX -> Unique local network adapter index number.
• gIF_IPV4 -> IPv4 address (if any).
• gIF_IPV4_NETMASK -> Netmask of gIF_IPV4 (if any).
• gIF_IPV6 -> IPv6 LLA address (if any).
• gIF_IPV6_PREFIX_LENGTH -> IPv6 LLA address prefix length.
• gIF_IPV6_ULA_GUA -> ULA or GUA IPv6 address (if any).
• gIF_IPV6_ULA_GUA_PREFIX_LENGTH -> IPv6 ULA or GUA address prefix length.

Returns

UPNP_E_SUCCESS or UPNP_E_INVALID_INTERFACE.

Parameters

[in]

a_iface

Adapter name or ip address. If no or empty argument ("") given, we'll find the best suitable local network adapter for operation.

Definition at line 120 of file upnpapi.cpp.

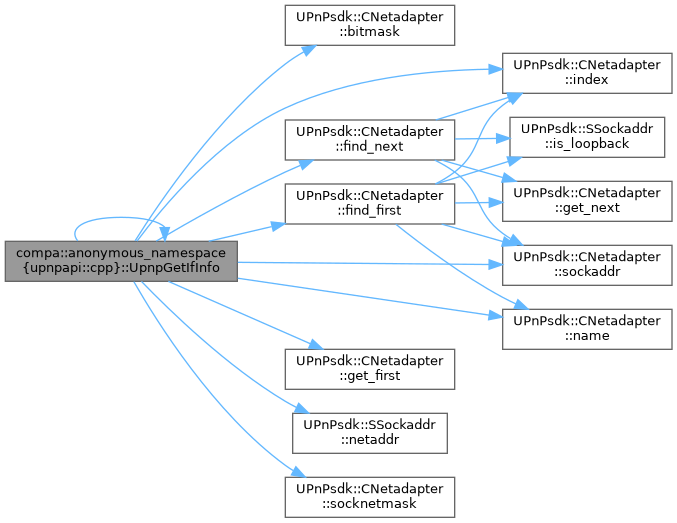

Here is the call graph for this function:

Here is the caller graph for this function:

UpnpRegisterRootDevice3()

int compa::anonymous_namespace{upnpapi.cpp}::UpnpRegisterRootDevice3	(	const char *const	DescUrl,
		const Upnp_FunPtr	Fun,
		const void *const	Cookie,
		UpnpDevice_Handle *const	Hnd,
		const int	AddressFamily,
		const char *const	LowerDescUrl
	)

Todo:

Check DEVICE_SSDP vs. CTRLPT_SSDP against struct Handle_Info

Definition at line 1168 of file upnpapi.cpp.

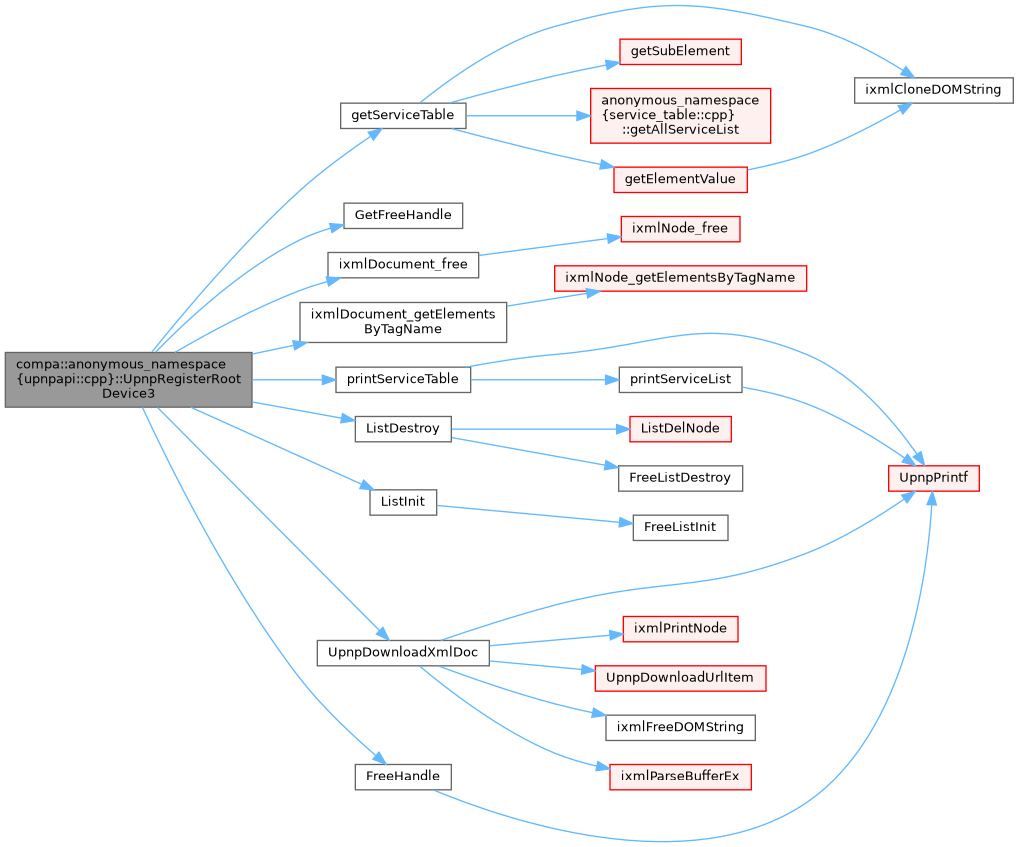

Here is the call graph for this function:

Variable Documentation

sdkInit_mutex

pthread_mutex_t compa::anonymous_namespace{upnpapi.cpp}::sdkInit_mutex = PTHREAD_MUTEX_INITIALIZER

Initialization mutex.

Definition at line 89 of file upnpapi.cpp.

HandleTable

Handle_Info* compa::anonymous_namespace{upnpapi.cpp}::HandleTable[NUM_HANDLE]

UPnP Device and Control Point handle table

Definition at line 92 of file upnpapi.cpp.
