Classes
struct	soap_devserv_t
	SOAP info. More...

Functions
Functions scope restricted to file
void	namecopy (char dest[NAME_SIZE], const char *src)
	Copy string with length NAME_SIZE and terminate with '\0'.

void	send_error_response (SOCKINFO info, int error_code, const char err_msg, http_message_t *hmsg)
	Sends SOAP error response.

void	send_var_query_response (SOCKINFO info, const char var_value, http_message_t *hmsg)
	Sends response of get var status.

void	send_action_response (SOCKINFO info, IXML_Document action_resp, http_message_t *request)
	Sends the SOAP action response.

void	handle_query_variable (SOCKINFO info, http_message_t request, soap_devserv_t soap_info, IXML_Node req_node)
	Handles the SOAP requests to querry the state variables.

void	handle_invoke_action (SOCKINFO info, http_message_t request, soap_devserv_t soap_info, IXML_Node req_node)
	Handles the SOAP action request.

int	get_dev_service (http_message_t request, int AddressFamily, soap_devserv_t soap_info)
	Retrieve SOAP device/service information associated with request-URI.

int	get_mpost_acton_hdrval (http_message_t request, memptr val)
	Get the SOAPACTION header value for M-POST request.

int	check_soapaction_hdr (http_message_t request, soap_devserv_t soap_info)
	Check header validity, get action name and version of service.

int	check_soap_request (soap_devserv_t soap_info, IXML_Document xml_doc, IXML_Node **req_node)
	Check validity of the SOAP request per UPnP specification.

Variables
Variables scope restricted to file
constexpr int	SREQ_HDR_NOT_FOUND {-1}
	UPnP Device SOAP status.

constexpr int	SREQ_BAD_HDR_FORMAT {-2}
	UPnP Device SOAP status.

constexpr int	SREQ_NOT_EXTENDED {-3}
	UPnP Device SOAP status.

constexpr int	SOAP_INVALID_ACTION {401}
	UPnP Device SOAP status.

constexpr int	SOAP_INVALID_VAR {404}
	UPnP Device SOAP status.

constexpr int	SOAP_ACTION_FAILED {501}
	UPnP Device SOAP status.

constexpr int	SOAP_MEMORY_OUT {603}
	UPnP Device SOAP status.


constexpr char	SOAP_BODY [] {"Body"}
	UPnP Device SOAP strings.

constexpr char	SOAP_URN [] {"http://schemas.xmlsoap.org/soap/envelope/"}
	UPnP Device SOAP strings.

constexpr char	QUERY_STATE_VAR_URN [] {"urn:schemas-upnp-org:control-1-0"}
	UPnP Device SOAP strings.

constexpr char	Soap_Invalid_Action [] {"Invalid Action"}
	UPnP Device SOAP strings.

constexpr char	Soap_Action_Failed [] {"Action Failed"}
	UPnP Device SOAP strings.

constexpr char	Soap_Invalid_Var [] {"Invalid Var"}
	UPnP Device SOAP strings.

constexpr char	Soap_Memory_out [] {"Out of Memory"}
	UPnP Device SOAP strings.

Class Documentation

◆ anonymous_namespace{soap_device.cpp}::soap_devserv_t

struct anonymous_namespace{soap_device.cpp}::soap_devserv_t

SOAP info.

Definition at line 101 of file soap_device.cpp.

Collaboration diagram for anonymous_namespace{soap_device.cpp}::soap_devserv_t:

Class Members
char	dev_udn[NAME_SIZE]
char	service_type[NAME_SIZE]
char	service_id[NAME_SIZE]
memptr	action_name
Upnp_FunPtr	callback
void *	cookie

Function Documentation

◆ namecopy()

void anonymous_namespace{soap_device.cpp}::namecopy	(	char	dest[NAME_SIZE],
		const char *	src
	)

Copy string with length NAME_SIZE and terminate with '\0'.

Definition at line 116 of file soap_device.cpp.

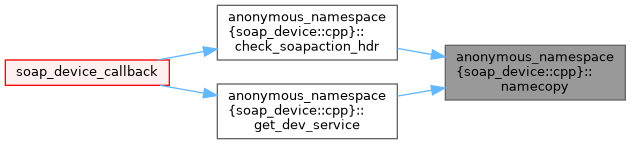

Here is the caller graph for this function:

◆ send_error_response()

void anonymous_namespace{soap_device.cpp}::send_error_response	(	SOCKINFO *	info,
		int	error_code,
		const char *	err_msg,
		http_message_t *	hmsg
	)

Sends SOAP error response.

Parameters

[in]	info	Socket info.
[in]	error_code	Error code.
[in]	err_msg	Error message.
[in]	hmsg	HTTP request.

Definition at line 125 of file soap_device.cpp.

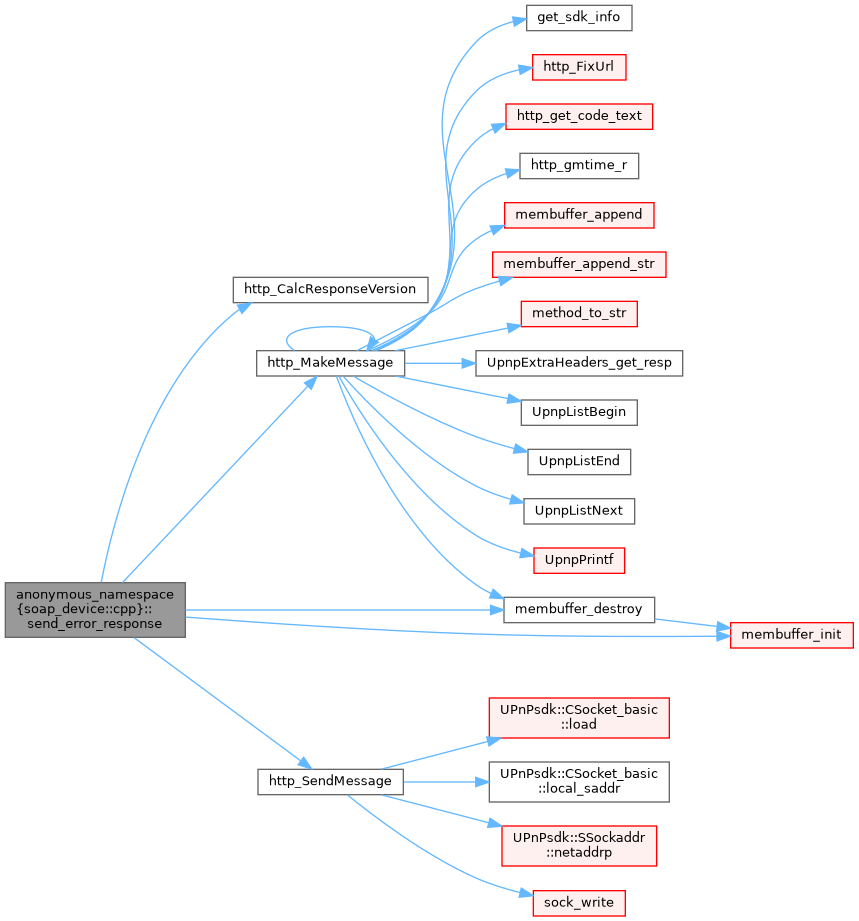

Here is the call graph for this function:

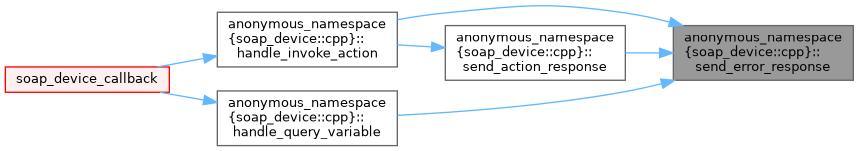

Here is the caller graph for this function:

◆ send_var_query_response()

void anonymous_namespace{soap_device.cpp}::send_var_query_response	(	SOCKINFO *	info,
		const char *	var_value,
		http_message_t *	hmsg
	)

inline

Sends response of get var status.

Parameters

[in]	info	Socket info.
[in]	var_value	Value of the state variable.
[in]	hmsg	HTTP request.

Definition at line 190 of file soap_device.cpp.

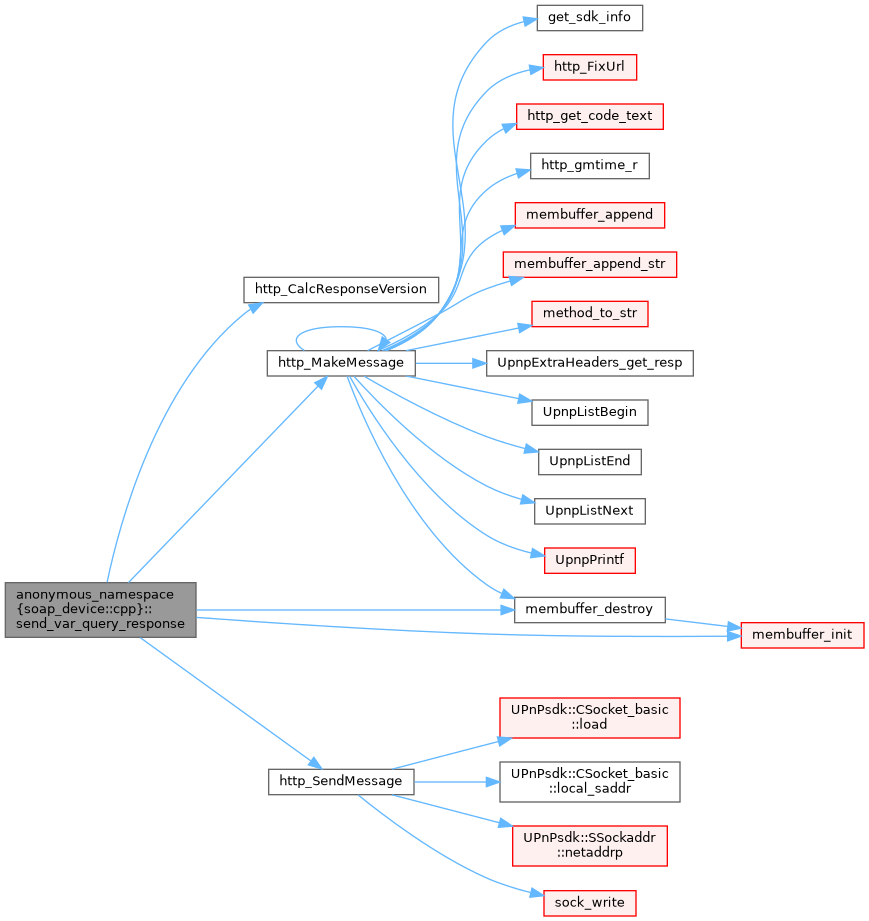

Here is the call graph for this function:

Here is the caller graph for this function:

◆ send_action_response()

void anonymous_namespace{soap_device.cpp}::send_action_response	(	SOCKINFO *	info,
		IXML_Document *	action_resp,
		http_message_t *	request
	)

inline

Sends the SOAP action response.

Parameters

[in]	info	Socket info.
[in]	action_resp	The response document.
[in]	request	Action request document.

Definition at line 239 of file soap_device.cpp.

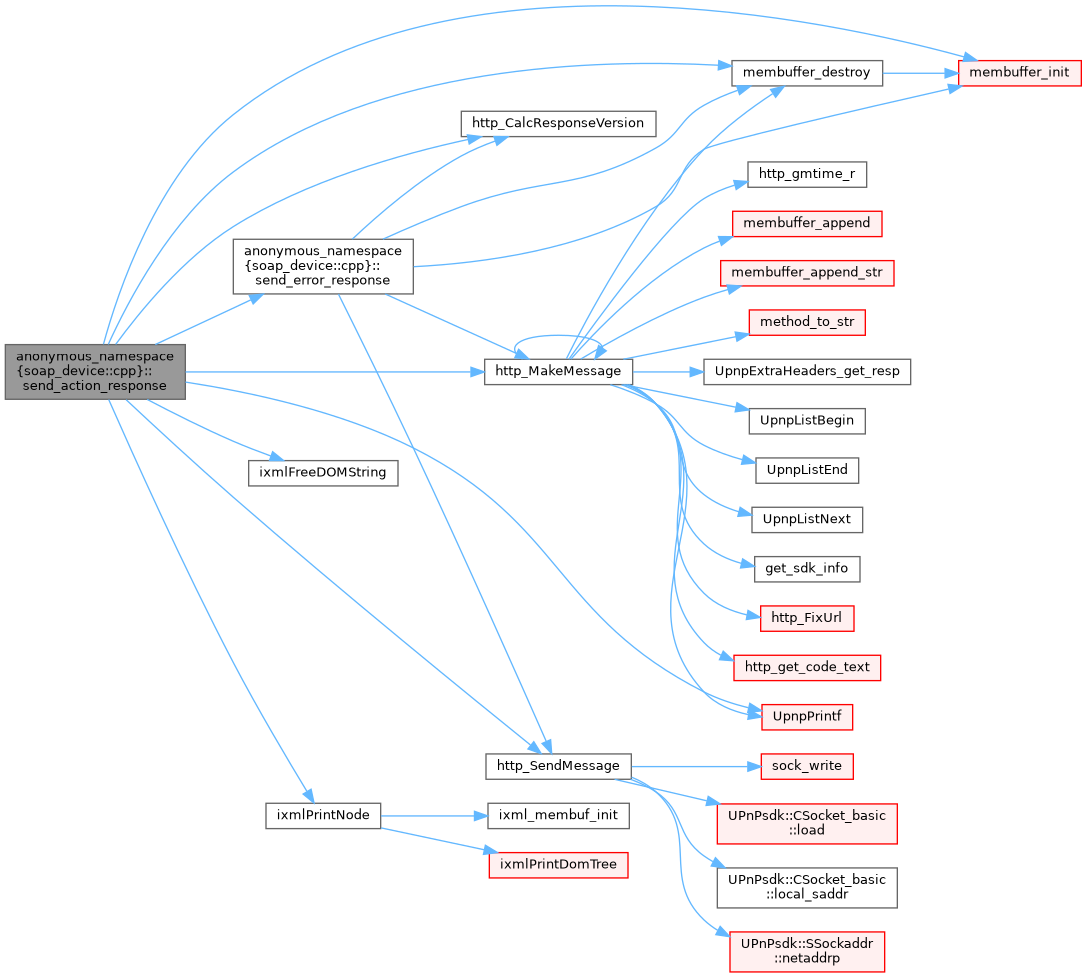

Here is the call graph for this function:

Here is the caller graph for this function:

◆ handle_query_variable()

void anonymous_namespace{soap_device.cpp}::handle_query_variable	(	SOCKINFO *	info,
		http_message_t *	request,
		soap_devserv_t *	soap_info,
		IXML_Node *	req_node
	)

inline

Handles the SOAP requests to querry the state variables.

Deprecated:: This functionality has been deprecated in the UPnP V1.0 architecture.

Parameters

[in]	info	Socket info.
[in]	request	HTTP Request.
[in]	soap_info	SOAP device/service information.
[in]	req_node	Node containing variable name.

Definition at line 302 of file soap_device.cpp.

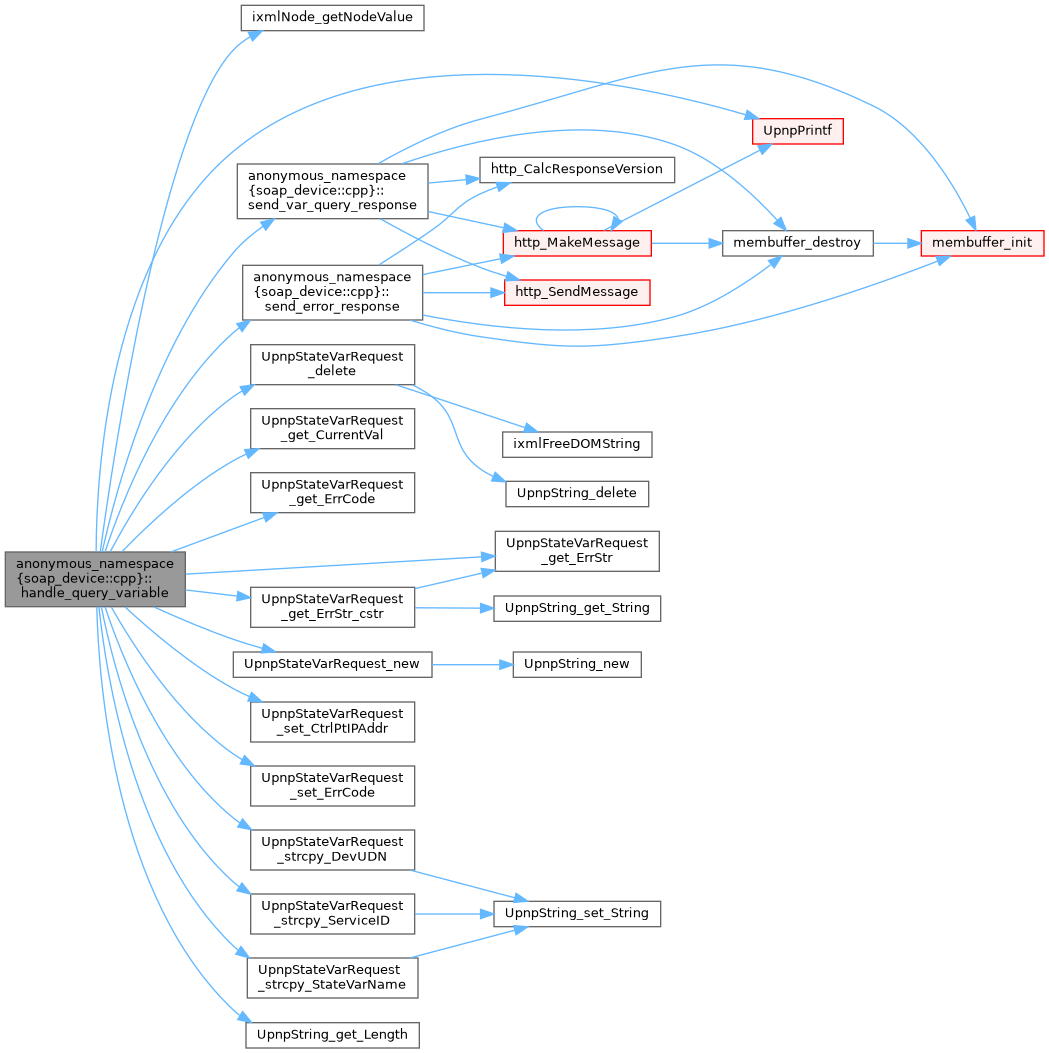

Here is the call graph for this function:

Here is the caller graph for this function:

◆ handle_invoke_action()

void anonymous_namespace{soap_device.cpp}::handle_invoke_action	(	SOCKINFO *	info,
		http_message_t *	request,
		soap_devserv_t *	soap_info,
		IXML_Node *	req_node
	)

inline

Handles the SOAP action request.

Parameters

[in]	info	Socket info.
[in]	request	HTTP Request.
[in]	soap_info	SOAP device/service information.
[in]	req_node	Node containing the SOAP action request.

Definition at line 364 of file soap_device.cpp.

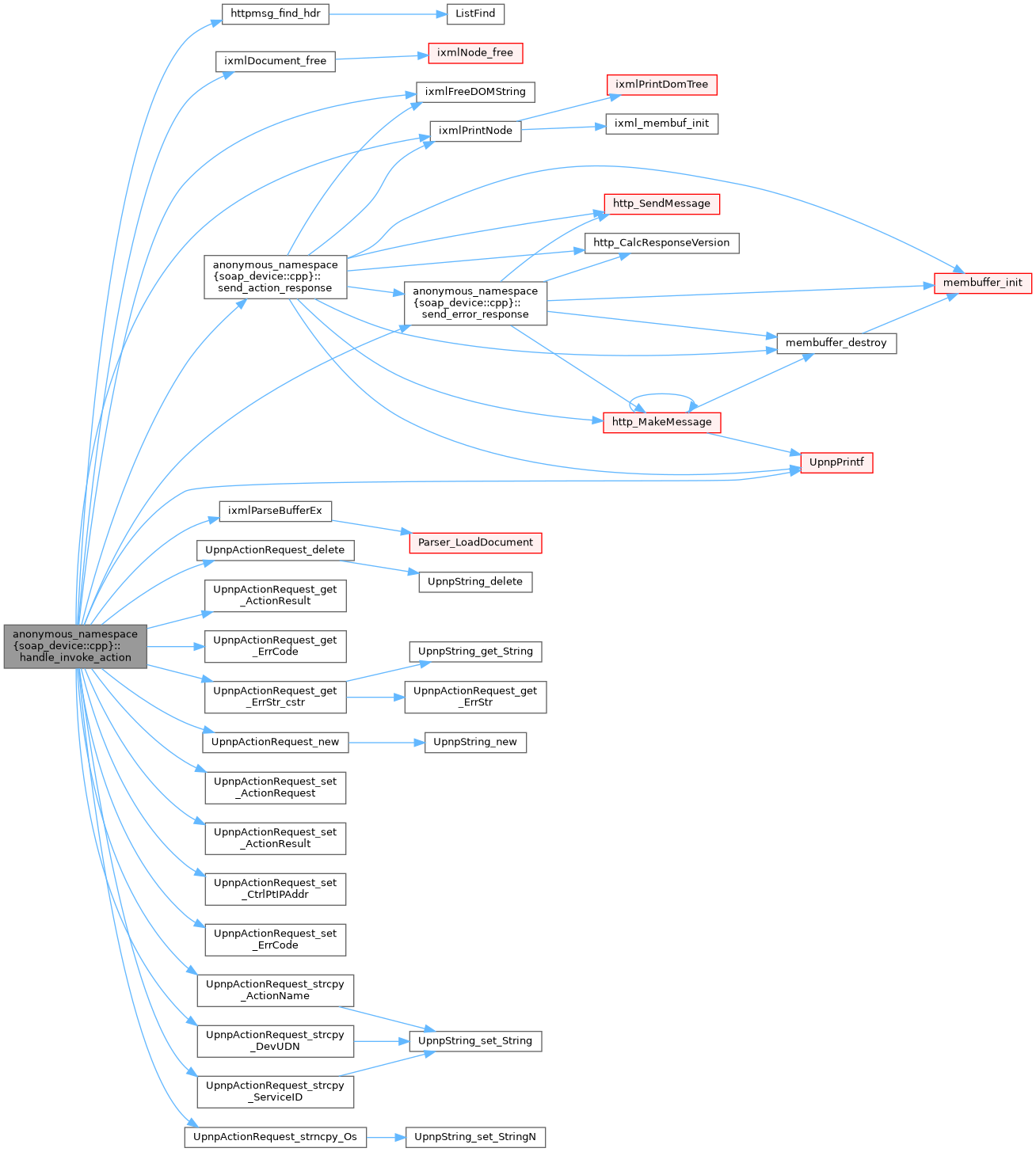

Here is the call graph for this function:

Here is the caller graph for this function:

◆ get_dev_service()

int anonymous_namespace{soap_device.cpp}::get_dev_service	(	http_message_t *	request,
		int	AddressFamily,
		soap_devserv_t *	soap_info
	)

inline

Retrieve SOAP device/service information associated with request-URI.

This includes the callback function to hand-over the request to the device application.

Returns: On success: 0
On error: -1

Parameters

[in]	request	HTTP request.
[in]	AddressFamily	Address family: AF_INET or AF_INET6.
[out]	soap_info	SOAP device/service information.

Definition at line 461 of file soap_device.cpp.

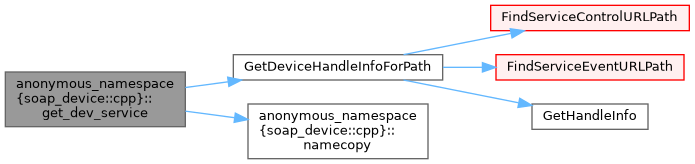

Here is the call graph for this function:

Here is the caller graph for this function:

◆ get_mpost_acton_hdrval()

int anonymous_namespace{soap_device.cpp}::get_mpost_acton_hdrval	(	http_message_t *	request,
		memptr *	val
	)

inline

Get the SOAPACTION header value for M-POST request.

Returns

On success: UPNP_E_SUCCESS
On error:

UPNP_E_OUTOF_MEMORY
SREQ_NOT_EXTENDED
SREQ_HDR_NOT_FOUND

Parameters

[in]	request	HTTP request.
[out]	val	Buffer to get the header value

Definition at line 513 of file soap_device.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ check_soapaction_hdr()

int anonymous_namespace{soap_device.cpp}::check_soapaction_hdr	(	http_message_t *	request,
		soap_devserv_t *	soap_info
	)

inline

Check header validity, get action name and version of service.

Check the header validity, and get the action name and the version of the service that the Control Point wants to use.

Returns

On success: UPNP_E_SUCCESS
On error:

UPNP_E_OUTOF_MEMORY
SREQ_NOT_EXTENDED
SREQ_HDR_NOT_FOUND
SREQ_BAD_HDR_FORMAT

Parameters

[in]	request	HTTP request.
[in,out]	soap_info	SOAP device/service information.

Definition at line 561 of file soap_device.cpp.

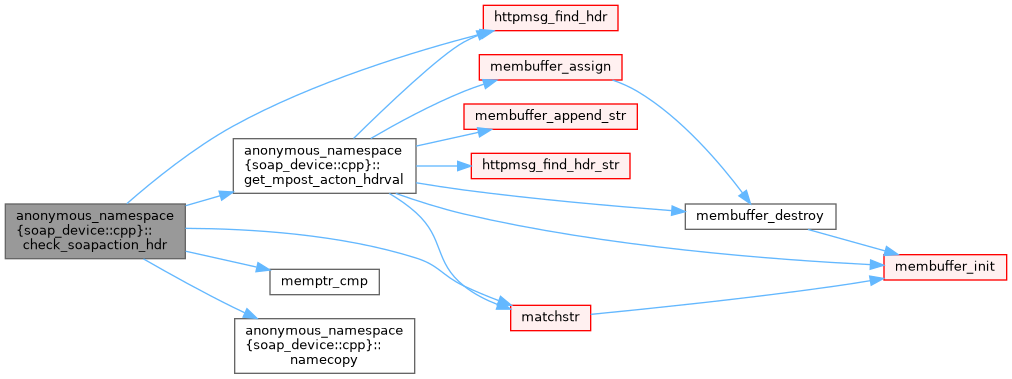

Here is the call graph for this function:

Here is the caller graph for this function:

◆ check_soap_request()

int anonymous_namespace{soap_device.cpp}::check_soap_request	(	soap_devserv_t *	soap_info,
		IXML_Document *	xml_doc,
		IXML_Node **	req_node
	)

inline

Check validity of the SOAP request per UPnP specification.

Returns: On success: 0
On error: -1

Parameters

[in]	soap_info	SOAP device/service information.
[in]	xml_doc	Document containing the SOAP action request.
[out]	req_node	Node containing the SOAP action request/variable name.

Definition at line 643 of file soap_device.cpp.

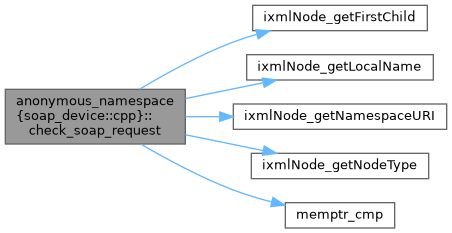

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

◆ SREQ_HDR_NOT_FOUND

constexpr int anonymous_namespace{soap_device.cpp}::SREQ_HDR_NOT_FOUND {-1}

constexpr

UPnP Device SOAP status.

Definition at line 70 of file soap_device.cpp.

◆ SREQ_BAD_HDR_FORMAT

constexpr int anonymous_namespace{soap_device.cpp}::SREQ_BAD_HDR_FORMAT {-2}

constexpr

UPnP Device SOAP status.

Definition at line 71 of file soap_device.cpp.

◆ SREQ_NOT_EXTENDED

constexpr int anonymous_namespace{soap_device.cpp}::SREQ_NOT_EXTENDED {-3}

constexpr

UPnP Device SOAP status.

Definition at line 72 of file soap_device.cpp.

◆ SOAP_INVALID_ACTION

constexpr int anonymous_namespace{soap_device.cpp}::SOAP_INVALID_ACTION {401}

constexpr

UPnP Device SOAP status.

Definition at line 74 of file soap_device.cpp.

◆ SOAP_INVALID_VAR

constexpr int anonymous_namespace{soap_device.cpp}::SOAP_INVALID_VAR {404}

constexpr

UPnP Device SOAP status.

Definition at line 77 of file soap_device.cpp.

◆ SOAP_ACTION_FAILED

constexpr int anonymous_namespace{soap_device.cpp}::SOAP_ACTION_FAILED {501}

constexpr

UPnP Device SOAP status.

Definition at line 78 of file soap_device.cpp.

◆ SOAP_MEMORY_OUT

constexpr int anonymous_namespace{soap_device.cpp}::SOAP_MEMORY_OUT {603}

constexpr

UPnP Device SOAP status.

Definition at line 79 of file soap_device.cpp.

◆ SOAP_BODY

constexpr char anonymous_namespace{soap_device.cpp}::SOAP_BODY[] {"Body"}

constexpr

UPnP Device SOAP strings.

Definition at line 84 of file soap_device.cpp.

◆ SOAP_URN

constexpr char anonymous_namespace{soap_device.cpp}::SOAP_URN[] {"http://schemas.xmlsoap.org/soap/envelope/"}

constexpr

UPnP Device SOAP strings.

Definition at line 85 of file soap_device.cpp.

◆ QUERY_STATE_VAR_URN

constexpr char anonymous_namespace{soap_device.cpp}::QUERY_STATE_VAR_URN[] {"urn:schemas-upnp-org:control-1-0"}

constexpr

UPnP Device SOAP strings.

Definition at line 86 of file soap_device.cpp.

◆ Soap_Invalid_Action

constexpr char anonymous_namespace{soap_device.cpp}::Soap_Invalid_Action[] {"Invalid Action"}

constexpr

UPnP Device SOAP strings.

Definition at line 88 of file soap_device.cpp.

◆ Soap_Action_Failed

constexpr char anonymous_namespace{soap_device.cpp}::Soap_Action_Failed[] {"Action Failed"}

constexpr

UPnP Device SOAP strings.

Definition at line 90 of file soap_device.cpp.

◆ Soap_Invalid_Var

constexpr char anonymous_namespace{soap_device.cpp}::Soap_Invalid_Var[] {"Invalid Var"}

constexpr

UPnP Device SOAP strings.

Definition at line 91 of file soap_device.cpp.

◆ Soap_Memory_out

constexpr char anonymous_namespace{soap_device.cpp}::Soap_Memory_out[] {"Out of Memory"}

constexpr

UPnP Device SOAP strings.

Definition at line 92 of file soap_device.cpp.
