Additional, optional utility API that can be helpful in writing applications. More...

#include <upnp.hpp>
#include <upnptools.hpp>
#include <ThreadPool.hpp>
#include <uri.hpp>
#include <stdarg.h>
#include <stdio.h>

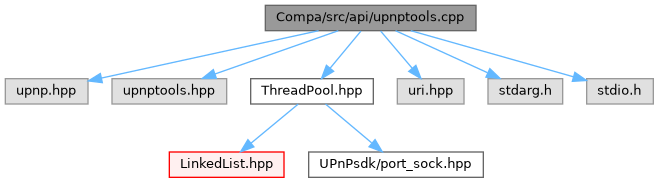

Include dependency graph for upnptools.cpp:

Go to the source code of this file.

Classes
struct	ErrorString
	Structure to maintain a error code and string associated with the error code. More...

Functions
const char *	UpnpGetErrorMessage (int rc)
	Converts an SDK error code into a string error message suitable for display. The memory returned from this function should NOT be freed.

void	UpnpSetMaxJobsTotal (int mjt)
	Sets the maximum number of jobs in the internal thread pool.

int	UpnpResolveURL (const char BaseURL, const char RelURL, char *AbsURL)
	Combines a base URL and a relative URL into a single absolute URL.

int	UpnpResolveURL2 (const char BaseURL, const char RelURL, char **AbsURL)
	Combines a base URL and a relative URL into a single absolute URL.

static int	addToAction (int response, IXML_Document *ActionDoc, const char ActionName, const char ServType, const char ArgName, const char *ArgValue)
	Adds the argument in the action request or response.

static IXML_Document *	makeAction (int response, const char ActionName, const char ServType, int NumArg, const char *Arg, va_list ArgList)
	Creates the action request or response from the argument list.

IXML_Document *	UpnpMakeAction (const char ActionName, const char ServType, int NumArg, const char *Arg,...)
	Creates an action request packet based on its input parameters (status variable name and value pair).

IXML_Document *	UpnpMakeActionResponse (const char ActionName, const char ServType, int NumArg, const char *Arg,...)
	Ceates an action response packet based on its output parameters (status variable name and value pair).

int	UpnpAddToAction (IXML_Document *ActionDoc, const char ActionName, const char ServType, const char ArgName, const char *ArgValue)
	Adds the argument in the action request.

int	UpnpAddToActionResponse (IXML_Document *ActionResponse, const char ActionName, const char ServType, const char ArgName, const char *ArgValue)
	Creates an action response packet based on its output parameters (status variable name and value pair).

IXML_Document *	UpnpCreatePropertySet (int NumArg, const char *Arg,...)
	Creates a property set message packet.

int	UpnpAddToPropertySet (IXML_Document *PropSet, const char ArgName, const char *ArgValue)
	Can be used when an application needs to transfer the status of many variables at once.

Variables
constexpr int	HEADER_LENGTH {2000}

struct ErrorString	ErrorMessages []
	Array of error structures.

Detailed Description

Additional, optional utility API that can be helpful in writing applications.

Definition in file upnptools.cpp.

Class Documentation

◆ ErrorString

struct ErrorString

Structure to maintain a error code and string associated with the error code.

Definition at line 58 of file upnptools.cpp.

Class Members
int	rc	Error code.
const char *	rcError	Error description.

Function Documentation

◆ addToAction()

static int addToAction	(	int	response,
		IXML_Document **	ActionDoc,
		const char *	ActionName,
		const char *	ServType,
		const char *	ArgName,
		const char *	ArgValue
	)

static

Adds the argument in the action request or response.

This function creates the action request or response if it is a first argument, otherwise it will add the argument in the document.

Returns: UPNP_E_SUCCESS if successful, otherwise the appropriate error.

Parameters

[in]	response	flag to tell if the ActionDoc is for response or request.
[in,out]	ActionDoc	Request or response document.
[in]	ActionName	Name of the action request or response.
[in]	ServType	Service type.
[in]	ArgName	Name of the argument.
[in]	ArgValue	Value of the argument.

Definition at line 177 of file upnptools.cpp.

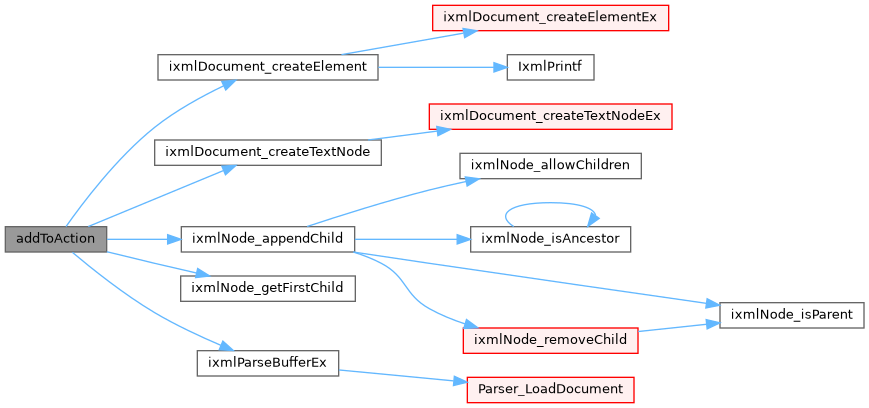

Here is the call graph for this function:

Here is the caller graph for this function:

◆ makeAction()

static IXML_Document * makeAction	(	int	response,
		const char *	ActionName,
		const char *	ServType,
		int	NumArg,
		const char *	Arg,
		va_list	ArgList
	)

static

Creates the action request or response from the argument list.

Returns: Action request or response document if successful, otherwise returns NULL

Parameters

[in]	response	flag to tell if the ActionDoc is for response or request.
[in]	ActionName	Name of the action request or response.
[in]	ServType	Service type.
[in]	NumArg	Number of arguments in the action request or response.
[in]	Arg	pointer to the first argument.
[in]	ArgList	Argument list.

Definition at line 251 of file upnptools.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

◆ HEADER_LENGTH

constexpr int HEADER_LENGTH {2000}

constexpr

Maximum action header buffer length.

Definition at line 52 of file upnptools.cpp.

◆ ErrorMessages

struct ErrorString ErrorMessages[]

Array of error structures.

Definition at line 68 of file upnptools.cpp.
