gena_ctrlpt.cpp File Reference

Manage GENA control point. More...

#include <gena.hpp>
#include <httpreadwrite.hpp>
#include <parsetools.hpp>
#include <statcodes.hpp>
#include <upnpapi.hpp>
#include <uuid.hpp>

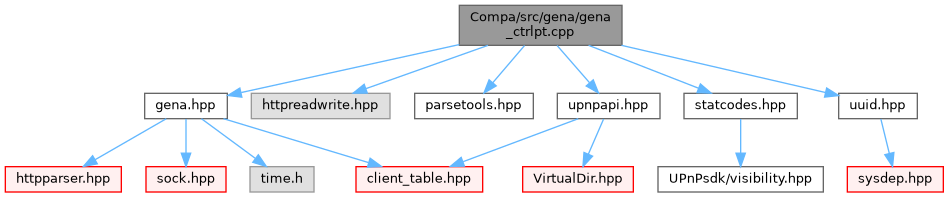

Include dependency graph for gena_ctrlpt.cpp:

Go to the source code of this file.

Classes
struct	job_arg
	job_arg More...

Functions
void	anonymous_namespace{gena_ctrlpt.cpp}::free_subscribe_arg (job_arg *arg)
	Free memory associated with job's argument.
void	anonymous_namespace{gena_ctrlpt.cpp}::GenaAutoRenewSubscription (void *input)
	This is a thread function to send the renewal just before the subscription times out.
int	anonymous_namespace{gena_ctrlpt.cpp}::ScheduleGenaAutoRenew (int client_handle, int TimeOut, GenlibClientSubscription *sub)
	Schedules a job to renew the subscription just before time out.
int	anonymous_namespace{gena_ctrlpt.cpp}::gena_unsubscribe (const UpnpString *url, const UpnpString *sid, http_parser_t *response)
	Sends the UNSUBCRIBE gena request and recieves the response from the device and returns it as a parameter.
int	anonymous_namespace{gena_ctrlpt.cpp}::gena_subscribe (const UpnpString *url, int *timeout, const UpnpString *renewal_sid, UpnpString *sid)
	Subscribes or renew subscription.
int	clientSubscribeMutexInit ()
	Initialize the client subsribe mutex.
int	clientSubscribeMutexDestroy ()
	Destroy the client subsribe mutex.
int	genaUnregisterClient (UpnpClient_Handle client_handle)
	Unsubcribes all the outstanding subscriptions and cleans the subscription list.
int	genaUnSubscribe (UpnpClient_Handle client_handle, const UpnpString *in_sid)
	Unsubscribes a SID.
int	genaSubscribe (UpnpClient_Handle client_handle, const UpnpString *PublisherURL, int *TimeOut, UpnpString *out_sid)
	This function subscribes to a PublisherURL (also mentioned as EventURL in some places).
int	genaRenewSubscription (UpnpClient_Handle client_handle, const UpnpString *in_sid, int *TimeOut)
	Renews a SID.
void	gena_process_notification_event (SOCKINFO *info, http_message_t *event)
	This function processes NOTIFY events that are sent by devices.

Variables
pthread_mutex_t	anonymous_namespace{gena_ctrlpt.cpp}::ctrlpntSubscribe_mutex {}
	Mutex to synchronize the subscription handling at the control point side.

Detailed Description

Manage GENA control point.

Definition in file gena_ctrlpt.cpp.

---

Class Documentation

job_arg

struct job_arg

job_arg

Definition at line 377 of file upnpapi.cpp.

Collaboration diagram for job_arg:

Class Members
struct job_arg.advertise	advertise	advertise
struct UpnpNonblockParam	action	UpnpNonblockParam.
int	handle
int	eventId
void *	Event

Function Documentation

clientSubscribeMutexInit()

int clientSubscribeMutexInit

(

)

Initialize the client subsribe mutex.

Definition at line 415 of file gena_ctrlpt.cpp.

Here is the caller graph for this function:

clientSubscribeMutexDestroy()

int clientSubscribeMutexDestroy

(

)

Destroy the client subsribe mutex.

Definition at line 427 of file gena_ctrlpt.cpp.

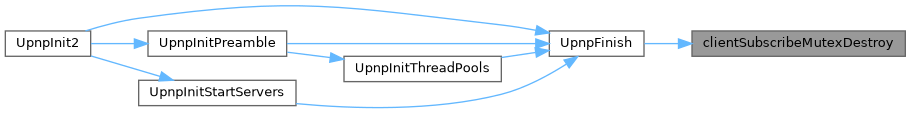

Here is the caller graph for this function:

genaUnregisterClient()

int genaUnregisterClient

(

UpnpClient_Handle

client_handle

)

Unsubcribes all the outstanding subscriptions and cleans the subscription list.

This function is called when control point unregisters.

Returns

UPNP_E_SUCCESS if successful, otherwise returns the appropriate error code.

Parameters

[in]

client_handle

Handle containing all the control point related information.

Definition at line 431 of file gena_ctrlpt.cpp.

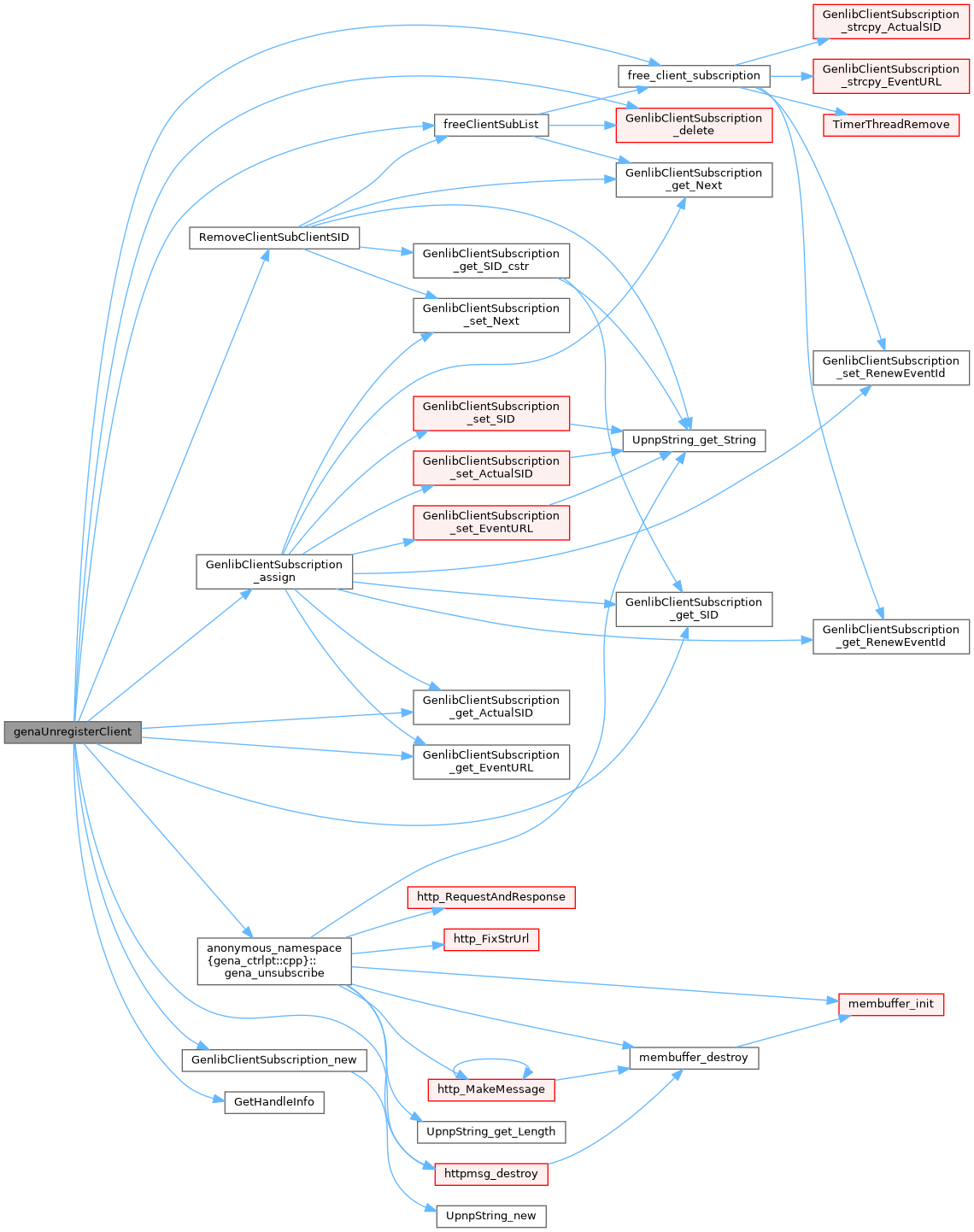

Here is the call graph for this function:

Here is the caller graph for this function:

genaUnSubscribe()

int genaUnSubscribe	(	UpnpClient_Handle	client_handle,
		const UpnpString *	in_sid
	)

Unsubscribes a SID.

It first validates the SID and client_handle,copies the subscription, sends UNSUBSCRIBE http request to service processes request and finally removes the subscription.

Returns

UPNP_E_SUCCESS if service response is OK, otherwise returns the appropriate error code.

Parameters

[in]	client_handle	UPnP client handle.
[in]	in_sid	The subscription ID.

Definition at line 472 of file gena_ctrlpt.cpp.

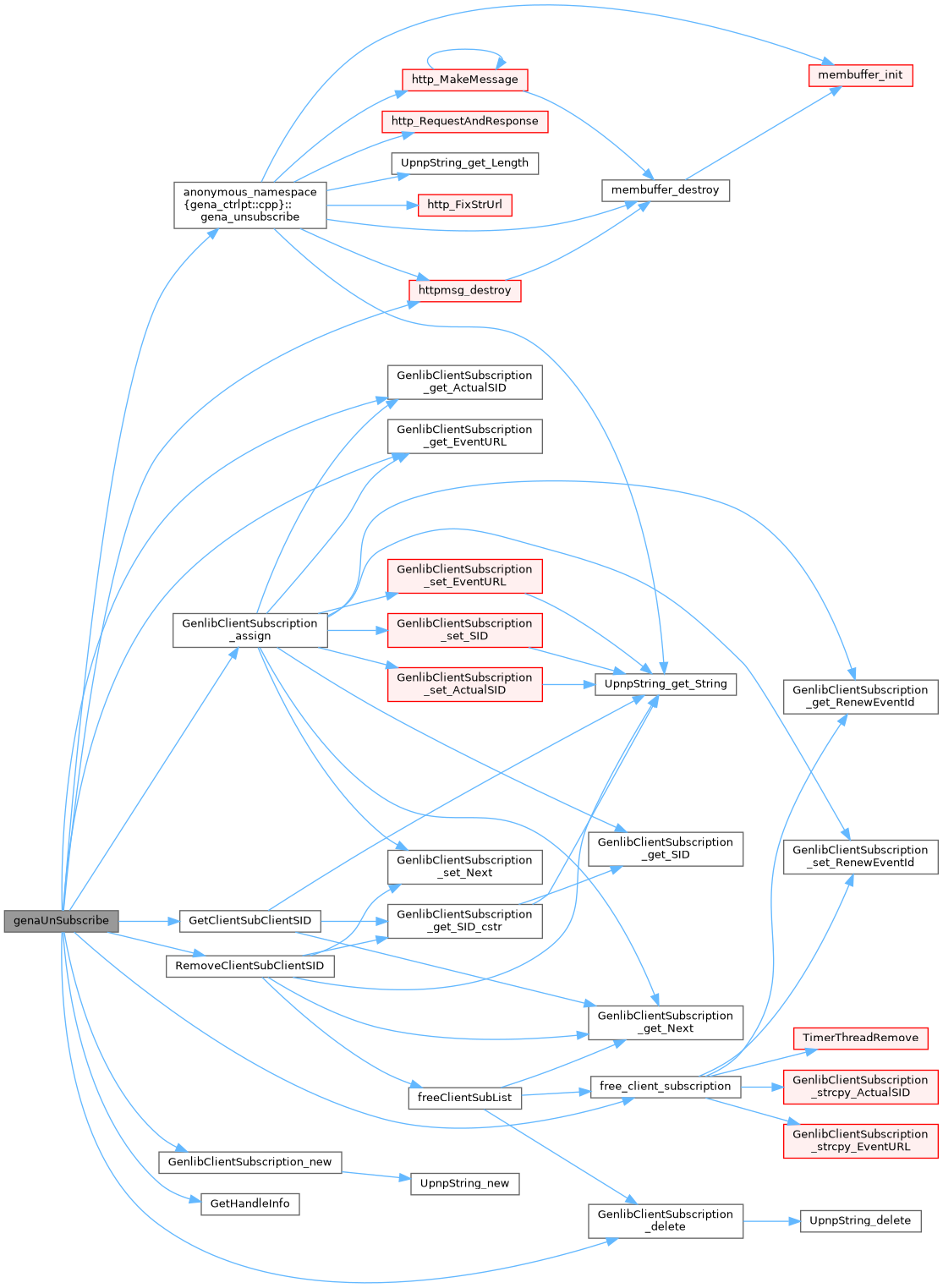

Here is the call graph for this function:

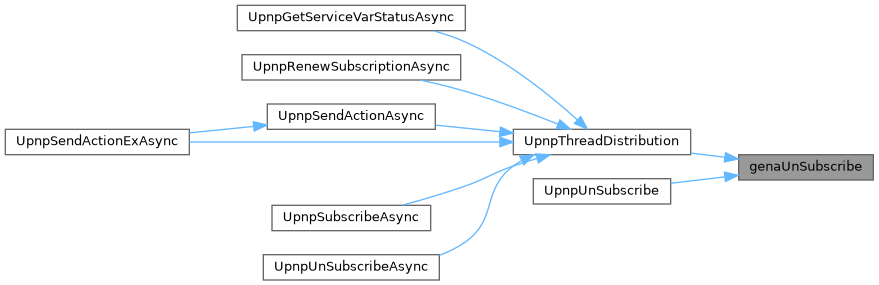

Here is the caller graph for this function:

genaSubscribe()

int genaSubscribe	(	UpnpClient_Handle	client_handle,
		const UpnpString *	PublisherURL,
		int *	TimeOut,
		UpnpString *	out_sid
	)

This function subscribes to a PublisherURL (also mentioned as EventURL in some places).

It sends SUBSCRIBE http request to service processes request. Finally adds a Subscription to the clients subscription list, if service responds with OK.

Returns

UPNP_E_SUCCESS if service response is OK, otherwise returns the appropriate error code

Parameters

[in]	client_handle	The client handle.
[in]	PublisherURL	Of the form: "http://134.134.156.80:4000/RedBulb/Event"
[in,out]	TimeOut	requested Duration: if -1, then "infinite". in the OUT case: actual Duration granted by Service, -1 for infinite.
[out]	out_sid	sid of subscription, memory passed in by caller.

Definition at line 517 of file gena_ctrlpt.cpp.

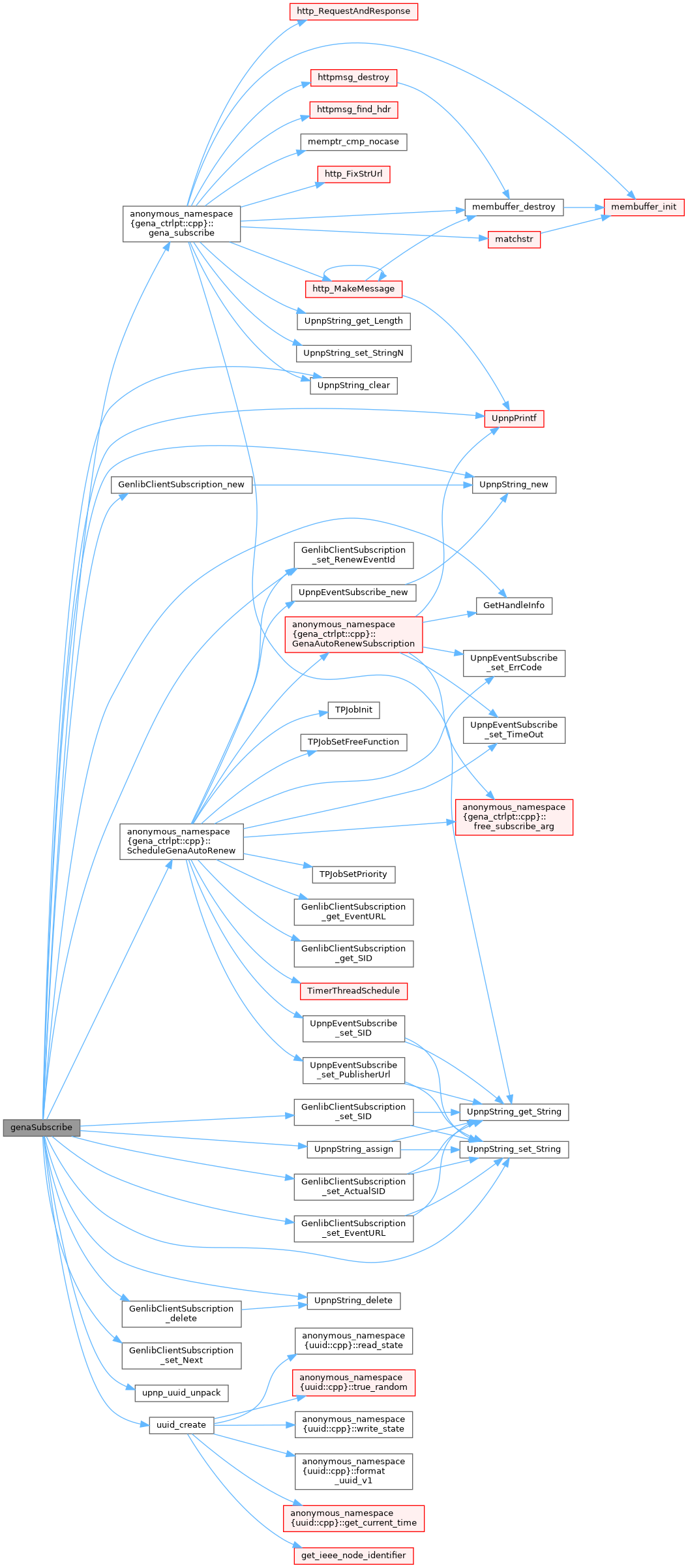

Here is the call graph for this function:

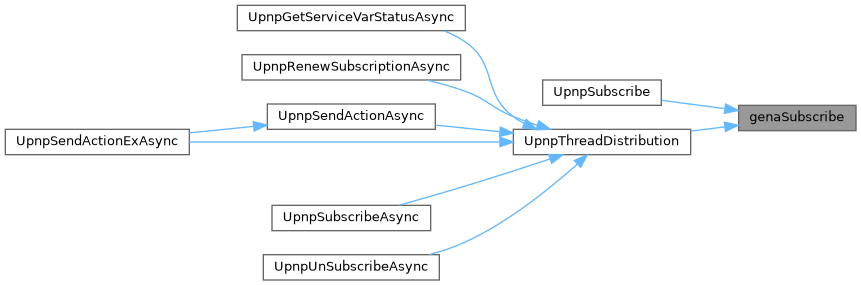

Here is the caller graph for this function:

genaRenewSubscription()

int genaRenewSubscription	(	UpnpClient_Handle	client_handle,
		const UpnpString *	in_sid,
		int *	TimeOut
	)

Renews a SID.

It first validates the SID and client_handle and copies the subscription. It sends RENEW (modified SUBSCRIBE) http request to service and processes the response.

Returns

UPNP_E_SUCCESS if service response is OK, otherwise the appropriate error code.

Parameters

[in]	client_handle	Client handle.
[in]	in_sid	Subscription ID.
[in,out]	TimeOut	requested Duration, if -1, then "infinite". In the OUT case: actual Duration granted by Service, -1 for infinite.

Definition at line 614 of file gena_ctrlpt.cpp.

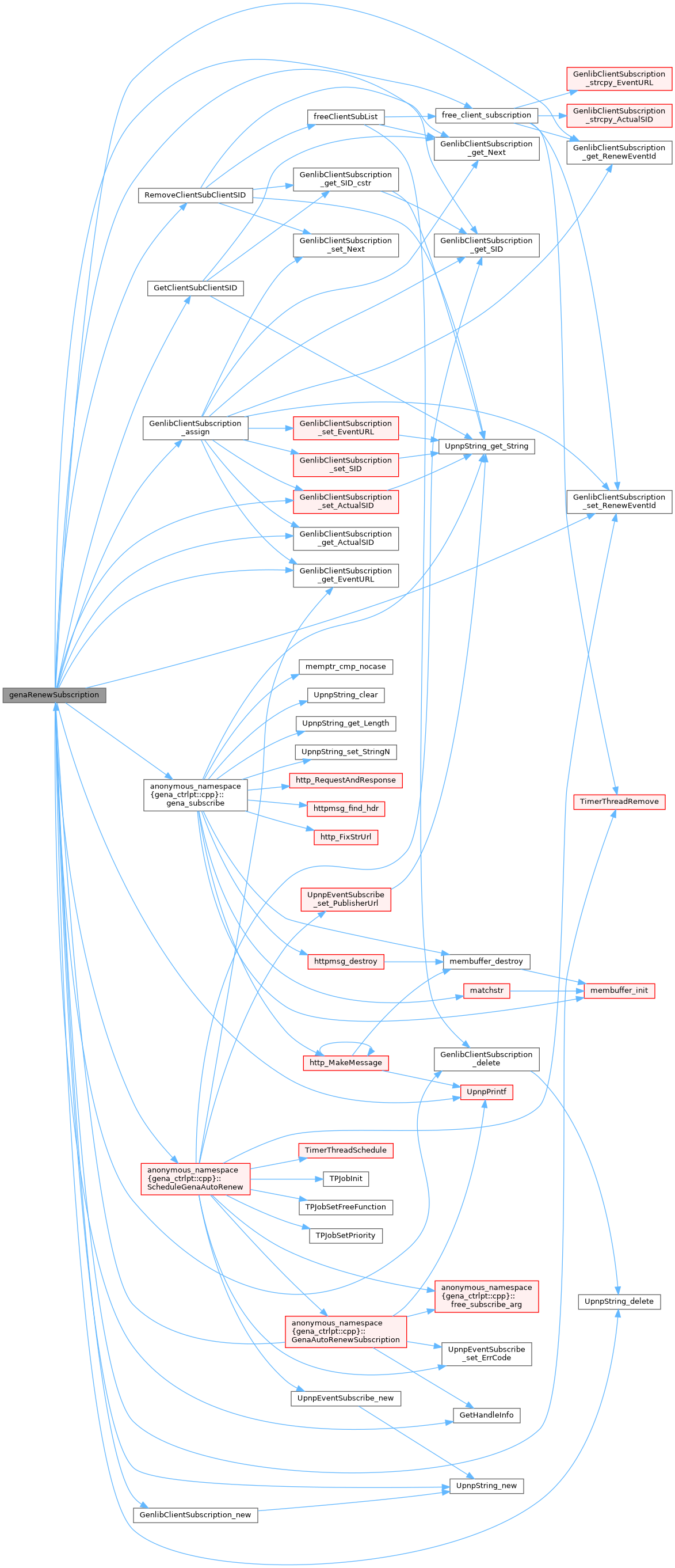

Here is the call graph for this function:

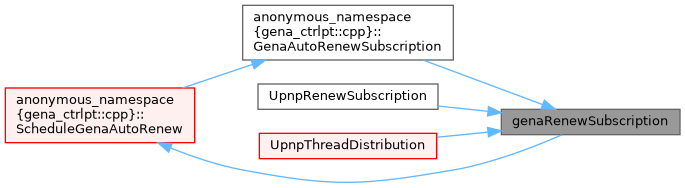

Here is the caller graph for this function:

gena_process_notification_event()

void gena_process_notification_event	(	SOCKINFO *	info,
		http_message_t *	event
	)

This function processes NOTIFY events that are sent by devices.

Parameters: IN SOCKINFO *info: Socket structure containing the device socket information IN http_message_t *event: The http message contains the GENA notification

Note

called by genacallback()

Parameters

[in]	info	Socket info of the device.
[in]	event	The http message contains the GENA notification.

Definition at line 705 of file gena_ctrlpt.cpp.

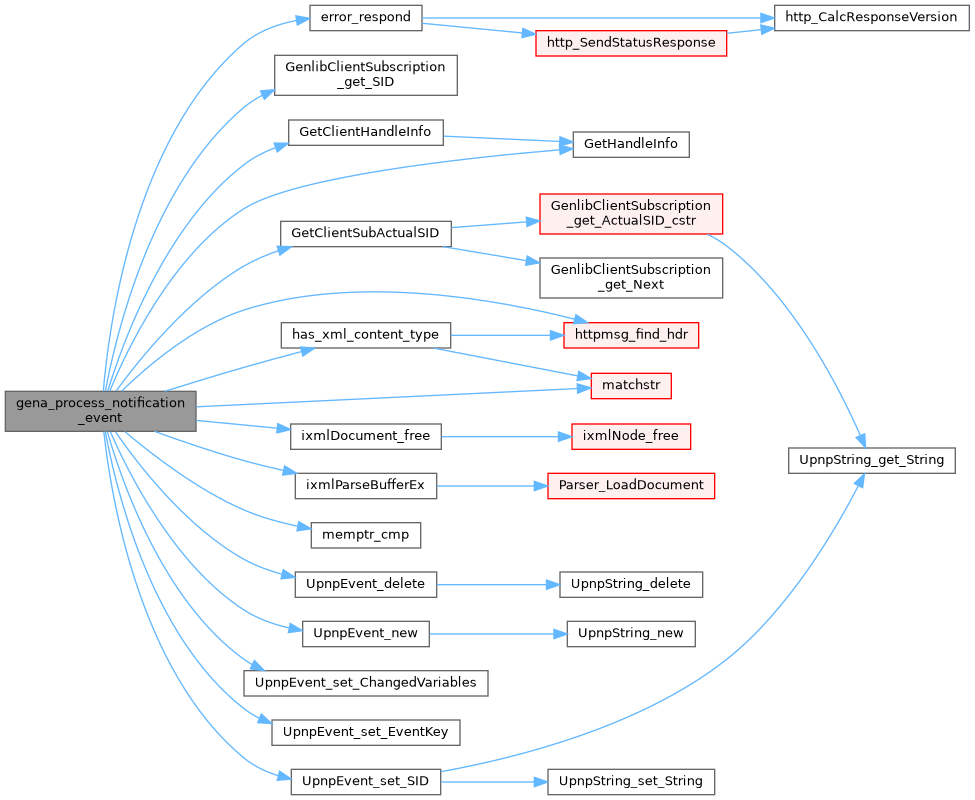

Here is the call graph for this function:

Here is the caller graph for this function:
