FreeList.hpp File Reference

Manage a free list (for internal use only). More...

#include <UPnPsdk/pthread.hpp>

Include dependency graph for FreeList.hpp:

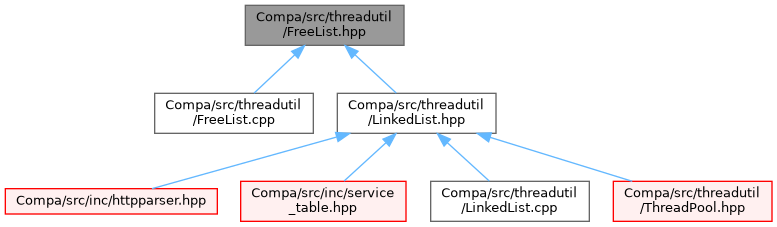

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	FreeListNode
	Free list node. points to next free item. More...
struct	FreeList
	Stores head and size of free list, as well as mutex for protection. More...

Functions
int	FreeListInit (FreeList *free_list, size_t elementSize, int maxFreeListLength)
	Initializes Free List.
void *	FreeListAlloc (FreeList *free_list)
	Allocates chunk of set size.
int	FreeListFree (FreeList *free_list, void *element)
	Returns an item to the Free List.
int	FreeListDestroy (FreeList *free_list)
	Releases the resources stored with the free list.

Detailed Description

Manage a free list (for internal use only).

Because this is for internal use, parameters are NOT checked for validity. The caller must ensure valid parameters.

Definition in file FreeList.hpp.

---

Class Documentation

FreeListNode

struct FreeListNode

Free list node. points to next free item.

Memory for node is borrowed from allocated items.

Definition at line 55 of file FreeList.hpp.

Collaboration diagram for FreeListNode:

Class Members
struct FreeListNode *	next

FreeList

struct FreeList

Stores head and size of free list, as well as mutex for protection.

Definition at line 63 of file FreeList.hpp.

Collaboration diagram for FreeList:

Class Members
FreeListNode *	head
size_t	element_size
int	maxFreeListLength
int	freeListLength

Function Documentation

FreeListInit()

int FreeListInit	(	FreeList *	free_list,
		size_t	elementSize,
		int	maxFreeListLength
	)

Initializes Free List.

Must be called first and only once for FreeList.

Returns

On success: 0
On error: EINVAL

Parameters

[in]	free_list	Must be valid, non null, pointer to a linked list.
[in]	elementSize	Size of elements to store in free list.
[in]	maxFreeListLength	Max size that the free list can grow to before returning memory to the operating system

Definition at line 50 of file FreeList.cpp.

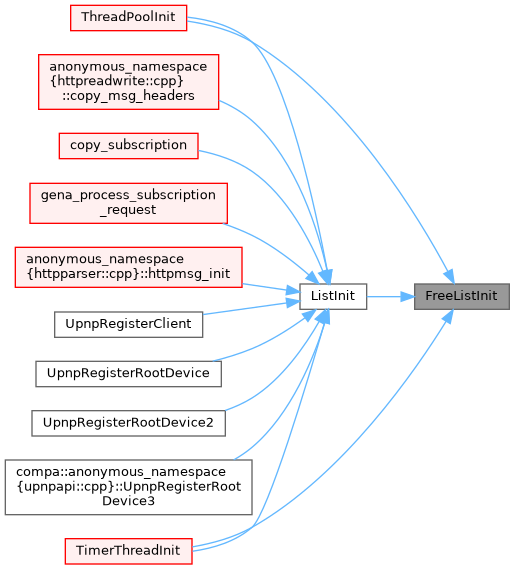

Here is the caller graph for this function:

FreeListAlloc()

void * FreeListAlloc

(

FreeList *

free_list

)

Allocates chunk of set size.

If a free item is available in the list, returnes the stored item, otherwise calls the operating system to allocate memory.

Returns

On success: Non nullptr
On error: nullptr

Parameters

[in]

free_list

Must be valid, non null, pointer to a linked list.

Definition at line 64 of file FreeList.cpp.

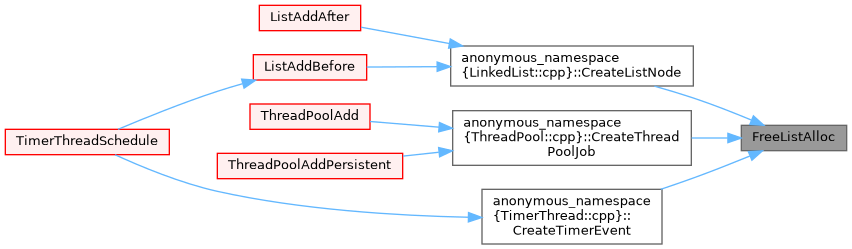

Here is the caller graph for this function:

FreeListFree()

int FreeListFree	(	FreeList *	free_list,
		void *	element
	)

Returns an item to the Free List.

If the free list is smaller than the max size then adds the item to the free list, otherwise returns the item to the operating system.

Returns

On success: 0
On error: EINVAL

Parameters

[in]	free_list	Must be valid, non null, pointer to a free list.
[in]	element	Must be a pointer allocated by FreeListAlloc.

Definition at line 83 of file FreeList.cpp.

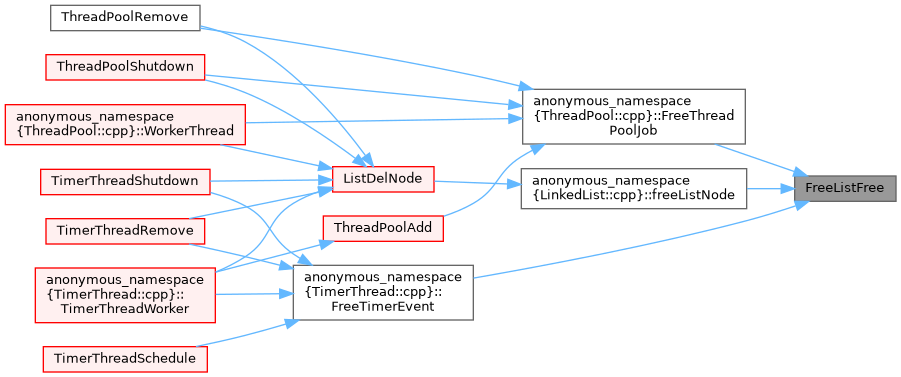

Here is the caller graph for this function:

FreeListDestroy()

int FreeListDestroy

(

FreeList *

free_list

)

Releases the resources stored with the free list.

Returns

On success: 0
On error: EINVAL

Parameters

[in]

free_list

Must be valid, non null, pointer to a linked list.

Definition at line 103 of file FreeList.cpp.

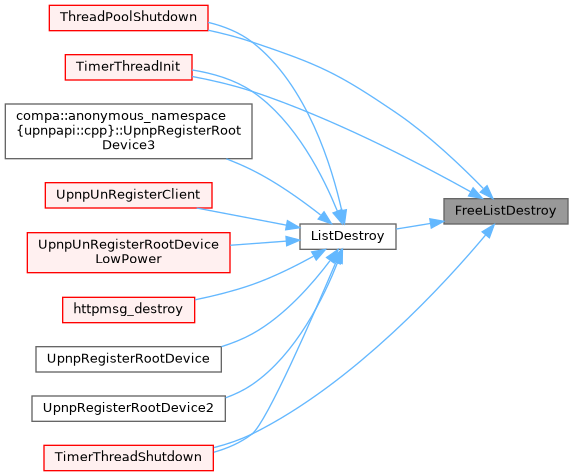

Here is the caller graph for this function:
