Manage Eventing with GENA, the General Event Notification Architecture. More...

#include <time.h>
#include <client_table.hpp>
#include <httpparser.hpp>
#include <sock.hpp>

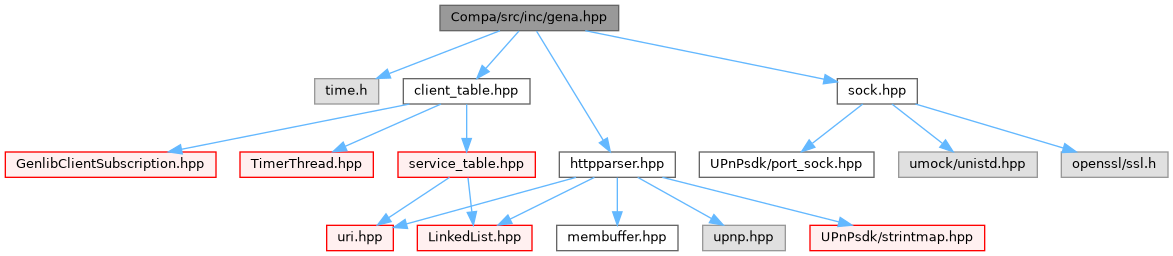

Include dependency graph for gena.hpp:

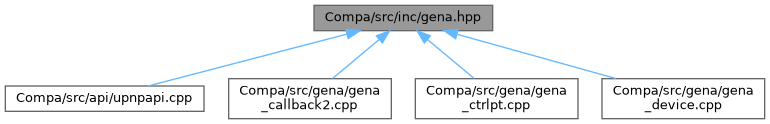

This graph shows which files directly or indirectly include this file:

Classes
struct	NOTIFY_THREAD_STRUCT

Macros
#define	XML_VERSION "<?xml version='1.0' encoding='ISO-8859-1' ?>\n"
	XML version comment. Not used because it is not interoperable with other UPnP vendors.


#define	XML_PROPERTYSET_HEADER "<e:propertyset xmlns:e=\"urn:schemas-upnp-org:event-1-0\">\n"

#define	UNABLE_MEMORY "HTTP/1.1 500 Internal Server Error\r\n\r\n"

#define	UNABLE_SERVICE_UNKNOWN "HTTP/1.1 404 Not Found\r\n\r\n"

#define	UNABLE_SERVICE_NOT_ACCEPT "HTTP/1.1 503 Service Not Available\r\n\r\n"

#define	NOT_IMPLEMENTED "HTTP/1.1 501 Not Implemented\r\n\r\n"

#define	BAD_REQUEST "HTTP/1.1 400 Bad Request\r\n\r\n"

#define	INVALID_NT BAD_CALLBACK

#define	BAD_CALLBACK "HTTP/1.1 412 Precondition Failed\r\n\r\n"

#define	HTTP_OK_CRLF "HTTP/1.1 200 OK\r\n\r\n"

#define	HTTP_OK_STR "HTTP/1.1 200 OK\r\n"

#define	INVALID_SID BAD_CALLBACK

#define	MISSING_SID BAD_CALLBACK

#define	MAX_CONTENT_LENGTH 20

#define	MAX_SECONDS 10

#define	MAX_EVENTS 20

#define	MAX_PORT_SIZE 10

#define	GENA_E_BAD_RESPONSE UPNP_E_BAD_RESPONSE

#define	GENA_E_BAD_SERVICE UPNP_E_INVALID_SERVICE

#define	GENA_E_SUBSCRIPTION_UNACCEPTED UPNP_E_SUBSCRIBE_UNACCEPTED

#define	GENA_E_BAD_SID UPNP_E_INVALID_SID

#define	GENA_E_UNSUBSCRIBE_UNACCEPTED UPNP_E_UNSUBSCRIBE_UNACCEPTED

#define	GENA_E_NOTIFY_UNACCEPTED UPNP_E_NOTIFY_UNACCEPTED

#define	GENA_E_NOTIFY_UNACCEPTED_REMOVE_SUB -9

#define	GENA_E_BAD_HANDLE UPNP_E_INVALID_HANDLE

#define	XML_ERROR -5

#define	XML_SUCCESS UPNP_E_SUCCESS

#define	GENA_SUCCESS UPNP_E_SUCCESS

#define	CALLBACK_SUCCESS 0

#define	DEFAULT_TIMEOUT 1801

Typedefs
typedef struct NOTIFY_THREAD_STRUCT	notify_thread_struct

Functions
int	clientSubscribeMutexInit ()
	Initialize the client subsribe mutex.

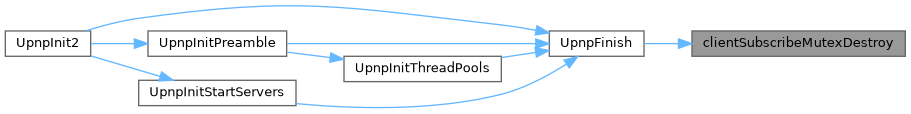

int	clientSubscribeMutexDestroy ()
	Destroy the client subsribe mutex.

void	genaCallback (http_parser_t parser, http_message_t request, SOCKINFO *info)
	This is the callback function called by the miniserver to handle incoming GENA requests.

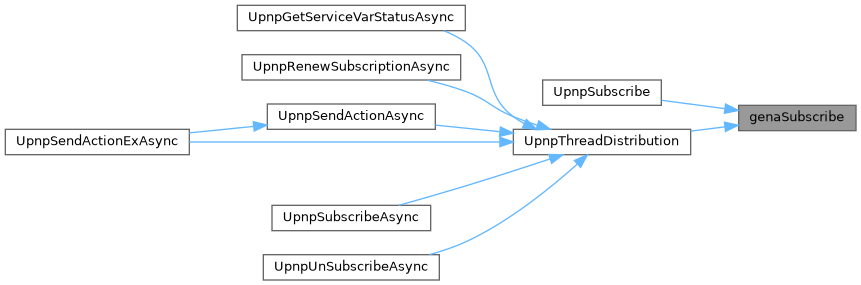

int	genaSubscribe (UpnpClient_Handle client_handle, const UpnpString PublisherURL, int TimeOut, UpnpString *out_sid)
	This function subscribes to a PublisherURL (also mentioned as EventURL in some places).

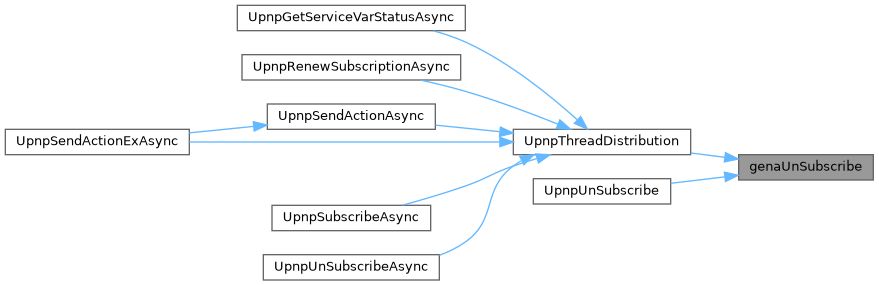

int	genaUnSubscribe (UpnpClient_Handle client_handle, const UpnpString *in_sid)
	Unsubscribes a SID.

int	genaUnregisterClient (UpnpClient_Handle client_handle)
	Unsubcribes all the outstanding subscriptions and cleans the subscription list.

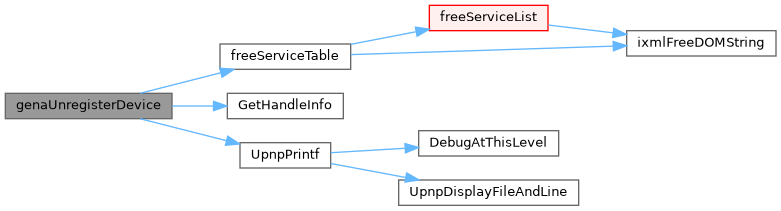

int	genaUnregisterDevice (UpnpDevice_Handle device_handle)
	Cleans the service table of the device.

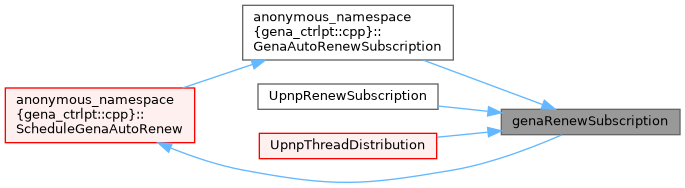

int	genaRenewSubscription (UpnpClient_Handle client_handle, const UpnpString in_sid, int TimeOut)
	Renews a SID.

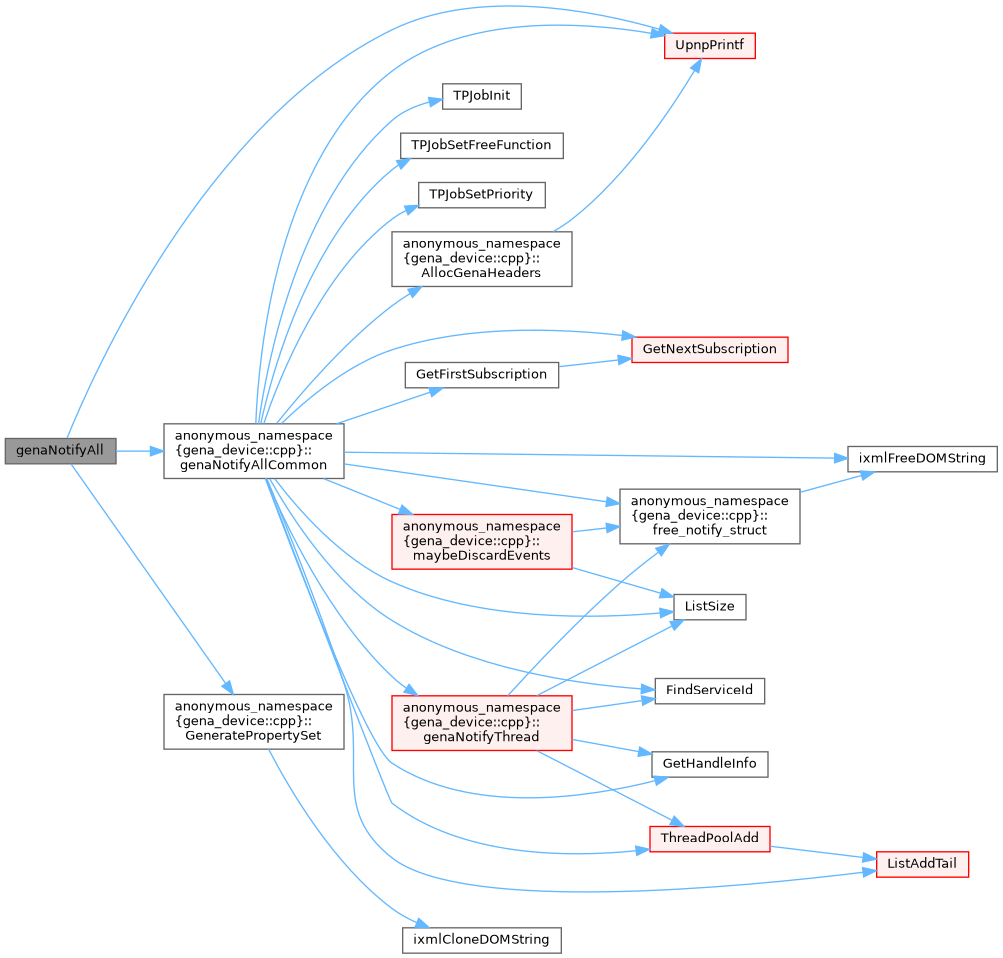

int	genaNotifyAll (UpnpDevice_Handle device_handle, char UDN, char servId, char VarNames, char VarValues, int var_count)
	Sends a notification to all the subscribed control points.

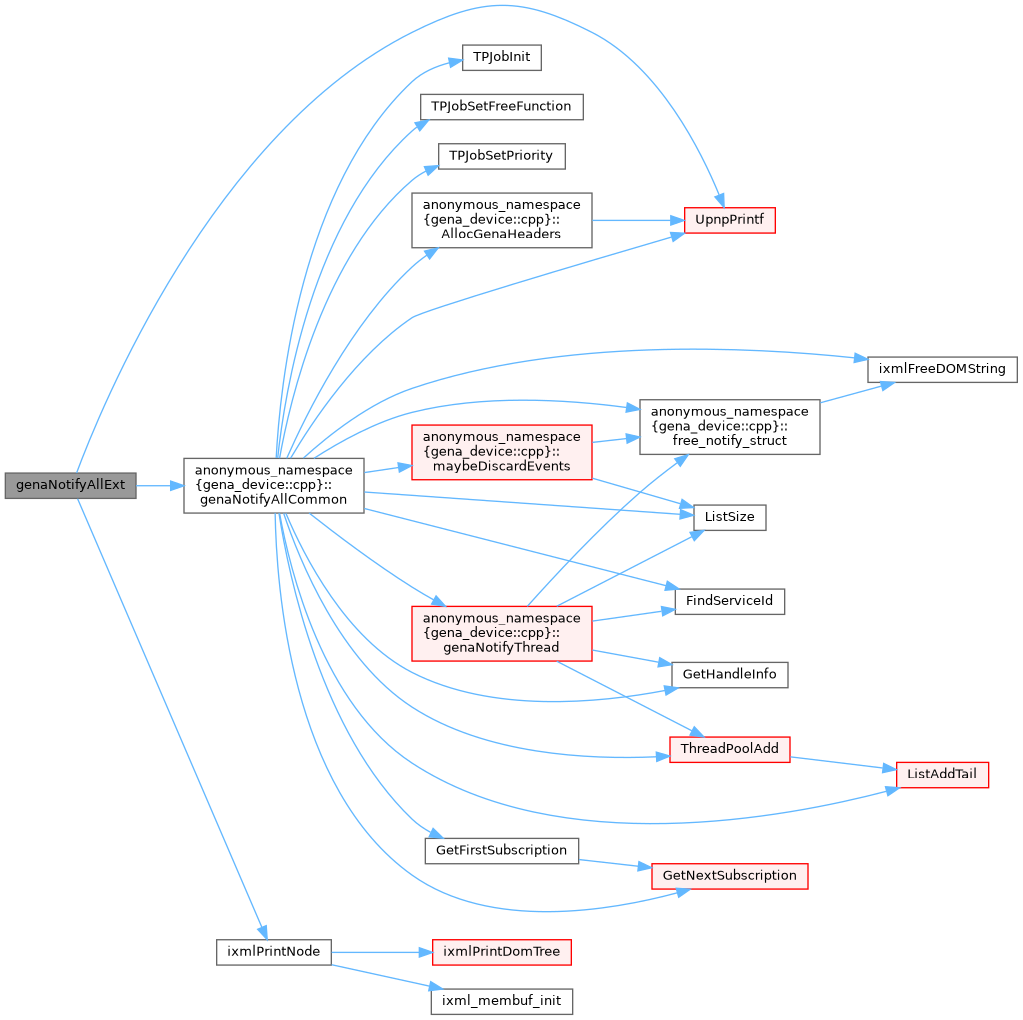

int	genaNotifyAllExt (UpnpDevice_Handle device_handle, char UDN, char servId, IXML_Document *PropSet)
	Sends a notification to all the subscribed control points.

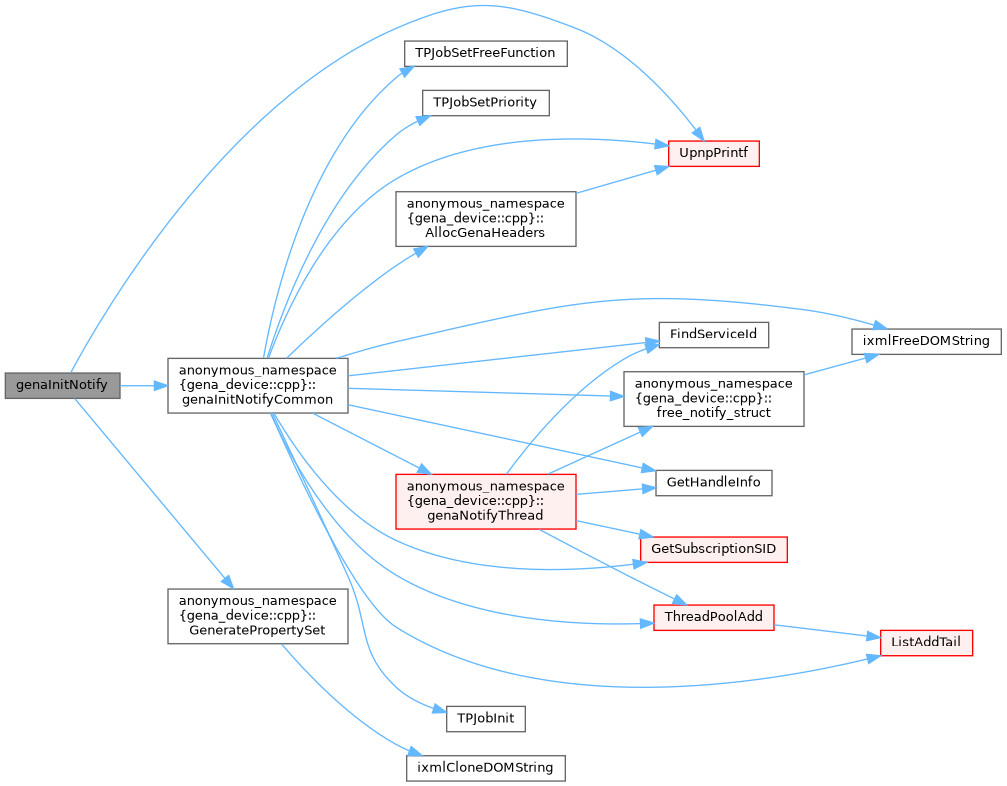

int	genaInitNotify (UpnpDevice_Handle device_handle, char UDN, char servId, char VarNames, char VarValues, int var_count, const Upnp_SID sid)
	Sends the intial state table dump to newly subscribed control point.

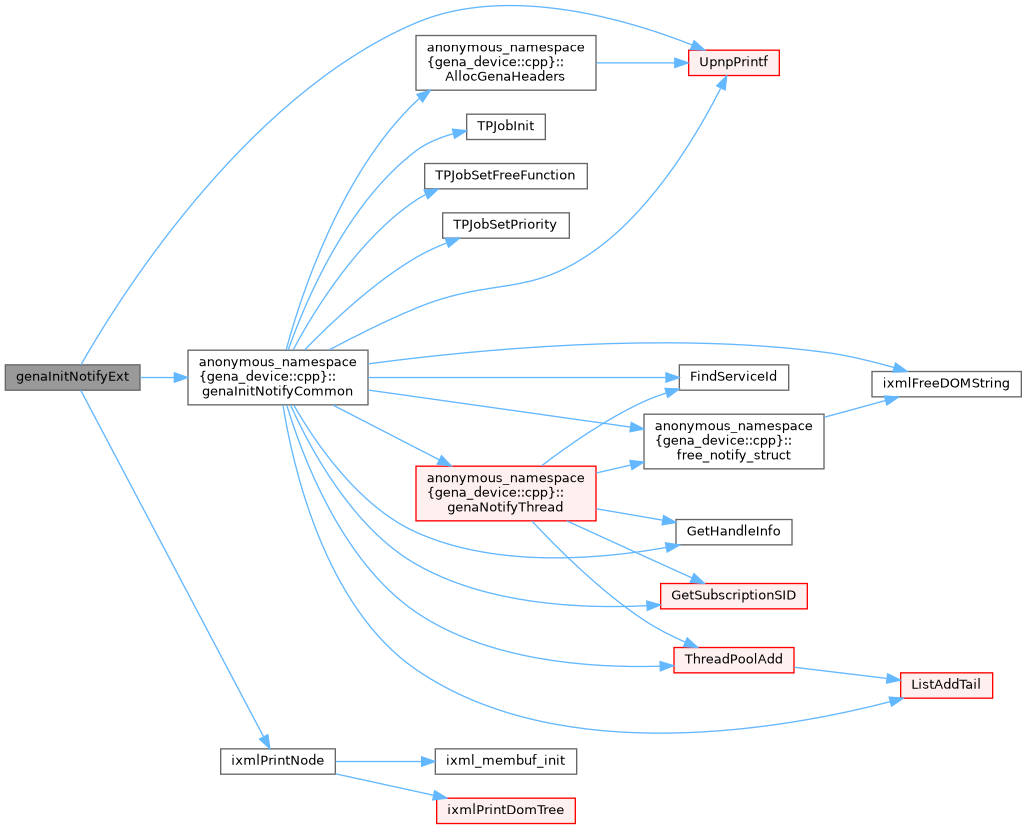

int	genaInitNotifyExt (UpnpDevice_Handle device_handle, char UDN, char servId, IXML_Document *PropSet, const Upnp_SID sid)
	Similar to the genaInitNofity. The only difference is that it takes the xml document for the state table and sends the intial state table dump to newly subscribed control point.

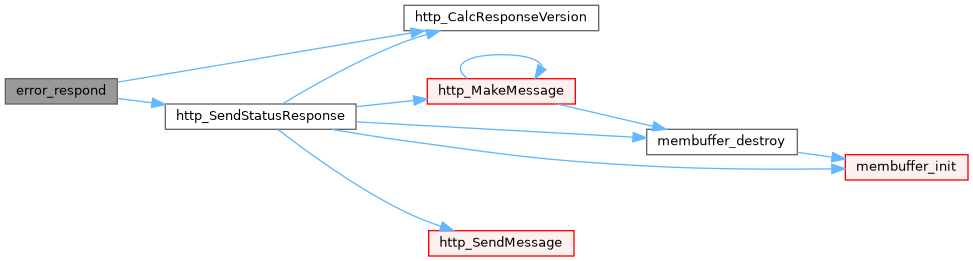

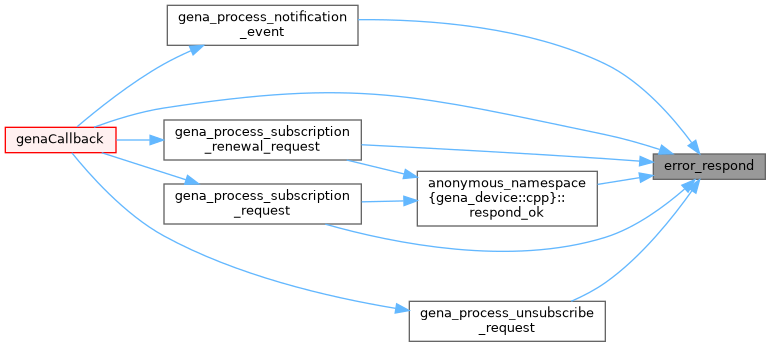

void	error_respond (SOCKINFO info, int error_code, http_message_t hmsg)
	Sends an error message to the control point in the case of incorrect GENA requests.

Detailed Description

Manage Eventing with GENA, the General Event Notification Architecture.

Definition in file gena.hpp.

Class Documentation

◆ NOTIFY_THREAD_STRUCT

struct NOTIFY_THREAD_STRUCT

Structure to send NOTIFY message to all subscribed control points

Definition at line 92 of file gena.hpp.

Class Members
char *	headers	Member of notify thread structure
DOMString	propertySet	Member of notify thread structure
char *	servId	Member of notify thread structure
char *	UDN	Member of notify thread structure
Upnp_SID	sid	Member of notify thread structure
time_t	ctime	Member of notify thread structure
int *	reference_count	Member of notify thread structure
UpnpDevice_Handle	device_handle	Member of notify thread structure

Macro Definition Documentation

◆ XML_VERSION

#define XML_VERSION "<?xml version='1.0' encoding='ISO-8859-1' ?>\n"

XML version comment. Not used because it is not interoperable with other UPnP vendors.

Definition at line 49 of file gena.hpp.
