soap_ctrlpt.hpp File Reference

SOAP declarations for Control Points using SOAP. More...

#include <ixml/ixml.hpp>

Include dependency graph for soap_ctrlpt.hpp:

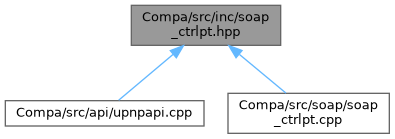

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
int	SoapSendAction (char *action_url, char *service_type, IXML_Document *action_node, IXML_Document **response_node)
	This function is called by UPnP API to send the SOAP action request.
int	SoapSendActionEx (char *action_url, char *service_type, IXML_Document *header, IXML_Document *action_node, IXML_Document **response_node)
	This extended function is called by UPnP API to send the SOAP action request.
int	SoapGetServiceVarStatus (char *action_url, DOMString var_name, DOMString *var_value)
	This function creates a status variable query message send it to the specified URL. It also collect the response.

Detailed Description

SOAP declarations for Control Points using SOAP.

Definition in file soap_ctrlpt.hpp.

Function Documentation

SoapSendAction()

int SoapSendAction	(	char *	action_url,
		char *	service_type,
		IXML_Document *	action_node,
		IXML_Document **	response_node
	)

This function is called by UPnP API to send the SOAP action request.

It waits till it gets the response from the device pass the response to the API layer.

Returns

On success: UPNP_E_SUCCESS
On error:

• UPNP_E_OUTOF_MEMORY
• UPNP_E_INVALID_ACTION
• UPNP_E_INVALID_URL
• UPNP_E_SOCKET_ERROR
• UPNP_E_SOCKET_CONNECT
• UPNP_E_FILE_READ_ERROR
• UPNP_E_TIMEDOUT
• UPNP_E_SOCKET_WRITE
• UPNP_E_BAD_HTTPMSG
• may have additional error codes

Parameters

[in]	action_url	device contrl URL.
[in]	service_type	device service type.
[in]	action_node	SOAP action node.
[out]	response_node	SOAP response node.

Definition at line 490 of file soap_ctrlpt.cpp.

Here is the call graph for this function:

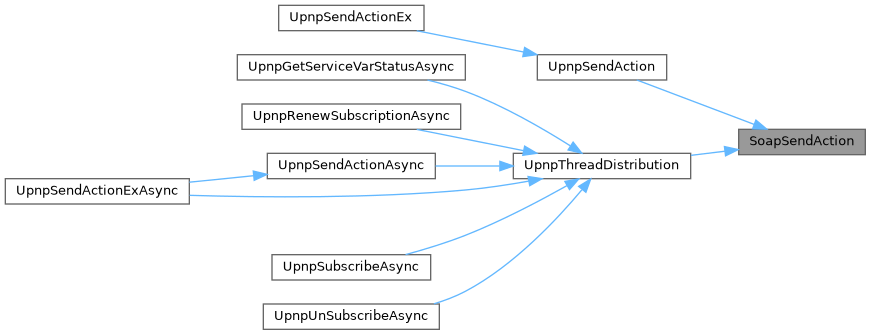

Here is the caller graph for this function:

SoapSendActionEx()

int SoapSendActionEx	(	char *	action_url,
		char *	service_type,
		IXML_Document *	header,
		IXML_Document *	action_node,
		IXML_Document **	response_node
	)

This extended function is called by UPnP API to send the SOAP action request.

The function waits till it gets the response from the device pass the response to the API layer. This action is similar to the SoapSendAction() with only difference that it allows users to pass the SOAP header along the SOAP body (soap action request).

Returns

On success: UPNP_E_SUCCESS
On error:

• UPNP_E_BAD_RESPONSE
• UPNP_E_OUTOF_MEMORY
• UPNP_E_INVALID_ACTION
• UPNP_E_INVALID_URL
• UPNP_E_SOCKET_ERROR
• UPNP_E_SOCKET_CONNECT
• UPNP_E_FILE_READ_ERROR
• UPNP_E_TIMEDOUT
• UPNP_E_SOCKET_WRITE
• UPNP_E_BAD_HTTPMSG
• SOAP_ACTION_RESP
• SOAP_VAR_RESP
• SOAP_VAR_RESP_ERROR
• SOAP_ACTION_RESP_ERROR
• HTTP error codes >400

Parameters

[in]	action_url	device contrl URL.
[in]	service_type	device service type.
[in]	header	Soap header.
[in]	action_node	SOAP action node (SOAP body).
[out]	response_node	SOAP response node.

Definition at line 605 of file soap_ctrlpt.cpp.

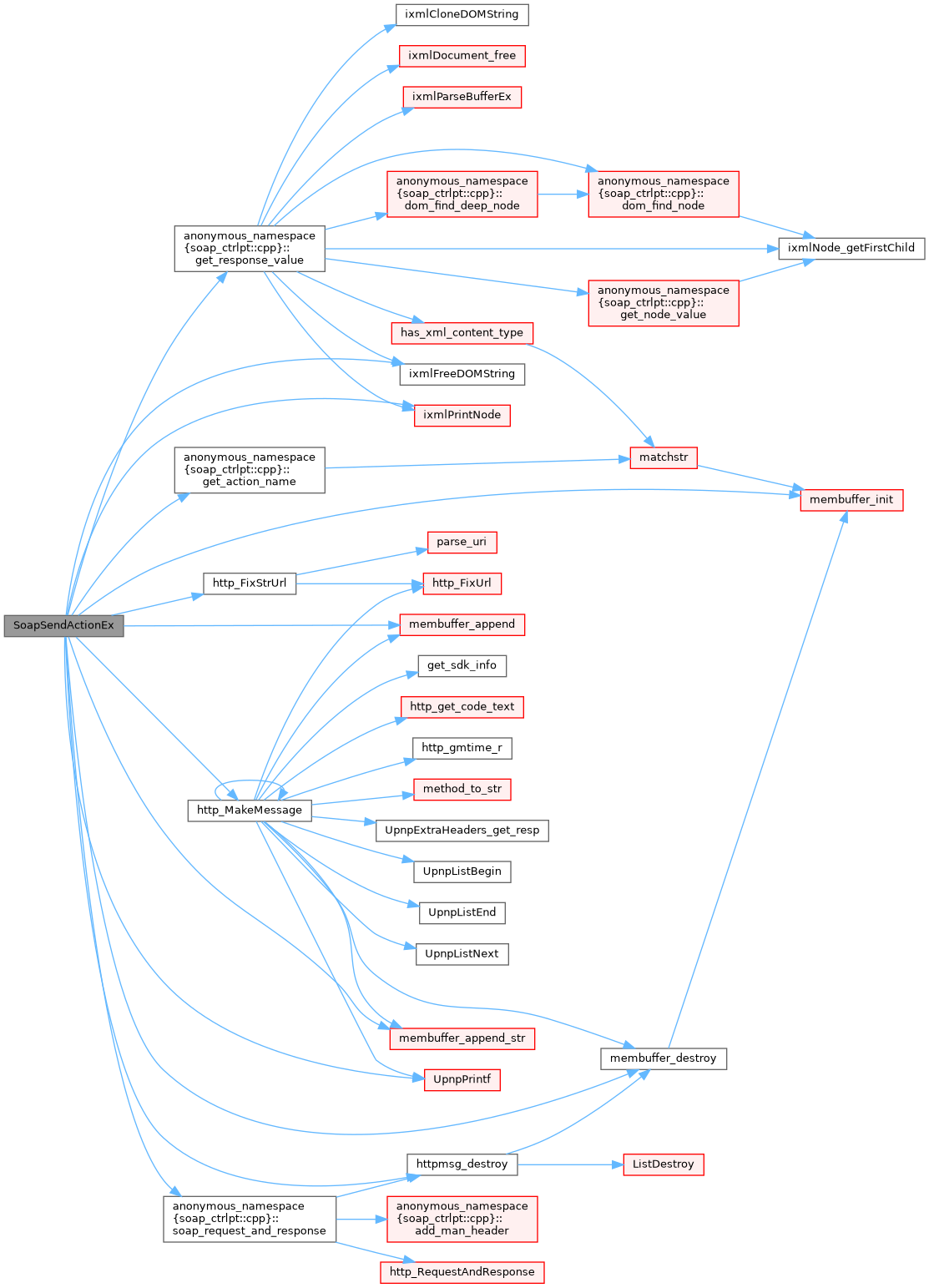

Here is the call graph for this function:

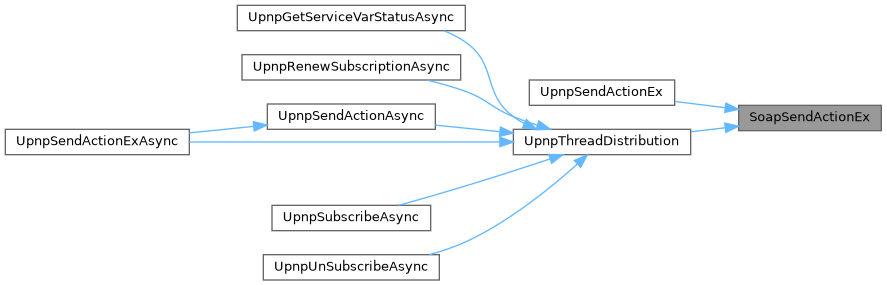

Here is the caller graph for this function:

SoapGetServiceVarStatus()

int SoapGetServiceVarStatus	(	char *	action_url,
		DOMString	var_name,
		DOMString *	var_value
	)

This function creates a status variable query message send it to the specified URL. It also collect the response.

Returns

On success: UPNP_E_SUCCESS
On error:

• UPNP_E_SOCKET_ERROR
• UPNP_E_SOCKET_CONNECT
• UPNP_E_OUTOF_MEMORY
• UPNP_E_FILE_READ_ERROR
• UPNP_E_TIMEDOUT
• UPNP_E_SOCKET_WRITE
• UPNP_E_BAD_HTTPMSG
• UPNP_E_BAD_RESPONSE
• SOAP_ACTION_RESP
• SOAP_VAR_RESP
• SOAP_VAR_RESP_ERROR
• SOAP_ACTION_RESP_ERROR
• HTTP error codes >400

Todo:

Returned error message IDs are ambiguous. Fix it.

Todo:

Verify the bug in the source code of this function with a unit test.

Parameters

[in]	action_url	Address to send this variable query message.
[in]	var_name	Name of the variable.
[out]	var_value	Output value.

Definition at line 748 of file soap_ctrlpt.cpp.

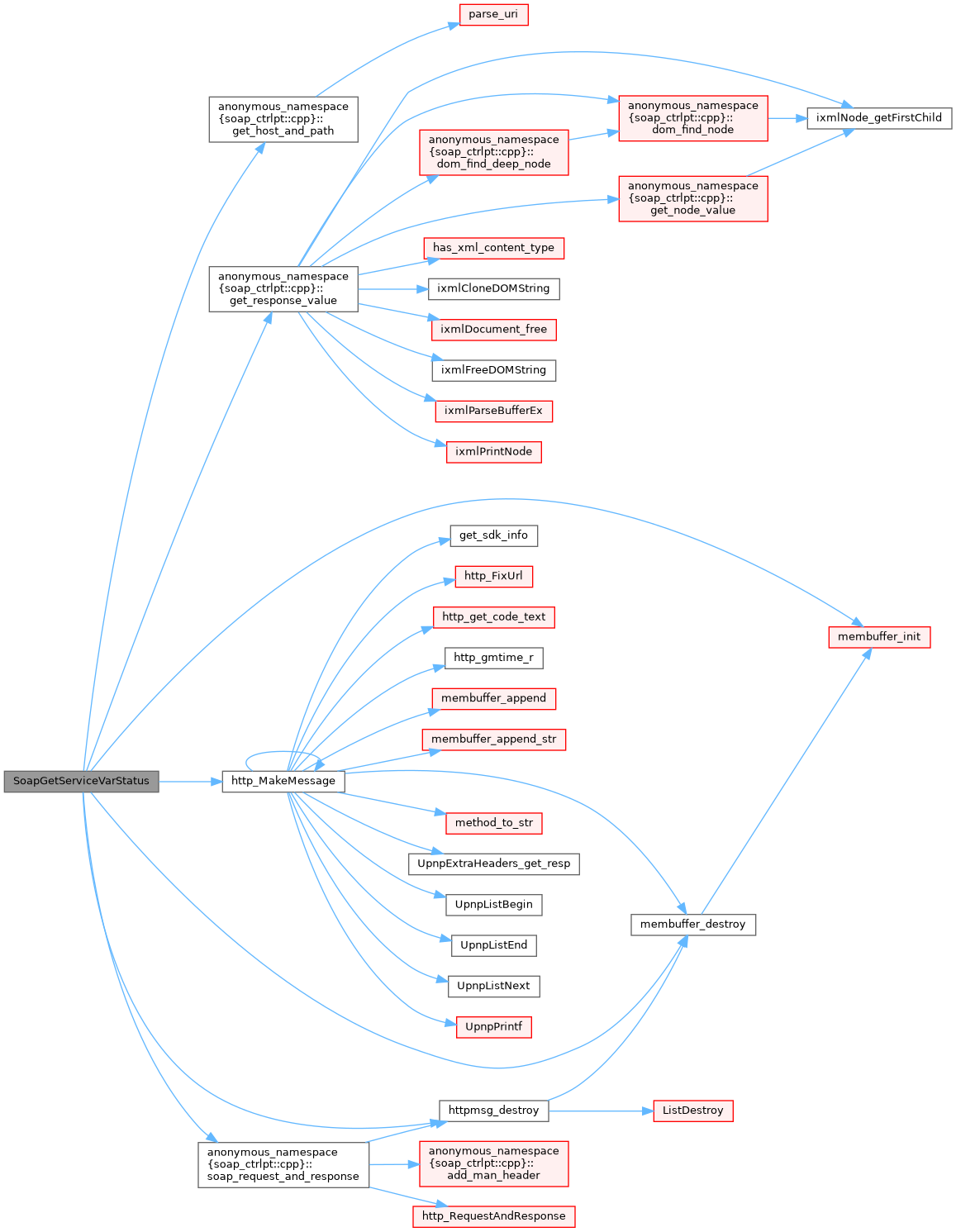

Here is the call graph for this function:

Here is the caller graph for this function:
