Functions
int	UpnpGetIfInfo (const std::string &a_iface="")
	Retrieve local network adapter information and keep it in global variables.

int	GetFreeHandle ()
	Get a free UPnP Unit handle.

int	FreeHandle (int Upnp_Handle)
	Free handle.

Variables
Handle_Info *	HandleTable [NUM_HANDLE]
	UPnP Device and Control Point handle table

Function Documentation

◆ UpnpGetIfInfo()

int anonymous_namespace{upnpapi.cpp}::UpnpGetIfInfo ( const std::string & a_iface = "" )

Retrieve local network adapter information and keep it in global variables.

If no or empty argument given, the operating system should find the best suitable local network adapter for operation as specified by RFC3484 - Default Address Selection. The IPv6 loopback address - as specified - is handled as link local unicast address. Always only one local IP address is selected.

The local network adapter must fulfill these requirements:

Be UP.
Support MULTICAST.
Have a valid IPv4 or IPv6 address.

We'll retrieve the following information from the adapter:

gIF_NAME -> adapter name (by input or found).
gIF_INDEX -> Unique local network adapter index number.
gIF_IPV4 -> not supported, still empty (see gIF_IPV6_ULA_GUA).
gIF_IPV4_NETMASK -> not supported, still empty (see gIF_IPV6_ULA_GUA).
gIF_IPV6 -> IPv6 LLA address (if any).
gIF_IPV6_PREFIX_LENGTH -> IPv6 LLA address prefix length.
gIF_IPV6_ULA_GUA -> GUA IPv6 address or IPv4 mapped IPv6 address (if any)
gIF_IPV6_ULA_GUA_PREFIX_LENGTH -> Prefix length of gIF_IPV6_ULA_GUA.

Returns: UPNP_E_SUCCESS or UPNP_E_INVALID_INTERFACE.

Parameters

[in] a_iface Adapter name, netaddress, or netadapter index. If no or empty argument ("") given, we'll find the best suitable local network adapter for operation.

Definition at line 257 of file upnpapi.cpp.

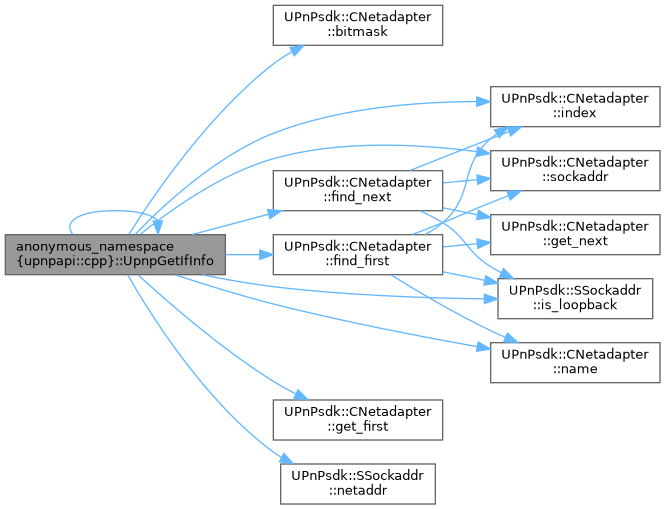

Here is the call graph for this function:
