Enumerations
enum	token_type_t { TT_IDENTIFIER , TT_WHITESPACE , TT_CRLF , TT_CTRL , TT_SEPARATOR , TT_QUOTEDSTRING }
	Used to represent different types of tokens in input. More...

Functions
void	scanner_init (scanner_t scanner, membuffer bufptr)
	Initialize scanner.

int	is_separator_char (int c)
	Determines if the passed value is a separator.

int	is_identifier_char (int c)
	Determines if the passed value is permissible in token.

int	is_control_char (int c)
	Determines if the passed value is a control character.

int	is_qdtext_char (int c)
	Determines if the passed value is permissible in qdtext.

parse_status_t	scanner_get_token (scanner_t scanner, memptr token, token_type_t *tok_type)
	Reads next token from the input stream.

char *	scanner_get_str (scanner_t *scanner)
	Get pointer to next character in string.

int	httpmsg_compare (void param1, void param2)
	Compares name id in the http headers.

void	httpheader_free (void *msg)
	Free memory allocated for the http header.

parse_status_t	skip_blank_lines (scanner_t *scanner)
	Skips blank lines at the start of a msg.

parse_status_t	skip_lws (scanner_t *scanner)
	Skip linear whitespace.

parse_status_t	match_non_ws_string (scanner_t scanner, memptr str)
	Match a string without whitespace or CRLF (S)

parse_status_t	match_raw_value (scanner_t scanner, memptr raw_value)
	Matches a raw value in a the input.

parse_status_t	match_int (scanner_t scanner, int base, int value)
	Matches an unsigned integer value in the input.

parse_status_t	read_until_crlf (scanner_t scanner, memptr str)
	Reads data until end of line.

parse_status_t	match_char (scanner_t *scanner, char c, int case_sensitive)
	Compares a character to the next char in the scanner.

parse_status_t	vfmatch (scanner_t scanner, const char fmt, va_list argp)
	Extracts variable parameters depending on the passed in format parameter.

parse_status_t	match (scanner_t scanner, const char fmt,...)
	Matches a variable parameter list and takes necessary actions based on the data type specified.

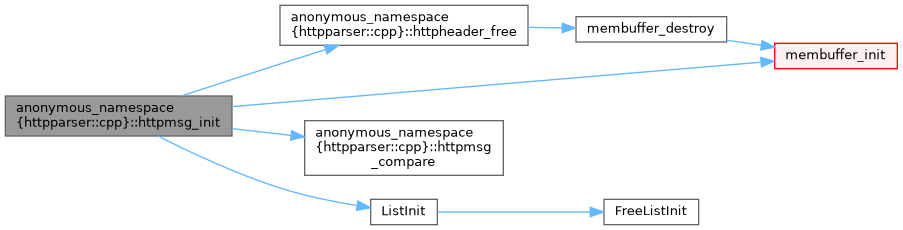

void	httpmsg_init (http_message_t *msg)
	Initialize and allocate memory for http message.

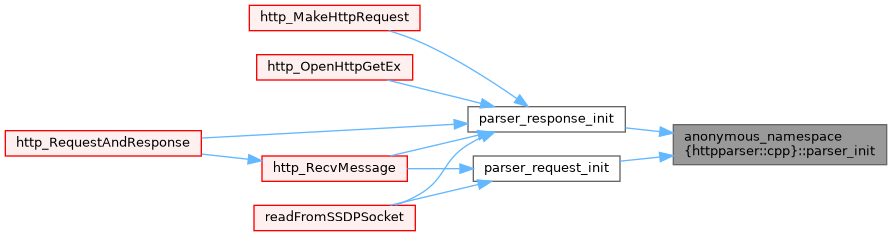

void	parser_init (http_parser_t *parser)
	Initializes the parser object.

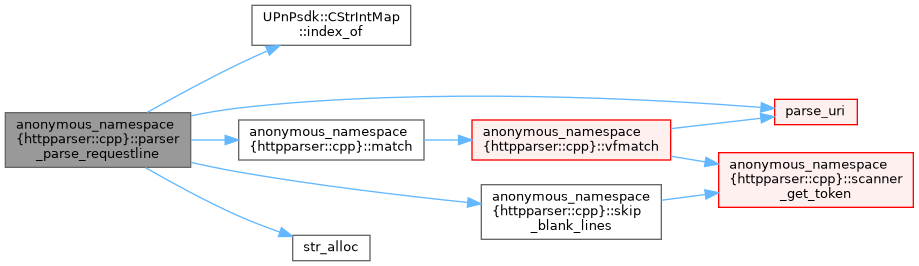

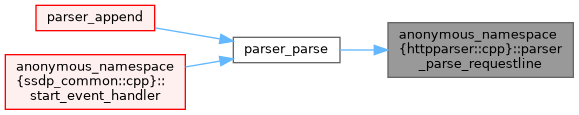

parse_status_t	parser_parse_requestline (http_parser_t *parser)
	Get HTTP Method, URL location and version information.

parse_status_t	parser_parse_entity_using_clen (http_parser_t *parser)
	Reads entity using content-length.

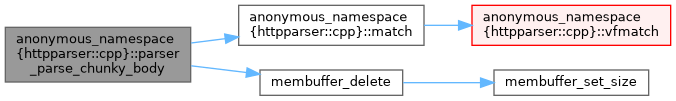

parse_status_t	parser_parse_chunky_body (http_parser_t *parser)
	Read data in the chunks.

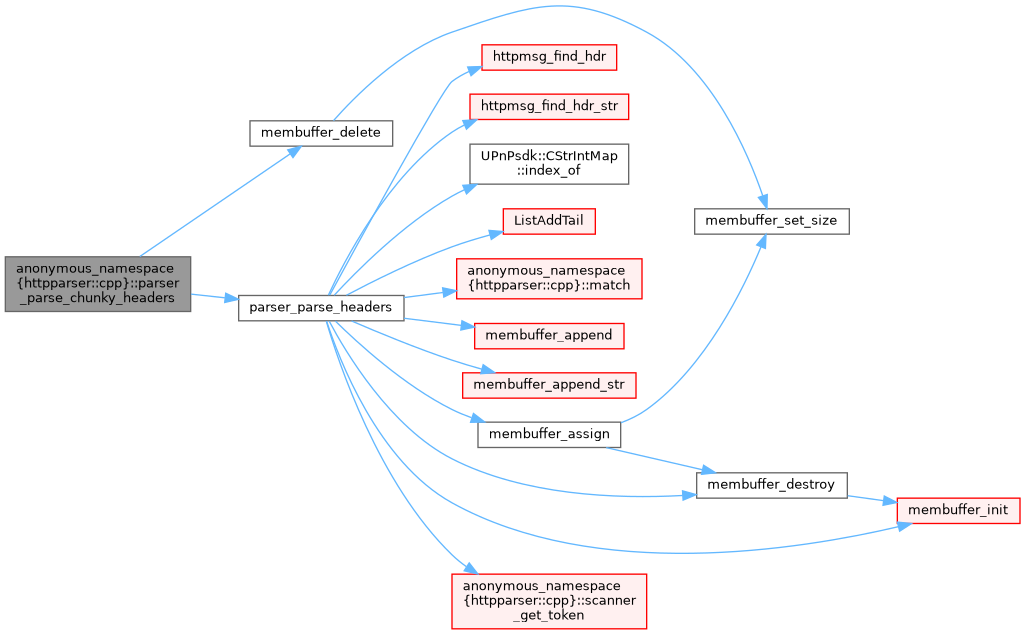

parse_status_t	parser_parse_chunky_headers (http_parser_t *parser)
	Read headers at the end of the chunked entity.

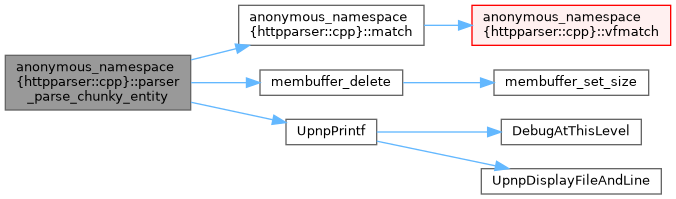

parse_status_t	parser_parse_chunky_entity (http_parser_t *parser)
	Read entity using chunked transfer encoding.

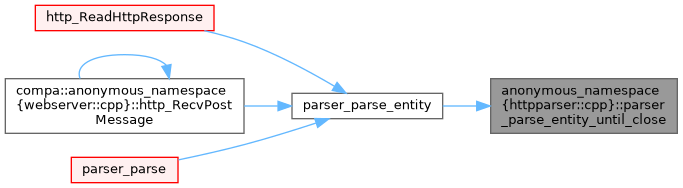

parse_status_t	parser_parse_entity_until_close (http_parser_t *parser)
	Keep reading entity until the connection is closed.

Variables
constexpr std::array< const UPnPsdk::str_int_entry, 11 >	Http_Method_Table
	Defines the HTTP methods.

Enumeration Type Documentation

◆ token_type_t

enum anonymous_namespace{httpparser.cpp}::token_type_t

Used to represent different types of tokens in input.

Definition at line 64 of file httpparser.cpp.

Function Documentation

◆ scanner_init()

void anonymous_namespace{httpparser.cpp}::scanner_init	(	scanner_t *	scanner,
		membuffer *	bufptr
	)

inline

Initialize scanner.

Parameters

[out]	scanner	Scanner Object to be initialized
[in]	bufptr	Buffer to be copied

Definition at line 100 of file httpparser.cpp.

Here is the caller graph for this function:

◆ is_separator_char()

int anonymous_namespace{httpparser.cpp}::is_separator_char ( int c )

inline

Determines if the passed value is a separator.

Parameters

[in] c Character to be tested against used separator values

Definition at line 112 of file httpparser.cpp.

Here is the caller graph for this function:

◆ is_identifier_char()

int anonymous_namespace{httpparser.cpp}::is_identifier_char ( int c )

inline

Determines if the passed value is permissible in token.

Parameters

[in] c Character to be tested for separator values

Definition at line 121 of file httpparser.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ is_control_char()

int anonymous_namespace{httpparser.cpp}::is_control_char ( int c )

inline

Determines if the passed value is a control character.

Parameters

[in] c Character to be tested for a control character

Definition at line 130 of file httpparser.cpp.

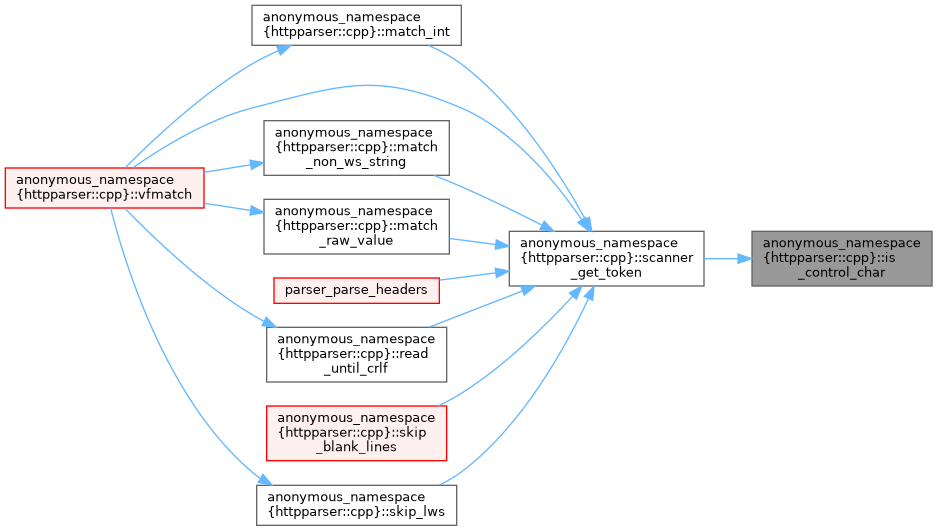

Here is the caller graph for this function:

◆ is_qdtext_char()

int anonymous_namespace{httpparser.cpp}::is_qdtext_char ( int c )

inline

Determines if the passed value is permissible in qdtext.

Parameters

[in] c Character to be tested for CR/LF

Definition at line 139 of file httpparser.cpp.

Here is the caller graph for this function:

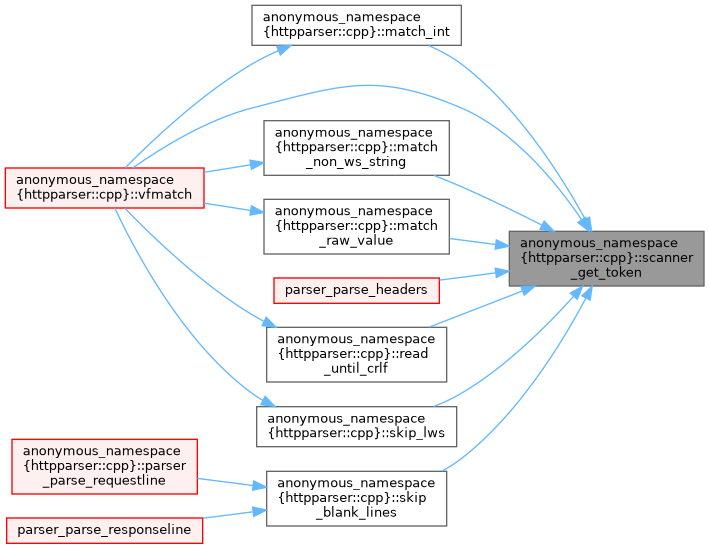

◆ scanner_get_token()

parse_status_t anonymous_namespace{httpparser.cpp}::scanner_get_token	(	scanner_t *	scanner,
		memptr *	token,
		token_type_t *	tok_type
	)

Reads next token from the input stream.

0 and is used as a marker, and will not be valid in a quote.

Returns

On success: PARSE_OK
On error:

PARSE_INCOMPLETE - not enough chars to get a token
PARSE_FAILURE - bad msg format

Parameters

[in,out]	scanner	Scanner Object
[out]	token	Token
[out]	tok_type	Type of token

Definition at line 160 of file httpparser.cpp.

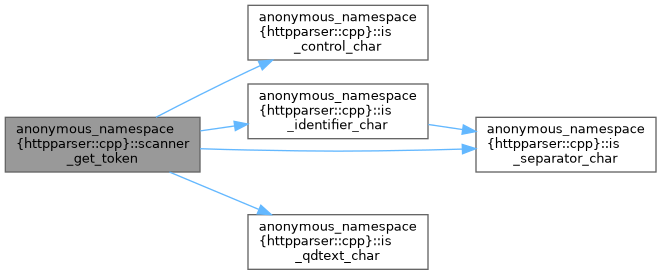

Here is the call graph for this function:

Here is the caller graph for this function:

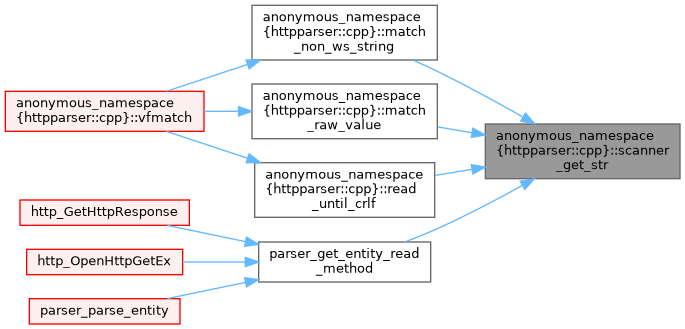

◆ scanner_get_str()

char * anonymous_namespace{httpparser.cpp}::scanner_get_str ( scanner_t * scanner )

inline

Get pointer to next character in string.

Returns: Pointer to next character in string

Parameters

[in] scanner Scanner Object

Definition at line 277 of file httpparser.cpp.

Here is the caller graph for this function:

◆ httpmsg_compare()

int anonymous_namespace{httpparser.cpp}::httpmsg_compare	(	void *	param1,
		void *	param2
	)

Compares name id in the http headers.

Returns: true - if name_id of header1 is equal name_id of header2
false - otherwise

Parameters

[in]	param1	Pointer to a HTTP header
[in]	param2	Pointer to a HTTP header

Definition at line 290 of file httpparser.cpp.

Here is the caller graph for this function:

◆ httpheader_free()

void anonymous_namespace{httpparser.cpp}::httpheader_free ( void * msg )

Free memory allocated for the http header.

Parameters

[in] msg Pointer to HTTP header.

Definition at line 304 of file httpparser.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ skip_blank_lines()

parse_status_t anonymous_namespace{httpparser.cpp}::skip_blank_lines ( scanner_t * scanner )

inline

Skips blank lines at the start of a msg.

Returns

On success: PARSE_OK
On error:

PARSE_INCOMPLETE - not enough chars to get a token
PARSE_FAILURE - bad msg format

Parameters

[in,out] scanner Scanner Object

Definition at line 324 of file httpparser.cpp.

Here is the call graph for this function:

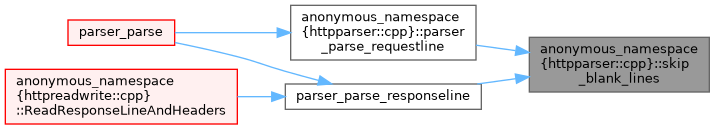

Here is the caller graph for this function:

◆ skip_lws()

parse_status_t anonymous_namespace{httpparser.cpp}::skip_lws ( scanner_t * scanner )

inline

Skip linear whitespace.

Returns

On success: PARSE_OK - (LWS)* removed from input
On error:

PARSE_FAILURE - bad input
PARSE_INCOMPLETE - incomplete input

Parameters

[in,out] scanner Scanner Object

Definition at line 353 of file httpparser.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ match_non_ws_string()

parse_status_t anonymous_namespace{httpparser.cpp}::match_non_ws_string	(	scanner_t *	scanner,
		memptr *	str
	)

inline

Match a string without whitespace or CRLF (S)

Returns

On success: PARSE_OK
On error:

PARSE_NO_MATCH
PARSE_FAILURE
PARSE_INCOMPLETE

Parameters

[in,out]	scanner	Scanner Object.
[out]	str	Buffer to get the scanner buffer contents.

Definition at line 402 of file httpparser.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ match_raw_value()

parse_status_t anonymous_namespace{httpparser.cpp}::match_raw_value	(	scanner_t *	scanner,
		memptr *	raw_value
	)

inline

Matches a raw value in a the input.

Value's length can be 0 or more. Whitespace after value is trimmed. On success, scanner points the CRLF that ended the value.

Returns

On success: PARSE:_OK
On error:

PARSE_INCOMPLETE
PARSE_FAILURE

Parameters

[in,out]	scanner	Scanner Object
[out]	raw_value	Buffer to get the scanner buffer.

Definition at line 463 of file httpparser.cpp.

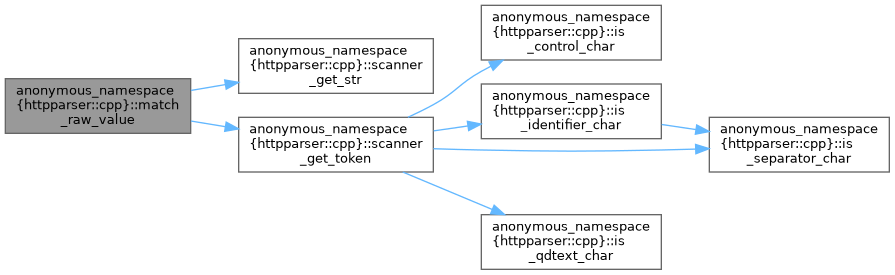

Here is the call graph for this function:

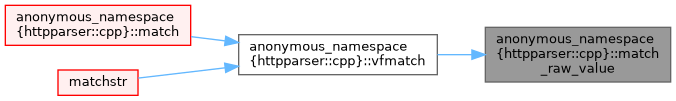

Here is the caller graph for this function:

◆ match_int()

parse_status_t anonymous_namespace{httpparser.cpp}::match_int	(	scanner_t *	scanner,
		int	base,
		int *	value
	)

inline

Matches an unsigned integer value in the input.

The integer is returned in 'value'. Except for PARSE_OK result, the scanner's cursor is moved back to its original position on error.

Returns

On success: PARSE_OK On error:

PARSE_NO_MATCH - got different kind of token
PARSE_FAILURE - bad input
PARSE_INCOMPLETE

Parameters

[in,out]	scanner	Scanner Object.
[in]	base	Base of number in the string; valid values: 10 or 16.
[out]	value	Number stored here.

Definition at line 549 of file httpparser.cpp.

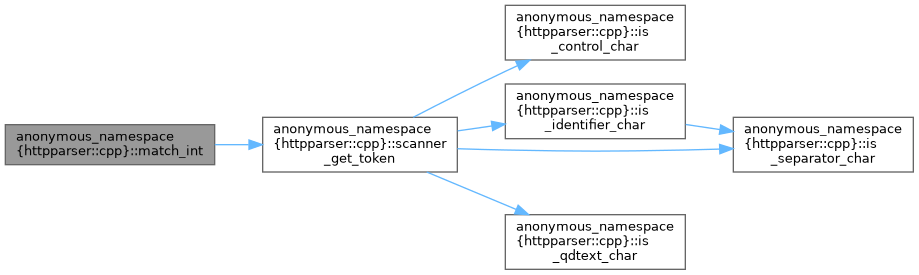

Here is the call graph for this function:

Here is the caller graph for this function:

◆ read_until_crlf()

parse_status_t anonymous_namespace{httpparser.cpp}::read_until_crlf	(	scanner_t *	scanner,
		memptr *	str
	)

inline

Reads data until end of line.

The crlf at the end of line is not consumed. On error, scanner is not restored. On success, str points to a string that runs until eol.

Returns

On success: PARSE_OK
On error:

PARSE_FAILURE
PARSE_INCOMPLETE

Parameters

[in,out]	scanner	Scanner Object.
[out]	str	Buffer to copy scanner buffer contents to.

Definition at line 600 of file httpparser.cpp.

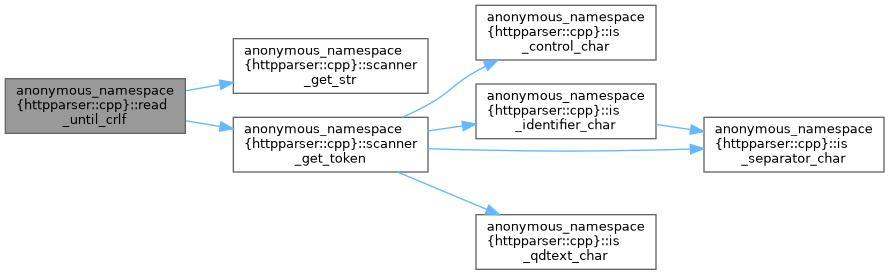

Here is the call graph for this function:

Here is the caller graph for this function:

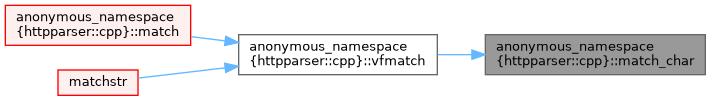

◆ match_char()

parse_status_t anonymous_namespace{httpparser.cpp}::match_char	(	scanner_t *	scanner,
		char	c,
		int	case_sensitive
	)

inline

Compares a character to the next char in the scanner.

On error, scanner chars are not restored.

Returns

On success: PARSE_OK
On error:

PARSE_NO_MATCH
PARSE_INCOMPLETE

Parameters

[in,out]	scanner	Scanner Object.
[in]	c	Character to be compared with.
[in]	case_sensitive	Flag indicating whether comparison should be case sensitive.

Definition at line 641 of file httpparser.cpp.

Here is the caller graph for this function:

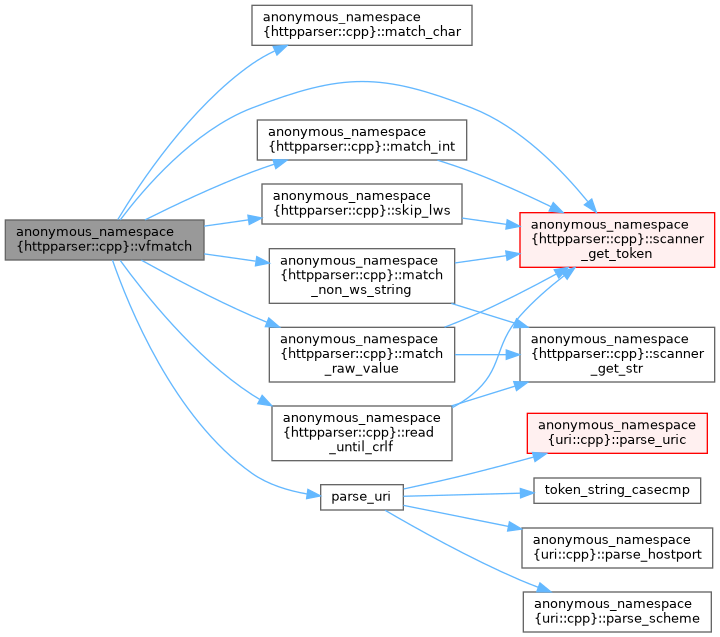

◆ vfmatch()

parse_status_t anonymous_namespace{httpparser.cpp}::vfmatch	(	scanner_t *	scanner,
		const char *	fmt,
		va_list	argp
	)

Extracts variable parameters depending on the passed in format parameter.

Parses data also based on the passed in format parameter.

Returns

On success: PARSE_OK
On error:

PARSE_INCOMPLETE
PARSE_FAILURE - bad input
PARSE_NO_MATCH - input does not match pattern

Parameters

[in,out]	scanner	Scanner Object.
[in]	fmt	Pattern Format.
[in]	argp	List of variable arguments.

Definition at line 710 of file httpparser.cpp.

Here is the call graph for this function:

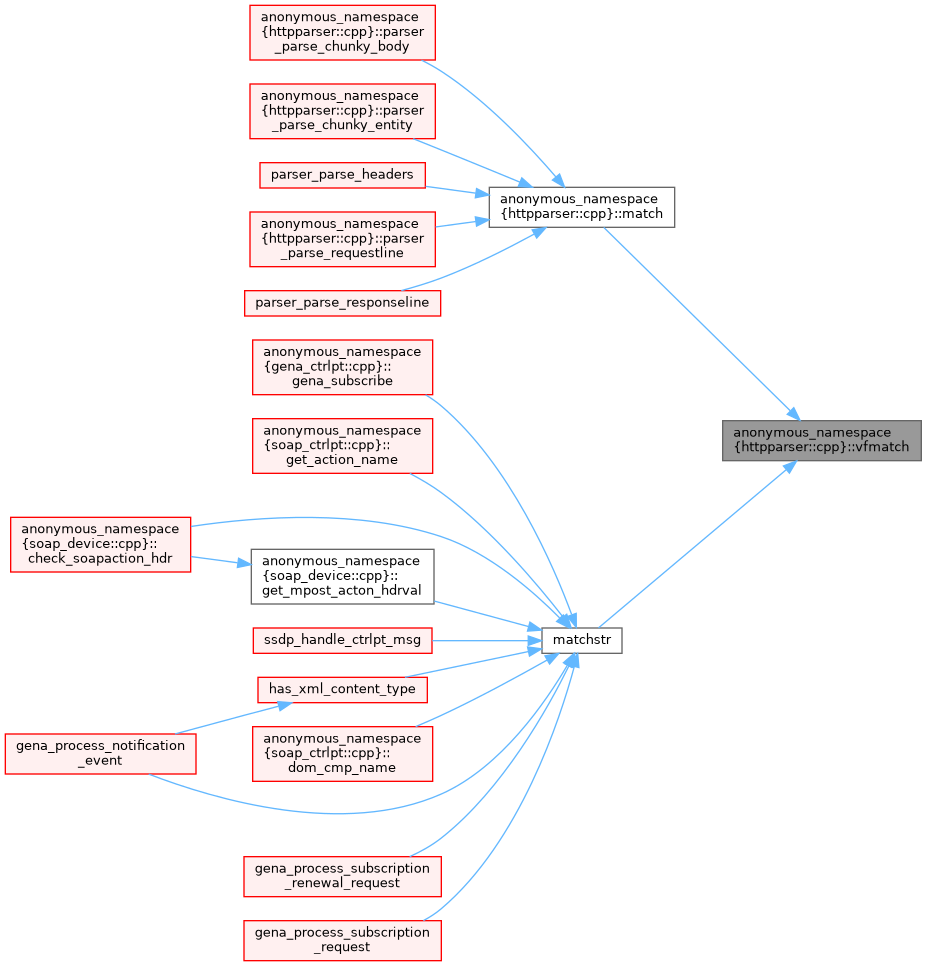

Here is the caller graph for this function:

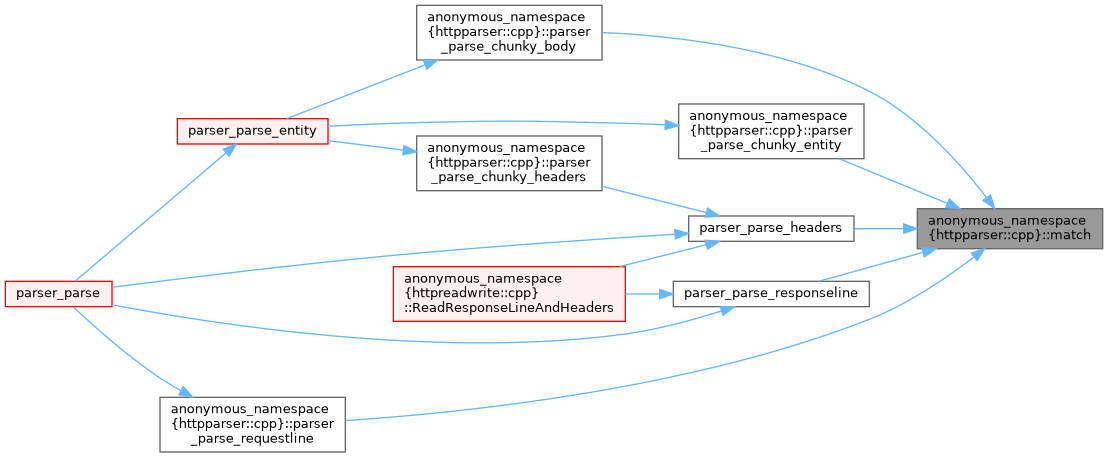

◆ match()

parse_status_t anonymous_namespace{httpparser.cpp}::match	(	scanner_t *	scanner,
		const char *	fmt,
			...
	)

Matches a variable parameter list and takes necessary actions based on the data type specified.

Returns

On success: PARSE_OK
On error:

PARSE_OK
PARSE_NO_MATCH
PARSE_INCOMPLETE
PARSE_FAILURE - bad input

Parameters

[in,out]	scanner	Scanner Object.
[in]	fmt	Pattern format (like printf()).
[in]	...	Variable arguments (like printf()).

Definition at line 882 of file httpparser.cpp.

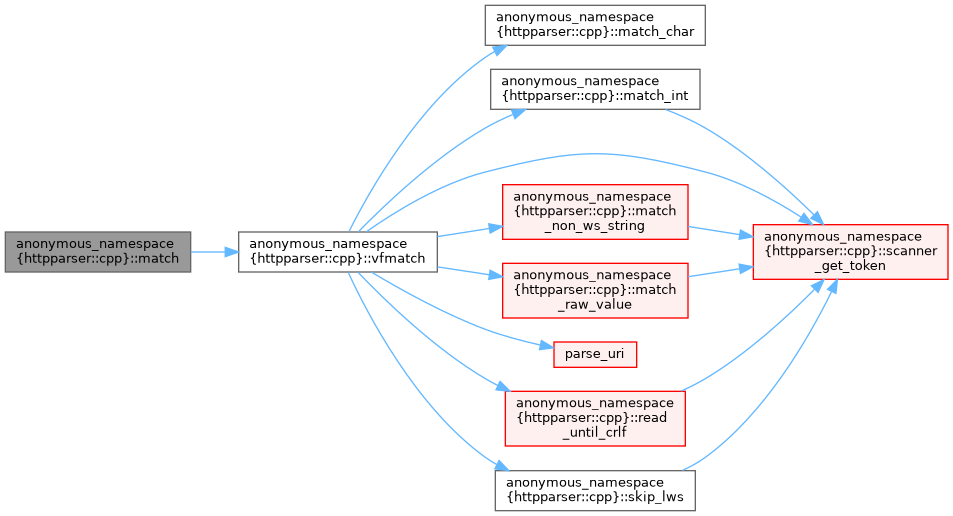

Here is the call graph for this function:

Here is the caller graph for this function:

◆ httpmsg_init()

void anonymous_namespace{httpparser.cpp}::httpmsg_init ( http_message_t * msg )

Initialize and allocate memory for http message.

Parameters

[in,out] msg HTTP Message Object

Definition at line 900 of file httpparser.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ parser_init()

void anonymous_namespace{httpparser.cpp}::parser_init ( http_parser_t * parser )

inline

Initializes the parser object.

Parameters

[out] parser HTTP Parser Object.

Definition at line 916 of file httpparser.cpp.

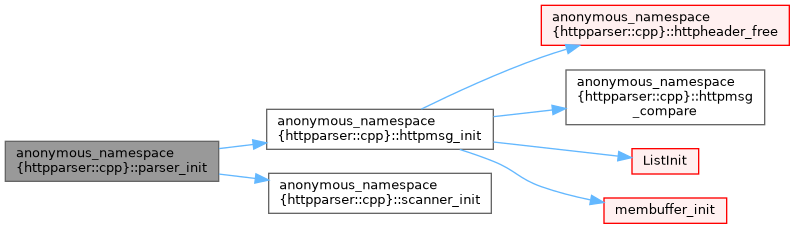

Here is the call graph for this function:

Here is the caller graph for this function:

◆ parser_parse_requestline()

parse_status_t anonymous_namespace{httpparser.cpp}::parser_parse_requestline ( http_parser_t * parser )

Get HTTP Method, URL location and version information.

Returns

On success: PARSE_OK
On error:

PARSE_SUCCESS
PARSE_FAILURE
PARSE_INCOMPLETE
PARSE_NO_MATCH

Parameters

[in,out] parser HTTP Parser Object.

Definition at line 942 of file httpparser.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ parser_parse_entity_using_clen()

parse_status_t anonymous_namespace{httpparser.cpp}::parser_parse_entity_using_clen ( http_parser_t * parser )

inline

Reads entity using content-length.

Returns: On success: PARSE_SUCCESS
On error: PARSE_INCOMPLETE

Parameters

[in,out] parser HTTP Parser Object.

Definition at line 1079 of file httpparser.cpp.

Here is the caller graph for this function:

◆ parser_parse_chunky_body()

parse_status_t anonymous_namespace{httpparser.cpp}::parser_parse_chunky_body ( http_parser_t * parser )

inline

Read data in the chunks.

Returns

On success: PARSE_CONTINUE_1
On error:

PARSE_INCOMPLETE
PARSE_FAILURE
PARSE_NO_MATCH

Parameters

[in,out] parser HTTP Parser Object.

Definition at line 1125 of file httpparser.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ parser_parse_chunky_headers()

parse_status_t anonymous_namespace{httpparser.cpp}::parser_parse_chunky_headers ( http_parser_t * parser )

inline

Read headers at the end of the chunked entity.

Returns

On success: PARSE_SUCCESS
On error:

PARSE_NO_MATCH
PARSE_INCOMPLETE
PARSE_FAILURE

Parameters

[in,out] parser HTTP Parser Object.

Definition at line 1166 of file httpparser.cpp.

Here is the call graph for this function:

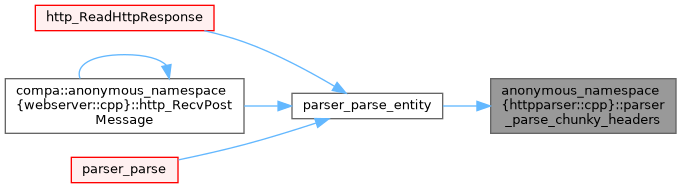

Here is the caller graph for this function:

◆ parser_parse_chunky_entity()

parse_status_t anonymous_namespace{httpparser.cpp}::parser_parse_chunky_entity ( http_parser_t * parser )

inline

Read entity using chunked transfer encoding.

Returns

On success: PARSE_CONTINUE_1
On error:

PARSE_INCOMPLETE
PARSE_FAILURE
PARSE_NO_MATCH

Parameters

[in,out] parser HTTP Parser Object.

Definition at line 1202 of file httpparser.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ parser_parse_entity_until_close()

parse_status_t anonymous_namespace{httpparser.cpp}::parser_parse_entity_until_close ( http_parser_t * parser )

inline

Keep reading entity until the connection is closed.

Returns: always PARSE_INCOMPLETE_ENTITY

Parameters

[in,out] parser HTTP Parser Object.

Definition at line 1247 of file httpparser.cpp.

Here is the caller graph for this function:

Variable Documentation

◆ Http_Method_Table

constexpr std::array<const UPnPsdk::str_int_entry, 11> anonymous_namespace{httpparser.cpp}::Http_Method_Table

inlineconstexpr

Initial value:

{
    {{"DELETE", HTTPMETHOD_DELETE},
     {"GET", HTTPMETHOD_GET},
     {"HEAD", HTTPMETHOD_HEAD},
     {"M-POST", HTTPMETHOD_MPOST},
     {"M-SEARCH", HTTPMETHOD_MSEARCH},
     {"NOTIFY", HTTPMETHOD_NOTIFY},
     {"POST", HTTPMETHOD_POST},
     {"SUBSCRIBE", HTTPMETHOD_SUBSCRIBE},
     {"UNSUBSCRIBE", HTTPMETHOD_UNSUBSCRIBE},
     {"POST", SOAPMETHOD_POST},
     {"PUT", HTTPMETHOD_PUT}}}

Defines the HTTP methods.

Definition at line 75 of file httpparser.cpp.

UPnPsdk 0.1 Universal Plug and Play +, Software Development Kit

Enumerations

Functions

Variables

Enumeration Type Documentation

◆ token_type_t

Function Documentation

◆ scanner_init()

◆ is_separator_char()

◆ is_identifier_char()

◆ is_control_char()

◆ is_qdtext_char()

◆ scanner_get_token()

◆ scanner_get_str()

◆ httpmsg_compare()

◆ httpheader_free()

◆ skip_blank_lines()

◆ skip_lws()

◆ match_non_ws_string()

◆ match_raw_value()

◆ match_int()

◆ read_until_crlf()

◆ match_char()

◆ vfmatch()

◆ match()

◆ httpmsg_init()

◆ parser_init()

◆ parser_parse_requestline()

◆ parser_parse_entity_using_clen()

◆ parser_parse_chunky_body()

◆ parser_parse_chunky_headers()

◆ parser_parse_chunky_entity()

◆ parser_parse_entity_until_close()

Variable Documentation

◆ Http_Method_Table
