uuid.cpp File Reference

Manage UUIDs. More...

#include <uuid.hpp>
#include <UPnPsdk/port_sock.hpp>
#include <UPnPsdk/synclog.hpp>

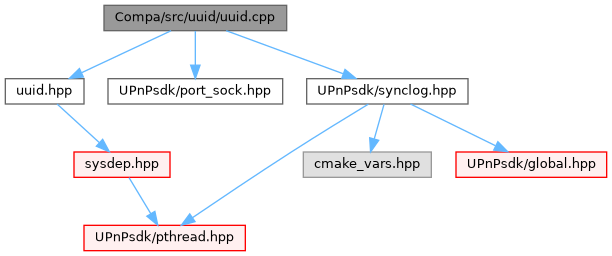

Include dependency graph for uuid.cpp:

Go to the source code of this file.

Classes
struct	anonymous_namespace{uuid.cpp}::uuid_state
	Data type for UUID generator persistent state. More...

Macros
#define	CHECK(f1, f2)
	Macro to compare times.

Functions
void	anonymous_namespace{uuid.cpp}::format_uuid_v1 (uuid_upnp *uid, uint16_t clock_seq, uuid_time_t timestamp, uuid_node_t node)
	Make a UUID from the timestamp, clockseq, and node ID.
int	anonymous_namespace{uuid.cpp}::read_state (uint16_t *clockseq, uuid_time_t *timestamp, uuid_node_t *node)
	Read UUID generator state from non-volatile store.
void	anonymous_namespace{uuid.cpp}::write_state (uint16_t clockseq, uuid_time_t timestamp, uuid_node_t node)
	Save UUID generator state back to non-volatile storage.
void	anonymous_namespace{uuid.cpp}::get_current_time (uuid_time_t *timestamp)
	Get time as 60 bit 100ns ticks since whenever.
uint16_t	anonymous_namespace{uuid.cpp}::true_random ()
	generate a crypto-quality random number. This sample doesn't do that.
void	anonymous_namespace{uuid.cpp}::format_uuid_v3 (uuid_upnp *uid, unsigned char hash[16])
	Make a UUID from a (pseudo)random 128 bit number.
void	uuidMutexInit ()
	Initialize mutex for synchronizing the uuid creation process.
int	uuidMutexDestroy ()
	Destroy mutex for synchronizing the uuid creation process.
int	uuid_create (uuid_upnp *uid)
	Generate a UUID.
void	upnp_uuid_unpack (uuid_upnp *u, char *out)
	Unpack a UUID.
void	uuid_create_from_name (uuid_upnp *uid, uuid_upnp nsid, void *name, int namelen)
	Create a UUID using a "name" from a "name space".
int	uuid_compare (uuid_upnp *u1, uuid_upnp *u2)
	Compare two UUID's "lexically".

Variables
pthread_mutex_t	anonymous_namespace{uuid.cpp}::uuid_mutex
	Mutex to synchronize the uuid creation process.
uuid_state	anonymous_namespace{uuid.cpp}::st
	UUID generator persistent state.
int	anonymous_namespace{uuid.cpp}::stateInited {0}
	Flag if UUID generator persistent state is initiated.

Detailed Description

Manage UUIDs.

Todo:

Remove COMPA_DEF_OPTION_SSDP. Make it always available with COMPA_DEF_DEVICE_GENA.

Definition in file uuid.cpp.

---

Class Documentation

anonymous_namespace{uuid.cpp}::uuid_state

struct anonymous_namespace{uuid.cpp}::uuid_state

Data type for UUID generator persistent state.

Definition at line 49 of file uuid.cpp.

Collaboration diagram for anonymous_namespace{uuid.cpp}::uuid_state:

Class Members
uuid_time_t	ts	Saved timestamp.
uuid_node_t	node	Saved node ID.
uint16_t	cs	Saved clock sequence.

Macro Definition Documentation

CHECK

#define CHECK	(		f1,
			f2
	)

Value:

    if (f1 != f2)                                                              \
        return f1 < f2 ? -1 : 1;

Macro to compare times.

Definition at line 191 of file uuid.cpp.

Function Documentation

uuidMutexInit()

void uuidMutexInit

(

)

Initialize mutex for synchronizing the uuid creation process.

Definition at line 198 of file uuid.cpp.

Here is the caller graph for this function:

uuidMutexDestroy()

int uuidMutexDestroy

(

)

Destroy mutex for synchronizing the uuid creation process.

Returns

• On success: 0
• On error: EBUSY

Definition at line 202 of file uuid.cpp.

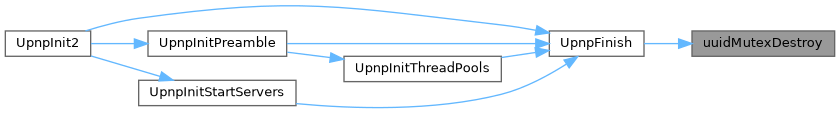

Here is the caller graph for this function:

uuid_create()

int uuid_create

(

uuid_upnp *

uid

)

Generate a UUID.

Returns

Always 1.

Parameters

[out]

uid

Pointer to a place for the created uuid.

Definition at line 211 of file uuid.cpp.

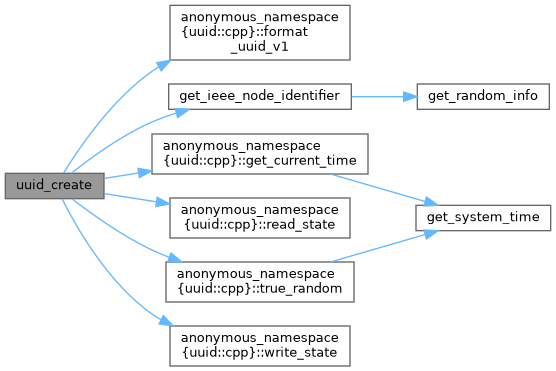

Here is the call graph for this function:

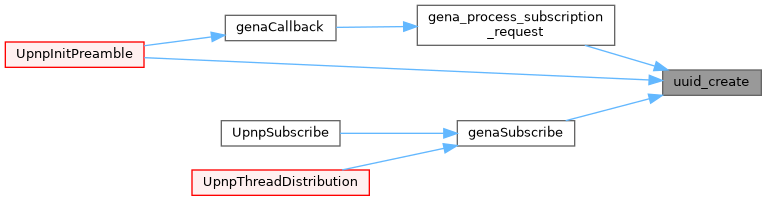

Here is the caller graph for this function:

upnp_uuid_unpack()

void upnp_uuid_unpack	(	uuid_upnp *	u,
		char *	out
	)

Unpack a UUID.

Parameters

[in]	u	Packed UUID.
[out]	out	Will be xxxx-xx-xx-xx-xxxxxx format.

Definition at line 242 of file uuid.cpp.

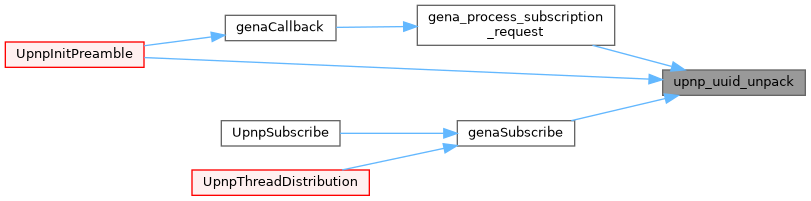

Here is the caller graph for this function:

uuid_create_from_name()

void uuid_create_from_name	(	uuid_upnp *	uid,
		uuid_upnp	nsid,
		void *	name,
		int	namelen
	)

Create a UUID using a "name" from a "name space".

Parameters

uid	resulting UUID.
nsid	UUID to serve as context, so identical names from different name spaces generate different UUIDs.
name	The name from which to generate a UUID.
namelen	The length of the name.

Definition at line 250 of file uuid.cpp.

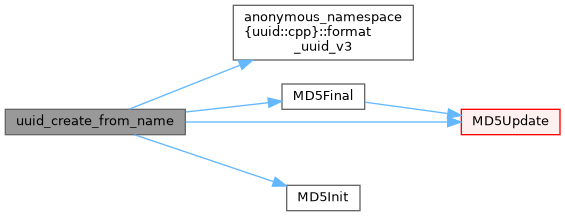

Here is the call graph for this function:

uuid_compare()

int uuid_compare	(	uuid_upnp *	u1,
		uuid_upnp *	u2
	)

Compare two UUID's "lexically".

Returns

• -1: u1 is lexically before u2
•  0: u1 is equal to u2
•  1: u1 is lexically after u2

Note

Lexical ordering is not temporal ordering!

Parameters

[in]	u1
[in]	u2

Definition at line 278 of file uuid.cpp.
