list.hpp File Reference

Trivial list management interface, patterned on std::list. More...

#include <UPnPsdk/visibility.hpp>

Include dependency graph for list.hpp:

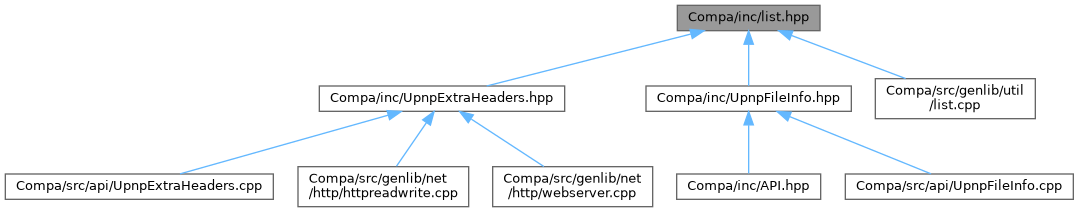

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	UpnpListHead
	List anchor structure. More...

Typedefs
typedef struct UpnpListHead	UpnpListHead
	List anchor structure.
typedef UpnpListHead *	UpnpListIter
	List iterator. Not strictly necessary, but clarifies the interface.

Functions
PUPNP_Api void	UpnpListInit (UpnpListHead *list)
	Initialize empty list.
PUPNP_Api UpnpListIter	UpnpListBegin (UpnpListHead *list)
	Return iterator pointing to the first list element, or UpnpListEnd(list) if the list is empty.
PUPNP_Api UpnpListIter	UpnpListEnd (UpnpListHead *list)
	Return end of list sentinel iterator (not an element)
PUPNP_Api UpnpListIter	UpnpListNext (UpnpListHead *list, UpnpListIter pos)
	Return iterator pointing to element after pos, or end()
PUPNP_Api UpnpListIter	UpnpListInsert (UpnpListHead *list, UpnpListIter pos, UpnpListHead *elt)
	Insert element before pos, returns iterator pointing to inserted element.
PUPNP_Api UpnpListIter	UpnpListErase (UpnpListHead *list, UpnpListIter pos)
	Erase element at pos, return next one, or end()

Detailed Description

Trivial list management interface, patterned on std::list.

It aims more at being familiar than at being minimal. The implementation does not perform any allocation or deallocation.

Definition in file list.hpp.

---

Class Documentation

UpnpListHead

struct UpnpListHead

List anchor structure.

This should be the first entry in list member objects, except if you want to do member offset arithmetic instead of simple casts (look up "containerof"). The list code itself does not care.

Definition at line 56 of file list.hpp.

Collaboration diagram for UpnpListHead:

Class Members
struct UpnpListHead *	next	Points to next entry in the list.
struct UpnpListHead *	prev	Points to previous entry in the list.

Typedef Documentation

UpnpListHead

typedef struct UpnpListHead UpnpListHead

List anchor structure.

This should be the first entry in list member objects, except if you want to do member offset arithmetic instead of simple casts (look up "containerof"). The list code itself does not care.

UpnpListIter

typedef UpnpListHead* UpnpListIter

List iterator. Not strictly necessary, but clarifies the interface.

Definition at line 62 of file list.hpp.

Function Documentation

UpnpListInit()

PUPNP_Api void UpnpListInit

(

UpnpListHead *

list

)

Initialize empty list.

Definition at line 44 of file list.cpp.

Here is the caller graph for this function:

UpnpListBegin()

PUPNP_Api UpnpListIter UpnpListBegin

(

UpnpListHead *

list

)

Return iterator pointing to the first list element, or UpnpListEnd(list) if the list is empty.

Definition at line 51 of file list.cpp.

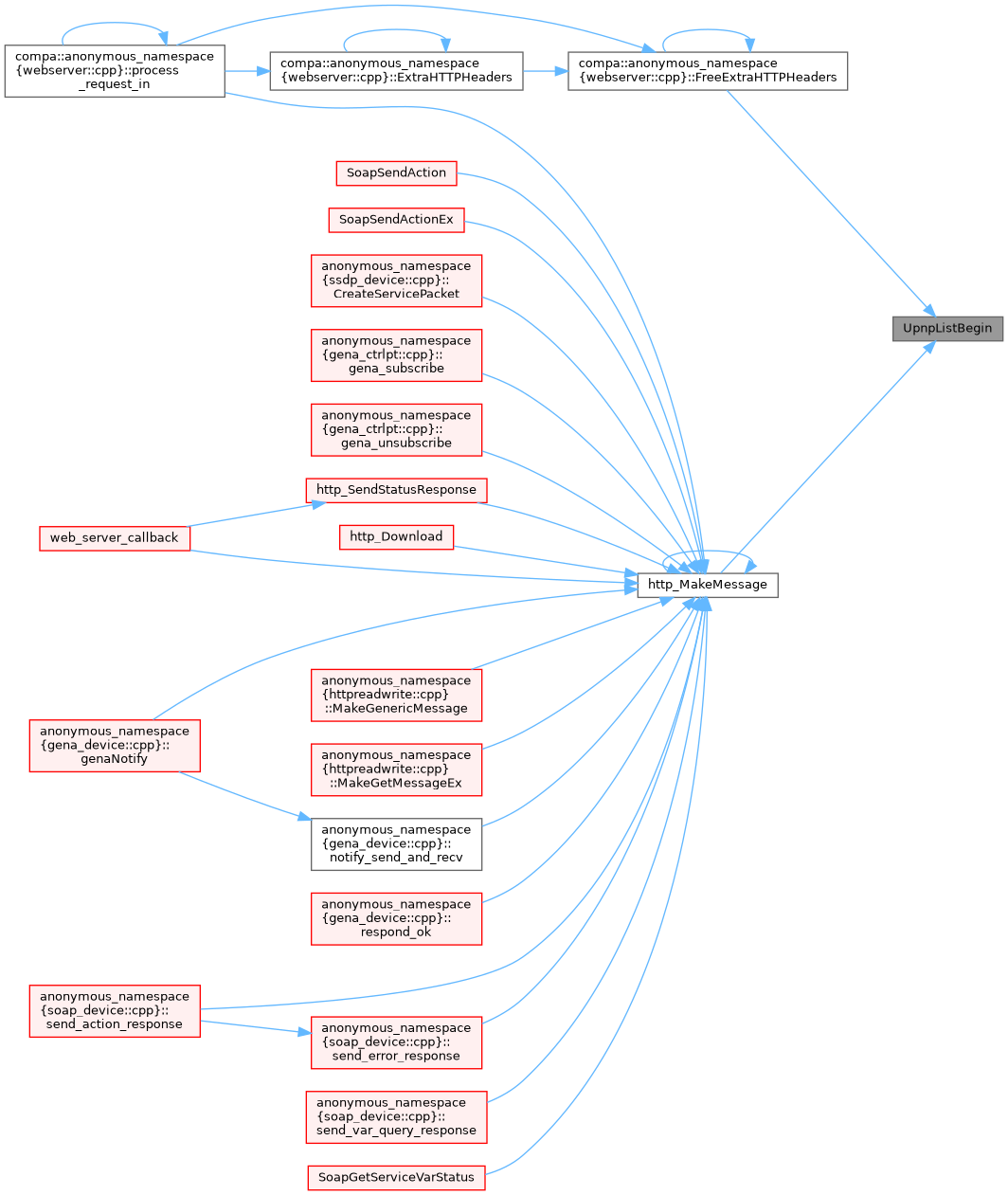

Here is the caller graph for this function:

UpnpListEnd()

PUPNP_Api UpnpListIter UpnpListEnd

(

UpnpListHead *

list

)

Return end of list sentinel iterator (not an element)

Definition at line 58 of file list.cpp.

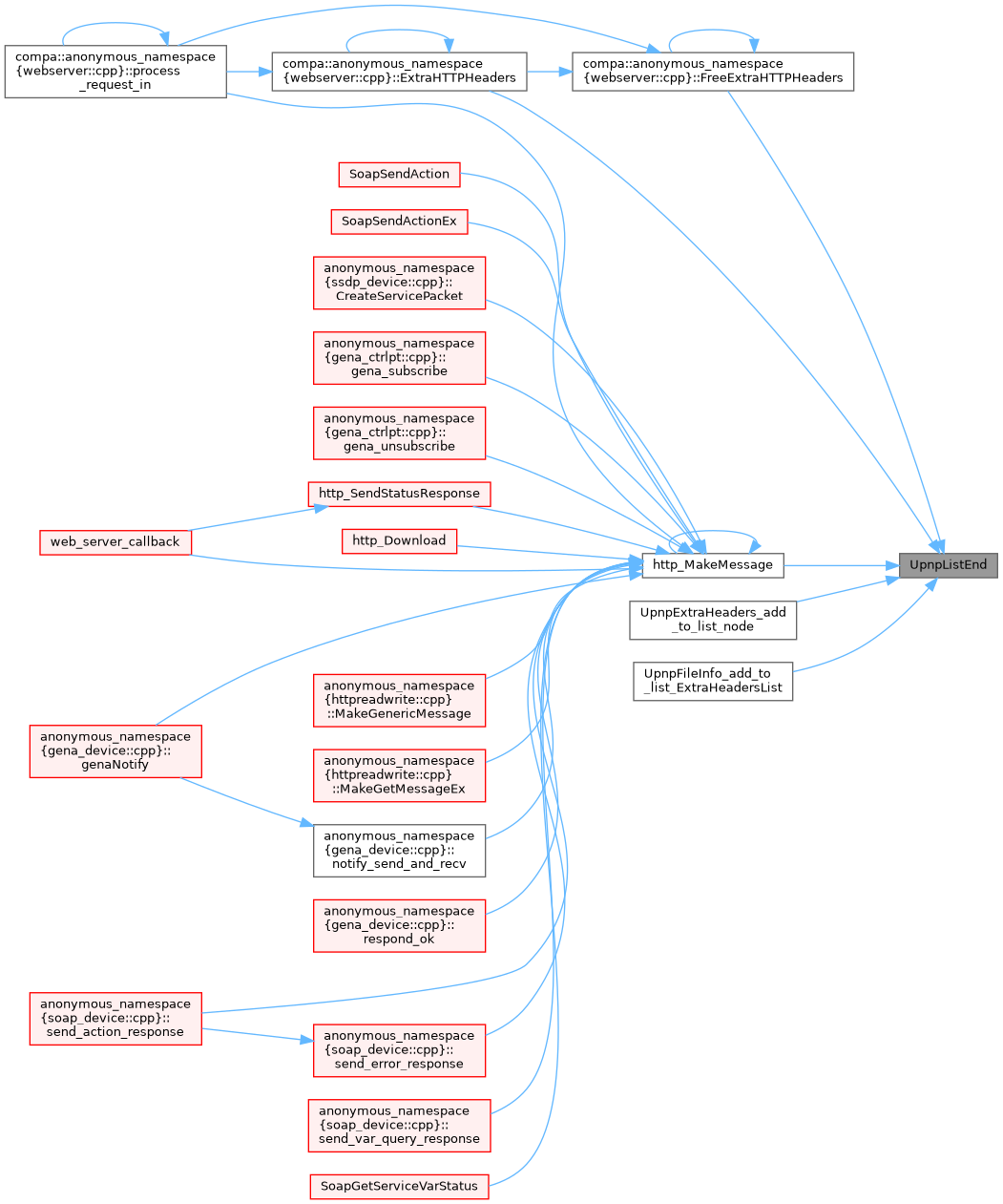

Here is the caller graph for this function:

UpnpListNext()

PUPNP_Api UpnpListIter UpnpListNext	(	UpnpListHead *	list,
		UpnpListIter	pos
	)

Return iterator pointing to element after pos, or end()

Definition at line 60 of file list.cpp.

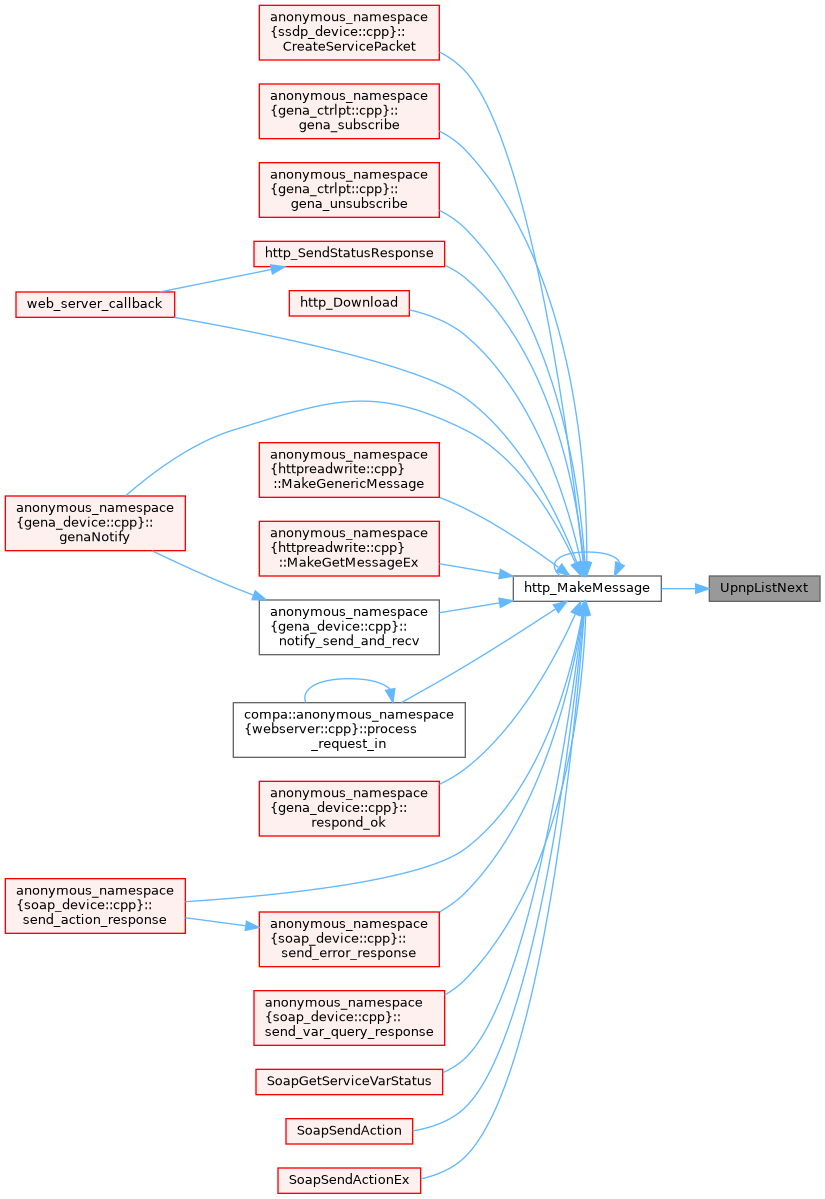

Here is the caller graph for this function:

UpnpListInsert()

PUPNP_Api UpnpListIter UpnpListInsert	(	UpnpListHead *	list,
		UpnpListIter	pos,
		UpnpListHead *	elt
	)

Insert element before pos, returns iterator pointing to inserted element.

Definition at line 68 of file list.cpp.

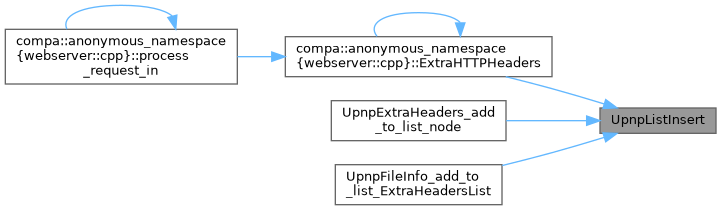

Here is the caller graph for this function:

UpnpListErase()

PUPNP_Api UpnpListIter UpnpListErase	(	UpnpListHead *	list,
		UpnpListIter	pos
	)

Erase element at pos, return next one, or end()

Definition at line 80 of file list.cpp.

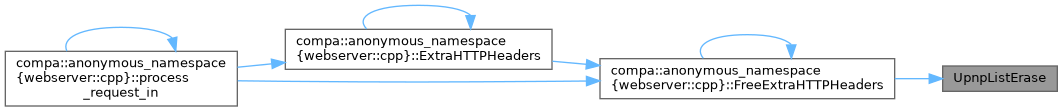

Here is the caller graph for this function:
