anonymous_namespace{ThreadPool.cpp} Namespace Reference

Functions
Scope restricted to file
long	DiffMillis (timeval *time1, timeval *time2)
	Returns the difference in milliseconds between two timeval structures.
void	StatsInit (ThreadPoolStats *stats)
	Initializes the statistics structure.
void	StatsAccountLQ (ThreadPool *tp, long diffTime)
	StatsAccountLQ.
void	StatsAccountMQ (ThreadPool *tp, long diffTime)
	StatsAccountMQ.
void	StatsAccountHQ (ThreadPool *tp, long diffTime)
	StatsAccountHQ.
void	CalcWaitTime (ThreadPool *tp, ThreadPriority p, ThreadPoolJob *job)
	Calculates the time the job has been waiting at the specified priority.
time_t	StatsTime (time_t *t)
	StatsTime.
int	CmpThreadPoolJob (void *jobA, void *jobB)
	Compares thread pool jobs.
void	FreeThreadPoolJob (ThreadPool *tp, ThreadPoolJob *tpj)
	Deallocates a dynamically allocated ThreadPoolJob.
int	SetPolicyType (PolicyType in)
	Sets the scheduling policy of the current process.
int	SetPriority (ThreadPriority priority)
	Sets the priority of the currently running thread.
void	BumpPriority (ThreadPool *tp)
	Determines whether any jobs need to be bumped to a higher priority Q and bumps them.
void	SetRelTimeout (timespec *time, int relMillis)
	Sets the fields of the passed in timespec to be relMillis milliseconds in the future.
void	SetSeed (void)
	Sets seed for random number generator.
void *	WorkerThread (void *arg)
	Implements a thread pool worker.
ThreadPoolJob *	CreateThreadPoolJob (ThreadPoolJob *job, int id, ThreadPool *tp)
	Creates a Thread Pool Job. (Dynamically allocated)
int	CreateWorker (ThreadPool *tp)
	Creates a worker thread, if the thread pool does not already have max threads.
void	AddWorker (ThreadPool *tp)
	Determines whether or not a thread should be added based on the jobsPerThread ratio.

Function Documentation

DiffMillis()

long anonymous_namespace{ThreadPool.cpp}::DiffMillis	(	timeval *	time1,
		timeval *	time2
	)

Returns the difference in milliseconds between two timeval structures.

Returns

The difference in milliseconds, time1-time2.

Definition at line 75 of file ThreadPool.cpp.

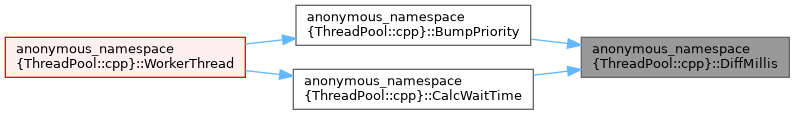

Here is the caller graph for this function:

StatsInit()

void anonymous_namespace{ThreadPool.cpp}::StatsInit

(

ThreadPoolStats *

stats

)

Initializes the statistics structure.

Parameters

stats

Valid non null stats structure.

Definition at line 93 of file ThreadPool.cpp.

Here is the caller graph for this function:

StatsAccountLQ()

void anonymous_namespace{ThreadPool.cpp}::StatsAccountLQ	(	ThreadPool *	tp,
		long	diffTime
	)

StatsAccountLQ.

Parameters

[in]	tp	Valid, non null, pointer to ThreadPool.
	diffTime	.

Definition at line 118 of file ThreadPool.cpp.

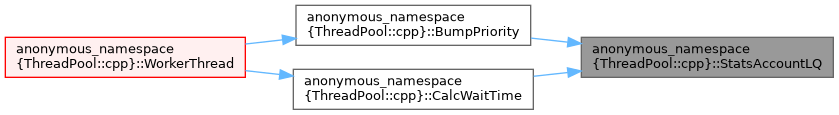

Here is the caller graph for this function:

StatsAccountMQ()

void anonymous_namespace{ThreadPool.cpp}::StatsAccountMQ	(	ThreadPool *	tp,
		long	diffTime
	)

StatsAccountMQ.

Parameters

[in]	tp	Valid, non null, pointer to ThreadPool.
	diffTime	.

Definition at line 130 of file ThreadPool.cpp.

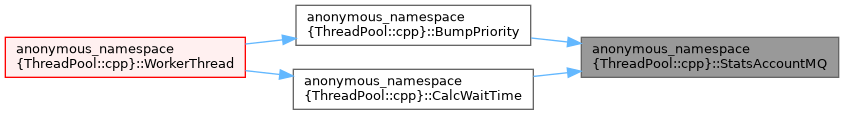

Here is the caller graph for this function:

StatsAccountHQ()

void anonymous_namespace{ThreadPool.cpp}::StatsAccountHQ	(	ThreadPool *	tp,
		long	diffTime
	)

StatsAccountHQ.

Parameters

[in]	tp	Valid, non null, pointer to ThreadPool.
	diffTime	.

Definition at line 142 of file ThreadPool.cpp.

Here is the caller graph for this function:

CalcWaitTime()

void anonymous_namespace{ThreadPool.cpp}::CalcWaitTime	(	ThreadPool *	tp,
		ThreadPriority	p,
		ThreadPoolJob *	job
	)

Calculates the time the job has been waiting at the specified priority.

Adds to the totalTime and totalJobs kept in the thread pool statistics structure.

Parameters

[in]	tp	Valid, non null, pointer to ThreadPool.
[in]	p	Thread priority.
[in]	job	Valid thread pool job.

Definition at line 158 of file ThreadPool.cpp.

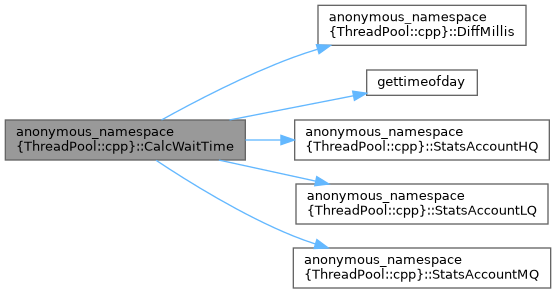

Here is the call graph for this function:

Here is the caller graph for this function:

StatsTime()

time_t anonymous_namespace{ThreadPool.cpp}::StatsTime

(

time_t *

t

)

StatsTime.

Parameters

t

.

Definition at line 191 of file ThreadPool.cpp.

Here is the call graph for this function:

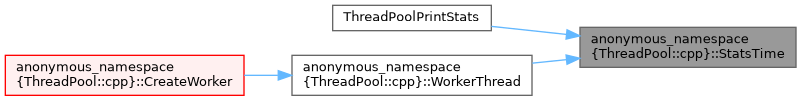

Here is the caller graph for this function:

CmpThreadPoolJob()

int anonymous_namespace{ThreadPool.cpp}::CmpThreadPoolJob	(	void *	jobA,
		void *	jobB
	)

Compares thread pool jobs.

Definition at line 215 of file ThreadPool.cpp.

Here is the caller graph for this function:

FreeThreadPoolJob()

void anonymous_namespace{ThreadPool.cpp}::FreeThreadPoolJob	(	ThreadPool *	tp,
		ThreadPoolJob *	tpj
	)

Deallocates a dynamically allocated ThreadPoolJob.

Parameters

[in]	tp	Valid, non null, pointer to ThreadPool.
[in]	tpj	Must be allocated with CreateThreadPoolJob.

Definition at line 225 of file ThreadPool.cpp.

Here is the call graph for this function:

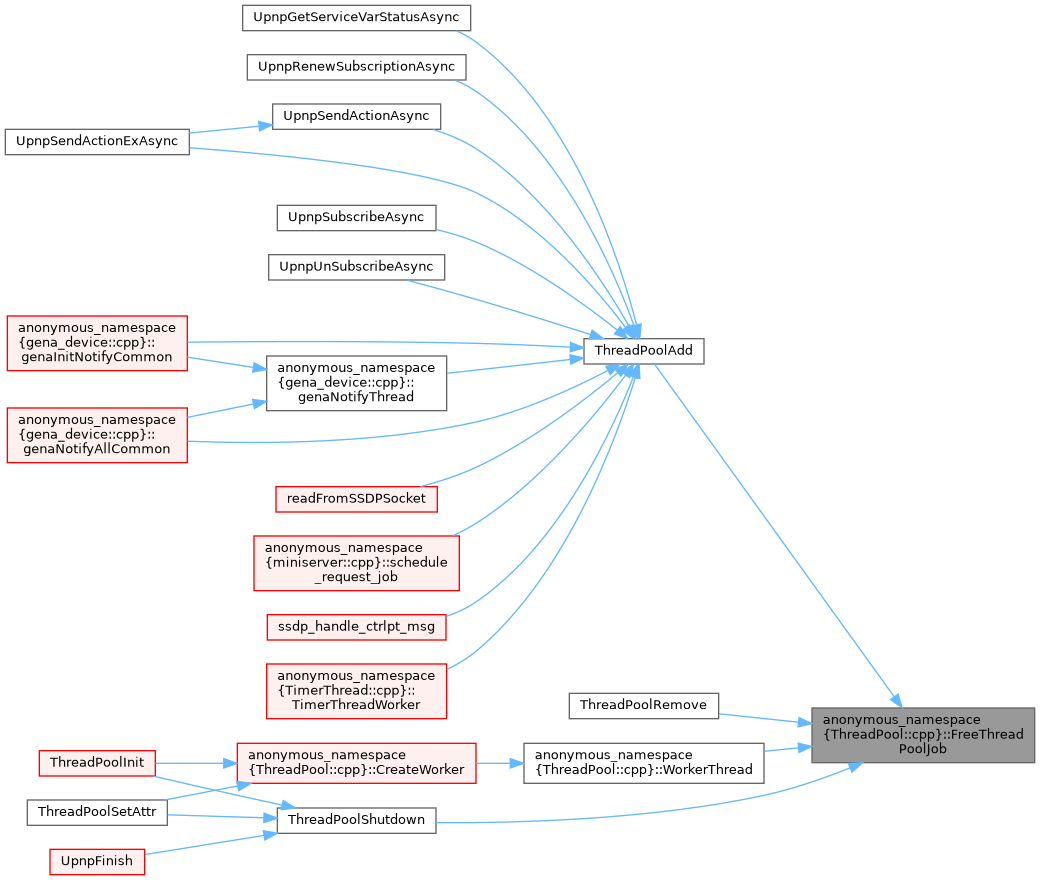

Here is the caller graph for this function:

SetPolicyType()

int anonymous_namespace{ThreadPool.cpp}::SetPolicyType

(

PolicyType

in

)

Sets the scheduling policy of the current process.

Returns

On success: 0
On error: result of GetLastError() on failure.

Parameters

in

.

Definition at line 240 of file ThreadPool.cpp.

Here is the caller graph for this function:

SetPriority()

int anonymous_namespace{ThreadPool.cpp}::SetPriority

(

ThreadPriority

priority

)

Sets the priority of the currently running thread.

Returns

On success: 0
On error: EINVAL invalid priority or the result of GerLastError.

Parameters

[in]

priority

Thread priority

Definition at line 276 of file ThreadPool.cpp.

Here is the caller graph for this function:

BumpPriority()

void anonymous_namespace{ThreadPool.cpp}::BumpPriority

(

ThreadPool *

tp

)

Determines whether any jobs need to be bumped to a higher priority Q and bumps them.

tp->mutex must be locked.

Parameters

[in]

tp

Valid, non null, pointer to ThreadPool.

Definition at line 327 of file ThreadPool.cpp.

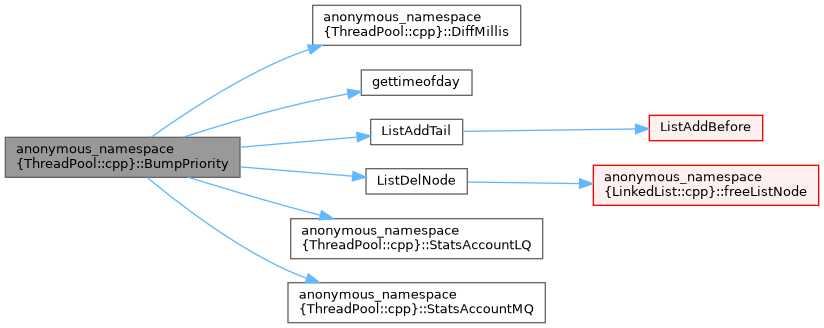

Here is the call graph for this function:

Here is the caller graph for this function:

SetRelTimeout()

void anonymous_namespace{ThreadPool.cpp}::SetRelTimeout	(	timespec *	time,
		int	relMillis
	)

Sets the fields of the passed in timespec to be relMillis milliseconds in the future.

Parameters

time	.
relMillis	milliseconds in the future.

Definition at line 369 of file ThreadPool.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

SetSeed()

void anonymous_namespace{ThreadPool.cpp}::SetSeed

(

void

)

Sets seed for random number generator.

Each thread sets the seed random number generator.

Todo:

Solve problem with type casts.

Definition at line 390 of file ThreadPool.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

WorkerThread()

void * anonymous_namespace{ThreadPool.cpp}::WorkerThread

(

void *

arg

)

Implements a thread pool worker.

Worker waits for a job to become available. Worker picks up persistent jobs first, high priority, med priority, then low priority. If worker remains idle for more than specified max, the worker is released.

Parameters

arg	arg -> is cast to (ThreadPool *).

Definition at line 423 of file ThreadPool.cpp.

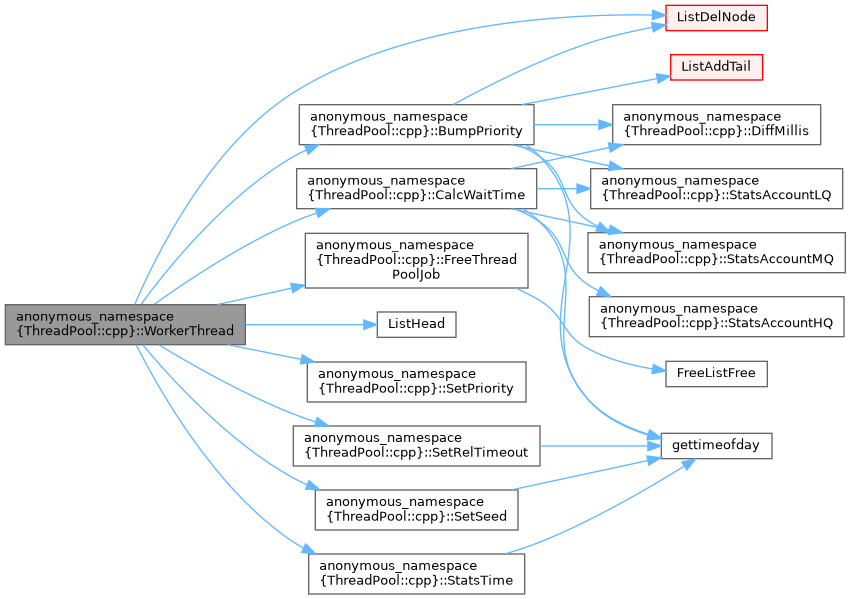

Here is the call graph for this function:

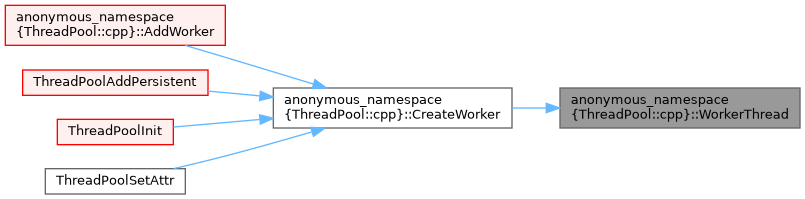

Here is the caller graph for this function:

CreateThreadPoolJob()

ThreadPoolJob * anonymous_namespace{ThreadPool.cpp}::CreateThreadPoolJob	(	ThreadPoolJob *	job,
		int	id,
		ThreadPool *	tp
	)

Creates a Thread Pool Job. (Dynamically allocated)

Returns

On success: Pointer to a ThreadPoolJob
On error: nullptr

Parameters

	job	job is copied.
	id	id of job.
[in]	tp	Valid, non null, pointer to ThreadPool.

Definition at line 571 of file ThreadPool.cpp.

Here is the call graph for this function:

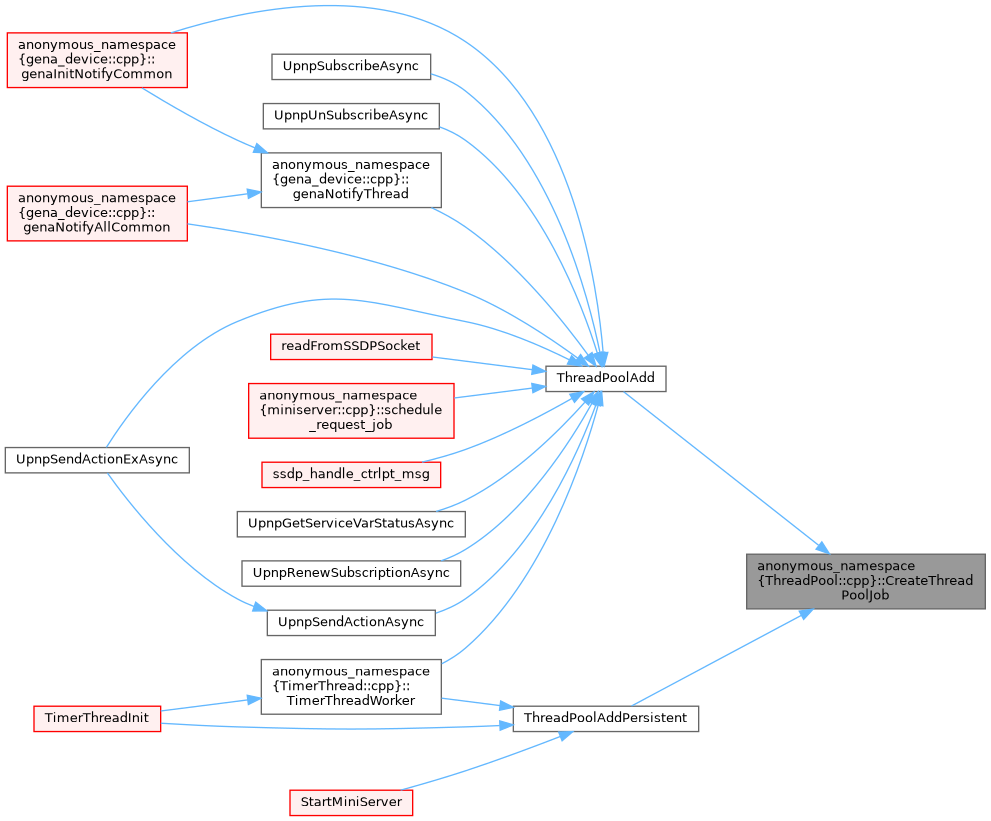

Here is the caller graph for this function:

CreateWorker()

int anonymous_namespace{ThreadPool.cpp}::CreateWorker

(

ThreadPool *

tp

)

Creates a worker thread, if the thread pool does not already have max threads.

Remarks

The ThreadPool object mutex must be locked prior to calling this function.

Returns

On success: 0
On error: **< 0**

• EMAXTHREADS if already max threads reached.
• EAGAIN if system can not create thread.

Parameters

[in]

tp

Valid, non null, pointer to ThreadPool.

Definition at line 603 of file ThreadPool.cpp.

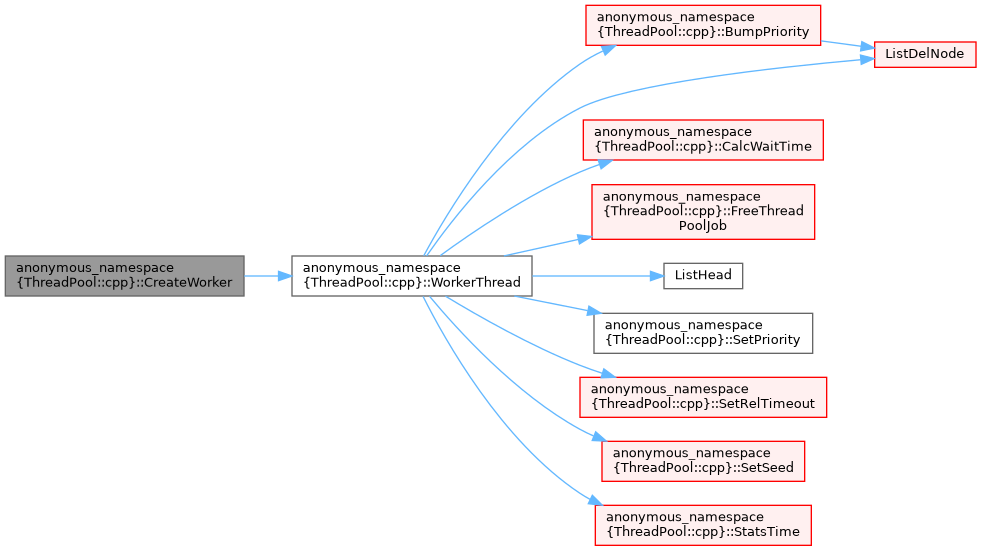

Here is the call graph for this function:

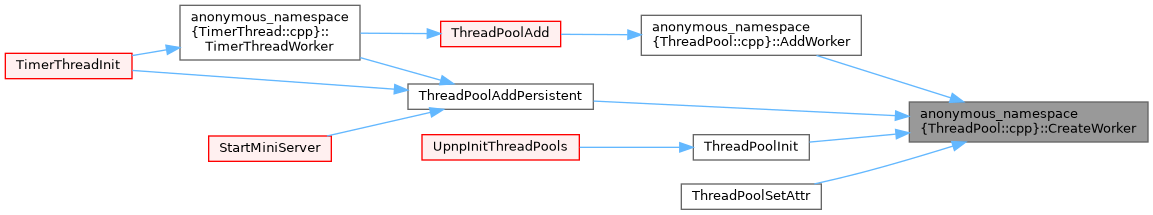

Here is the caller graph for this function:

AddWorker()

void anonymous_namespace{ThreadPool.cpp}::AddWorker

(

ThreadPool *

tp

)

Determines whether or not a thread should be added based on the jobsPerThread ratio.

Adds a thread if appropriate.

Remarks

The ThreadPool object mutex must be locked prior to calling this function.

Parameters

[in]

tp

Valid, non null, pointer to ThreadPool.

Definition at line 648 of file ThreadPool.cpp.

Here is the call graph for this function:

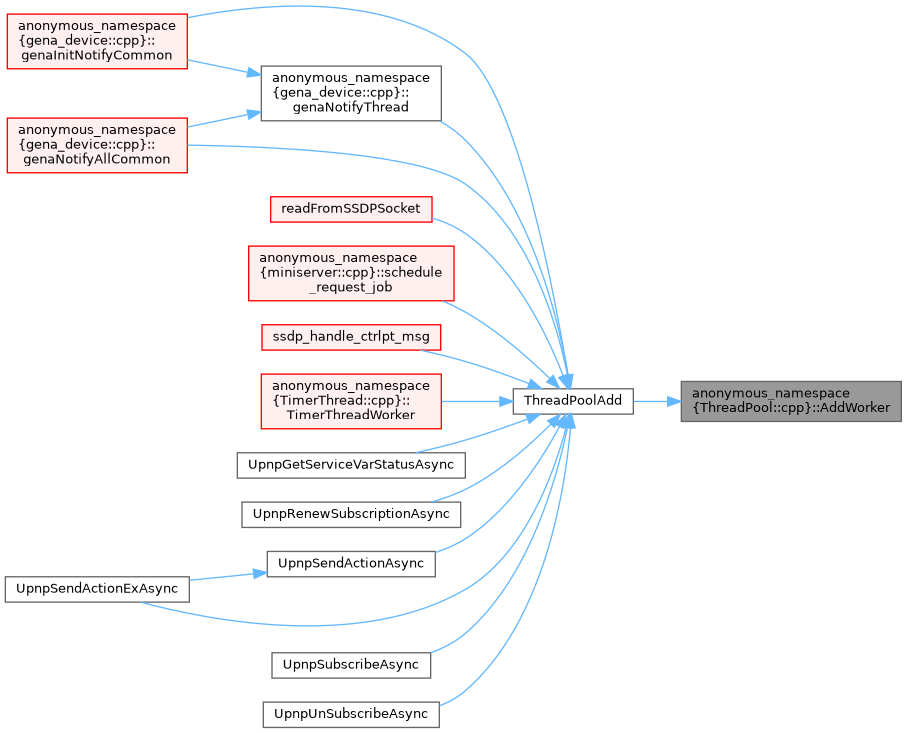

Here is the caller graph for this function:
