anonymous_namespace{ssdp_ctrlpt.cpp} Namespace Reference

Functions
Scope restricted to file
void	send_search_result (void *data)
	Sends a callback to the control point application with a SEARCH result.
int	CreateClientRequestPacket (char *RqstBuf, size_t RqstBufSize, int Mx, char *SearchTarget, int AddressFamily)
	Creates a HTTP search request packet depending on the input parameter.
int	CreateClientRequestPacketUlaGua (char *RqstBuf, size_t RqstBufSize, int Mx, char *SearchTarget, int AddressFamily)
	Creates a HTTP search request packet for IPv6 UlaGua depending on the input parameter.
void	searchExpired (void *arg)
	Remove search Target from list and call client back.

Function Documentation

send_search_result()

void anonymous_namespace{ssdp_ctrlpt.cpp}::send_search_result ( void *  data )

inline

Sends a callback to the control point application with a SEARCH result.

Parameters

[in]

data

Search reply from the device.

Definition at line 68 of file ssdp_ctrlpt.cpp.

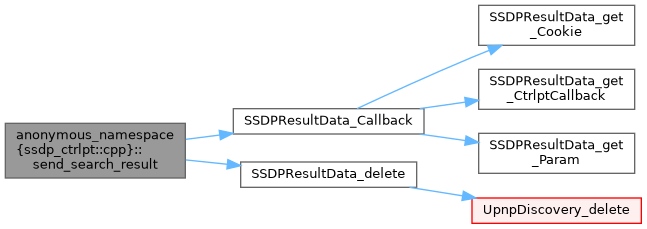

Here is the call graph for this function:

Here is the caller graph for this function:

CreateClientRequestPacket()

int anonymous_namespace{ssdp_ctrlpt.cpp}::CreateClientRequestPacket	(	char *	RqstBuf,
		size_t	RqstBufSize,
		int	Mx,
		char *	SearchTarget,
		int	AddressFamily
	)

Creates a HTTP search request packet depending on the input parameter.

Returns

On success: UPNP_E_SUCCESS
On error:

• UPNP_E_INTERNAL_ERROR
• UPNP_E_INVALID_ARGUMENT
• UPNP_E_BUFFER_TOO_SMALL

Parameters

[in,out]	RqstBuf	Output string in HTTP format.
[in]	RqstBufSize	RqstBuf size.
[in]	Mx	Search Target.
[in]	SearchTarget	Number of seconds to wait to collect all the responses.
[in]	AddressFamily	search address family.

Definition at line 88 of file ssdp_ctrlpt.cpp.

Here is the caller graph for this function:

CreateClientRequestPacketUlaGua()

int anonymous_namespace{ssdp_ctrlpt.cpp}::CreateClientRequestPacketUlaGua ( char *  RqstBuf, size_t  RqstBufSize, int  Mx, char *  SearchTarget, int  AddressFamily  )

inline

Creates a HTTP search request packet for IPv6 UlaGua depending on the input parameter.

Returns

On success: UPNP_E_SUCCESS
On error:

• UPNP_E_INTERNAL_ERROR
• UPNP_E_INVALID_ARGUMENT
• UPNP_E_BUFFER_TOO_SMALL

Parameters

[in,out]	RqstBuf	Output string in HTTP format.
[in]	RqstBufSize	RqstBuf size.
[in]	Mx	Search Target.
[in]	SearchTarget	Number of seconds to wait to collect all the responses.
[in]	AddressFamily	search address family.

Definition at line 168 of file ssdp_ctrlpt.cpp.

Here is the caller graph for this function:

searchExpired()

void anonymous_namespace{ssdp_ctrlpt.cpp}::searchExpired ( void *  arg )

inline

Remove search Target from list and call client back.

Parameters

[in]

arg

Search target

Definition at line 238 of file ssdp_ctrlpt.cpp.

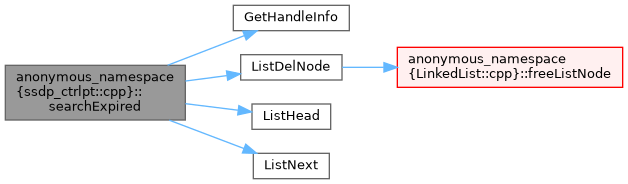

Here is the call graph for this function:

Here is the caller graph for this function:
