uri.hpp File Reference

Manage Uniform Resource Identifier (URI) as specified with RFC 3986. More...

#include <UPnPsdk/visibility.hpp>
#include <UPnPsdk/port.hpp>
#include <UPnPsdk/port_sock.hpp>

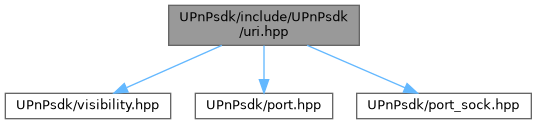

Include dependency graph for uri.hpp:

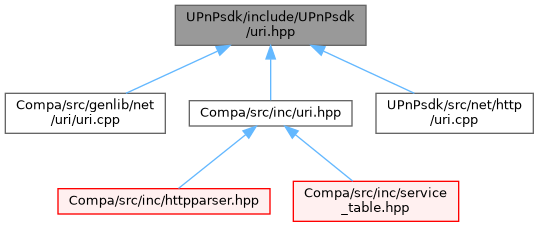

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	token
	Buffer used in parsing http messages, urls, etc. Generally this simply holds a pointer into a larger array. More...
struct	hostport_type
	Represents a host port, e.g. "[::1]:443". More...
struct	uri_type
	Represents a URI used in parse_uri and elsewhere. More...
class	UPnPsdk::CComponent
	Base class of a component. More...
class	UPnPsdk::CScheme
	Scheme component of a URI. More...
class	UPnPsdk::CUserinfo
	Userinfo subcomponent from an authority component of a URI reference. More...
class	UPnPsdk::CHost
	Host subcomponent from an authority component of a URI reference. More...
class	UPnPsdk::CPort
	Port subcomponent from an authority component of a URI reference. More...
class	UPnPsdk::CAuthority
	Authority component of a URI reference. More...
class	UPnPsdk::CPath
	Path component of a URI reference. More...
class	UPnPsdk::CQuery
	Query component of a URI reference. More...
class	UPnPsdk::CFragment
	Fragment component of a URI reference. More...
class	UPnPsdk::CPrepUriStr
	Internal class to prepare the input URI string, Not publicly usable. More...
class	UPnPsdk::CUriRef
	This is a URI reference. More...
class	UPnPsdk::CUri
	Representing a URI that can be modified with a relative reference. More...

Namespaces
namespace	UPnPsdk
	Reengineered Object Oriented UPnP+ program code.

Enumerations
enum struct	uriType { Absolute , Relative }
	Type of the URI. More...
enum struct	pathType { ABS_PATH , REL_PATH , OPAQUE_PART }
	Type of the 'path' part of the URI. More...

Functions
UPnPsdk_VIS void	UPnPsdk::remove_dot_segments (std::string &a_path)
	Remove dot segments from a path.
UPnPsdk_VIS void	UPnPsdk::decode_esc_chars (std::string &a_encoded)
	Replaces http percent encoded characters with their character representation.
UPnPsdk_VIS int	parse_uri (const char *in, size_t max, uri_type *out)
	Parses a uri as defined in RFC 3986 (Uniform Resource Identifier).

Variables
constexpr int	HTTP_SUCCESS {1}
	Yet another success code.

Detailed Description

Manage Uniform Resource Identifier (URI) as specified with RFC 3986.

Definition in file uri.hpp.

---

Class Documentation

token

struct token

Buffer used in parsing http messages, urls, etc. Generally this simply holds a pointer into a larger array.

Definition at line 48 of file uri.hpp.

Class Members
const char *	buff	Buffer.
size_t	size	Size of the buffer.

hostport_type

struct hostport_type

Represents a host port, e.g. "[::1]:443".

Definition at line 56 of file uri.hpp.

Collaboration diagram for hostport_type:

Class Members
token	text	Pointing to the full host:port string representation.
sockaddr_storage	IPaddress	Network socket address.

uri_type

struct uri_type

Represents a URI used in parse_uri and elsewhere.

Definition at line 64 of file uri.hpp.

Collaboration diagram for uri_type:

Class Members
uriType	type	Member variable.
token	scheme	Member variable.
pathType	path_type	Member variable.
token	pathquery	Member variable.
token	fragment	Member variable.
hostport_type	hostport	Member variable.

Enumeration Type Documentation

uriType

enum struct uriType

strong

Type of the URI.

Enumerator
Absolute	The URI is absolute, means it has a 'scheme' component.
Relative	The URI is relative, means it hasn't a 'scheme' component.

Definition at line 25 of file uri.hpp.

pathType

enum struct pathType

strong

Type of the 'path' part of the URI.

Enumerator
ABS_PATH	The 'path' component begins with a '/'.
REL_PATH	The 'path' component doesn't begin with a '/'.
OPAQUE_PART	A URI is opaque if, and only if, it is absolute and its 'scheme'-specific part does not begin with a slash character ('/'). An opaque URI has a 'scheme', a 'scheme'-specific part, and possibly a 'fragment'; all other components are undefined. A typical example of an opaque uri is a mail to url "mailto:a@b.com". (source)

Definition at line 31 of file uri.hpp.

Variable Documentation

HTTP_SUCCESS

constexpr int HTTP_SUCCESS {1}

inlineconstexpr

Yet another success code.

Definition at line 21 of file uri.hpp.
