ssdp_ctrlpt.cpp File Reference

Manage "Step 1: Discovery" of the UPnP+™ specification for Control Points with SSDP. More...

#include <ssdp_ctrlpt.hpp>
#include "SSDPResultDataCallback.hpp"
#include <statcodes.hpp>
#include <upnpapi.hpp>
#include <umock/sys_socket.hpp>
#include <umock/pupnp_sock.hpp>

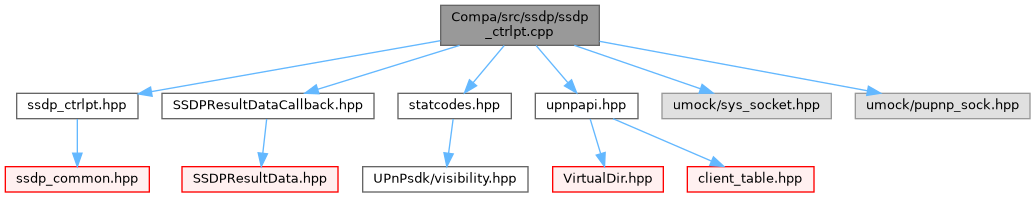

Include dependency graph for ssdp_ctrlpt.cpp:

Go to the source code of this file.

Functions
void	ssdp_handle_ctrlpt_msg (http_message_t *hmsg, struct sockaddr_storage *dest_addr, int timeout)
	This function handles the ssdp messages from the devices.
int	SearchByTarget (int Hnd, int Mx, char *St, void *Cookie)
	Creates and send the search request for a specific URL.
int	create_ssdp_sock_reqv4 (SOCKET *ssdpReqSock)
	Creates the SSDP IPv4 socket to be used by the control point.
int	create_ssdp_sock_reqv6 (SOCKET *ssdpReqSock)
	Creates the SSDP IPv6 socket to be used by the control point.
Scope restricted to file
void	anonymous_namespace{ssdp_ctrlpt.cpp}::send_search_result (void *data)
	Sends a callback to the control point application with a SEARCH result.
int	anonymous_namespace{ssdp_ctrlpt.cpp}::CreateClientRequestPacket (char *RqstBuf, size_t RqstBufSize, int Mx, char *SearchTarget, int AddressFamily)
	Creates a HTTP search request packet depending on the input parameter.
int	anonymous_namespace{ssdp_ctrlpt.cpp}::CreateClientRequestPacketUlaGua (char *RqstBuf, size_t RqstBufSize, int Mx, char *SearchTarget, int AddressFamily)
	Creates a HTTP search request packet for IPv6 UlaGua depending on the input parameter.
void	anonymous_namespace{ssdp_ctrlpt.cpp}::searchExpired (void *arg)
	Remove search Target from list and call client back.

Detailed Description

Manage "Step 1: Discovery" of the UPnP+™ specification for Control Points with SSDP.

Definition in file ssdp_ctrlpt.cpp.

Function Documentation

SearchByTarget()

int SearchByTarget	(	int	Hnd,
		int	Mx,
		char *	St,
		void *	Cookie
	)

Creates and send the search request for a specific URL.

This function implements the search request of the discovery phase. A M-SEARCH request is sent on the SSDP channel for both IPv4 and IPv6 addresses. The search target(ST) is required and must be one of the following:

• "ssdp:all" : Search for all devices and services.
• "ssdp:rootdevice" : Search for root devices only.
• "uuid:<device-uuid>" : Search for a particular device.
• "urn:schemas-upnp-org:device:<deviceType:v>"
• "urn:schemas-upnp-org:service:<serviceType:v>"
• "urn:<domain-name>:device:<deviceType:v>"
• "urn:<domain-name>:service:<serviceType:v>"

Returns

On success: 1
On error:

• UPNP_E_INVALID_PARAM
• UPNP_E_INTERNAL_ERROR
• UPNP_E_INVALID_ARGUMENT
• UPNP_E_BUFFER_TOO_SMALL

Parameters

[in]	Hnd	The handle of the client performing the search.
[in]	Mx	Number of seconds to wait, to collect all the responses.
[in]	St	Search target.
[in]	Cookie	Cookie provided by control point application. This cokie will be returned to application in the callback.

Definition at line 546 of file ssdp_ctrlpt.cpp.

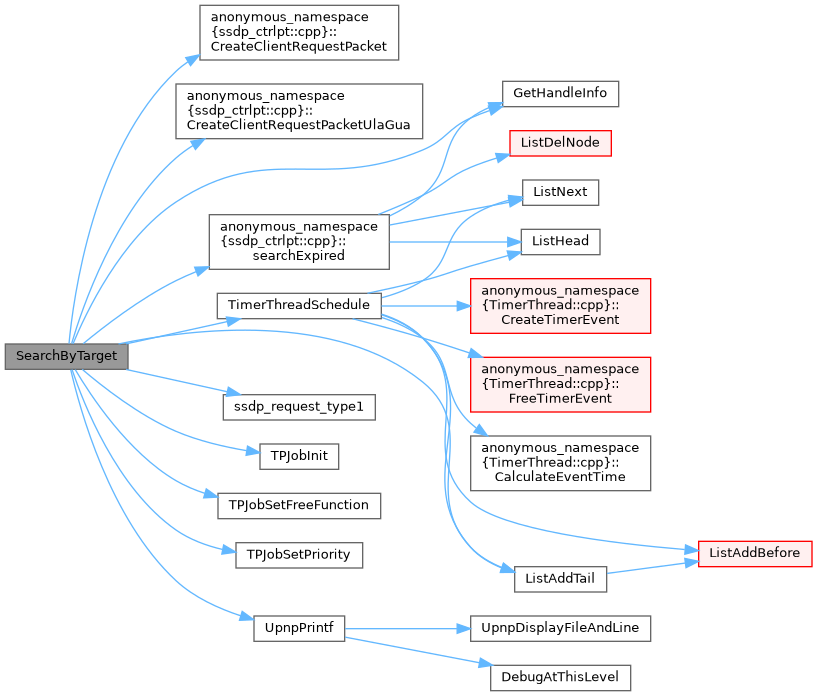

Here is the call graph for this function:

Here is the caller graph for this function:

create_ssdp_sock_reqv4()

int create_ssdp_sock_reqv4

(

SOCKET *

ssdpReqSock

)

Creates the SSDP IPv4 socket to be used by the control point.

Returns

On success: UPNP_E_SUCCESS
On error:

• UPNP_E_OUTOF_SOCKET

Parameters

[out]

ssdpReqSock

SSDP IPv4 request socket to be created.

Definition at line 719 of file ssdp_ctrlpt.cpp.

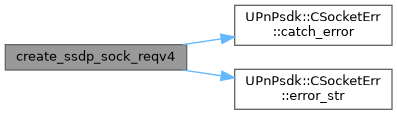

Here is the call graph for this function:

Here is the caller graph for this function:

create_ssdp_sock_reqv6()

int create_ssdp_sock_reqv6

(

SOCKET *

ssdpReqSock

)

Creates the SSDP IPv6 socket to be used by the control point.

Returns

On success: UPNP_E_SUCCESS
On error:

• UPNP_E_OUTOF_SOCKET

Parameters

[out]

ssdpReqSock

SSDP IPv6 request socket to be created.

Definition at line 748 of file ssdp_ctrlpt.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:
