soap_device.cpp File Reference

Items for UPnP devices to manage UPnP Control. More...

#include <soap_common.hpp>
#include <soap_device.hpp>
#include <httpreadwrite.hpp>
#include <parsetools.hpp>
#include <ssdp_common.hpp>
#include <statcodes.hpp>
#include <upnpapi.hpp>
#include <UpnpStateVarRequest.hpp>
#include <webserver.hpp>

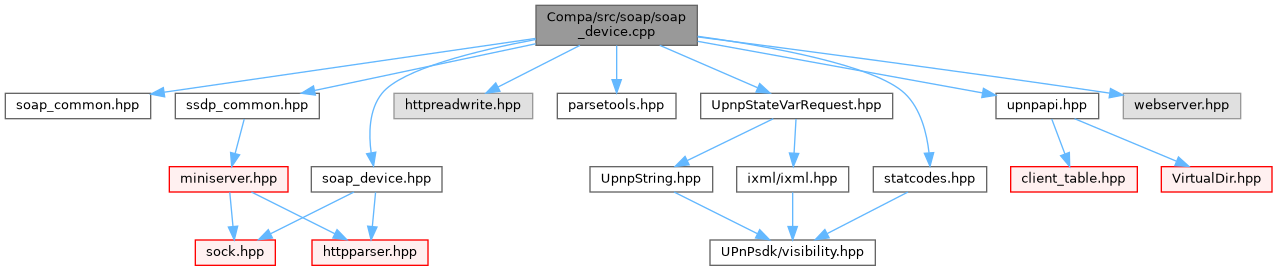

Include dependency graph for soap_device.cpp:

Go to the source code of this file.

Classes
struct	anonymous_namespace{soap_device.cpp}::soap_devserv_t
	SOAP info. More...

Functions
void	soap_device_callback (http_parser_t *parser, http_message_t *request, SOCKINFO *info)
	This is a callback called by minisever after receiving the request from the control point.
Functions scope restricted to file
void	anonymous_namespace{soap_device.cpp}::namecopy (char dest[NAME_SIZE], const char *src)
	Copy string with length NAME_SIZE and terminate with '\0'.
void	anonymous_namespace{soap_device.cpp}::send_error_response (SOCKINFO *info, int error_code, const char *err_msg, http_message_t *hmsg)
	Sends SOAP error response.
void	anonymous_namespace{soap_device.cpp}::send_var_query_response (SOCKINFO *info, const char *var_value, http_message_t *hmsg)
	Sends response of get var status.
void	anonymous_namespace{soap_device.cpp}::send_action_response (SOCKINFO *info, IXML_Document *action_resp, http_message_t *request)
	Sends the SOAP action response.
void	anonymous_namespace{soap_device.cpp}::handle_query_variable (SOCKINFO *info, http_message_t *request, soap_devserv_t *soap_info, IXML_Node *req_node)
	Handles the SOAP requests to querry the state variables.
void	anonymous_namespace{soap_device.cpp}::handle_invoke_action (SOCKINFO *info, http_message_t *request, soap_devserv_t *soap_info, IXML_Node *req_node)
	Handles the SOAP action request.
int	anonymous_namespace{soap_device.cpp}::get_dev_service (http_message_t *request, int AddressFamily, soap_devserv_t *soap_info)
	Retrieve SOAP device/service information associated with request-URI.
int	anonymous_namespace{soap_device.cpp}::get_mpost_acton_hdrval (http_message_t *request, memptr *val)
	Get the SOAPACTION header value for M-POST request.
int	anonymous_namespace{soap_device.cpp}::check_soapaction_hdr (http_message_t *request, soap_devserv_t *soap_info)
	Check header validity, get action name and version of service.
int	anonymous_namespace{soap_device.cpp}::check_soap_request (soap_devserv_t *soap_info, IXML_Document *xml_doc, IXML_Node **req_node)
	Check validity of the SOAP request per UPnP specification.

Variables
Variables scope restricted to file
constexpr int	anonymous_namespace{soap_device.cpp}::SREQ_HDR_NOT_FOUND {-1}
	UPnP Device SOAP status.
constexpr int	anonymous_namespace{soap_device.cpp}::SREQ_BAD_HDR_FORMAT {-2}
	UPnP Device SOAP status.
constexpr int	anonymous_namespace{soap_device.cpp}::SREQ_NOT_EXTENDED {-3}
	UPnP Device SOAP status.
constexpr int	anonymous_namespace{soap_device.cpp}::SOAP_INVALID_ACTION {401}
	UPnP Device SOAP status.
constexpr int	anonymous_namespace{soap_device.cpp}::SOAP_INVALID_VAR {404}
	UPnP Device SOAP status.
constexpr int	anonymous_namespace{soap_device.cpp}::SOAP_ACTION_FAILED {501}
	UPnP Device SOAP status.
constexpr int	anonymous_namespace{soap_device.cpp}::SOAP_MEMORY_OUT {603}
	UPnP Device SOAP status.
constexpr char	anonymous_namespace{soap_device.cpp}::SOAP_BODY [] {"Body"}
	UPnP Device SOAP strings.
constexpr char	anonymous_namespace{soap_device.cpp}::SOAP_URN [] {"http://schemas.xmlsoap.org/soap/envelope/"}
	UPnP Device SOAP strings.
constexpr char	anonymous_namespace{soap_device.cpp}::QUERY_STATE_VAR_URN [] {"urn:schemas-upnp-org:control-1-0"}
	UPnP Device SOAP strings.
constexpr char	anonymous_namespace{soap_device.cpp}::Soap_Invalid_Action [] {"Invalid Action"}
	UPnP Device SOAP strings.
constexpr char	anonymous_namespace{soap_device.cpp}::Soap_Action_Failed [] {"Action Failed"}
	UPnP Device SOAP strings.
constexpr char	anonymous_namespace{soap_device.cpp}::Soap_Invalid_Var [] {"Invalid Var"}
	UPnP Device SOAP strings.
constexpr char	anonymous_namespace{soap_device.cpp}::Soap_Memory_out [] {"Out of Memory"}
	UPnP Device SOAP strings.

Detailed Description

Items for UPnP devices to manage UPnP Control.

This is only available if the option for Devices and the option for SOAP is enabled with compiling the library.

Definition in file soap_device.cpp.

---

Class Documentation

anonymous_namespace{soap_device.cpp}::soap_devserv_t

struct anonymous_namespace{soap_device.cpp}::soap_devserv_t

SOAP info.

Definition at line 101 of file soap_device.cpp.

Collaboration diagram for anonymous_namespace{soap_device.cpp}::soap_devserv_t:

Class Members
char	dev_udn[NAME_SIZE]
char	service_type[NAME_SIZE]
char	service_id[NAME_SIZE]
memptr	action_name
Upnp_FunPtr	callback
void *	cookie

Function Documentation

soap_device_callback()

void soap_device_callback	(	http_parser_t *	parser,
		http_message_t *	request,
		SOCKINFO *	info
	)

This is a callback called by minisever after receiving the request from the control point.

This is a callback called by minisever.

After HTTP processing, it calls handle_soap_request to start SOAP processing.

Parameters

[in]	parser	Parsed request received by the device.
[in]	request	HTTP request.
[in,out]	info	Socket info.

Definition at line 735 of file soap_device.cpp.

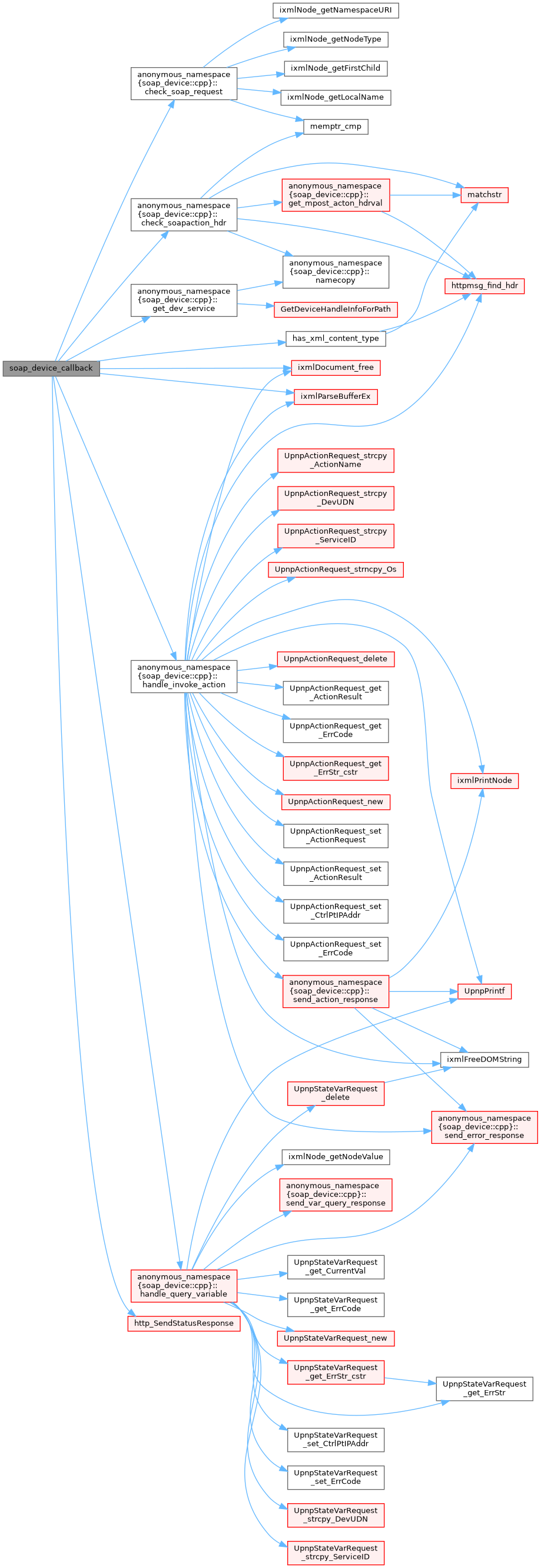

Here is the call graph for this function:

Here is the caller graph for this function:
