Manage a threadpool (for internal use only). More...

#include <ThreadPool.hpp>
#include <UPnPsdk/synclog.hpp>

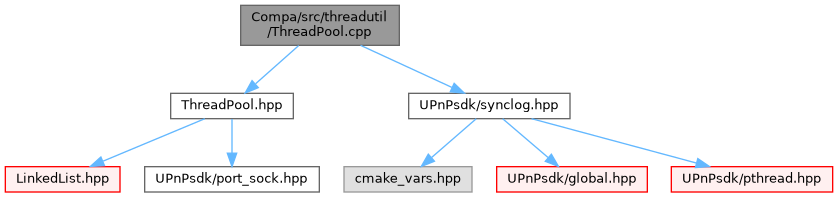

Include dependency graph for ThreadPool.cpp:

Macros
#define	EMAXTHREADS (-8 & 1 << 29)

#define	INVALID_POLICY (-9 & 1 << 29)

Functions
int	ThreadPoolInit (ThreadPool tp, ThreadPoolAttr attr)
	Initializes and starts ThreadPool.

int	ThreadPoolAddPersistent (ThreadPool tp, ThreadPoolJob job, int *jobId)
	Adds a persistent job to the thread pool.

int	ThreadPoolAdd (ThreadPool tp, ThreadPoolJob job, int *jobId)
	Adds a job to the thread pool.

int	ThreadPoolRemove (ThreadPool tp, int jobId, ThreadPoolJob out)
	Removes a job from the thread pool.

int	ThreadPoolGetAttr (ThreadPool tp, ThreadPoolAttr out)
	Gets the current set of attributes associated with the thread pool.

int	ThreadPoolSetAttr (ThreadPool tp, ThreadPoolAttr attr)
	Sets the attributes for the thread pool.

int	ThreadPoolShutdown (ThreadPool *tp)
	Shuts the thread pool down.

void	TPSetMaxJobsTotal (int mjt)
	Sets the maximum number of jobs in the thread pool.

int	TPAttrInit (ThreadPoolAttr *attr)
	Initializes thread pool attributes.

int	TPJobInit (ThreadPoolJob job, UPnPsdk::start_routine func, void arg)
	Initializes thread pool job.

int	TPJobSetPriority (ThreadPoolJob *job, ThreadPriority priority)
	Sets the priority of the threadpool job.

int	TPJobSetFreeFunction (ThreadPoolJob *job, free_routine func)
	Sets the jobs free function.

int	TPAttrSetMaxThreads (ThreadPoolAttr *attr, int maxThreads)
	Sets the max threads for the thread pool attributes.

int	TPAttrSetMinThreads (ThreadPoolAttr *attr, int minThreads)
	Sets the min threads for the thread pool attributes.

int	TPAttrSetStackSize (ThreadPoolAttr *attr, size_t stackSize)
	Sets the stack size for the thread pool attributes.

int	TPAttrSetIdleTime (ThreadPoolAttr *attr, int idleTime)
	Sets the idle time for the thread pool attributes.

int	TPAttrSetJobsPerThread (ThreadPoolAttr *attr, int jobsPerThread)
	Sets the jobs per thread ratio.

int	TPAttrSetStarvationTime (ThreadPoolAttr *attr, int starvationTime)
	Sets the starvation time for the thread pool attributes.

int	TPAttrSetSchedPolicy (ThreadPoolAttr *attr, PolicyType schedPolicy)
	Sets the scheduling policy for the thread pool attributes.

int	TPAttrSetMaxJobsTotal (ThreadPoolAttr *attr, int totalMaxJobs)
	Sets the maximum number jobs that can be qeued totally.

void	ThreadPoolPrintStats (ThreadPoolStats *stats)
	Prints various statistics about the thread pool to stderr.

int	ThreadPoolGetStats (ThreadPool tp, ThreadPoolStats stats)
	Returns various statistics about the thread pool.

int	gettimeofday (struct timeval tv, struct timezone tz)
	Get time of day.

Scope restricted to file
long	anonymous_namespace{ThreadPool.cpp}::DiffMillis (timeval time1, timeval time2)
	Returns the difference in milliseconds between two timeval structures.

void	anonymous_namespace{ThreadPool.cpp}::StatsInit (ThreadPoolStats *stats)
	Initializes the statistics structure.

void	anonymous_namespace{ThreadPool.cpp}::StatsAccountLQ (ThreadPool *tp, long diffTime)
	StatsAccountLQ.

void	anonymous_namespace{ThreadPool.cpp}::StatsAccountMQ (ThreadPool *tp, long diffTime)
	StatsAccountMQ.

void	anonymous_namespace{ThreadPool.cpp}::StatsAccountHQ (ThreadPool *tp, long diffTime)
	StatsAccountHQ.

void	anonymous_namespace{ThreadPool.cpp}::CalcWaitTime (ThreadPool tp, ThreadPriority p, ThreadPoolJob job)
	Calculates the time the job has been waiting at the specified priority.

time_t	anonymous_namespace{ThreadPool.cpp}::StatsTime (time_t *t)
	StatsTime.

int	anonymous_namespace{ThreadPool.cpp}::CmpThreadPoolJob (void jobA, void jobB)
	Compares thread pool jobs.

void	anonymous_namespace{ThreadPool.cpp}::FreeThreadPoolJob (ThreadPool tp, ThreadPoolJob tpj)
	Deallocates a dynamically allocated ThreadPoolJob.

int	anonymous_namespace{ThreadPool.cpp}::SetPolicyType (PolicyType in)
	Sets the scheduling policy of the current process.

int	anonymous_namespace{ThreadPool.cpp}::SetPriority (ThreadPriority priority)
	Sets the priority of the currently running thread.

void	anonymous_namespace{ThreadPool.cpp}::BumpPriority (ThreadPool *tp)
	Determines whether any jobs need to be bumped to a higher priority Q and bumps them.

void	anonymous_namespace{ThreadPool.cpp}::SetRelTimeout (timespec *time, int relMillis)
	Sets the fields of the passed in timespec to be relMillis milliseconds in the future.

void	anonymous_namespace{ThreadPool.cpp}::SetSeed (void)
	Sets seed for random number generator.

void *	anonymous_namespace{ThreadPool.cpp}::WorkerThread (void *arg)
	Implements a thread pool worker.

ThreadPoolJob *	anonymous_namespace{ThreadPool.cpp}::CreateThreadPoolJob (ThreadPoolJob job, int id, ThreadPool tp)
	Creates a Thread Pool Job. (Dynamically allocated)

int	anonymous_namespace{ThreadPool.cpp}::CreateWorker (ThreadPool *tp)
	Creates a worker thread, if the thread pool does not already have max threads.

void	anonymous_namespace{ThreadPool.cpp}::AddWorker (ThreadPool *tp)
	Determines whether or not a thread should be added based on the jobsPerThread ratio.

Variables
constexpr int	JOBFREELISTSIZE {100}

constexpr int	INFINITE_THREADS {-1}

int	maxJobsTotal = DEFAULT_MAX_JOBS_TOTAL

Detailed Description

Manage a threadpool (for internal use only).

Because this is for internal use, parameters are NOT checked for validity. The caller must ensure valid parameters.

Definition in file ThreadPool.cpp.

Macro Definition Documentation

◆ EMAXTHREADS

#define EMAXTHREADS (-8 & 1 << 29)

Error: maximun threads.

Definition at line 60 of file ThreadPool.cpp.

◆ INVALID_POLICY

#define INVALID_POLICY (-9 & 1 << 29)

Invalid Policy

Definition at line 62 of file ThreadPool.cpp.

Function Documentation

◆ ThreadPoolInit()

int ThreadPoolInit	(	ThreadPool *	tp,
		ThreadPoolAttr *	attr
	)

Initializes and starts ThreadPool.

Must be called first and only once for ThreadPool.

Returns

On success: 0
On error:

EINVAL with invalid ThreadPool.
EAGAIN if not enough system resources to create minimum threads.
INVALID_POLICY if schedPolicy can't be set.
EMAXTHREADS if minimum threads is greater than maximum threads.

Parameters

[in]	tp	Must be valid, non null, pointer to ThreadPool.
[in]	attr	Can be nullptr. If not nullptr then attr contains the following fields: minWorkerThreads - minimum number of worker threads thread pool will never have less than this number of threads. maxWorkerThreads - maximum number of worker threads thread pool will never have more than this number of threads. maxIdleTime - maximum time that a worker thread will spend idle. If a worker is idle longer than this time and there are more than the min number of workers running, then the worker thread exits. jobsPerThread - ratio of jobs to thread to try and maintain if a job is scheduled and the number of jobs per thread is greater than this number,and if less than the maximum number of workers are running then a new thread is started to help out with efficiency. schedPolicy - scheduling policy to try and set (OS dependent).

Definition at line 669 of file ThreadPool.cpp.

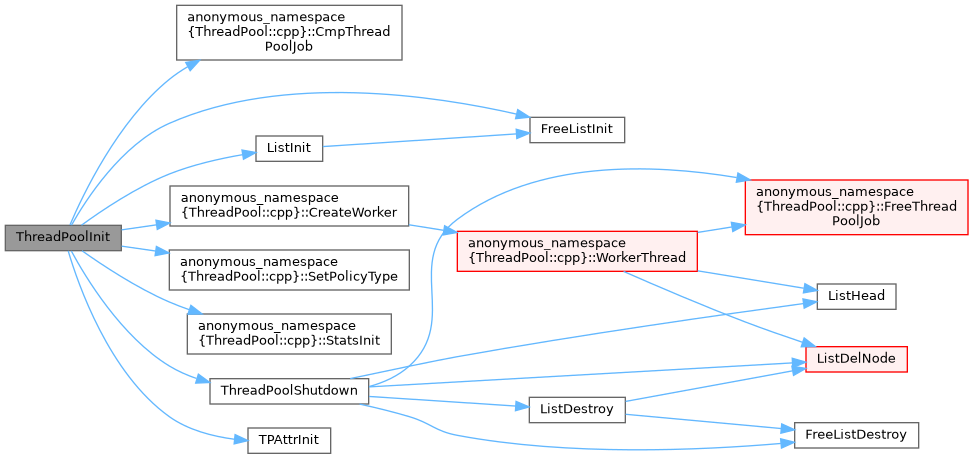

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ThreadPoolAddPersistent()

int ThreadPoolAddPersistent	(	ThreadPool *	tp,
		ThreadPoolJob *	job,
		int *	jobId
	)

Adds a persistent job to the thread pool.

Job will be run as soon as possible. Call will block until job is scheduled.

Returns

On success: 0
On error:

EOUTOFMEM not enough memory to add job.
EMAXTHREADS not enough threads to add persistent job.

Parameters

[in]	tp	Valid thread pool pointer.
[in]	job	Valid thread pool job.
[in]	jobId	Job ID

Definition at line 737 of file ThreadPool.cpp.

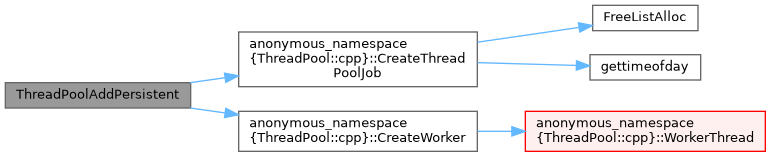

Here is the call graph for this function:

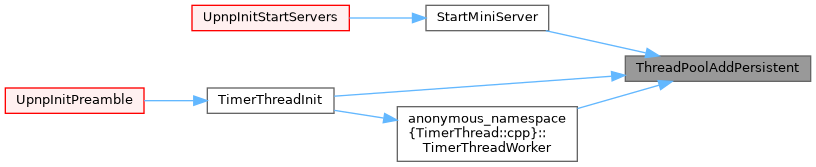

Here is the caller graph for this function:

◆ ThreadPoolAdd()

int ThreadPoolAdd	(	ThreadPool *	tp,
		ThreadPoolJob *	job,
		int *	jobId
	)

Adds a job to the thread pool.

Job will be run as soon as possible.

Returns

On success: 0
On error: nonzero

EOUTOFMEM if not enough memory to add job.

Parameters

[in]	tp	Valid thread pool pointer.
[in]	job	Job
[in]	jobId	id of job.

Definition at line 784 of file ThreadPool.cpp.

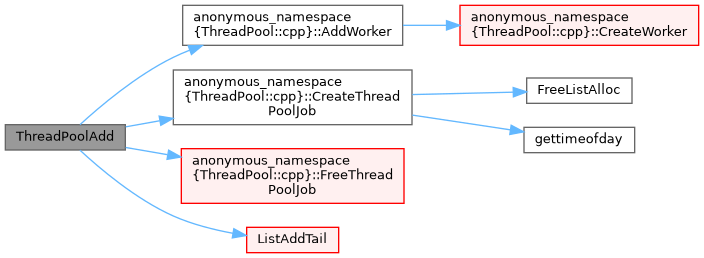

Here is the call graph for this function:

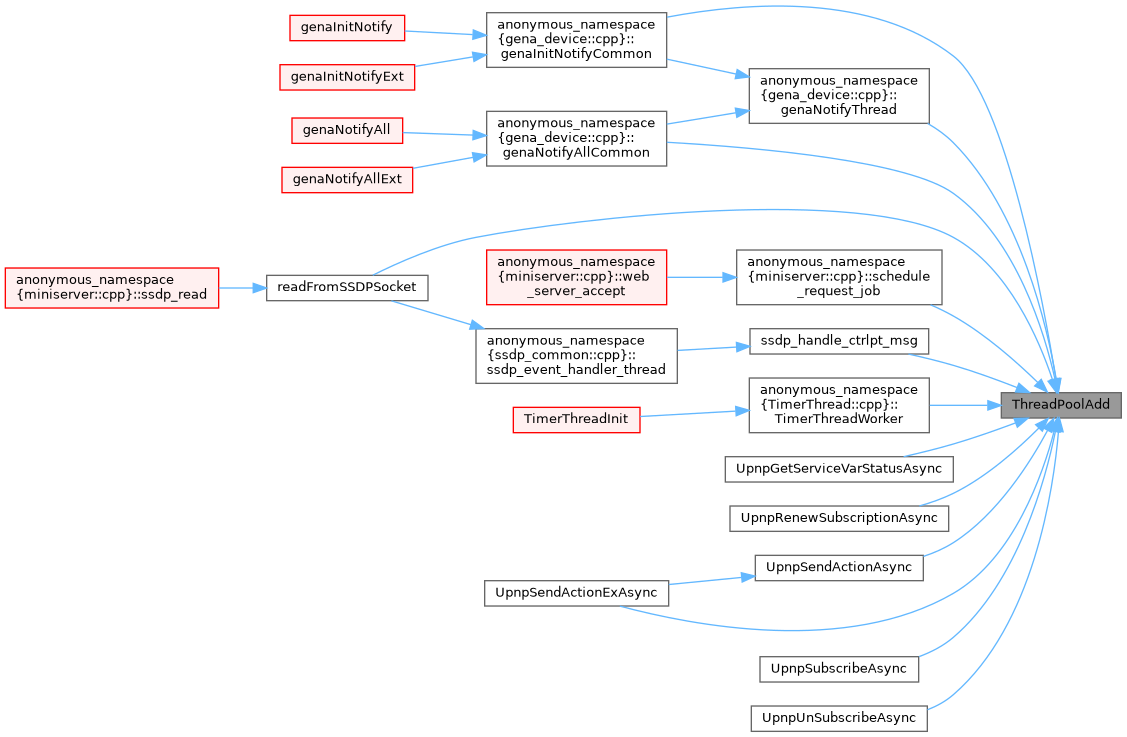

Here is the caller graph for this function:

◆ ThreadPoolRemove()

int ThreadPoolRemove	(	ThreadPool *	tp,
		int	jobId,
		ThreadPoolJob *	out
	)

Removes a job from the thread pool.

Can only remove jobs which are not currently running.

Returns

On success: 0
On error: nonzero

INVALID_JOB_ID if job not found.

Parameters

[in]	tp	Valid thread pool pointer.
[in]	jobId	Id of job.
[out]	out	Space for removed job.

Definition at line 836 of file ThreadPool.cpp.

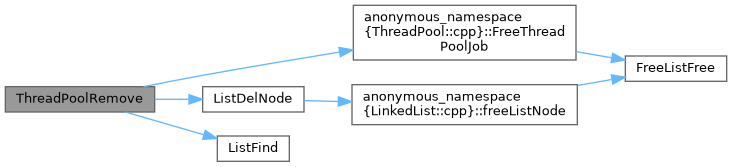

Here is the call graph for this function:

◆ ThreadPoolGetAttr()

int ThreadPoolGetAttr	(	ThreadPool *	tp,
		ThreadPoolAttr *	out
	)

Gets the current set of attributes associated with the thread pool.

Returns: On success: 0
On error: nonzero

Parameters

[in]	tp	Valid thread pool pointer.
[in]	out	Non null pointer to store attributes.

Definition at line 892 of file ThreadPool.cpp.

◆ ThreadPoolSetAttr()

int ThreadPoolSetAttr	(	ThreadPool *	tp,
		ThreadPoolAttr *	attr
	)

Sets the attributes for the thread pool.

Only affects future calculations.

Returns

On success: 0
On error: nonzero

INVALID_POLICY if policy can not be set.

Parameters

[in]	tp	Valid thread pool pointer.
[in]	attr	Pointer to attributes, null sets attributes to default.

Definition at line 904 of file ThreadPool.cpp.

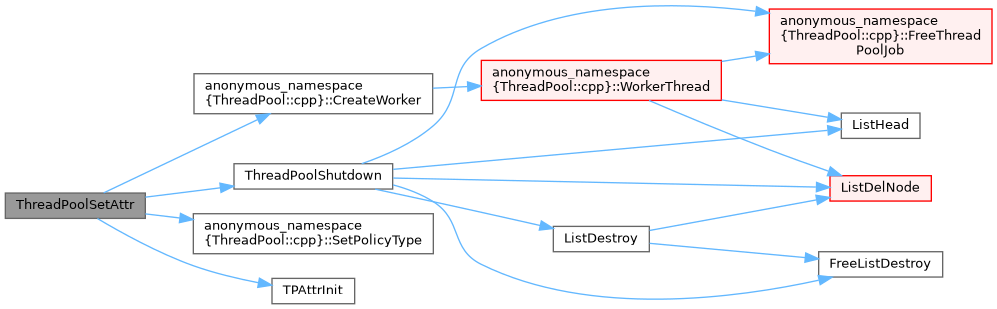

Here is the call graph for this function:

◆ ThreadPoolShutdown()

int ThreadPoolShutdown ( ThreadPool * tp )

Shuts the thread pool down.

Waits for all threads to finish. May block indefinitely if jobs do not exit.

Returns: On success: 0
On error: nonzero

Parameters

[in] tp Must be valid tp.

Definition at line 944 of file ThreadPool.cpp.

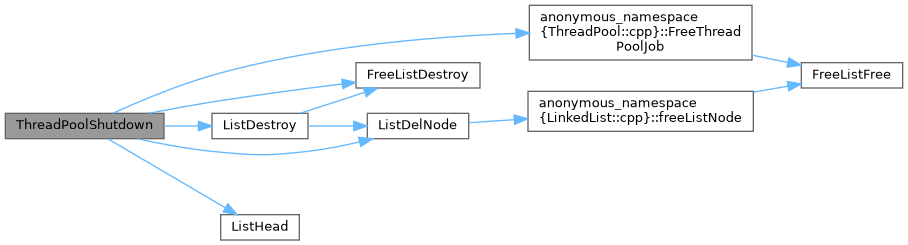

Here is the call graph for this function:

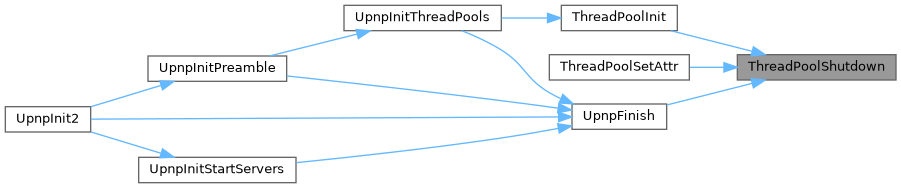

Here is the caller graph for this function:

◆ TPSetMaxJobsTotal()

void TPSetMaxJobsTotal ( int mjt )

Sets the maximum number of jobs in the thread pool.

This option is intended for server applications to avoid an overflow of jobs when serving e.g. many web requests.

Definition at line 1026 of file ThreadPool.cpp.

Here is the caller graph for this function:

◆ TPAttrInit()

int TPAttrInit ( ThreadPoolAttr * attr )

Initializes thread pool attributes.

Sets values to defaults defined in ThreadPool.hpp.

Returns: On success: 0
On error: EINVAL.

Parameters

[in] attr Must be valid thread pool attributes.

Definition at line 1028 of file ThreadPool.cpp.

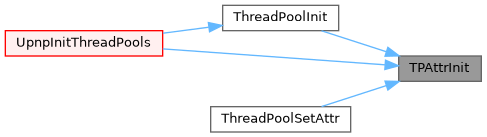

Here is the caller graph for this function:

◆ TPJobInit()

int TPJobInit	(	ThreadPoolJob *	job,
		UPnPsdk::start_routine	func,
		void *	arg
	)

Initializes thread pool job.

Sets the priority to default defined in ThreadPool.hpp. Sets the free_routine to default defined in ThreadPool.hpp.

Returns: Always 0.

Parameters

[in]	job	Must be valid thread pool attributes.
[in]	func	Function to run, must be valid.
[in]	arg	Argument to pass to function.

Definition at line 1043 of file ThreadPool.cpp.

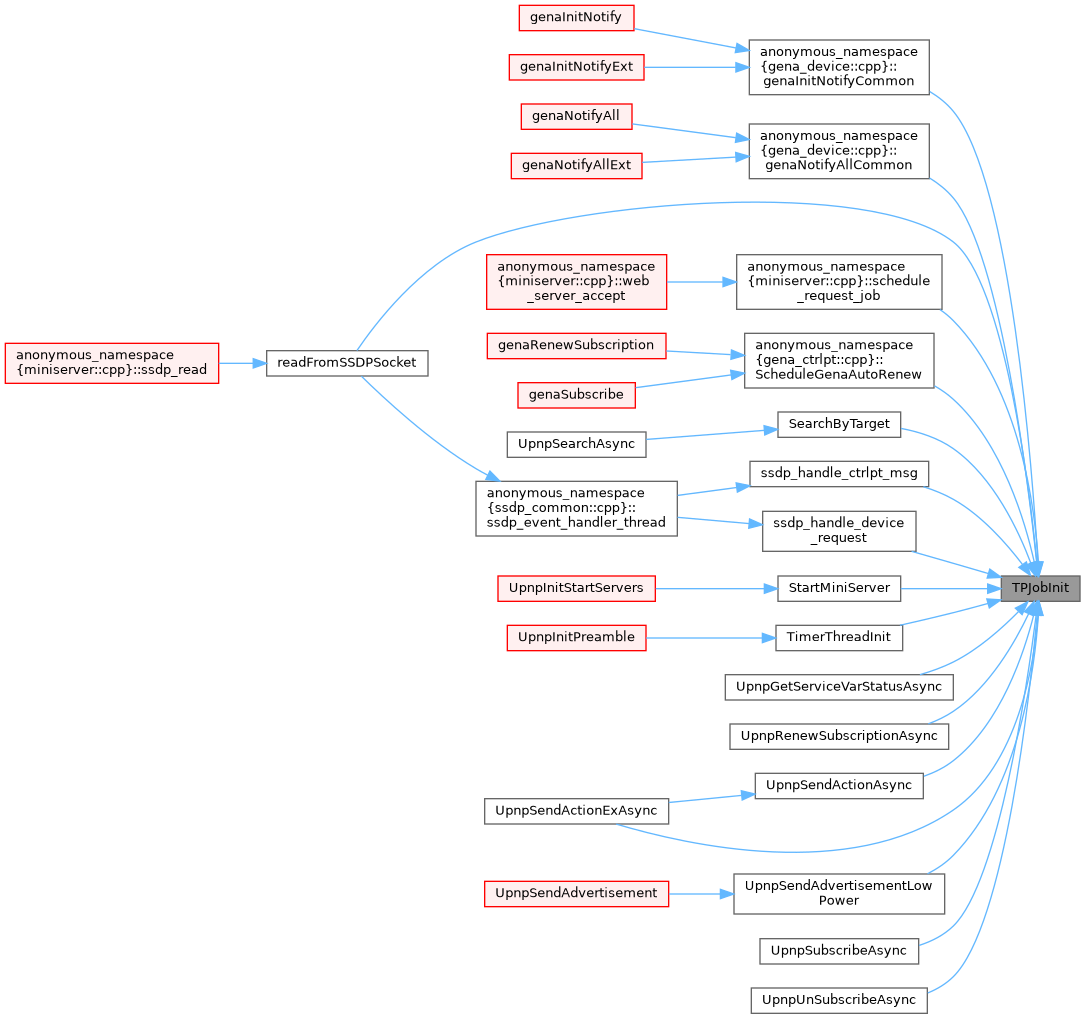

Here is the caller graph for this function:

◆ TPJobSetPriority()

int TPJobSetPriority	(	ThreadPoolJob *	job,
		ThreadPriority	priority
	)

Sets the priority of the threadpool job.

Returns: On success: 0
On error: EINVAL.

Parameters

[in]	job	Must be valid thread pool attributes.
[in]	priority	Value to set.

Definition at line 1054 of file ThreadPool.cpp.

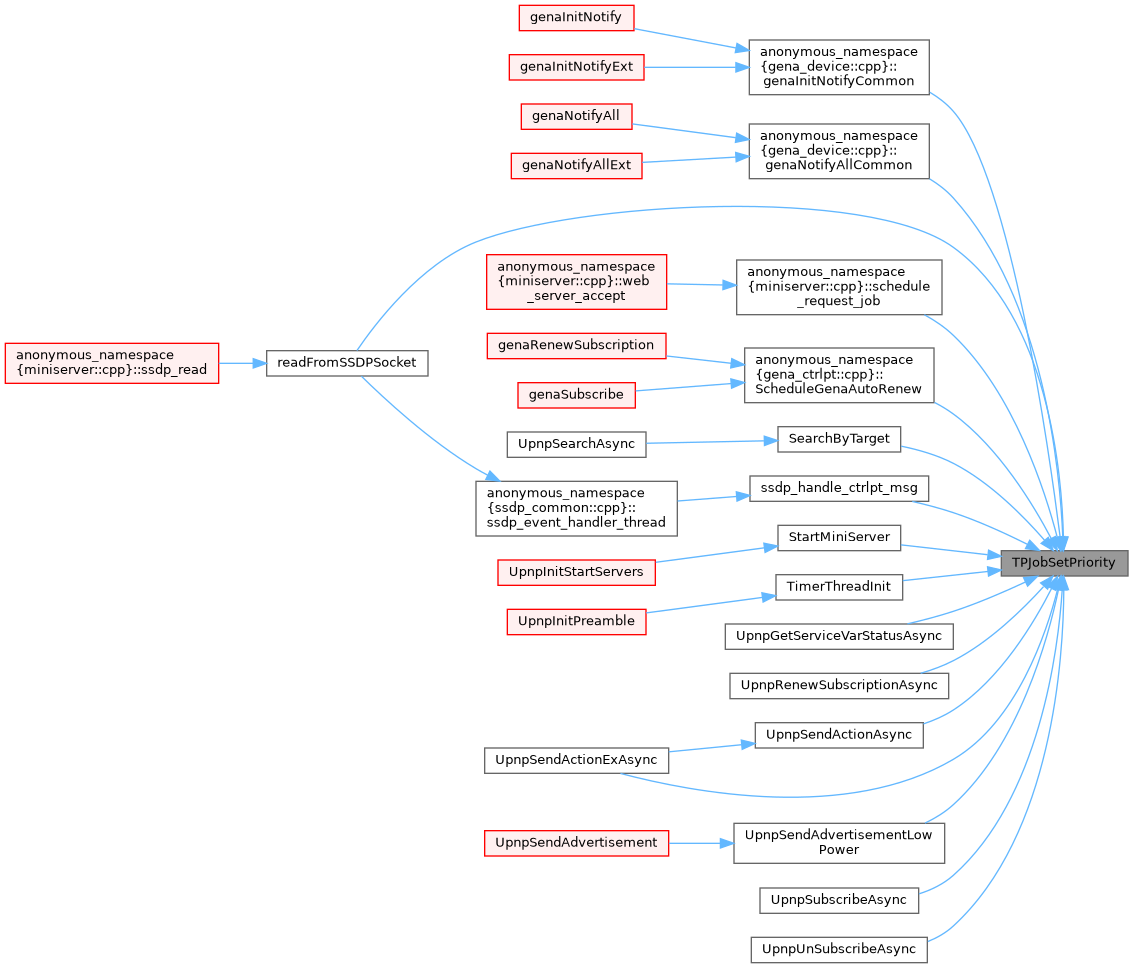

Here is the caller graph for this function:

◆ TPJobSetFreeFunction()

int TPJobSetFreeFunction	(	ThreadPoolJob *	job,
		free_routine	func
	)

Sets the jobs free function.

Returns: On success: 0
On error: EINVAL.

Parameters

[in]	job	Must be valid thread pool attributes.
[in]	func	Value to set.

Definition at line 1068 of file ThreadPool.cpp.

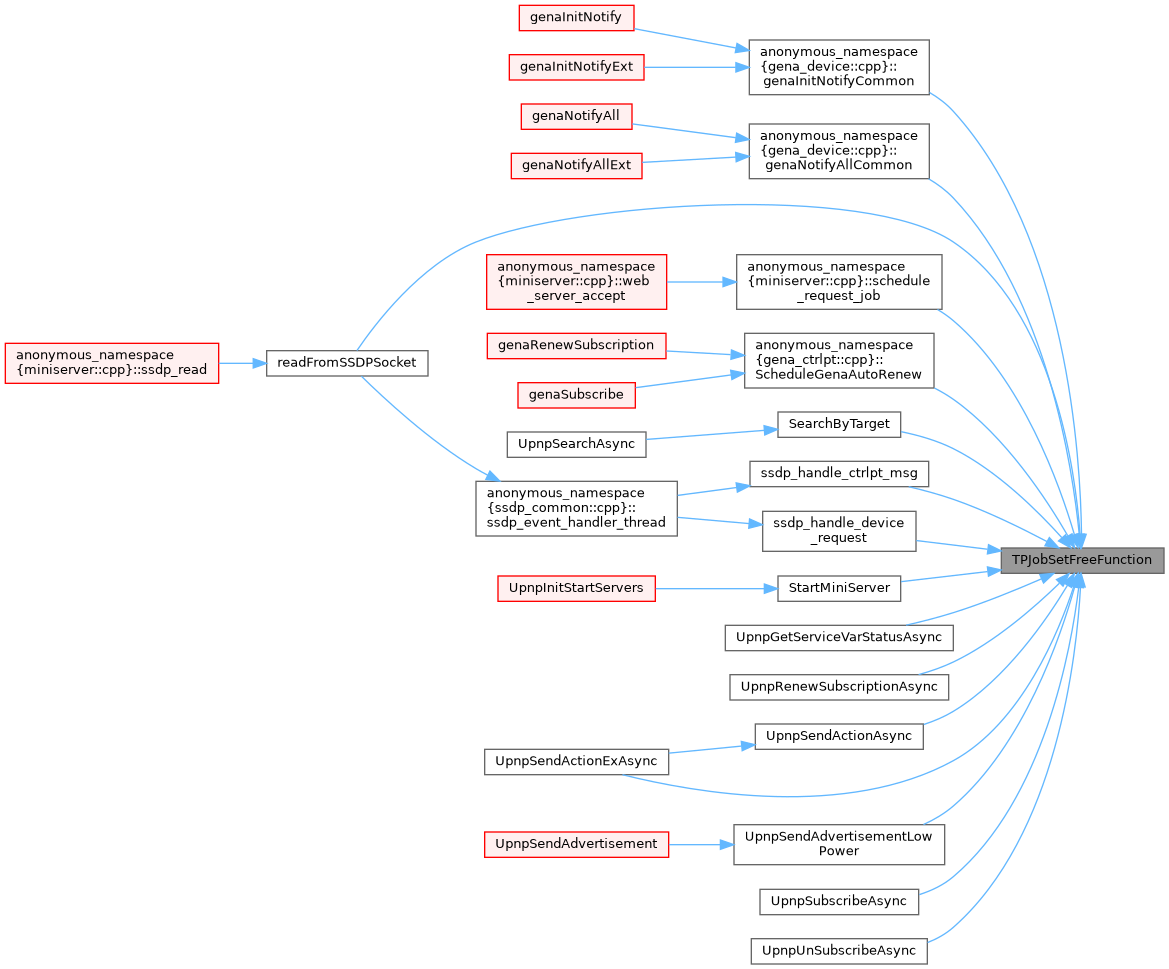

Here is the caller graph for this function:

◆ TPAttrSetMaxThreads()

int TPAttrSetMaxThreads	(	ThreadPoolAttr *	attr,
		int	maxThreads
	)

Sets the max threads for the thread pool attributes.

Returns: On success: 0
On error: EINVAL.

Parameters

[in]	attr	Must be valid thread pool attributes.
[in]	maxThreads	Value to set.

Definition at line 1076 of file ThreadPool.cpp.

Here is the caller graph for this function:

◆ TPAttrSetMinThreads()

int TPAttrSetMinThreads	(	ThreadPoolAttr *	attr,
		int	minThreads
	)

Sets the min threads for the thread pool attributes.

Returns: On success: 0
On error: EINVAL.

Parameters

[in]	attr	must be valid thread pool attributes.
[in]	minThreads	value to set.

Definition at line 1084 of file ThreadPool.cpp.

Here is the caller graph for this function:

◆ TPAttrSetStackSize()

int TPAttrSetStackSize	(	ThreadPoolAttr *	attr,
		size_t	stackSize
	)

Sets the stack size for the thread pool attributes.

Returns: On success: 0
On error: EINVAL.

Parameters

[in]	attr	Must be valid thread pool attributes.
[in]	stackSize	Value to set.

Definition at line 1092 of file ThreadPool.cpp.

Here is the caller graph for this function:

◆ TPAttrSetIdleTime()

int TPAttrSetIdleTime	(	ThreadPoolAttr *	attr,
		int	idleTime
	)

Sets the idle time for the thread pool attributes.

Returns: On success: 0
On error: EINVAL.

Parameters

[in]	attr	Must be valid thread pool attributes.
[in]	idleTime	Idle time

Definition at line 1100 of file ThreadPool.cpp.

Here is the caller graph for this function:

◆ TPAttrSetJobsPerThread()

int TPAttrSetJobsPerThread	(	ThreadPoolAttr *	attr,
		int	jobsPerThread
	)

Sets the jobs per thread ratio.

Returns: On success: 0
On error: EINVAL.

Parameters

[in]	attr	Must be valid thread pool attributes.
[in]	jobsPerThread	Number of jobs per thread to maintain.

Definition at line 1108 of file ThreadPool.cpp.

Here is the caller graph for this function:

◆ TPAttrSetStarvationTime()

int TPAttrSetStarvationTime	(	ThreadPoolAttr *	attr,
		int	starvationTime
	)

Sets the starvation time for the thread pool attributes.

Returns: On success: 0
On error: EINVAL.

Parameters

[in]	attr	Must be valid thread pool attributes.
[in]	starvationTime	Milliseconds.

Definition at line 1116 of file ThreadPool.cpp.

◆ TPAttrSetSchedPolicy()

int TPAttrSetSchedPolicy	(	ThreadPoolAttr *	attr,
		PolicyType	schedPolicy
	)

Sets the scheduling policy for the thread pool attributes.

Returns: On success: 0
On error: EINVAL.

Parameters

[in]	attr	Must be valid thread pool attributes.
[in]	schedPolicy	Must be a valid policy type.

Definition at line 1124 of file ThreadPool.cpp.

◆ TPAttrSetMaxJobsTotal()

int TPAttrSetMaxJobsTotal	(	ThreadPoolAttr *	attr,
		int	totalMaxJobs
	)

Sets the maximum number jobs that can be qeued totally.

Returns: On success: 0
On error: EINVAL.

Parameters

[in]	attr	Must be valid thread pool attributes.
[in]	totalMaxJobs	Maximum number of jobs.

Definition at line 1132 of file ThreadPool.cpp.

Here is the caller graph for this function:

◆ ThreadPoolPrintStats()

void ThreadPoolPrintStats ( ThreadPoolStats * stats )

Prints various statistics about the thread pool to stderr.

Only valid if STATS has been defined.

Parameters

[in] stats Valid threadpool stats

Definition at line 1141 of file ThreadPool.cpp.

Here is the call graph for this function:

◆ ThreadPoolGetStats()

int ThreadPoolGetStats	(	ThreadPool *	tp,
		ThreadPoolStats *	stats
	)

Returns various statistics about the thread pool.

Only valid if STATS has been defined.

Returns: On success: 0
On error: EINVAL.

Parameters

[in]	tp	Valid initialized threadpool.
[out]	stats	Valid stats, out parameter.

Definition at line 1168 of file ThreadPool.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ gettimeofday()

int gettimeofday	(	struct timeval *	tv,
		struct timezone *	tz
	)

Get time of day.

Definition at line 1211 of file ThreadPool.cpp.

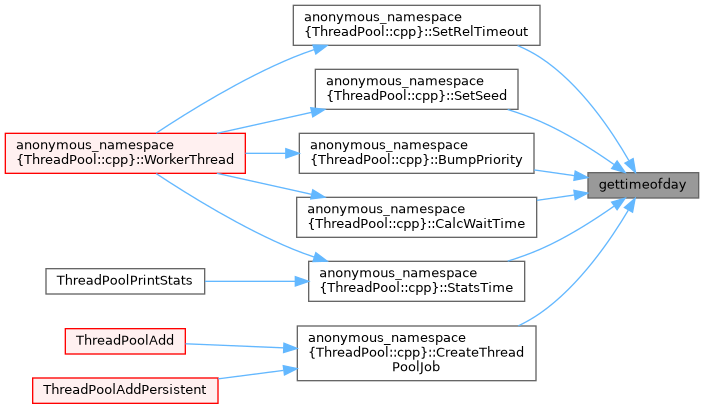

Here is the caller graph for this function:

Variable Documentation

◆ JOBFREELISTSIZE

constexpr int JOBFREELISTSIZE {100}

constexpr

Size of job free list.

Definition at line 56 of file ThreadPool.cpp.

◆ INFINITE_THREADS

constexpr int INFINITE_THREADS {-1}

constexpr

Infinite threads.

Definition at line 58 of file ThreadPool.cpp.

◆ maxJobsTotal

int maxJobsTotal = DEFAULT_MAX_JOBS_TOTAL

Specify how many jobs maximal can be used with the threadpool

Definition at line 1024 of file ThreadPool.cpp.

UPnPsdk 0.1 Universal Plug and Play +, Software Development Kit

Macros

Functions

Variables

Detailed Description

Macro Definition Documentation

◆ EMAXTHREADS

◆ INVALID_POLICY

Function Documentation

◆ ThreadPoolInit()

◆ ThreadPoolAddPersistent()

◆ ThreadPoolAdd()

◆ ThreadPoolRemove()

◆ ThreadPoolGetAttr()

◆ ThreadPoolSetAttr()

◆ ThreadPoolShutdown()

◆ TPSetMaxJobsTotal()

◆ TPAttrInit()

◆ TPJobInit()

◆ TPJobSetPriority()

◆ TPJobSetFreeFunction()

◆ TPAttrSetMaxThreads()

◆ TPAttrSetMinThreads()

◆ TPAttrSetStackSize()

◆ TPAttrSetIdleTime()

◆ TPAttrSetJobsPerThread()

◆ TPAttrSetStarvationTime()

◆ TPAttrSetSchedPolicy()

◆ TPAttrSetMaxJobsTotal()

◆ ThreadPoolPrintStats()

◆ ThreadPoolGetStats()

◆ gettimeofday()

Variable Documentation

◆ JOBFREELISTSIZE

◆ INFINITE_THREADS

◆ maxJobsTotal
