enum	Upnp_HttpMethod { UPNP_HTTPMETHOD_PUT , UPNP_HTTPMETHOD_DELETE , UPNP_HTTPMETHOD_GET , UPNP_HTTPMETHOD_HEAD , UPNP_HTTPMETHOD_POST }
	Different HTTP methods. More...

PUPNP_Api int	UpnpDownloadUrlItem (const char url, char outBuf, char contentType)
	Downloads a file specified in a URL.

PUPNP_Api int	UpnpOpenHttpGet (const char url, void handle, char contentType, int contentLength, int *httpStatus, int timeout)
	Gets a file specified in a URL.

PUPNP_Api int	UpnpOpenHttpGetProxy (const char url, const char proxy_str, void handle, char contentType, int contentLength, int httpStatus, int timeout)
	Gets a file specified in a URL through the specified proxy.

PUPNP_Api int	UpnpOpenHttpGetEx (const char url_str, void Handle, char contentType, int contentLength, int *httpStatus, int lowRange, int highRange, int timeout)
	Gets specified number of bytes from a file specified in the URL.

PUPNP_Api int	UpnpReadHttpGet (void Handle, char buf, size_t *size, int timeout)
	Gets specified number of bytes from a file specified in a URL.

PUPNP_Api int	UpnpHttpGetProgress (void Handle, size_t length, size_t *total)
	Retrieve progress information of a http-get transfer.

PUPNP_Api int	UpnpCancelHttpGet (void *Handle)
	Set the cancel flag of the handle parameter.

PUPNP_Api int	UpnpCloseHttpGet (void *Handle)
	Closes the connection and frees memory that was allocated for the handle parameter.

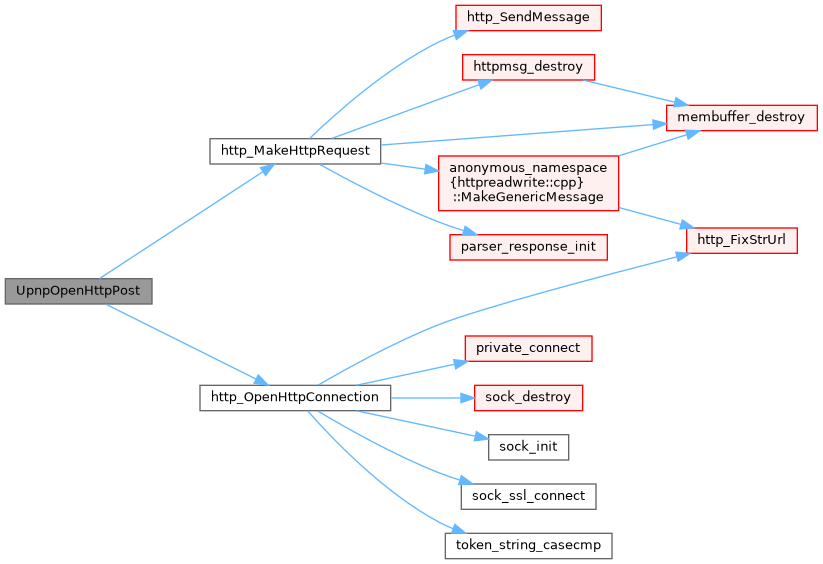

PUPNP_Api int	UpnpOpenHttpPost (const char url, void handle, const char contentType, int contentLength, int timeout)
	Makes an HTTP POST request message, opens a connection to the server and sends the POST request to the server if the connection to the server succeeds.

PUPNP_Api int	UpnpWriteHttpPost (void handle, char buf, size_t *size, int timeout)
	Sends a request to a server to copy the contents of a buffer to the URI specified in the UpnpOpenHttpPost() call.

PUPNP_Api int	UpnpCloseHttpPost (void handle, int httpStatus, int timeout)
	Sends and receives any pending data, closes the connection with the server, and frees memory allocated during the UpnpOpenHttpPost() call.

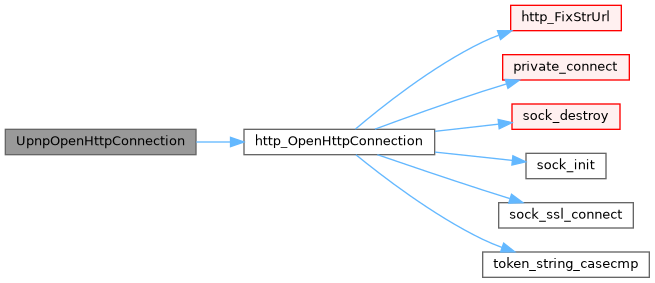

PUPNP_Api int	UpnpOpenHttpConnection (const char url, void *handle, int timeout)
	Opens a connection to the server.

PUPNP_Api int	UpnpMakeHttpRequest (Upnp_HttpMethod method, const char url, void handle, UpnpString headers, const char contentType, int contentLength, int timeout)
	Makes a HTTP request using a connection previously created by UpnpOpenHttpConnection().

PUPNP_Api int	UpnpWriteHttpRequest (void handle, char buf, size_t *size, int timeout)
	Writes the content of a HTTP request initiated by a UpnpMakeHttpRequest() call. The end of the content should be indicated by a call to UpnpEndHttpRequest().

PUPNP_Api int	UpnpEndHttpRequest (void *handle, int timeout)
	Indicates the end of a HTTP request previously made by UpnpMakeHttpRequest().

PUPNP_Api int	UpnpGetHttpResponse (void handle, UpnpString headers, char *contentType, int contentLength, int *httpStatus, int timeout)
	Gets the response from the server using a connection previously created by UpnpOpenHttpConnection().

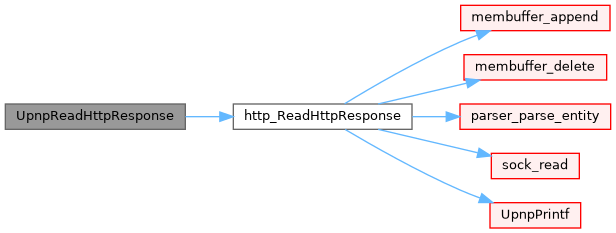

PUPNP_Api int	UpnpReadHttpResponse (void handle, char buf, size_t *size, int timeout)
	Reads the content of a response using a connection previously created by UpnpOpenHttpConnection().

PUPNP_Api int	UpnpCloseHttpConnection (void *handle)
	Closes the connection created with UpnpOpenHttpConnection() and frees any memory associated with the connection.

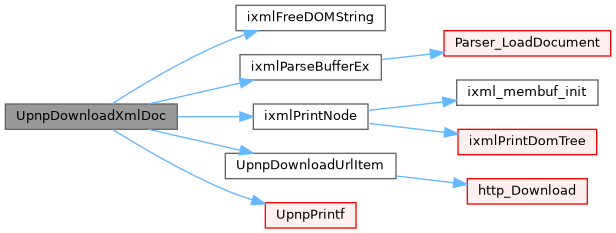

PUPNP_Api int	UpnpDownloadXmlDoc (const char url, IXML_Document *xmlDoc)
	Downloads an XML document specified in a URL.

Detailed Description

Enumeration Type Documentation

◆ Upnp_HttpMethod

enum Upnp_HttpMethod

Different HTTP methods.

Enumerator
UPNP_HTTPMETHOD_PUT	PUT.
UPNP_HTTPMETHOD_DELETE	DELETE.
UPNP_HTTPMETHOD_GET	GET.
UPNP_HTTPMETHOD_HEAD	HEAD.
UPNP_HTTPMETHOD_POST	POST.

Definition at line 1945 of file API.hpp.

Function Documentation

◆ UpnpDownloadUrlItem()

PUPNP_Api int UpnpDownloadUrlItem	(	const char *	url,
		char **	outBuf,
		char *	contentType
	)

Downloads a file specified in a URL.

The SDK allocates the memory for outBuf and the application is responsible for freeing this memory. Note that the item is passed as a single buffer. Large items should not be transferred using this function.

Returns

An integer representing one of the following:

UPNP_E_SUCCESS: The operation completed successfully.
UPNP_E_INVALID_PARAM: Either url, outBuf or contentType is not a valid pointer.
UPNP_E_INVALID_URL: The url is not a valid URL.
UPNP_E_OUTOF_MEMORY: Insufficient resources exist to download this file.
UPNP_E_NETWORK_ERROR: A network error occurred.
UPNP_E_SOCKET_WRITE: An error or timeout occurred writing to a socket.
UPNP_E_SOCKET_READ: An error or timeout occurred reading from a socket.
UPNP_E_SOCKET_BIND: An error occurred binding a socket.
UPNP_E_SOCKET_CONNECT: An error occurred connecting a socket.
UPNP_E_OUTOF_SOCKET: Too many sockets are currently allocated.

Parameters

[in]	url	URL of an item to download.
[out]	outBuf	Buffer to store the downloaded item.
[out]	contentType	HTTP header value content type if present. It should be at least `LINE_SIZE` bytes in size.

Definition at line 3058 of file upnpapi.cpp.

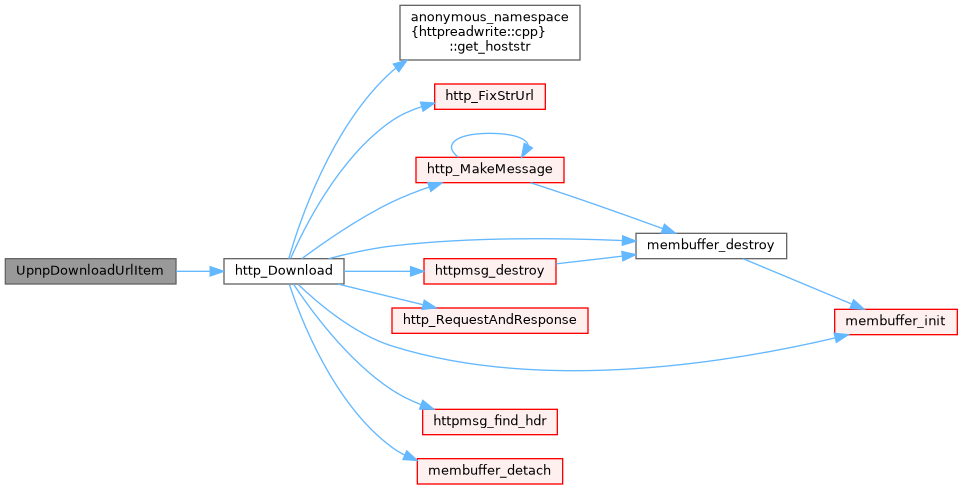

Here is the call graph for this function:

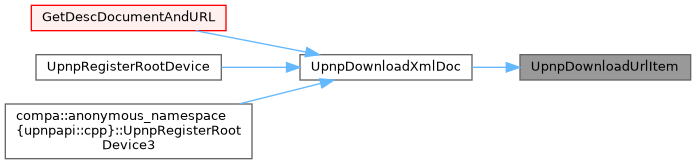

Here is the caller graph for this function:

◆ UpnpOpenHttpGet()

PUPNP_Api int UpnpOpenHttpGet	(	const char *	url,
		void **	handle,
		char **	contentType,
		int *	contentLength,
		int *	httpStatus,
		int	timeout
	)

Gets a file specified in a URL.

The SDK allocates the memory for handle and contentType, the application is responsible for freeing this memory.

Note: Memory for contentType is freed when freeing the memory for handle.

Returns

An integer representing one of the following:

UPNP_E_SUCCESS: The operation completed successfully.
UPNP_E_INVALID_PARAM: Either url, handle, is not a valid pointer.
UPNP_E_INVALID_URL: The url is not a valid URL.
UPNP_E_OUTOF_MEMORY: Insufficient resources exist to download this file.
UPNP_E_NETWORK_ERROR: A network error occurred.
UPNP_E_SOCKET_WRITE: An error or timeout occurred writing to a socket.
UPNP_E_SOCKET_READ: An error or timeout occurred reading from a socket.
UPNP_E_SOCKET_BIND: An error occurred binding a socket.
UPNP_E_SOCKET_CONNECT: An error occurred connecting a socket.
UPNP_E_OUTOF_SOCKET: Too many sockets are currently allocated.
UPNP_E_BAD_RESPONSE: A bad response was received from the remote server.

Parameters

[in]	url	The URL of an item to get.
[in,out]	handle	A pointer to store the handle for this connection.
[in,out]	contentType	A buffer to store the media type of the item.
[in,out]	contentLength	A pointer to store the length of the item.
[in,out]	httpStatus	The status returned on receiving a response message.
[in]	timeout	The time out value sent with the request during which a response is expected from the server, failing which, an error is reported back to the user. If value is negative, timeout is infinite.

Definition at line 2969 of file upnpapi.cpp.

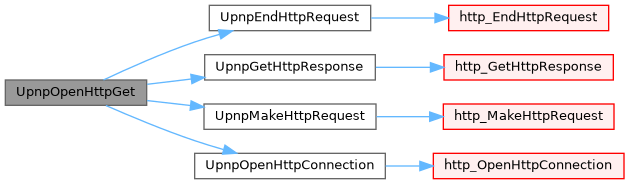

Here is the call graph for this function:

◆ UpnpOpenHttpGetProxy()

PUPNP_Api int UpnpOpenHttpGetProxy	(	const char *	url,
		const char *	proxy_str,
		void **	handle,
		char **	contentType,
		int *	contentLength,
		int *	httpStatus,
		int	timeout
	)

Gets a file specified in a URL through the specified proxy.

The SDK allocates the memory for handle and contentType, the application is responsible for freeing this memory.

Note: Memory for contentType is freed when freeing the memory for handle.

Returns

An integer representing one of the following:

UPNP_E_SUCCESS: The operation completed successfully.
UPNP_E_INVALID_PARAM: Either url, handle, is not a valid pointer.
UPNP_E_INVALID_URL: The url is not a valid URL.
UPNP_E_OUTOF_MEMORY: Insufficient resources exist to download this file.
UPNP_E_NETWORK_ERROR: A network error occurred.
UPNP_E_SOCKET_WRITE: An error or timeout occurred writing to a socket.
UPNP_E_SOCKET_READ: An error or timeout occurred reading from a socket.
UPNP_E_SOCKET_BIND: An error occurred binding a socket.
UPNP_E_SOCKET_CONNECT: An error occurred connecting a socket.
UPNP_E_OUTOF_SOCKET: Too many sockets are currently allocated.
UPNP_E_BAD_RESPONSE: A bad response was received from the remote server.

Parameters

[in]	url	The URL of an item to get.
[in]	proxy_str	The URL of the proxy.
[in,out]	handle	A pointer to store the handle for this connection.
[in,out]	contentType	A buffer to store the media type of the item.
[in,out]	contentLength	A pointer to store the length of the item.
[in,out]	httpStatus	The status returned on receiving a response message.
[in]	timeout	The time out value sent with the request during which a response is expected from the server, failing which, an error is reported back to the user. If value is negative, timeout is infinite.

Definition at line 2986 of file upnpapi.cpp.

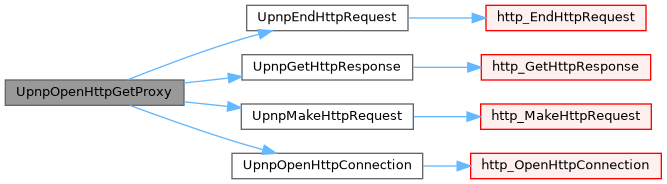

Here is the call graph for this function:

◆ UpnpOpenHttpGetEx()

PUPNP_Api int UpnpOpenHttpGetEx	(	const char *	url_str,
		void **	Handle,
		char **	contentType,
		int *	contentLength,
		int *	httpStatus,
		int	lowRange,
		int	highRange,
		int	timeout
	)

Gets specified number of bytes from a file specified in the URL.

The number of bytes is specified through a low count and a high count which are passed as a range of bytes for the request. The SDK allocates the memory for handle and contentType, the application is responsible for freeing this memory.

Returns

An integer representing one of the following:

UPNP_E_SUCCESS: The operation completed successfully.
UPNP_E_INVALID_PARAM: Either url, handle, contentType, contentLength or httpStatus is not a valid pointer.
UPNP_E_INVALID_URL: The url is not a valid URL.
UPNP_E_OUTOF_MEMORY: Insufficient resources exist to download this file.
UPNP_E_NETWORK_ERROR: A network error occurred.
UPNP_E_SOCKET_WRITE: An error or timeout occurred writing to a socket.
UPNP_E_SOCKET_READ: An error or timeout occurred reading from a socket.
UPNP_E_SOCKET_BIND: An error occurred binding a socket.
UPNP_E_SOCKET_CONNECT: An error occurred connecting a socket.
UPNP_E_OUTOF_SOCKET: Too many sockets are currently allocated.
UPNP_E_BAD_RESPONSE: A bad response was received from the remote server.

Parameters

[in]	url_str	The URL of the item to get.
[in,out]	Handle	A pointer to store the handle for this connection.
[in,out]	contentType	A buffer to store the media type of the item.
[in,out]	contentLength	A buffer to store the length of the item.
[in,out]	httpStatus	The status returned on receiving a response message from the remote server.
[in]	lowRange	An integer value representing the low end of a range to retrieve.
[in]	highRange	An integer value representing the high end of a range to retrieve.
[in]	timeout	A time out value sent with the request during which a response is expected from the server, failing which, an error is reported back to the user. If value is negative, timeout is infinite.

Definition at line 3004 of file upnpapi.cpp.

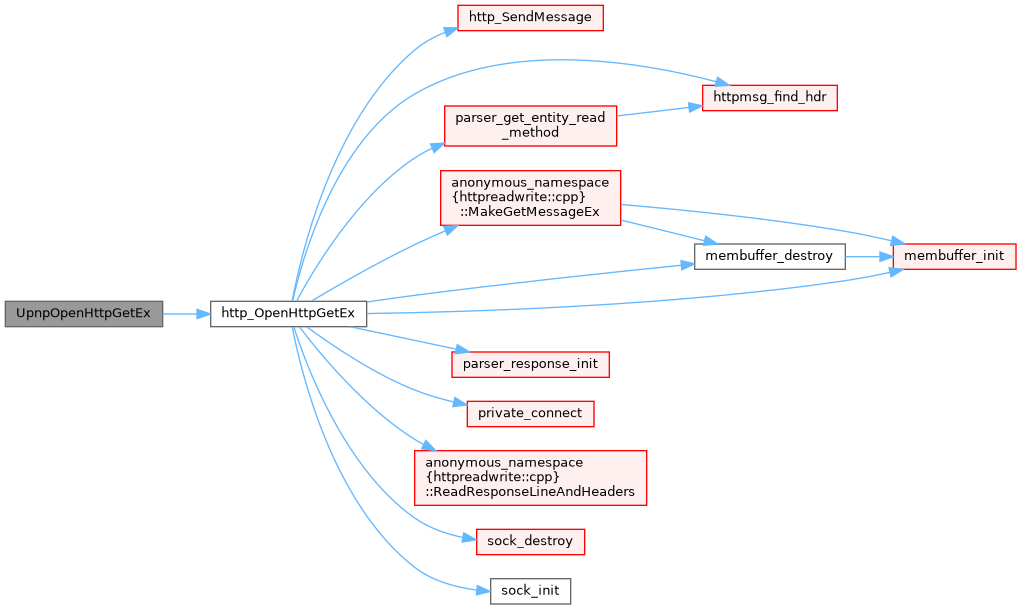

Here is the call graph for this function:

◆ UpnpReadHttpGet()

PUPNP_Api int UpnpReadHttpGet	(	void *	Handle,
		char *	buf,
		size_t *	size,
		int	timeout
	)

Gets specified number of bytes from a file specified in a URL.

Returns

An integer representing one of the following:

UPNP_E_SUCCESS: The operation completed successfully.
UPNP_E_INVALID_PARAM: Either handle, buf or size is not a valid pointer.
UPNP_E_BAD_RESPONSE: A bad response was received from the remote server.
UPNP_E_BAD_HTTPMSG: Either the request or response was in the incorrect format.
UPNP_E_CANCELED: another thread called UpnpCancelHttpGet.

Note: In case of return values, the status code parameter of the passed in handle value may provide additional information on the return value.

Parameters

[in]	Handle	The token created by the call to UpnpOpenHttpGet.
[in,out]	buf	The buffer to store the read item.
[in,out]	size	The size of the buffer to be read.
[in]	timeout	The time out value sent with the request during which a response is expected from the server, failing which, an error is reported back to the user. If value is negative, timeout is infinite.

Definition at line 3015 of file upnpapi.cpp.

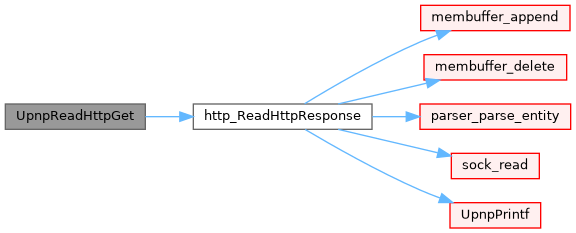

Here is the call graph for this function:

◆ UpnpHttpGetProgress()

PUPNP_Api int UpnpHttpGetProgress	(	void *	Handle,
		size_t *	length,
		size_t *	total
	)

Retrieve progress information of a http-get transfer.

Returns

An integer representing one of the following:

UPNP_E_SUCCESS: The operation completed successfully.
UPNP_E_INVALID_PARAM: Either handle, length or total is not a valid pointer.

Parameters

[in]	Handle	The token created by the call to UpnpOpenHttpGet.
[out]	length	The number of bytes received.
[out]	total	The content length.

Definition at line 3019 of file upnpapi.cpp.

Here is the call graph for this function:

◆ UpnpCancelHttpGet()

PUPNP_Api int UpnpCancelHttpGet ( void * Handle )

Set the cancel flag of the handle parameter.

Returns

An integer representing one of the following:

UPNP_E_SUCCESS: The operation completed successfully.
UPNP_E_INVALID_PARAM: handle is not a valid pointer.

Parameters

[in] Handle The handle of the connection created by the call to UpnpOpenHttpGet.

Definition at line 3011 of file upnpapi.cpp.

Here is the call graph for this function:

◆ UpnpCloseHttpGet()

PUPNP_Api int UpnpCloseHttpGet ( void * Handle )

Closes the connection and frees memory that was allocated for the handle parameter.

Returns

An integer representing one of the following:

UPNP_E_SUCCESS: The operation completed successfully.
UPNP_E_INVALID_PARAM: handle is not a valid pointer.

Parameters

[in] Handle The handle of the connection created by the call to UpnpOpenHttpGet.

Definition at line 3013 of file upnpapi.cpp.

Here is the call graph for this function:

◆ UpnpOpenHttpPost()

PUPNP_Api int UpnpOpenHttpPost	(	const char *	url,
		void **	handle,
		const char *	contentType,
		int	contentLength,
		int	timeout
	)

Makes an HTTP POST request message, opens a connection to the server and sends the POST request to the server if the connection to the server succeeds.

The SDK allocates the memory for handle, the application is responsible for freeing this memory.

Returns

An integer representing one of the following:

UPNP_E_SUCCESS: The operation completed successfully.
UPNP_E_INVALID_PARAM: Either url, handle or contentType is not a valid pointer.
UPNP_E_INVALID_URL: The url is not a valid URL.
UPNP_E_OUTOF_MEMORY: Insufficient resources exist to download this file.
UPNP_E_SOCKET_ERROR: Error occured allocating a socket and resources or an error occurred binding a socket.
UPNP_E_SOCKET_WRITE: An error or timeout occurred writing to a socket.
UPNP_E_SOCKET_CONNECT: An error occurred connecting a socket.
UPNP_E_OUTOF_SOCKET: Too many sockets are currently allocated.

Parameters

[in]	url	The URL in which to send the POST request.
[in,out]	handle	A pointer in which to store the handle for this connection. This handle is required for futher operations over this connection.
[in]	contentType	A buffer to store the media type of content being sent. Can be NULL.
[in]	contentLength	The length of the content, in bytes, being posted.
[in]	timeout	The time out value sent with the request during which a response is expected from the receiver, failing which, an error is reported. If value is negative, timeout is infinite.

Definition at line 2945 of file upnpapi.cpp.

Here is the call graph for this function:

◆ UpnpWriteHttpPost()

PUPNP_Api int UpnpWriteHttpPost	(	void *	handle,
		char *	buf,
		size_t *	size,
		int	timeout
	)

Sends a request to a server to copy the contents of a buffer to the URI specified in the UpnpOpenHttpPost() call.

Returns

An integer representing one of the following:

UPNP_E_SUCCESS: The operation completed successfully.
UPNP_E_INVALID_PARAM: Either handle, buf or size is not a valid pointer.
UPNP_E_SOCKET_WRITE: An error or timeout occurred writing to a socket.
UPNP_E_OUTOF_SOCKET: Too many sockets are currently allocated.

Parameters

[in]	handle	The handle of the connection created by the call to UpnpOpenHttpPost().
[in]	buf	The buffer to be posted.
[in]	size	The size, in bytes of buf.
[in]	timeout	A timeout value sent with the request during which a response is expected from the server, failing which, an error is reported. If value is negative, timeout is infinite.

Definition at line 2955 of file upnpapi.cpp.

Here is the call graph for this function:

◆ UpnpCloseHttpPost()

PUPNP_Api int UpnpCloseHttpPost	(	void *	handle,
		int *	httpStatus,
		int	timeout
	)

Sends and receives any pending data, closes the connection with the server, and frees memory allocated during the UpnpOpenHttpPost() call.

Returns

An integer representing one of the following:

UPNP_E_SUCCESS: The operation completed successfully.
UPNP_E_INVALID_PARAM: Either handle, or httpStatus is not a valid pointer.
UPNP_E_SOCKET_READ: An error or timeout occurred reading from a socket.
UPNP_E_OUTOF_SOCKET: Too many sockets are currently allocated.

Parameters

[in]	handle	The handle of the connection to close, created by the call to UpnpOpenHttpPost().
[in,out]	httpStatus	A pointer to a buffer to store the final status of the connection.
[in]	timeout	A time out value sent with the request during which a response is expected from the server, failing which, an error is reported. If value is negative, timeout is infinite.

Definition at line 2959 of file upnpapi.cpp.

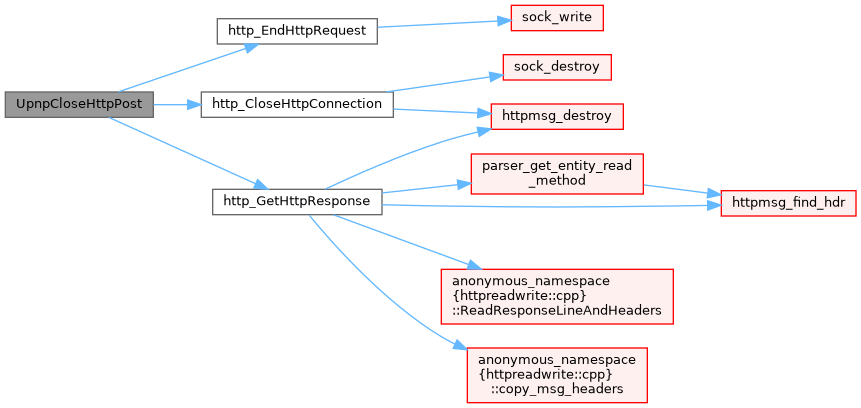

Here is the call graph for this function:

◆ UpnpOpenHttpConnection()

PUPNP_Api int UpnpOpenHttpConnection	(	const char *	url,
		void **	handle,
		int	timeout
	)

Opens a connection to the server.

The SDK allocates the memory for handle, the application is responsible for freeing this memory.

Returns

An integer representing one of the following:

UPNP_E_SUCCESS: The operation completed successfully.
UPNP_E_INVALID_PARAM: Either url, or handle is not a valid pointer.
UPNP_E_INVALID_URL: The url is not a valid URL.
UPNP_E_OUTOF_MEMORY: Insufficient resources exist to download this file.
UPNP_E_SOCKET_ERROR: Error occured allocating a socket and resources or an error occurred binding a socket.
UPNP_E_SOCKET_WRITE: An error or timeout occurred writing to a socket.
UPNP_E_SOCKET_CONNECT: An error occurred connecting a socket.
UPNP_E_OUTOF_SOCKET: Too many sockets are currently allocated.

Parameters

[in]	url	The URL which contains the host, and the scheme to make the connection.
[in,out]	handle	A pointer in which to store the handle for this connection. This handle is required for futher operations over this connection.
[in]	timeout	The time out value sent with the request during which a response is expected from the receiver, failing which, an error is reported. If value is negative, timeout is infinite.

Definition at line 3023 of file upnpapi.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ UpnpMakeHttpRequest()

PUPNP_Api int UpnpMakeHttpRequest	(	Upnp_HttpMethod	method,
		const char *	url,
		void *	handle,
		UpnpString *	headers,
		const char *	contentType,
		int	contentLength,
		int	timeout
	)

Makes a HTTP request using a connection previously created by UpnpOpenHttpConnection().

Note: Trying to make another request while a request is already being processed results in undefined behavior. It's up to the user to end a previous request by calling UpnpEndHttpRequest().

Returns

An integer representing one of the following:

UPNP_E_SUCCESS: The operation completed successfully.
UPNP_E_INVALID_PARAM: Either url, handle or contentType is not a valid pointer.
UPNP_E_INVALID_URL: The url is not a valid URL.
UPNP_E_OUTOF_MEMORY: Insufficient resources exist to download this file.
UPNP_E_SOCKET_ERROR: Error occured allocating a socket and resources or an error occurred binding a socket.
UPNP_E_SOCKET_WRITE: An error or timeout occurred writing to a socket.
UPNP_E_SOCKET_CONNECT: An error occurred connecting a socket.
UPNP_E_OUTOF_SOCKET: Too many sockets are currently allocated.

Parameters

[in]	method	The method to use to make the request.
[in]	url	The URL to use to make the request. The URL should use the same scheme used to create the connection, but the host can be different if the request is being proxied.
[in]	handle	The handle to the connection.
[in]	headers	Headers to be used for the request. Each header should be terminated by a CRLF as specified in the HTTP specification. If NULL then the default headers will be used.
[in]	contentType	The media type of content being sent. Can be NULL.
[in]	contentLength	The length of the content being sent, in bytes. Set to UPNP_USING_CHUNKED to use chunked encoding, or UPNP_UNTIL_CLOSE to avoid specifying the content length to the server. In this case the request is considered unfinished until the connection is closed.
[in]	timeout	The time out value sent with the request during which a response is expected from the receiver, failing which, an error is reported. If value is negative, timeout is infinite.

Definition at line 3027 of file upnpapi.cpp.

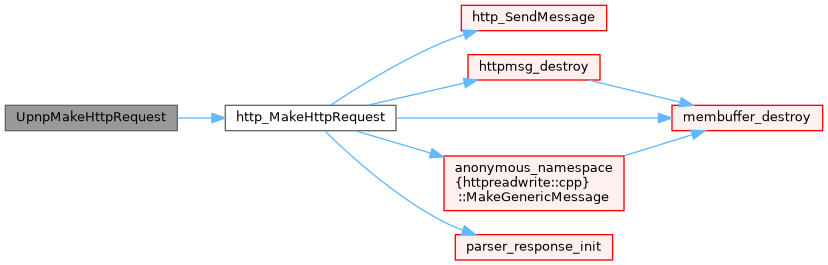

Here is the call graph for this function:

Here is the caller graph for this function:

◆ UpnpWriteHttpRequest()

PUPNP_Api int UpnpWriteHttpRequest	(	void *	handle,
		char *	buf,
		size_t *	size,
		int	timeout
	)

Writes the content of a HTTP request initiated by a UpnpMakeHttpRequest() call. The end of the content should be indicated by a call to UpnpEndHttpRequest().

Returns

An integer representing one of the following:

UPNP_E_SUCCESS: The operation completed successfully.
UPNP_E_INVALID_PARAM: Either handle, buf or size is not a valid pointer.
UPNP_E_SOCKET_WRITE: An error or timeout occurred writing to a socket.
UPNP_E_OUTOF_SOCKET: Too many sockets are currently allocated.

Parameters

[in]	handle	The handle of the connection created by the call to UpnpOpenHttpConnection().
[in]	buf	The buffer containing date to be written.
[in]	size	The size, in bytes of buf.
[in]	timeout	A timeout value sent with the request during which a response is expected from the server, failing which, an error is reported. If value is negative, timeout is infinite.

Definition at line 3034 of file upnpapi.cpp.

Here is the call graph for this function:

◆ UpnpEndHttpRequest()

PUPNP_Api int UpnpEndHttpRequest	(	void *	handle,
		int	timeout
	)

Indicates the end of a HTTP request previously made by UpnpMakeHttpRequest().

Returns

An integer representing one of the following:

UPNP_E_SUCCESS: The operation completed successfully.
UPNP_E_INVALID_PARAM: handle is not a valid pointer.
UPNP_E_OUTOF_MEMORY: Insufficient resources exist to download this file.
UPNP_E_SOCKET_ERROR: Error occured allocating a socket and resources or an error occurred binding a socket.
UPNP_E_SOCKET_WRITE: An error or timeout occurred writing to a socket.
UPNP_E_SOCKET_CONNECT: An error occurred connecting a socket.
UPNP_E_OUTOF_SOCKET: Too many sockets are currently allocated.

Parameters

[in]	handle	The handle to the connection.
[in]	timeout	The time out value sent with the request during which a response is expected from the receiver, failing which, an error is reported. If value is negative, timeout is infinite.

Definition at line 3038 of file upnpapi.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ UpnpGetHttpResponse()

PUPNP_Api int UpnpGetHttpResponse	(	void *	handle,
		UpnpString *	headers,
		char **	contentType,
		int *	contentLength,
		int *	httpStatus,
		int	timeout
	)

Gets the response from the server using a connection previously created by UpnpOpenHttpConnection().

Note: Memory for contentType is only valid until the next call to the HTTP API for the same connection.

Returns

An integer representing one of the following:

UPNP_E_SUCCESS: The operation completed successfully.
UPNP_E_INVALID_PARAM: Either handle, is not a valid pointer.
UPNP_E_INVALID_URL: The url is not a valid URL.
UPNP_E_OUTOF_MEMORY: Insufficient resources exist to download this file.
UPNP_E_NETWORK_ERROR: A network error occurred.
UPNP_E_SOCKET_WRITE: An error or timeout occurred writing to a socket.
UPNP_E_SOCKET_READ: An error or timeout occurred reading from a socket.
UPNP_E_SOCKET_BIND: An error occurred binding a socket.
UPNP_E_SOCKET_CONNECT: An error occurred connecting a socket.
UPNP_E_OUTOF_SOCKET: Too many sockets are currently allocated.
UPNP_E_BAD_RESPONSE: A bad response was received from the remote server.

Parameters

[in]	handle	The handle of the connection created by the call to UpnpOpenHttpConnection().
[in]	headers	Headers sent by the server for the response. If NULL then the headers are not copied.
[out]	contentType	A buffer to store the media type of the item.
[out]	contentLength	A pointer to store the length of the item.
[out]	httpStatus	The status returned on receiving a response message.
[in]	timeout	The time out value sent with the request during which a response is expected from the server, failing which, an error is reported back to the user. If value is negative, timeout is infinite.

Definition at line 3042 of file upnpapi.cpp.

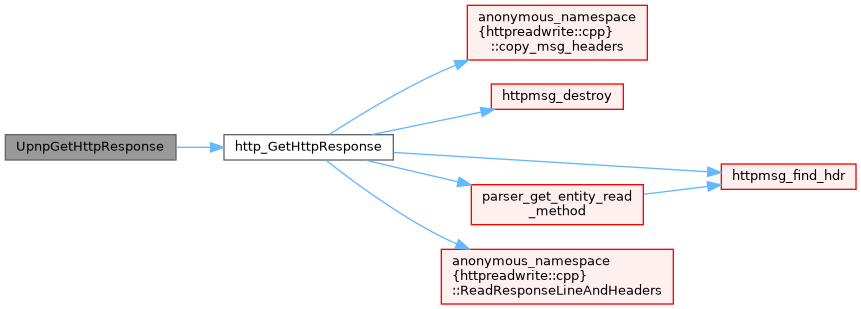

Here is the call graph for this function:

Here is the caller graph for this function:

◆ UpnpReadHttpResponse()

PUPNP_Api int UpnpReadHttpResponse	(	void *	handle,
		char *	buf,
		size_t *	size,
		int	timeout
	)

Reads the content of a response using a connection previously created by UpnpOpenHttpConnection().

Returns

An integer representing one of the following:

UPNP_E_SUCCESS: The operation completed successfully.
UPNP_E_INVALID_PARAM: Either handle, buf or size is not a valid pointer.
UPNP_E_BAD_RESPONSE: A bad response was received from the remote server.
UPNP_E_BAD_HTTPMSG: Either the request or response was in the incorrect format.
UPNP_E_CANCELED: another thread called UpnpCancelHttpGet.

Note: In case of return values, the status code parameter of the passed in handle value may provide additional information on the return value.

Parameters

[in]	handle	The handle of the connection created by the call to UpnpOpenHttpConnection().
[in,out]	buf	The buffer to store the read item.
[in,out]	size	The size of the buffer to be read.
[in]	timeout	The time out value sent with the request during which a response is expected from the server, failing which, an error is reported back to the user. If value is negative, timeout is infinite.

Definition at line 3048 of file upnpapi.cpp.

Here is the call graph for this function:

◆ UpnpCloseHttpConnection()

PUPNP_Api int UpnpCloseHttpConnection ( void * handle )

Closes the connection created with UpnpOpenHttpConnection() and frees any memory associated with the connection.

Returns

An integer representing one of the following:

UPNP_E_SUCCESS: The operation completed successfully.
UPNP_E_INVALID_PARAM: handle, or is not a valid pointer.
UPNP_E_SOCKET_READ: An error or timeout occurred reading from a socket.
UPNP_E_OUTOF_SOCKET: Too many sockets are currently allocated.

Parameters

[in] handle The handle of the connection to close, created by the call to UpnpOpenHttpPost().

Definition at line 3052 of file upnpapi.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

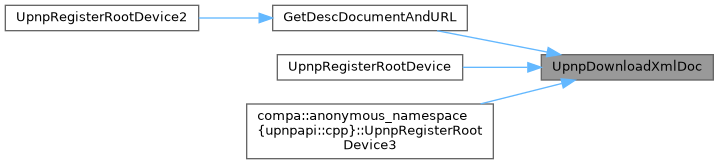

◆ UpnpDownloadXmlDoc()

PUPNP_Api int UpnpDownloadXmlDoc	(	const char *	url,
		IXML_Document **	xmlDoc
	)

Downloads an XML document specified in a URL.

The SDK parses the document and returns it in the form of a DOM document. The application is responsible for freeing the DOM document.

Returns

An integer representing one of the following:

UPNP_E_SUCCESS: The operation completed successfully.
UPNP_E_INVALID_PARAM: Either url or xmlDoc is not a valid pointer.
UPNP_E_INVALID_DESC: The XML document was not found or it does not contain a valid XML description.
UPNP_E_INVALID_URL: The url is not a valid URL.
UPNP_E_OUTOF_MEMORY: There are insufficient resources to download the XML document.
UPNP_E_NETWORK_ERROR: A network error occurred.
UPNP_E_SOCKET_WRITE: An error or timeout occurred writing to a socket.
UPNP_E_SOCKET_READ: An error or timeout occurred reading from a socket.
UPNP_E_SOCKET_BIND: An error occurred binding a socket.
UPNP_E_SOCKET_CONNECT: An error occurred connecting the socket.
UPNP_E_OUTOF_SOCKET: Too many sockets are currently allocated.

Parameters

[in]	url	URL of the XML document.
[out]	xmlDoc	A pointer to a variable in which to store the pointer to the XML document.

Definition at line 3080 of file upnpapi.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

UPnPsdk 0.1 Universal Plug and Play +, Software Development Kit
