COMPATIBLE API

Well defined Application Programming Interface of the compatible part of the library. More...

Modules
	Step 0: Addressing
	Items to get a network address for UPnP devices and control points.
	Step 1: Discovery
	Items for control points to find UPnP device(s) with SSDP the Simple Service Discovery Protocol.
	Step 2: Description
	Items for control points to learn more about a UPnP device and its capabilities.
	Step 3: Control
	Items for control points to invoke actions on UPnP devices with SOAP the Simple Object Access Protocol.
	Step 4: Eventing
	Items to manage events with GENA the General Event Notification Architecture.
	Step 5: Presentation
	Items for control points to expose an HTML-based user interface for controlling and/or viewing device status.
	General local operating
	Items for general local operating that is used for all UPnP Steps to manage internal structures.
	Control Point http API
	Web Server API
UPnPsdk_VIS int	UpnpInitSslContext (int initOpenSslLib, const SSL_METHOD *sslMethod)
	Initializes the OpenSSL library, and the OpenSSL context.
UPnPsdk_VIS void	freeSslCtx (void)
	Free the OpenSSL context.

Detailed Description

Well defined Application Programming Interface of the compatible part of the library.

This API is equal to the API of the old pUPnP System Developement Kit (SDK). It drop in replaces the API of the old pUPnP SDK. If the default usage of this Interface does not behave like the old one then it should be reported as an issue. Differences may exist with error conditions due to bug fixes and stability enhacements. This ensures that you can direct use UPnPlib instead pUPnP without changes to your source code. Then you can modify your source code step by step or only when needed, to use the new object oriented features of the completely rewritten UPnPlib.

This feature is only to ease the port to the new library but support will be discontinued after some time of transition. It is not intended to continue supporting this. With starting a new software project it is strongly recommended to only use the new object oriented UPnPlib API.

Function Documentation

UpnpInitSslContext()

UPnPsdk_VIS int UpnpInitSslContext	(	int	initOpenSslLib,
		const SSL_METHOD *	sslMethod
	)

Initializes the OpenSSL library, and the OpenSSL context.

Note

This method is only available if the library is compiled with OpenSSL support.

Returns

An integer representing one of the following:

• UPNP_E_SUCCESS: The operation completed successfully.
• UPNP_E_INIT: The SDK is already initialized.
• UPNP_E_INIT_FAILED: The SDK initialization failed. Is OpenSSL available?

Parameters

initOpenSslLib	This argument is ignored and only provided for compatibility. It can be set to any value. The library is initialzed automatically.
sslMethod	The SSL_METHOD to use to create the context. See OpenSSL docs for more info, that recommends to use TLS_method(), TLS_server_method() (for client and server), or TLS_client_method() since OpenSSL 1.1.0 because other methods are deprecated.

Definition at line 590 of file sock.cpp.

freeSslCtx()

UPnPsdk_VIS void freeSslCtx

(

void

)

Free the OpenSSL context.

Note

This method is only available if the library is compiled with OpenSSL support.

Definition at line 610 of file sock.cpp.

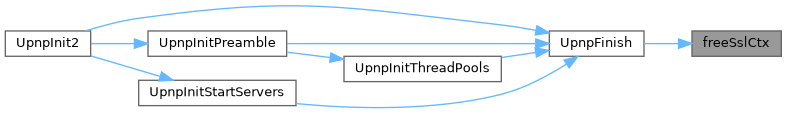

Here is the caller graph for this function:
