webserver.hpp File Reference

Internal Web Server and functions to carry out operations of it. More...

#include <miniserver.hpp>
#include <sock.hpp>

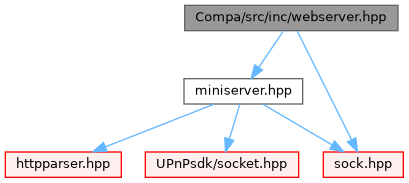

Include dependency graph for webserver.hpp:

Go to the source code of this file.

Classes
struct	SendInstruction
	Send instruction. More...

Macros
#define	X_USER_AGENT   "redsonic"
	Can be overwritten by configure CFLAGS argument.

Functions
void	web_server_init ()
	Initilialize root directory for web server and different documents.
int	web_server_set_alias (const char *a_alias_name, const char *a_alias_content, size_t a_alias_content_length, time_t a_last_modified)
	Replaces current alias with the given alias.
int	web_server_set_root_dir (const char *root_dir)
	Assign the path to the global Document root directory.
int	web_server_set_cors (const char *cors_string)
	Assign the Access-Control-Allow-Origin specfied by the input const char* cors_string parameterto the global CORS string.
void	web_server_callback (http_parser_t *a_parser, http_message_t *a_req, SOCKINFO *a_info)
	Main entry point into web server.
void	SetHTTPGetCallback (MiniServerCallback callback)
	Set HTTP Get Callback.
void	web_server_destroy ()
	Release memory allocated for the global web server root directory and the global XML document.

Variables
membuffer	gDocumentRootDir
membuffer	gWebserverCorsString

Detailed Description

Internal Web Server and functions to carry out operations of it.

Definition in file webserver.hpp.

---

Class Documentation

SendInstruction

struct SendInstruction

Send instruction.

Definition at line 50 of file webserver.hpp.

Class Members
int	IsVirtualFile	member variable
int	IsChunkActive	member variable
int	IsRangeActive	member variable
int	IsTrailers	member variable
char	RangeHeader[200]	member variable
char	AcceptLanguageHeader[200]	member variable
off_t	RangeOffset	member variable
off_t	ReadSendSize	Read from local source and send on the network.
long	RecvWriteSize	Recv from the network and write into local file.
const void *	CorsHeader	CorsHeader.
const void *	Cookie	Cookie associated with the virtualDir.
const void *	RequestCookie	Cookie associated with the request.

Macro Definition Documentation

X_USER_AGENT

#define X_USER_AGENT   "redsonic"

Can be overwritten by configure CFLAGS argument.

If not already defined, the {X_USER_AGENT} constant specifies the value of the X-User-Agent: HTTP header. The value "redsonic" is needed for the DSM-320. See https://sourceforge.net/forum/message.php?msg_id=3166856 for more information.

Todo:

Check setting of X_USER_AGENT.

Definition at line 87 of file webserver.hpp.

Function Documentation

web_server_init()

void web_server_init

(

)

Initilialize root directory for web server and different documents.

Initilialize the different documents. Initialize the memory for root directory for web server. Sets bWebServerState to WEB_SERVER_ENABLED.

Definition at line 1518 of file webserver.cpp.

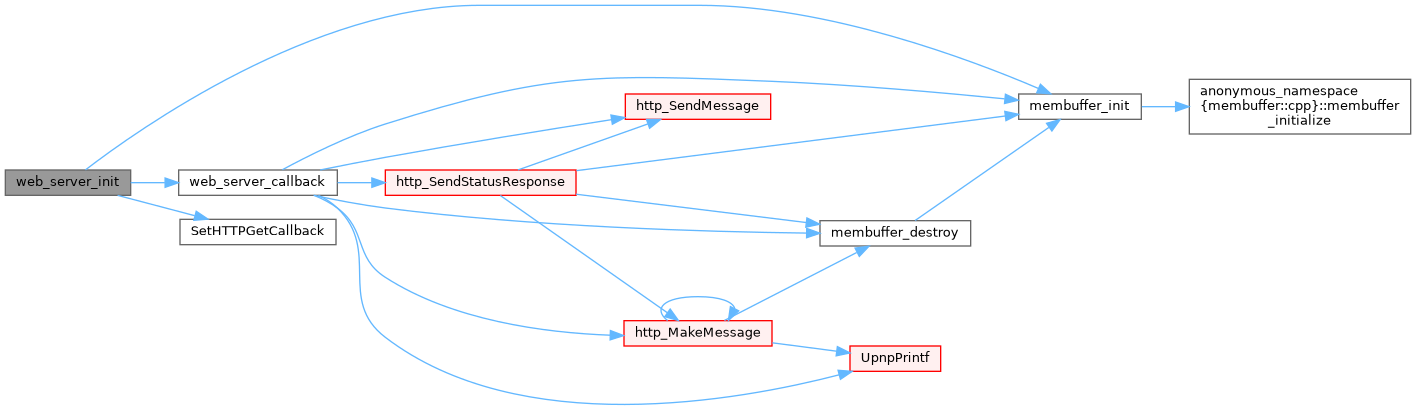

Here is the call graph for this function:

Here is the caller graph for this function:

web_server_set_alias()

int web_server_set_alias	(	const char *	a_alias_name,
		const char *	a_alias_content,
		size_t	a_alias_content_length,
		time_t	a_last_modified
	)

Replaces current alias with the given alias.

To remove the current alias, set a_alias_name to nullptr.

Returns

• UPNP_E_SUCCESS
• UPNP_E_INVALID_ARGUMENT

Parameters

[in]	a_alias_name	Pointer to webserver name of alias for a copy; the ownership of this C string with terminating '\0' remains by the caller. He is still responsible to manage it (e.g. deallocating if allocated etc.).
[in,out]	a_alias_content	Pointer to the xml doc. This string must be allocated by the caller. Ownership of this argument is then taken over by the web server to manage it, in particular also deallocate it. The caller hasn't to worry about memory management.
[in,out]	a_alias_content_length	Length of alias body in bytes. Document can also contain '\0' characters within its length.
[in]	a_last_modified	Time when contents of alias were last changed (local time).

Definition at line 1538 of file webserver.cpp.

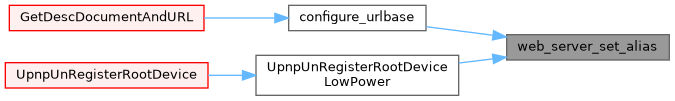

Here is the caller graph for this function:

web_server_set_root_dir()

int web_server_set_root_dir

(

const char *

root_dir

)

Assign the path to the global Document root directory.

Also check for path names ending in '/'.

Returns

On success: 0
On error:

• UPNP_E_INVALID_ARGUMENT
• UPNP_E_OUTOF_MEMORY

Parameters

[in]

root_dir

String having the root directory for the document.

Definition at line 1546 of file webserver.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

web_server_set_cors()

int web_server_set_cors

(

const char *

cors_string

)

Assign the Access-Control-Allow-Origin specfied by the input const char* cors_string parameterto the global CORS string.

Returns

Integer.

Parameters

[in]

cors_string

String having the Access-Control-Allow-Origin string.

Definition at line 1564 of file webserver.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

web_server_callback()

void web_server_callback	(	http_parser_t *	a_parser,
		http_message_t *	a_req,
		SOCKINFO *	a_info
	)

Main entry point into web server.

Handles HTTP GET and HEAD requests.

Parameters

[in]	a_parser	.
[in]	a_req	.
[in,out]	a_info	.

Definition at line 1574 of file webserver.cpp.

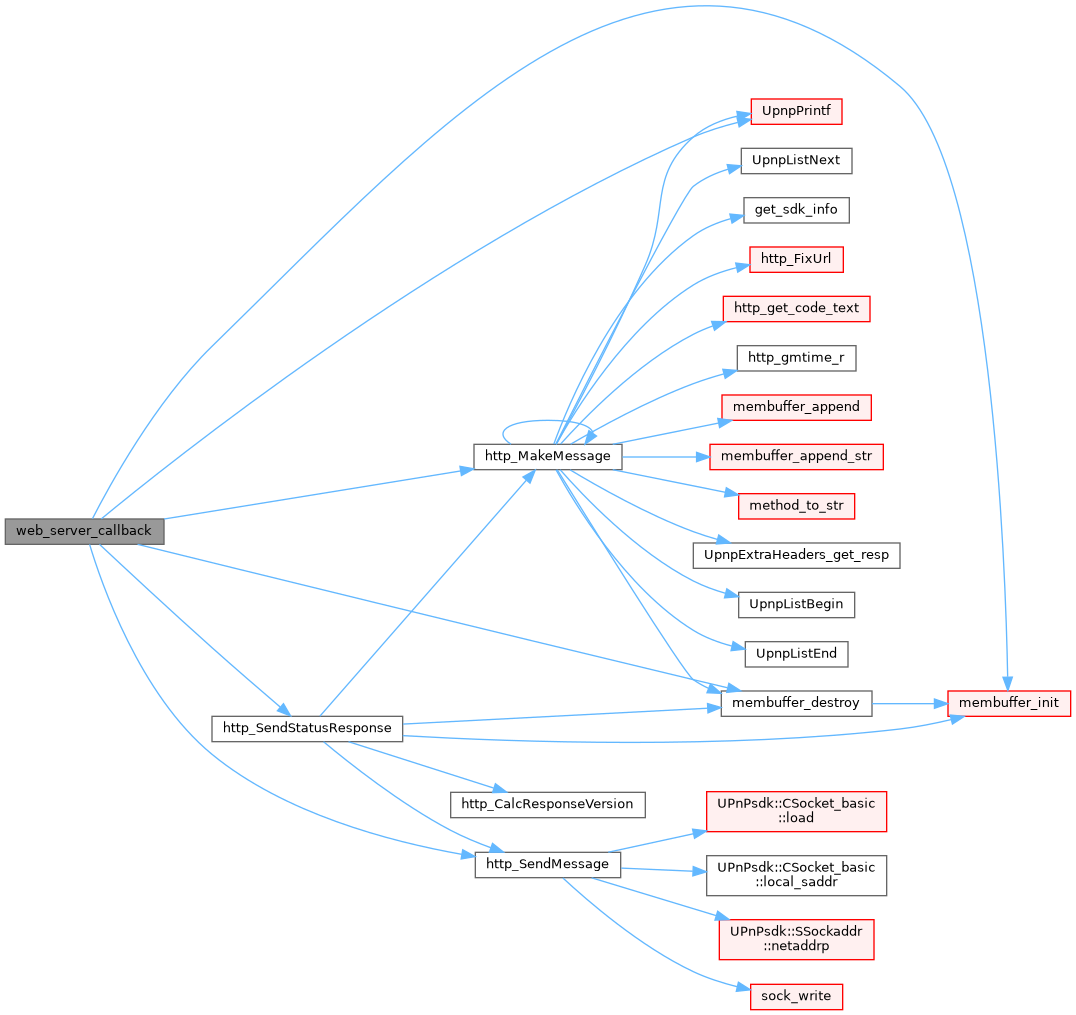

Here is the call graph for this function:

Here is the caller graph for this function:

SetHTTPGetCallback()

void SetHTTPGetCallback

(

MiniServerCallback

callback

)

Set HTTP Get Callback.

Parameters

[in]

callback

HTTP Callback to be invoked.

Definition at line 1645 of file webserver.cpp.

Here is the caller graph for this function:

web_server_destroy()

void web_server_destroy

(

)

Release memory allocated for the global web server root directory and the global XML document.

Resets the flag bWebServerState to WEB_SERVER_DISABLED.

Definition at line 1650 of file webserver.cpp.

Here is the call graph for this function:

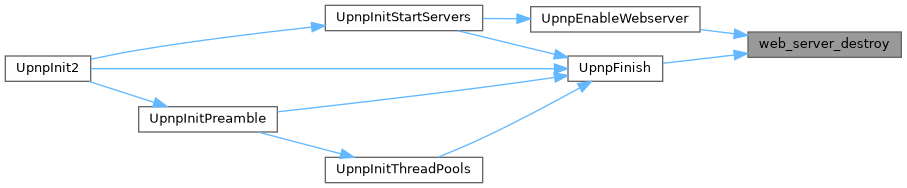

Here is the caller graph for this function:

Variable Documentation

gDocumentRootDir

membuffer gDocumentRootDir

inline

Global variable. A local dir which serves as webserver root.

Definition at line 45 of file webserver.hpp.

gWebserverCorsString

membuffer gWebserverCorsString

inline

Global variable. A string which is set in the header field.

Definition at line 47 of file webserver.hpp.
