client_table.hpp File Reference

#include <GenlibClientSubscription.hpp>
#include <TimerThread.hpp>
#include <service_table.hpp>

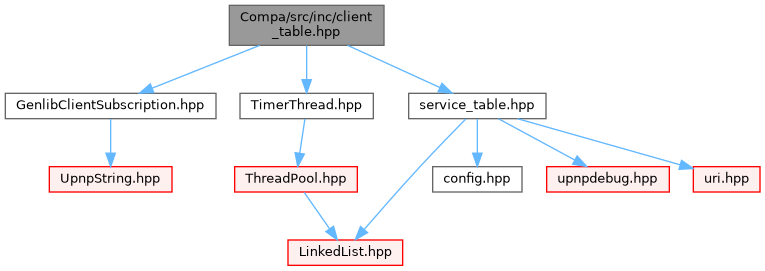

Include dependency graph for client_table.hpp:

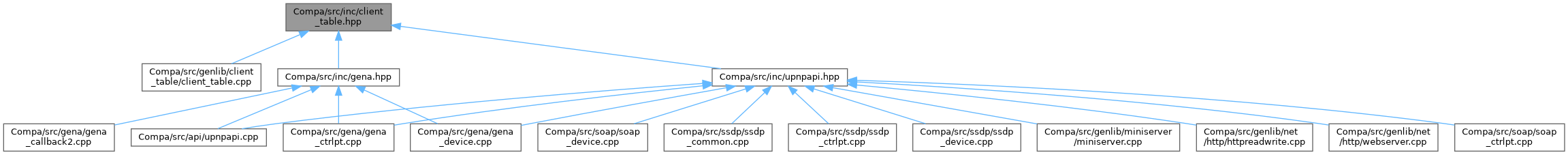

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
void	free_client_subscription (GenlibClientSubscription *sub)
	Free memory allocated for client subscription data.
void	freeClientSubList (GenlibClientSubscription *list)
	Free the client subscription table.
void	RemoveClientSubClientSID (GenlibClientSubscription **head, const UpnpString *sid)
	Remove the client subscription matching the subscritpion id represented by the const Upnp_SID sid parameter from the table and update the table.
GenlibClientSubscription *	GetClientSubClientSID (GenlibClientSubscription *head, const UpnpString *sid)
	Return the client subscription from the client table that matches const Upnp_SID sid subscrition id value.
GenlibClientSubscription *	GetClientSubActualSID (GenlibClientSubscription *head, token *sid)
	Returns the client subscription from the client subscription table that has the matching token *sid buffer value.

Variables
TimerThread	gTimerThread
	Global timer thread.

Function Documentation

free_client_subscription()

void free_client_subscription

(

GenlibClientSubscription *

sub

)

Free memory allocated for client subscription data.

Remove timer thread associated with this subscription event.

Parameters

[in]

sub

Client subscription to be freed.

Definition at line 20 of file client_table.cpp.

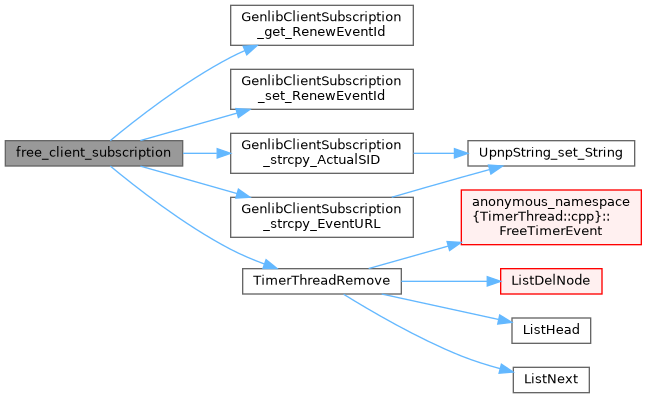

Here is the call graph for this function:

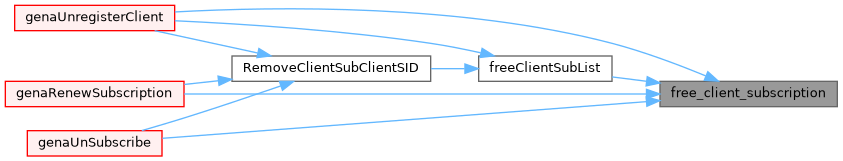

Here is the caller graph for this function:

freeClientSubList()

void freeClientSubList

(

GenlibClientSubscription *

list

)

Free the client subscription table.

Parameters

[in]

list

Client subscription list to be freed.

Definition at line 37 of file client_table.cpp.

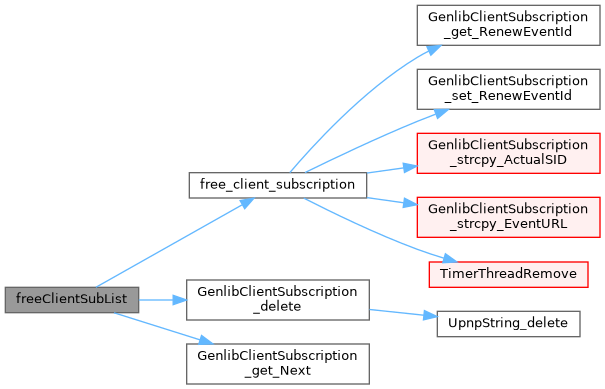

Here is the call graph for this function:

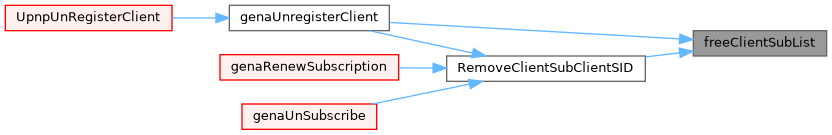

Here is the caller graph for this function:

RemoveClientSubClientSID()

void RemoveClientSubClientSID	(	GenlibClientSubscription **	head,
		const UpnpString *	sid
	)

Remove the client subscription matching the subscritpion id represented by the const Upnp_SID sid parameter from the table and update the table.

Parameters

[in]	head	Head of the subscription list.
[in]	sid	Subscription ID to be mactched.

Definition at line 47 of file client_table.cpp.

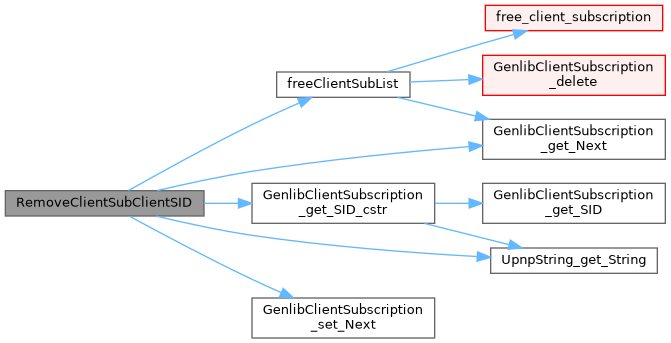

Here is the call graph for this function:

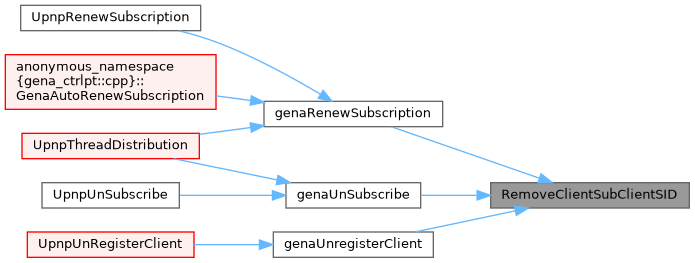

Here is the caller graph for this function:

GetClientSubClientSID()

GenlibClientSubscription * GetClientSubClientSID	(	GenlibClientSubscription *	head,
		const UpnpString *	sid
	)

Return the client subscription from the client table that matches const Upnp_SID sid subscrition id value.

Returns

The matching subscription.

Parameters

[in]	head	Head of the subscription list.
[in]	sid	Subscription ID to be mactched.

Definition at line 72 of file client_table.cpp.

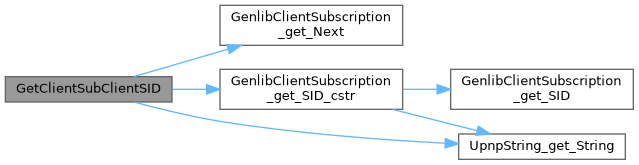

Here is the call graph for this function:

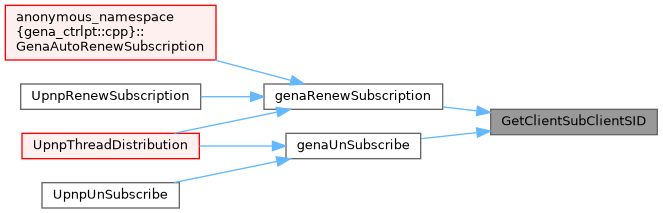

Here is the caller graph for this function:

GetClientSubActualSID()

GenlibClientSubscription * GetClientSubActualSID	(	GenlibClientSubscription *	head,
		token *	sid
	)

Returns the client subscription from the client subscription table that has the matching token *sid buffer value.

Returns

The matching subscription.

Parameters

[in]	head	Head of the subscription list.
[in]	sid	Subscription ID to be mactched.

Definition at line 89 of file client_table.cpp.

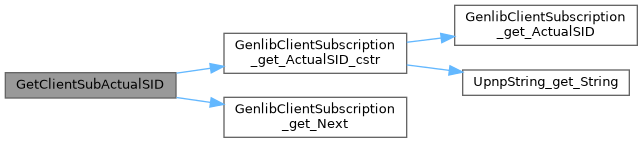

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

gTimerThread

TimerThread gTimerThread

extern

Global timer thread.

Definition at line 256 of file upnpapi.cpp.
