TimerThread.hpp File Reference

Manage threads that start at a given time (for internal use only). More...

#include "ThreadPool.hpp"

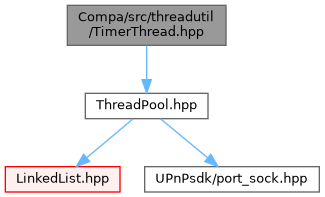

Include dependency graph for TimerThread.hpp:

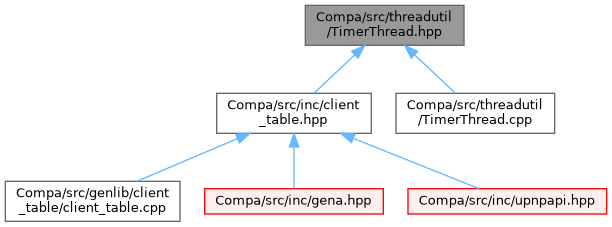

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	TimerThread
	A timer thread that allows the scheduling of a job to run at a specified time in the future. More...

Enumerations
enum	TimeoutType { ABS_SEC , REL_SEC }
	Timeout Types. More...

Functions
int	TimerThreadInit (TimerThread *timer, ThreadPool *tp)
	Initializes and starts timer thread.
int	TimerThreadSchedule (TimerThread *timer, time_t timeout, TimeoutType type, ThreadPoolJob *job, Duration duration, int *id)
	Schedules an event to run at a specified time.
int	TimerThreadRemove (TimerThread *timer, int id, ThreadPoolJob *out)
	Removes an event from the timer Q.
int	TimerThreadShutdown (TimerThread *timer)
	Shutdown the timer thread.

Detailed Description

Manage threads that start at a given time (for internal use only).

Because this is for internal use, parameters are NOT checked for validity. The caller must ensure valid parameters.

Definition in file TimerThread.hpp.

---

Class Documentation

TimerThread

struct TimerThread

A timer thread that allows the scheduling of a job to run at a specified time in the future.

Because the timer thread uses the thread pool there is no gurantee of timing, only approximate timing.

Uses ThreadPool, Mutex, Condition, Thread.

Definition at line 61 of file TimerThread.hpp.

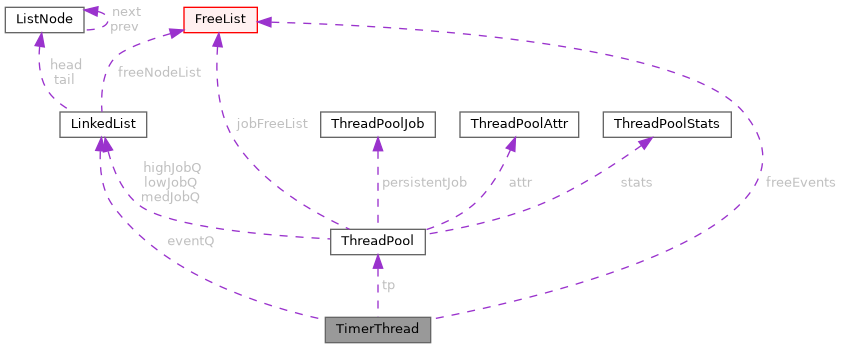

Collaboration diagram for TimerThread:

Class Members
pthread_mutex_t	mutex	[in]
pthread_cond_t	condition	[in]
int	lastEventId	[in]
LinkedList	eventQ	[in]
int	shutdown	[in]
FreeList	freeEvents	[in]
ThreadPool *	tp	[in]

Enumeration Type Documentation

TimeoutType

enum TimeoutType

Timeout Types.

Enumerator
ABS_SEC	seconds from Jan 1, 1970.
REL_SEC	seconds from current time.

Definition at line 47 of file TimerThread.hpp.

Function Documentation

TimerThreadInit()

int TimerThreadInit	(	TimerThread *	timer,
		ThreadPool *	tp
	)

Initializes and starts timer thread.

Returns

On success: 0
On error: nonzero, returns error from ThreadPoolAddPersistent().

Parameters

[in]	timer	Valid timer thread pointer.
[in]	tp	Valid thread pool to use. Must be started. Must be valid for lifetime of timer. Timer must be shutdown BEFORE thread pool.

Definition at line 221 of file TimerThread.cpp.

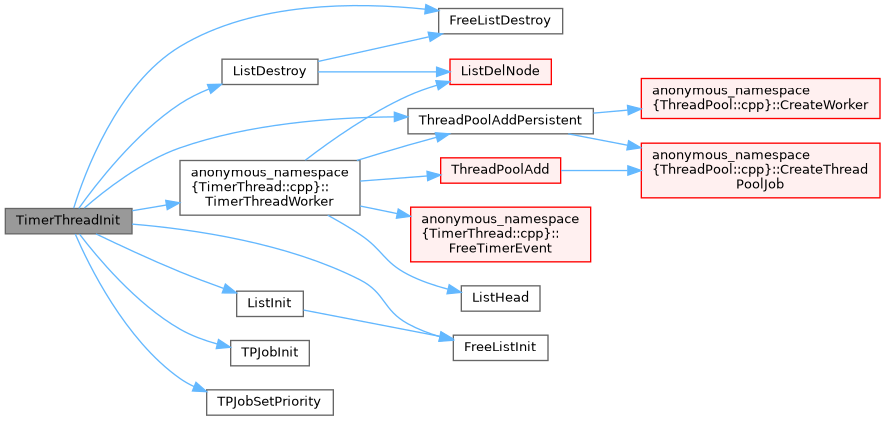

Here is the call graph for this function:

Here is the caller graph for this function:

TimerThreadSchedule()

int TimerThreadSchedule	(	TimerThread *	timer,
		time_t	timeout,
		TimeoutType	type,
		ThreadPoolJob *	job,
		Duration	duration,
		int *	id
	)

Schedules an event to run at a specified time.

Returns

On success: 0
On error: nonzero

• EOUTOFMEM if not enough memory to schedule job.

Parameters

[in]	timer	Valid timer thread pointer.
[in]	timeout	time of event. Either in absolute seconds, or relative seconds in the future.
[in]	type	either ABS_SEC, or REL_SEC. If REL_SEC, then the event will be scheduled at the current time + REL_SEC.
[in]	job	Valid Thread pool job with following fields.
[in]	duration
[out]	id	Id of timer event. (can be null).

Definition at line 276 of file TimerThread.cpp.

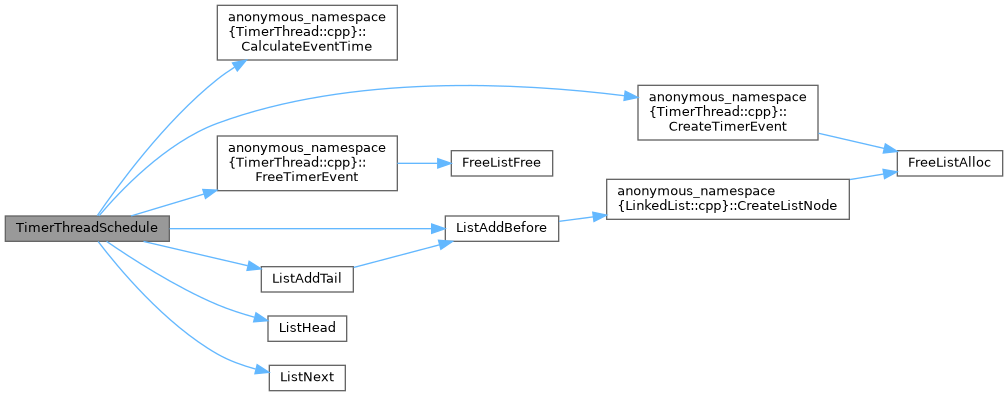

Here is the call graph for this function:

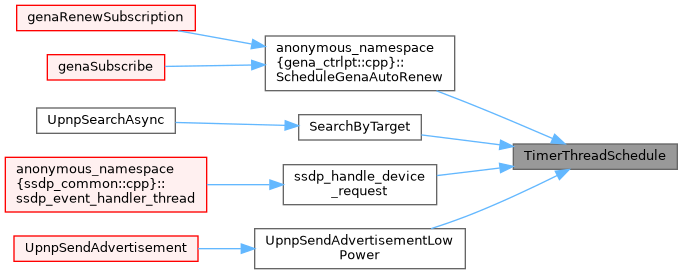

Here is the caller graph for this function:

TimerThreadRemove()

int TimerThreadRemove	(	TimerThread *	timer,
		int	id,
		ThreadPoolJob *	out
	)

Removes an event from the timer Q.

Events can only be removed before they have been placed in the thread pool.

Returns

On success: 0
On error: INVALID_EVENT_ID

Parameters

[in]	timer	Valid timer thread pointer.
[in]	id	Id of event to remove.
[out]	out	Thread pool job.

Definition at line 339 of file TimerThread.cpp.

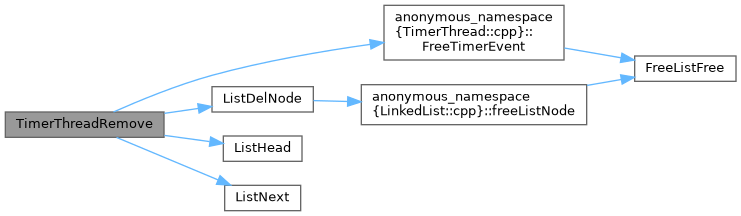

Here is the call graph for this function:

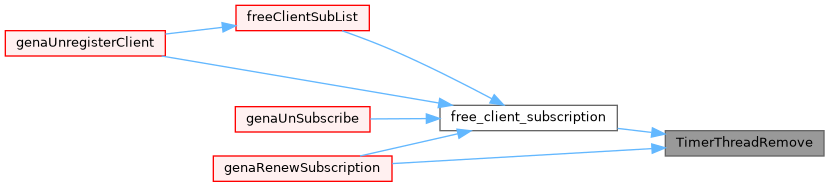

Here is the caller graph for this function:

TimerThreadShutdown()

int TimerThreadShutdown

(

TimerThread *

timer

)

Shutdown the timer thread.

Events scheduled in the future will NOT be run. Timer thread should be shutdown BEFORE it's associated thread pool.

Returns

Always 0

Parameters

[in]

timer

Valid timer thread pointer.

Definition at line 372 of file TimerThread.cpp.

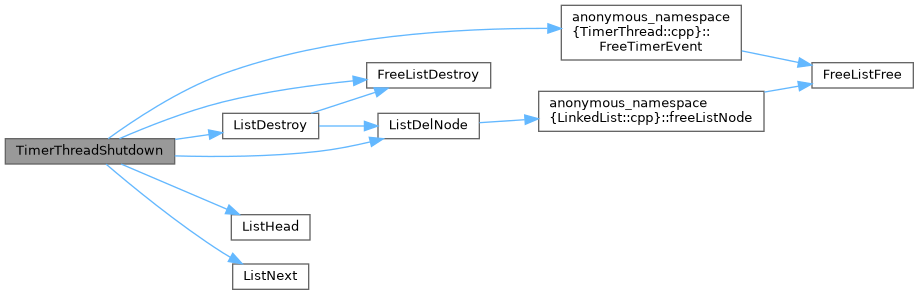

Here is the call graph for this function:

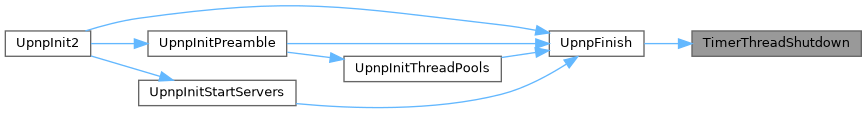

Here is the caller graph for this function:
