Manage a linked list (for internal use only). More...

#include "FreeList.hpp"

Include dependency graph for LinkedList.hpp:

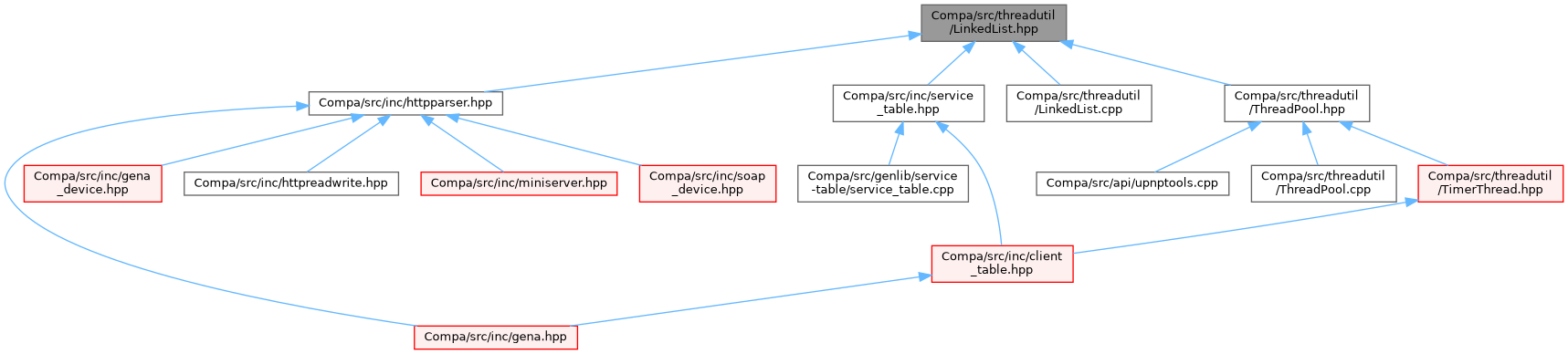

This graph shows which files directly or indirectly include this file:

Classes
struct	ListNode
	Linked list node. Stores generic item and pointers to next and prev. More...

struct	LinkedList
	Linked list (no protection). More...

Macros
#define	EOUTOFMEM (-7 & 1 << 29)
	Error condition for "out of memory".

Typedefs
typedef void(*	free_function) (void *arg)
	Function for freeing list items.

typedef int(*	cmp_routine) (void itemA, void itemB)
	Function for comparing list items. Returns 1 if itemA==itemB.

Functions
int	ListInit (LinkedList *list, cmp_routine cmp_func, free_function free_func)
	Initializes LinkedList. Must be called first and only once for List.

ListNode *	ListAddHead (LinkedList list, void item)
	Adds a node to the head of the list. Node gets immediately after list head.

ListNode *	ListAddTail (LinkedList list, void item)
	Adds a node to the tail of the list. Node gets added immediately before list.tail.

ListNode *	ListAddAfter (LinkedList list, void item, ListNode *bnode)
	Adds a node after the specified node. Node gets added immediately after bnode.

ListNode *	ListAddBefore (LinkedList list, void item, ListNode *anode)
	Adds a node before the specified node. Node gets added immediately before anode.

void *	ListDelNode (LinkedList list, ListNode dnode, int freeItem)
	Removes a node from the list. The memory for the node is freed.

int	ListDestroy (LinkedList *list, int freeItem)
	Removes all memory associated with list nodes. Does not free LinkedList *list.

ListNode *	ListHead (LinkedList *list)
	Returns the head of the list.

ListNode *	ListTail (LinkedList *list)
	Returns the tail of the list.

ListNode *	ListNext (LinkedList list, ListNode node)
	Returns the next item in the list.

ListNode *	ListPrev (LinkedList list, ListNode node)
	Returns the previous item in the list.

ListNode *	ListFind (LinkedList list, ListNode start, void *item)
	Finds the specified item in the list.

long	ListSize (LinkedList *list)
	Returns the size of the list.

Detailed Description

Manage a linked list (for internal use only).

Because this is for internal use, parameters are NOT checked for validity. The caller must ensure valid parameters.

Definition in file LinkedList.hpp.

Class Documentation

◆ ListNode

struct ListNode

Linked list node. Stores generic item and pointers to next and prev.

Definition at line 58 of file LinkedList.hpp.

Collaboration diagram for ListNode:

Class Members
struct ListNode *	prev
struct ListNode *	next
void *	item

◆ LinkedList

struct LinkedList

Linked list (no protection).

The first item of the list is stored at node: head->next
The last item of the list is stored at node: tail->prev
If head->next=tail, then list is empty.
To iterate through the list:

LinkedList g;
ListNode *temp = NULL;
for (temp = ListHead(g);temp!=NULL;temp = ListNext(g,temp)) {
}

Definition at line 79 of file LinkedList.hpp.

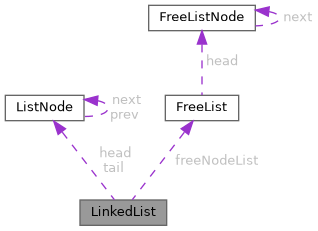

Collaboration diagram for LinkedList:

Class Members
ListNode	head	head, first item is stored at: head->next
ListNode	tail	tail, last item is stored at: tail->prev
long	size	size of list
FreeList	freeNodeList	free list to use
free_function	free_func	free function to use
cmp_routine	cmp_func	compare function to use

Macro Definition Documentation

◆ EOUTOFMEM

#define EOUTOFMEM (-7 & 1 << 29)

Error condition for "out of memory".

Definition at line 47 of file LinkedList.hpp.

Typedef Documentation

◆ free_function

typedef void(* free_function) (void *arg)

Function for freeing list items.

Definition at line 50 of file LinkedList.hpp.

◆ cmp_routine

typedef int(* cmp_routine) (void *itemA, void *itemB)

Function for comparing list items. Returns 1 if itemA==itemB.

Definition at line 53 of file LinkedList.hpp.

Function Documentation

◆ ListInit()

int ListInit	(	LinkedList *	list,
		cmp_routine	cmp_func,
		free_function	free_func
	)

Initializes LinkedList. Must be called first and only once for List.

Returns: On success: 0
On error: EOUTOFMEM

Parameters

[in]	list	Must be valid, non null, pointer to a linked list.
[in]	cmp_func	Function used to compare items. (May be NULL).
[in]	free_func	Function used to free items. (May be NULL).

Definition at line 95 of file LinkedList.cpp.

Here is the call graph for this function:

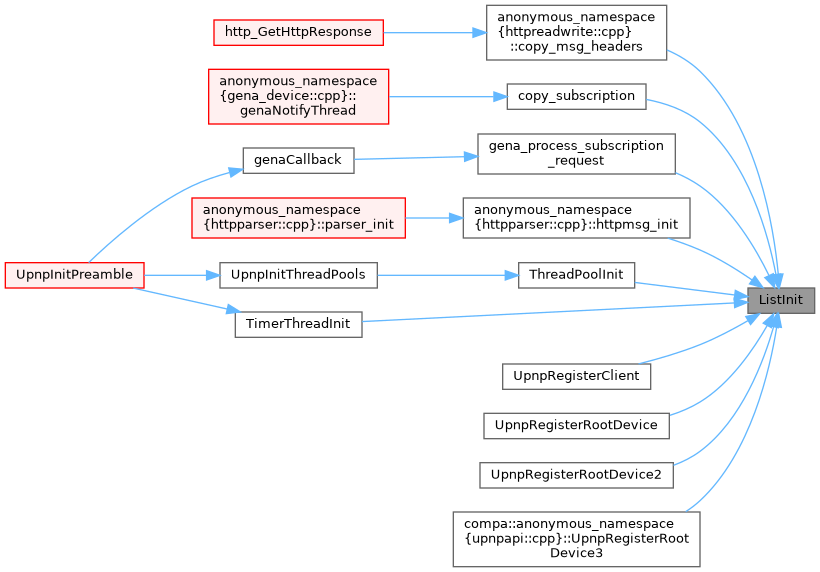

Here is the caller graph for this function:

◆ ListAddHead()

ListNode * ListAddHead	(	LinkedList *	list,
		void *	item
	)

Adds a node to the head of the list. Node gets immediately after list head.

Precondition: The list has been initialized.

Returns: On success: The pointer to the ListNode.
On error: nullptr

Parameters

[in]	list	Must be valid, non null, pointer to a linked list.
[in]	item	Item to be added.

Definition at line 119 of file LinkedList.cpp.

Here is the call graph for this function:

◆ ListAddTail()

ListNode * ListAddTail	(	LinkedList *	list,
		void *	item
	)

Adds a node to the tail of the list. Node gets added immediately before list.tail.

Precondition: The list has been initialized.

Returns: On success: The pointer to the ListNode.
On error: nullptr

Parameters

[in]	list	Must be valid, non null, pointer to a linked list.
[in]	item	Item to be added.

Definition at line 128 of file LinkedList.cpp.

Here is the call graph for this function:

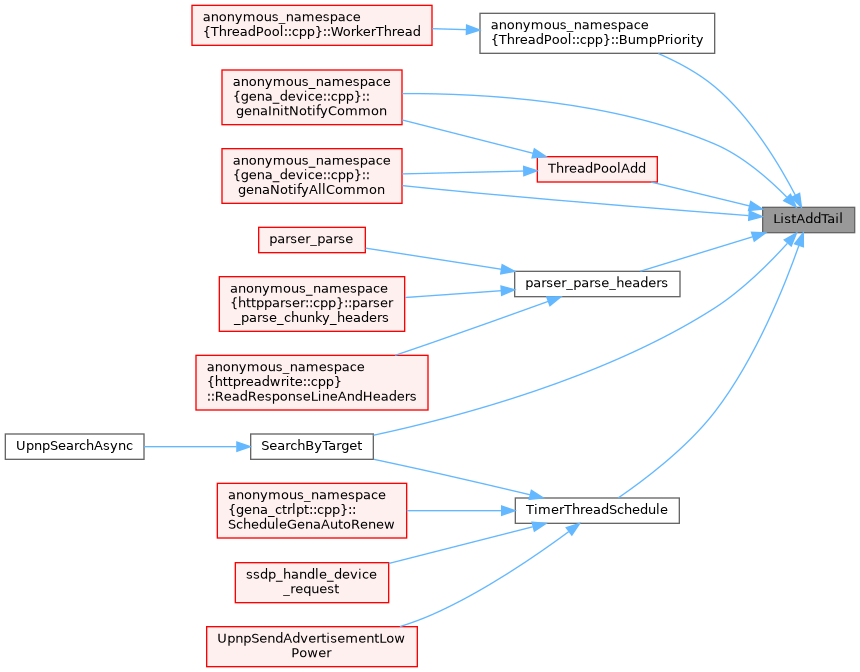

Here is the caller graph for this function:

◆ ListAddAfter()

ListNode * ListAddAfter	(	LinkedList *	list,
		void *	item,
		ListNode *	bnode
	)

Adds a node after the specified node. Node gets added immediately after bnode.

Precondition: The list has been initialized.

Returns: On success: The pointer to the ListNode.
On error: nullptr

Parameters

[in]	list	Must be valid, non null, pointer to a linked list.
[in]	item	Item to be added.
[in]	bnode	Node to add after.

Definition at line 137 of file LinkedList.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ListAddBefore()

ListNode * ListAddBefore	(	LinkedList *	list,
		void *	item,
		ListNode *	anode
	)

Adds a node before the specified node. Node gets added immediately before anode.

Precondition: The list has been initialized.

Returns: On success: The pointer to the ListNode.
On error: nullptr

Parameters

[in]	list	Must be valid, non null, pointer to a linked list.
[in]	item	Item to be added.
[in]	anode	Node to add in front of.

Definition at line 160 of file LinkedList.cpp.

Here is the call graph for this function:

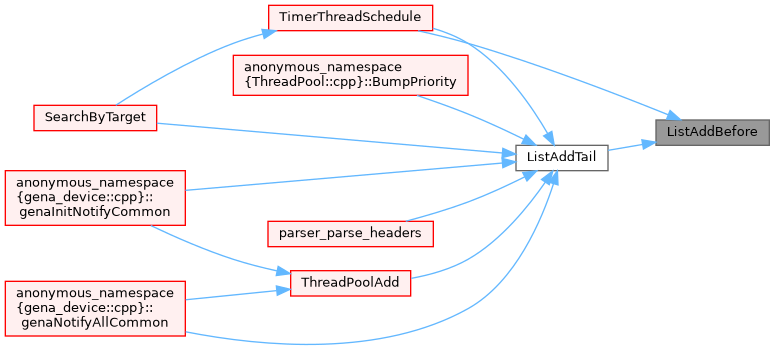

Here is the caller graph for this function:

◆ ListDelNode()

void * ListDelNode	(	LinkedList *	list,
		ListNode *	dnode,
		int	freeItem
	)

Removes a node from the list. The memory for the node is freed.

Precondition: The list has been initialized.

Returns: On success: The pointer to the item stored in the node or nullptr if the item is freed.

Parameters

[in]	list	Must be valid, non null, pointer to a linked list.
[in]	dnode	Node to delete.
[in]	freeItem	if !0 then item is freed using free function. If 0 (or free function is NULL) then item is not freed.

Definition at line 183 of file LinkedList.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ListDestroy()

int ListDestroy	(	LinkedList *	list,
		int	freeItem
	)

Removes all memory associated with list nodes. Does not free LinkedList *list.

Precondition: The list has been initialized.

Returns: On success: 0 On error: EINVAL

Parameters

[in]	list	Must be valid, non null, pointer to a linked list.
[in]	freeItem	If !0 then item is freed using free function. If 0 (or free function is NULL) then item is not freed.

Definition at line 205 of file LinkedList.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ListHead()

ListNode * ListHead ( LinkedList * list )

Returns the head of the list.

Precondition: The list has been initialized.

Returns: On success: The head of the list. nullptr if list is empty.

Parameters

list	[0] Must be valid, non null, pointer to a linked list.

Definition at line 223 of file LinkedList.cpp.

Here is the caller graph for this function:

◆ ListTail()

ListNode * ListTail ( LinkedList * list )

Returns the tail of the list.

Precondition: The list has been initialized.

Returns: On success: The tail of the list. nullptr if list is empty.

Parameters

[in] list Must be valid, non null, pointer to a linked list.

Definition at line 235 of file LinkedList.cpp.

◆ ListNext()

ListNode * ListNext	(	LinkedList *	list,
		ListNode *	node
	)

Returns the next item in the list.

Precondition: The list has been initialized.

Returns: On success: The next item in the list, nullptr if there are no more items in list.

Parameters

[in]	list	Must be valid, non null, pointer to a linked list.
[in]	node	Node from the list.

Definition at line 247 of file LinkedList.cpp.

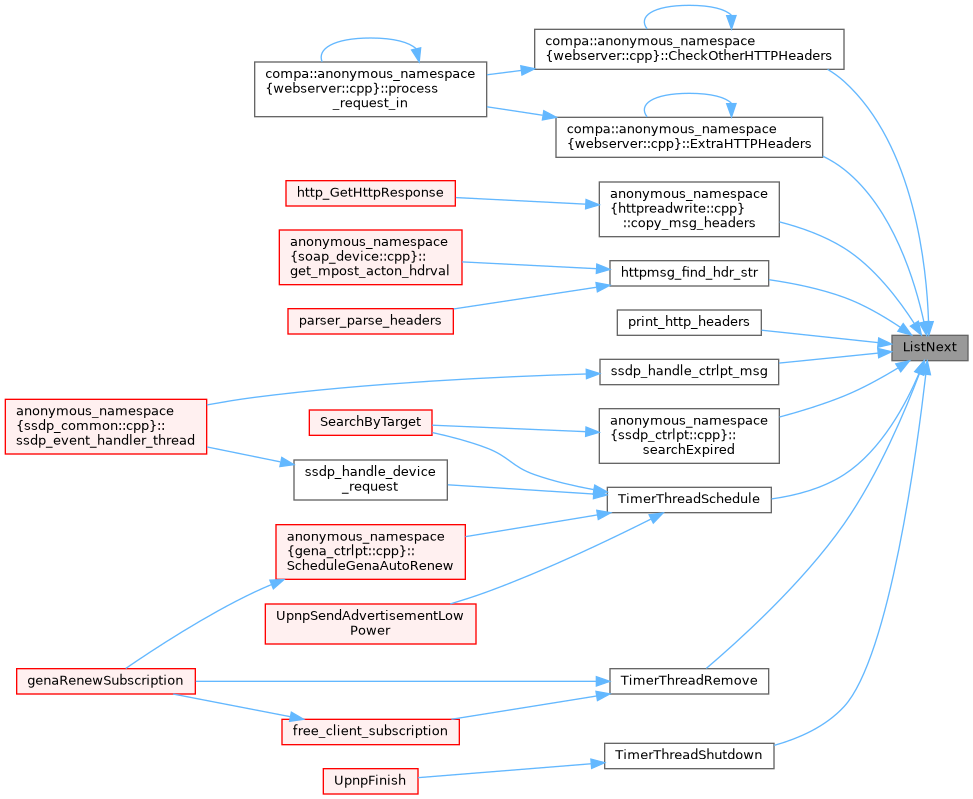

Here is the caller graph for this function:

◆ ListPrev()

ListNode * ListPrev	(	LinkedList *	list,
		ListNode *	node
	)

Returns the previous item in the list.

Precondition: The list has been initialized.

Returns: On success: The previous item in the list, nullptr if there are no more items in list.

Parameters

[in]	list	Must be valid, non null, pointer to a linked list.
[in]	node	Node from the list.

Definition at line 259 of file LinkedList.cpp.

◆ ListFind()

ListNode * ListFind	(	LinkedList *	list,
		ListNode *	start,
		void *	item
	)

Finds the specified item in the list.

Uses the compare function specified in ListInit. If compare function is nullptr then compares items as pointers.

Precondition: The list has been initialized.

Returns: On success: The node containing the item, nullptr if no node contains the item.

Parameters

[in]	list	Must be valid, non null, pointer to a linked list.
[in]	start	The node to start from, nullptr if to start from beginning.
[in]	item	The item to search for.

Definition at line 272 of file LinkedList.cpp.

Here is the caller graph for this function:

◆ ListSize()

long ListSize ( LinkedList * list )

Returns the size of the list.

Precondition: The list has been initialized.

Returns: On success: The number of items in the list.

Parameters

[in] list Must be valid, non null, pointer to a linked list.

Definition at line 300 of file LinkedList.cpp.

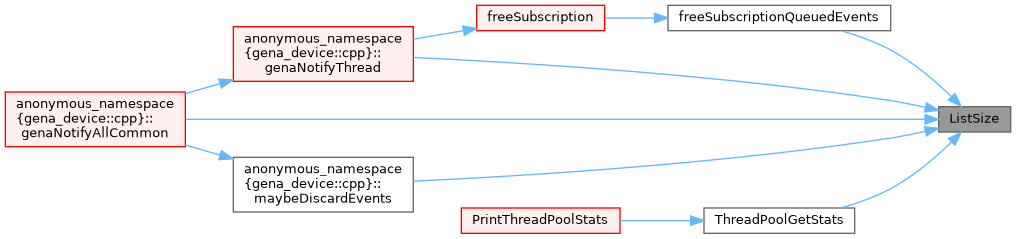

Here is the caller graph for this function:
