anonymous_namespace{TimerThread.cpp} Namespace Reference

Classes
struct	TimerEvent
	Structure to contain information for a timer event. More...

Functions
Scope restricted to file
TimerEvent *	CreateTimerEvent (TimerThread *timer, ThreadPoolJob *job, Duration persistent, time_t eventTime, int id)
	Creates a Timer Event.
void	FreeTimerEvent (TimerThread *timer, TimerEvent *event)
	Deallocates a dynamically allocated TimerEvent.
void	TimerThreadWorker (void *arg)
	Implements timer thread.
int	CalculateEventTime (time_t *timeout, TimeoutType type)
	Calculates the appropriate timeout in absolute seconds since Jan 1, 1970.

---

Class Documentation

anonymous_namespace{TimerThread.cpp}::TimerEvent

struct anonymous_namespace{TimerThread.cpp}::TimerEvent

Structure to contain information for a timer event.

Internal to the TimerThread.

Definition at line 58 of file TimerThread.cpp.

Collaboration diagram for anonymous_namespace{TimerThread.cpp}::TimerEvent:

Class Members
ThreadPoolJob	job
time_t	eventTime	Absolute time for event in seconds since Jan 1, 1970.
Duration	persistent	Long term or short term job.
int	id	Id of timer event. (can be null?).

Function Documentation

CreateTimerEvent()

TimerEvent * anonymous_namespace{TimerThread.cpp}::CreateTimerEvent ( TimerThread *  timer, ThreadPoolJob *  job, Duration  persistent, time_t  eventTime, int  id  )

inline

Creates a Timer Event.

Returns

On success: Pointer to dynamically allocated TimerEvent.
On error: nullptr

Parameters

[in]	timer	Valid timer thread pointer.
[in]	job	.
[in]	persistent	.
[in]	eventTime	The absoule time of the event in seconds from Jan, 1970.
[in]	id	Id of job.

Definition at line 79 of file TimerThread.cpp.

Here is the call graph for this function:

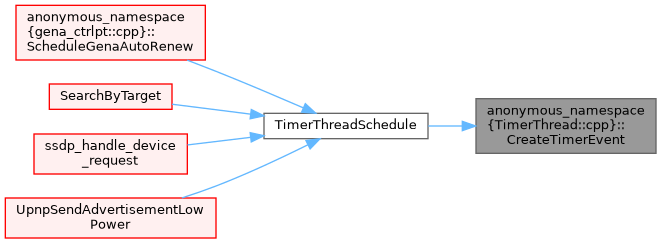

Here is the caller graph for this function:

FreeTimerEvent()

void anonymous_namespace{TimerThread.cpp}::FreeTimerEvent	(	TimerThread *	timer,
		TimerEvent *	event
	)

Deallocates a dynamically allocated TimerEvent.

Parameters

[in]	timer	Valid timer thread pointer.
[in]	event	Must be allocated with CreateTimerEvent.

Definition at line 109 of file TimerThread.cpp.

Here is the call graph for this function:

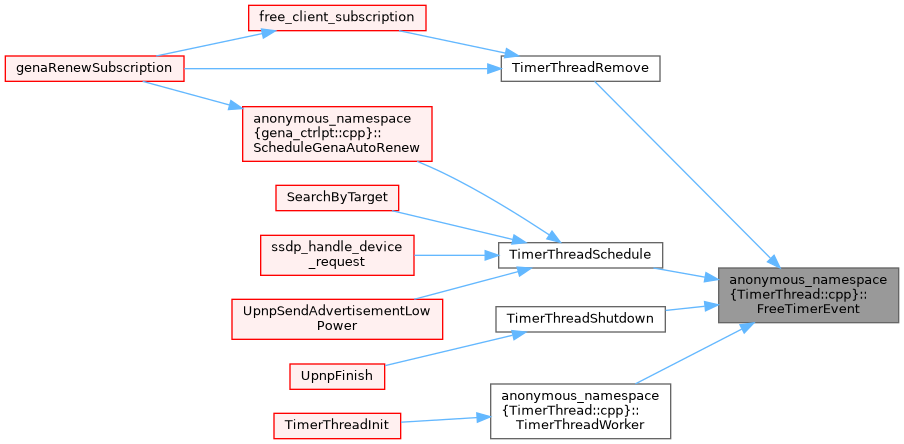

Here is the caller graph for this function:

TimerThreadWorker()

void anonymous_namespace{TimerThread.cpp}::TimerThreadWorker

(

void *

arg

)

Implements timer thread.

Waits for next event to occur and schedules associated job into threadpool.

Parameters

[in]

arg

arg is cast to (TimerThread *).

Definition at line 124 of file TimerThread.cpp.

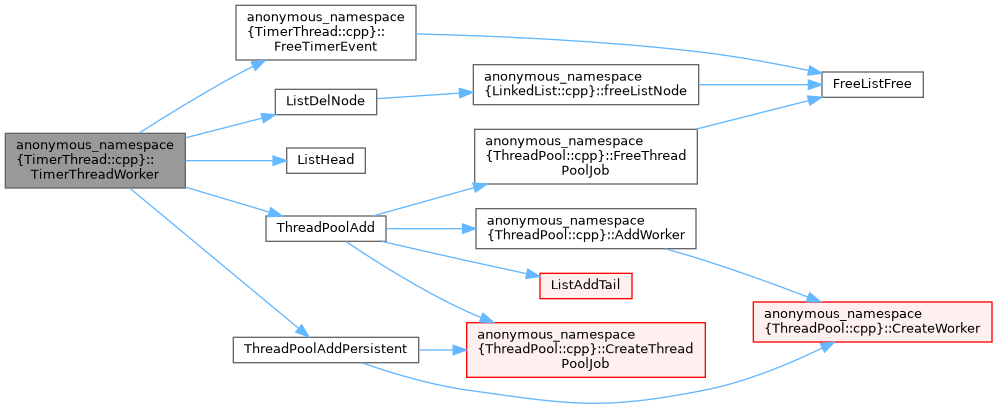

Here is the call graph for this function:

Here is the caller graph for this function:

CalculateEventTime()

int anonymous_namespace{TimerThread.cpp}::CalculateEventTime ( time_t *  timeout, TimeoutType  type  )

inline

Calculates the appropriate timeout in absolute seconds since Jan 1, 1970.

Returns

Always 0

Parameters

[out]	timeout	Timeout.
[in]	type	Timeout type.

Definition at line 198 of file TimerThread.cpp.

Here is the caller graph for this function:
