anonymous_namespace{ssdp_common.cpp} Namespace Reference

Functions
Functions scope restricted to file
void	free_ssdp_event_handler_data (void *the_data)
	Frees the ssdp request.
int	valid_ssdp_msg (http_message_t *hmsg)
	Does some quick checking of the ssdp msg.
int	start_event_handler (void *Data)
	Parses the message and dispatches it to a handler which handles the ssdp request msg.
void	ssdp_event_handler_thread (void *the_data)
	This function is a thread that handles SSDP requests.
int	create_ssdp_sock_v4 (SOCKET *ssdpSock)
	Create an SSDP IPv4 socket.
int	create_ssdp_sock_reqv4 (SOCKET *ssdpReqSock)
	Creates the SSDP IPv4 socket to be used by the control point.
int	create_ssdp_sock_reqv6 (SOCKET *ssdpReqSock)
	Creates the SSDP IPv6 socket to be used by the control point.
int	create_ssdp_sock_v6 (SOCKET *ssdpSock)
	Create an SSDP IPv6 socket.
int	create_ssdp_sock_v6_ula_gua (SOCKET *ssdpSock)
	Create an SSDP IPv6 ULA_GUA socket.

Function Documentation

free_ssdp_event_handler_data()

void anonymous_namespace{ssdp_common.cpp}::free_ssdp_event_handler_data

(

void *

the_data

)

Frees the ssdp request.

Parameters

[in]

the_data

ssdp_thread_data structure. This structure contains SSDP request message.

Definition at line 71 of file ssdp_common.cpp.

Here is the call graph for this function:

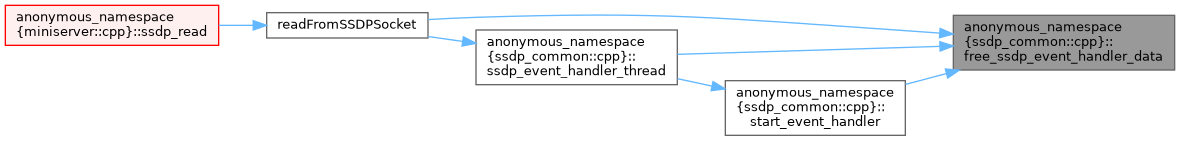

Here is the caller graph for this function:

valid_ssdp_msg()

int anonymous_namespace{ssdp_common.cpp}::valid_ssdp_msg ( http_message_t *  hmsg )

inline

Does some quick checking of the ssdp msg.

Returns

1 if msg is valid, else 0.

Parameters

[in]

hmsg

ssdp_thread_data structure. This structure contains SSDP request message.

Definition at line 90 of file ssdp_common.cpp.

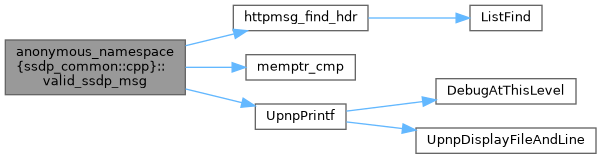

Here is the call graph for this function:

Here is the caller graph for this function:

start_event_handler()

int anonymous_namespace{ssdp_common.cpp}::start_event_handler ( void *  Data )

inline

Parses the message and dispatches it to a handler which handles the ssdp request msg.

Returns

On success: 0
On error: -1

Parameters

[in]

Data

ssdp_thread_data structure. This structure contains SSDP request message.

Definition at line 135 of file ssdp_common.cpp.

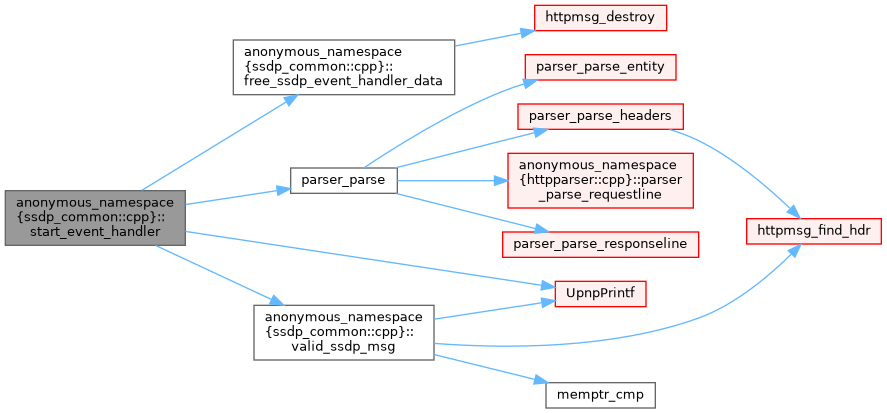

Here is the call graph for this function:

Here is the caller graph for this function:

ssdp_event_handler_thread()

void anonymous_namespace{ssdp_common.cpp}::ssdp_event_handler_thread

(

void *

the_data

)

This function is a thread that handles SSDP requests.

Todo:

Make utests and split function to separate handle ctrlpt and service.

Parameters

the_data

[] Ssdp_thread_data structure. This structure contains SSDP request message.

Definition at line 175 of file ssdp_common.cpp.

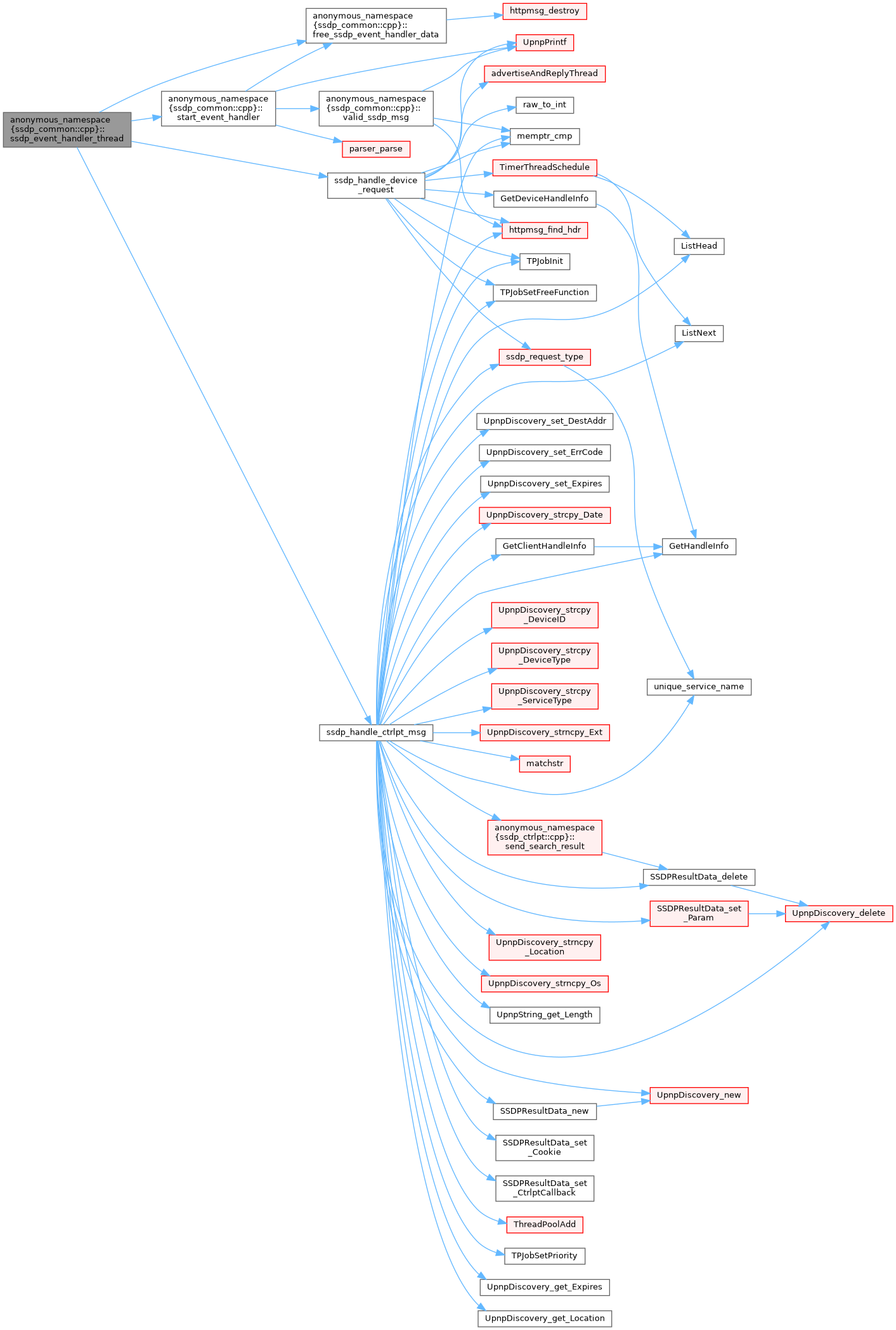

Here is the call graph for this function:

Here is the caller graph for this function:

create_ssdp_sock_v4()

int anonymous_namespace{ssdp_common.cpp}::create_ssdp_sock_v4 ( SOCKET *  ssdpSock )

inline

Create an SSDP IPv4 socket.

Returns

On success: UPNP_E_SUCCESS
On error:

• UPNP_E_OUTOF_SOCKET
• UPNP_E_SOCKET_ERROR
• UPNP_E_SOCKET_BIND
• UPNP_E_NETWORK_ERROR

Parameters

[out]

ssdpSock

SSDP IPv4 socket to be created.

Definition at line 212 of file ssdp_common.cpp.

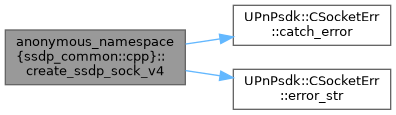

Here is the call graph for this function:

Here is the caller graph for this function:

create_ssdp_sock_reqv4()

int anonymous_namespace{ssdp_common.cpp}::create_ssdp_sock_reqv4

(

SOCKET *

ssdpReqSock

)

Creates the SSDP IPv4 socket to be used by the control point.

Returns

On success: UPNP_E_SUCCESS
On error:

• UPNP_E_OUTOF_SOCKET

Parameters

[out]

ssdpReqSock

SSDP IPv4 request socket to be created.

Definition at line 338 of file ssdp_common.cpp.

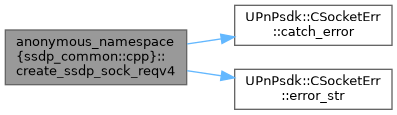

Here is the call graph for this function:

Here is the caller graph for this function:

create_ssdp_sock_reqv6()

int anonymous_namespace{ssdp_common.cpp}::create_ssdp_sock_reqv6

(

SOCKET *

ssdpReqSock

)

Creates the SSDP IPv6 socket to be used by the control point.

Returns

On success: UPNP_E_SUCCESS
On error:

• UPNP_E_OUTOF_SOCKET

Parameters

[out]

ssdpReqSock

SSDP IPv6 request socket to be created.

Definition at line 375 of file ssdp_common.cpp.

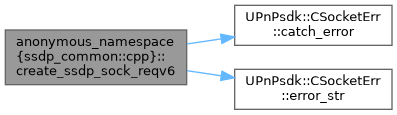

Here is the call graph for this function:

Here is the caller graph for this function:

create_ssdp_sock_v6()

int anonymous_namespace{ssdp_common.cpp}::create_ssdp_sock_v6 ( SOCKET *  ssdpSock )

inline

Create an SSDP IPv6 socket.

Returns

On success: UPNP_E_SUCCESS
On error:

• UPNP_E_OUTOF_SOCKET
• UPNP_E_SOCKET_ERROR
• UPNP_E_SOCKET_BIND
• UPNP_E_NETWORK_ERROR

Parameters

[out]

ssdpSock

SSDP IPv6 socket to be created.

Definition at line 414 of file ssdp_common.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

create_ssdp_sock_v6_ula_gua()

int anonymous_namespace{ssdp_common.cpp}::create_ssdp_sock_v6_ula_gua ( SOCKET *  ssdpSock )

inline

Create an SSDP IPv6 ULA_GUA socket.

Returns

On success: UPNP_E_SUCCESS
On error:

• UPNP_E_OUTOF_SOCKET
• UPNP_E_SOCKET_ERROR
• UPNP_E_SOCKET_BIND
• UPNP_E_NETWORK_ERROR

Parameters

[out]

ssdpSock

SSDP IPv6 socket to be created.

Definition at line 549 of file ssdp_common.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:
