Manage "Step 1: Discovery" of the UPnP+™ specification with SSDP. More...

#include <miniserver.hpp>

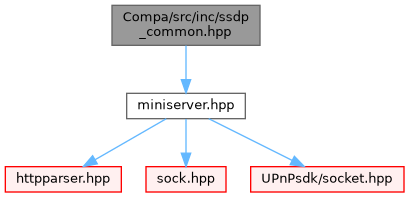

Include dependency graph for ssdp_common.hpp:

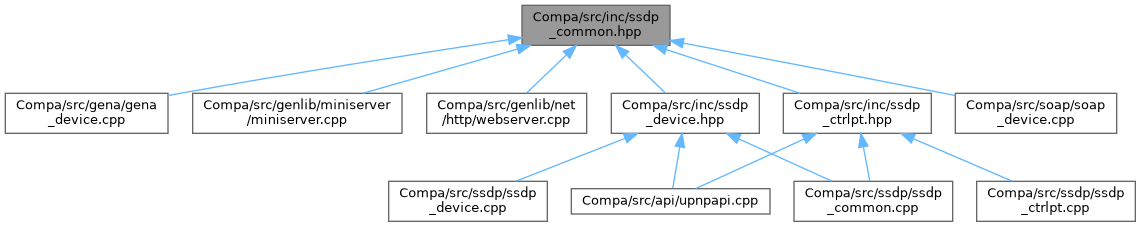

This graph shows which files directly or indirectly include this file:

Classes
struct	SsdpEvent
	Structure to store the SSDP information. More...

struct	ThreadData
	thread data. More...

struct	SsdpSearchReply
	SSDP search reply. More...

struct	SsdpSearchExpArg
	SSDP search exp argument. More...

struct	ssdp_thread_data
	SSDP thread data. More...

Macros
#define	RQST_TIMEOUT 20
	timeout

SSDP constants.
#define	BUFSIZE (size_t)2500
	constant

#define	SSDP_IP "239.255.255.250"
	constant

#define	SSDP_IPV6_LINKLOCAL "FF02::C"
	constant

#define	SSDP_IPV6_SITELOCAL "FF05::C"
	constant

#define	SSDP_PORT 1900
	constant

#define	SSDP_PORT_STR "1900"
	constant

#define	NUM_TRY 3
	constant

#define	THREAD_LIMIT 50
	constant

#define	COMMAND_LEN 300
	constant

SSDP Error codes.
#define	NO_ERROR_FOUND 0
	error code

#define	E_REQUEST_INVALID -3
	error code

#define	E_RES_EXPIRED -4
	error code

#define	E_MEM_ALLOC -5
	error code

#define	E_HTTP_SYNTEX -6
	error code

#define	E_SOCKET -7
	error code

Typedefs
typedef void(*	SsdpFunPtr) (SsdpEvent *)
	Maybe a callback function?

typedef int(*	ParserFun) (char , SsdpEvent )
	Maybe a callback function?

Enumerations
enum	SsdpSearchType { SSDP_SERROR = -1 , SSDP_ALL , SSDP_ROOTDEVICE , SSDP_DEVICEUDN , SSDP_DEVICETYPE , SSDP_SERVICE }
	Enumeration to define all different types of ssdp searches. More...

Functions

int	unique_service_name (char cmd, SsdpEvent Evt)
	Fills the fields of the event structure like DeviceType, Device UDN and Service Type.

SsdpSearchType	ssdp_request_type1 (char *cmd)
	This function figures out the type of the SSDP search in the request.

int	ssdp_request_type (char cmd, SsdpEvent Evt)
	Starts filling the SSDP event structure based upon the request received.

int	readFromSSDPSocket (SOCKET socket)
	This function reads the data from the ssdp socket.

int	get_ssdp_sockets (MiniServerSockArray *out)
	Creates the IPv4 and IPv6 ssdp sockets required by the control point and device operation.

Variables
constexpr size_t	ERROR_BUFFER_LEN {256}
	Size of the errorBuffer variable, passed to the strerror_r() function.

SOCKET	gSsdpReqSocket4
	If control point API is compiled in, this is the global IPv4 socket for it.

SOCKET	gSsdpReqSocket6
	If control point API is compiled in, this is the global IPv6 socket for it.

Detailed Description

Manage "Step 1: Discovery" of the UPnP+™ specification with SSDP.

Definition in file ssdp_common.hpp.

Class Documentation

◆ SsdpEvent

struct SsdpEvent

Structure to store the SSDP information.

Definition at line 102 of file ssdp_common.hpp.

Class Members
enum SsdpSearchType	RequestType	Part of SSDP Event.
int	ErrCode	Part of SSDP Event.
int	MaxAge	Part of SSDP Event.
int	Mx	Part of SSDP Event.
char	UDN[LINE_SIZE]	Part of SSDP Event.
char	DeviceType[LINE_SIZE]	Part of SSDP Event.
char	ServiceType[LINE_SIZE]	Part of SSDP Event.
char	Location[LINE_SIZE]	Part of SSDP Event.
char	HostAddr[LINE_SIZE]	Part of SSDP Event.
char	Os[LINE_SIZE]	Part of SSDP Event.
char	Ext[LINE_SIZE]	Part of SSDP Event.
char	Date[LINE_SIZE]	Part of SSDP Event.
struct sockaddr *	DestAddr	Part of SSDP Event.
void *	Cookie	Part of SSDP Event.

◆ ThreadData

struct ThreadData

thread data.

Definition at line 127 of file ssdp_common.hpp.

Class Members
int	Mx	part of thread data
void *	Cookie	part of thread data
char *	Data	part of thread data
struct sockaddr_storage	DestAddr	part of thread data

◆ SsdpSearchReply

struct SsdpSearchReply

SSDP search reply.

Definition at line 138 of file ssdp_common.hpp.

Collaboration diagram for SsdpSearchReply:

Class Members
int	MaxAge	part of search reply
UpnpDevice_Handle	handle	part of search reply
struct sockaddr_storage	dest_addr	part of search reply
SsdpEvent	event	part of search reply

◆ SsdpSearchExpArg

struct SsdpSearchExpArg

SSDP search exp argument.

Definition at line 149 of file ssdp_common.hpp.

Class Members
int	handle	handle
int	timeoutEventId	timeout event id

◆ ssdp_thread_data

struct ssdp_thread_data

SSDP thread data.

Definition at line 155 of file ssdp_common.hpp.

Collaboration diagram for ssdp_thread_data:

Class Members
http_parser_t	parser	parser
sockaddr_storage	dest_addr	destination socket address

Macro Definition Documentation

◆ BUFSIZE

#define BUFSIZE (size_t)2500

constant

Definition at line 54 of file ssdp_common.hpp.

◆ SSDP_IP

#define SSDP_IP "239.255.255.250"

constant

Definition at line 56 of file ssdp_common.hpp.

◆ SSDP_IPV6_LINKLOCAL

#define SSDP_IPV6_LINKLOCAL "FF02::C"

constant

Definition at line 58 of file ssdp_common.hpp.

◆ SSDP_IPV6_SITELOCAL

#define SSDP_IPV6_SITELOCAL "FF05::C"

constant

Definition at line 60 of file ssdp_common.hpp.

◆ SSDP_PORT

#define SSDP_PORT 1900

constant

Definition at line 62 of file ssdp_common.hpp.

◆ SSDP_PORT_STR

#define SSDP_PORT_STR "1900"

constant

Definition at line 64 of file ssdp_common.hpp.

◆ NUM_TRY

#define NUM_TRY 3

constant

Definition at line 66 of file ssdp_common.hpp.

◆ THREAD_LIMIT

#define THREAD_LIMIT 50

constant

Definition at line 68 of file ssdp_common.hpp.

◆ COMMAND_LEN

#define COMMAND_LEN 300

constant

Definition at line 70 of file ssdp_common.hpp.

◆ NO_ERROR_FOUND

#define NO_ERROR_FOUND 0

error code

Definition at line 75 of file ssdp_common.hpp.

◆ E_REQUEST_INVALID

#define E_REQUEST_INVALID -3

error code

Definition at line 77 of file ssdp_common.hpp.

◆ E_RES_EXPIRED

#define E_RES_EXPIRED -4

error code

Definition at line 79 of file ssdp_common.hpp.

◆ E_MEM_ALLOC

#define E_MEM_ALLOC -5

error code

Definition at line 81 of file ssdp_common.hpp.

◆ E_HTTP_SYNTEX

#define E_HTTP_SYNTEX -6

error code

Definition at line 83 of file ssdp_common.hpp.

◆ E_SOCKET

#define E_SOCKET -7

error code

Definition at line 85 of file ssdp_common.hpp.

◆ RQST_TIMEOUT

#define RQST_TIMEOUT 20

timeout

Definition at line 89 of file ssdp_common.hpp.

Typedef Documentation

◆ SsdpFunPtr

typedef void(* SsdpFunPtr) (SsdpEvent *)

Maybe a callback function?

Definition at line 124 of file ssdp_common.hpp.

◆ ParserFun

typedef int(* ParserFun) (char *, SsdpEvent *)

Maybe a callback function?

Definition at line 170 of file ssdp_common.hpp.

Enumeration Type Documentation

◆ SsdpSearchType

enum SsdpSearchType

Enumeration to define all different types of ssdp searches.

Enumerator
SSDP_SERROR	Unknown search command.
SSDP_ALL	Part of SType.
SSDP_ROOTDEVICE	Part of SType.
SSDP_DEVICEUDN	Part of SType.
SSDP_DEVICETYPE	Part of SType.
SSDP_SERVICE	Part of SType.

Definition at line 92 of file ssdp_common.hpp.

Variable Documentation

◆ ERROR_BUFFER_LEN

constexpr size_t ERROR_BUFFER_LEN {256}

inlineconstexpr

Size of the errorBuffer variable, passed to the strerror_r() function.

Definition at line 49 of file ssdp_common.hpp.

◆ gSsdpReqSocket4

SOCKET gSsdpReqSocket4

inline

If control point API is compiled in, this is the global IPv4 socket for it.

Definition at line 164 of file ssdp_common.hpp.

◆ gSsdpReqSocket6

SOCKET gSsdpReqSocket6

inline

If control point API is compiled in, this is the global IPv6 socket for it.

Definition at line 167 of file ssdp_common.hpp.
