Functions that are commonly used for SSDP Discovery. More...

int	unique_service_name (char cmd, SsdpEvent Evt)
	Fills the fields of the event structure like DeviceType, Device UDN and Service Type.

SsdpSearchType	ssdp_request_type1 (char *cmd)
	This function figures out the type of the SSDP search in the request.

int	ssdp_request_type (char cmd, SsdpEvent Evt)
	Starts filling the SSDP event structure based upon the request received.

int	readFromSSDPSocket (SOCKET socket)
	This function reads the data from the ssdp socket.

int	get_ssdp_sockets (MiniServerSockArray *out)
	Creates the IPv4 and IPv6 ssdp sockets required by the control point and device operation.

SSDPResultData *	SSDPResultData_new ()
	Constructor.

void	SSDPResultData_delete (SSDPResultData *p)
	Destructor.

SSDPResultData *	SSDPResultData_dup (const SSDPResultData *p)
	Copy Constructor.

int	SSDPResultData_assign (SSDPResultData p, const SSDPResultData q)
	Assignment operator.

const UpnpDiscovery *	SSDPResultData_get_Param (const SSDPResultData *p)
	SSDPResultData_get_Param.

int	SSDPResultData_set_Param (SSDPResultData p, const UpnpDiscovery n)
	SSDPResultData_set_Param.

void *	SSDPResultData_get_Cookie (const SSDPResultData *p)
	SSDPResultData_get_Cookie.

int	SSDPResultData_set_Cookie (SSDPResultData p, void n)
	SSDPResultData_set_Cookie.

Upnp_FunPtr	SSDPResultData_get_CtrlptCallback (const SSDPResultData *p)
	SSDPResultData_get_CtrlptCallback.

int	SSDPResultData_set_CtrlptCallback (SSDPResultData *p, Upnp_FunPtr n)
	SSDPResultData_set_CtrlptCallback.

Detailed Description

Functions that are commonly used for SSDP Discovery.

These functions are needed for both SSDP Devices and SSDP Control Points, for example to network read or write to/from an SSDP socket. They are conditional compiled with
#if INCLUDE_DEVICE_APIS == 1 || INCLUDE_CLIENT_APIS == 1

Function Documentation

◆ unique_service_name()

int unique_service_name	(	char *	cmd,
		SsdpEvent *	Evt
	)

Fills the fields of the event structure like DeviceType, Device UDN and Service Type.

Returns: On success: 0
On error: -1

Parameters

[in]	cmd	Service Name string.
[out]	Evt	The SSDP event structure partially filled by all the function.

Definition at line 660 of file ssdp_common.cpp.

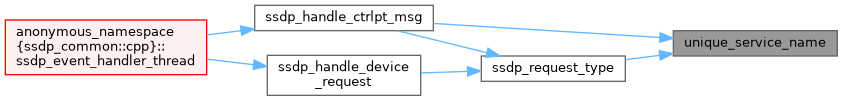

Here is the caller graph for this function:

◆ SSDPResultData_new()

SSDPResultData * SSDPResultData_new ( )

Constructor.

Definition at line 27 of file SSDPResultData.cpp.

Here is the call graph for this function:

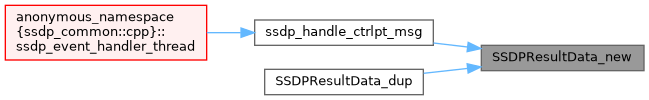

Here is the caller graph for this function:

◆ ssdp_request_type1()

SsdpSearchType ssdp_request_type1 ( char * cmd )

This function figures out the type of the SSDP search in the request.

Returns: On success: Returns appropriate search type.
On error: SSDP_ERROR

Parameters

[in] cmd command came in the ssdp request.

Definition at line 742 of file ssdp_common.cpp.

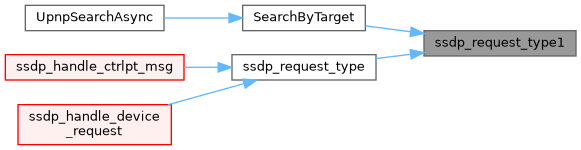

Here is the caller graph for this function:

◆ ssdp_request_type()

int ssdp_request_type	(	char *	cmd,
		SsdpEvent *	Evt
	)

Starts filling the SSDP event structure based upon the request received.

Returns: On success: 0
On error: -1

Parameters

[in]	cmd	command came in the ssdp request.
[out]	Evt	The event structure partially filled by this function.

Definition at line 756 of file ssdp_common.cpp.

Here is the call graph for this function:

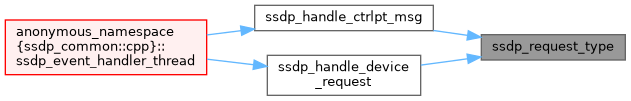

Here is the caller graph for this function:

◆ readFromSSDPSocket()

int readFromSSDPSocket ( SOCKET socket )

This function reads the data from the ssdp socket.

Returns: On success: 0
On error: -1

Parameters

[in] socket SSDP socket.

Definition at line 769 of file ssdp_common.cpp.

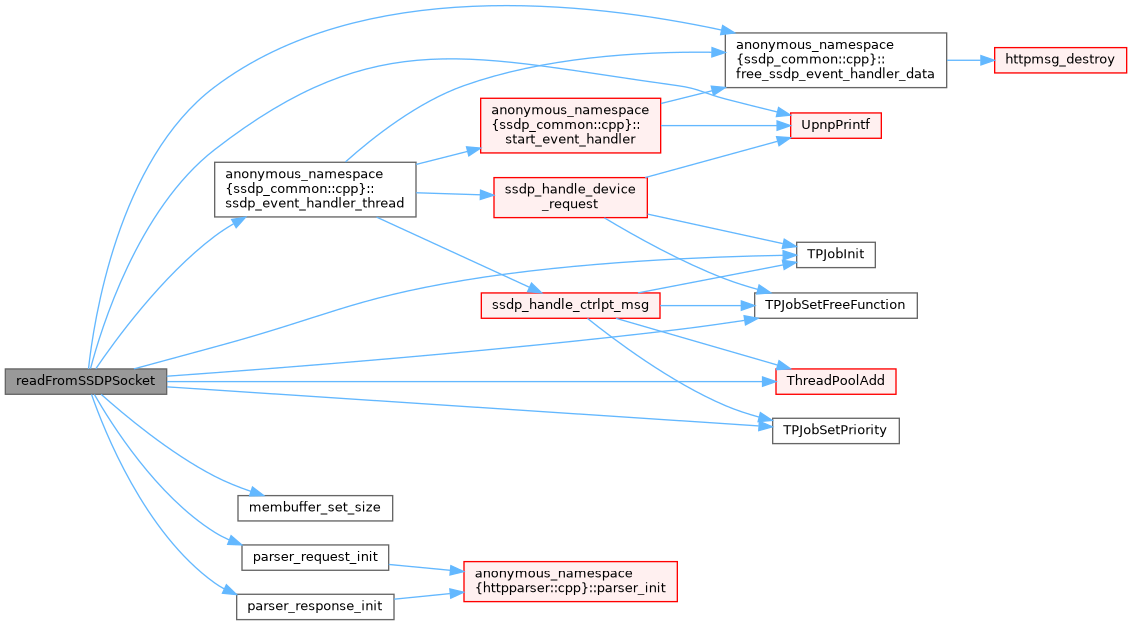

Here is the call graph for this function:

Here is the caller graph for this function:

◆ get_ssdp_sockets()

int get_ssdp_sockets ( MiniServerSockArray * out )

Creates the IPv4 and IPv6 ssdp sockets required by the control point and device operation.

Returns

On success: UPNP_E_SUCCESS
On error:

UPNP_E_OUTOF_SOCKET
UPNP_E_SOCKET_ERROR
UPNP_E_SOCKET_BIND
UPNP_E_NETWORK_ERROR

Parameters

[out] out Array of SSDP sockets.

Definition at line 851 of file ssdp_common.cpp.

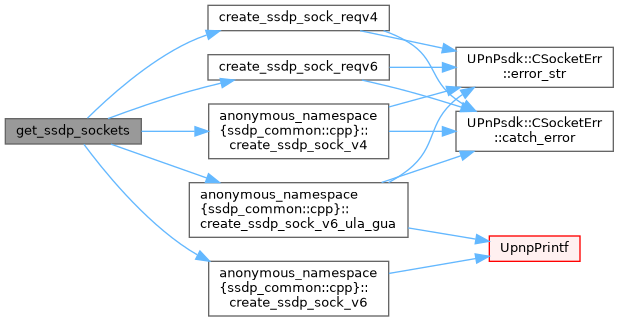

Here is the call graph for this function:

◆ SSDPResultData_delete()

void SSDPResultData_delete ( SSDPResultData * p )

Destructor.

Definition at line 41 of file SSDPResultData.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SSDPResultData_dup()

SSDPResultData * SSDPResultData_dup ( const SSDPResultData * p )

Copy Constructor.

Definition at line 68 of file SSDPResultData.cpp.

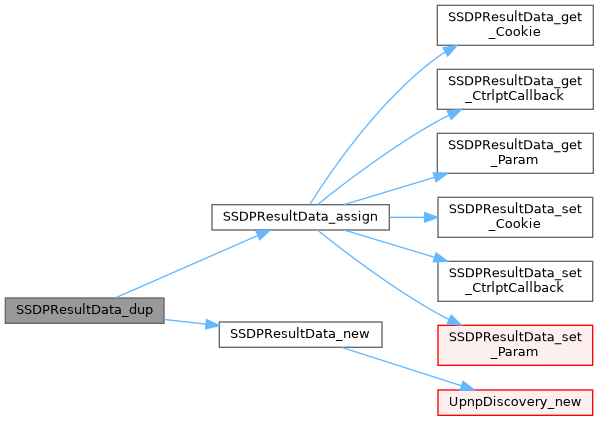

Here is the call graph for this function:

◆ SSDPResultData_assign()

int SSDPResultData_assign	(	SSDPResultData *	p,
		const SSDPResultData *	q
	)

Assignment operator.

Definition at line 55 of file SSDPResultData.cpp.

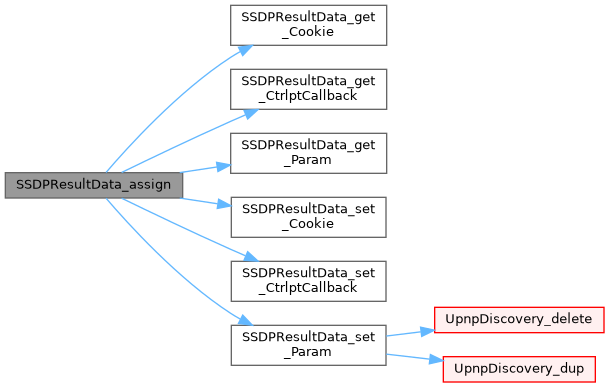

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SSDPResultData_get_Param()

const UpnpDiscovery * SSDPResultData_get_Param ( const SSDPResultData * p )

SSDPResultData_get_Param.

Definition at line 79 of file SSDPResultData.cpp.

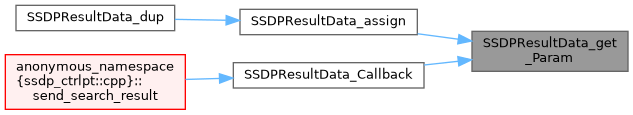

Here is the caller graph for this function:

◆ SSDPResultData_set_Param()

int SSDPResultData_set_Param	(	SSDPResultData *	p,
		const UpnpDiscovery *	n
	)

SSDPResultData_set_Param.

Definition at line 83 of file SSDPResultData.cpp.

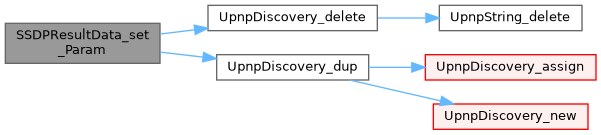

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SSDPResultData_get_Cookie()

void * SSDPResultData_get_Cookie ( const SSDPResultData * p )

SSDPResultData_get_Cookie.

Definition at line 93 of file SSDPResultData.cpp.

Here is the caller graph for this function:

◆ SSDPResultData_set_Cookie()

int SSDPResultData_set_Cookie	(	SSDPResultData *	p,
		void *	n
	)

SSDPResultData_set_Cookie.

Definition at line 95 of file SSDPResultData.cpp.

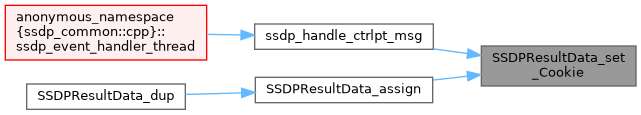

Here is the caller graph for this function:

◆ SSDPResultData_get_CtrlptCallback()

Upnp_FunPtr SSDPResultData_get_CtrlptCallback ( const SSDPResultData * p )

SSDPResultData_get_CtrlptCallback.

Definition at line 101 of file SSDPResultData.cpp.

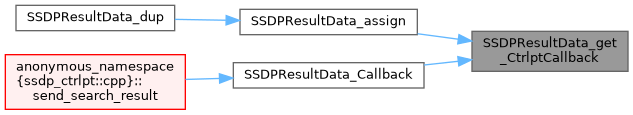

Here is the caller graph for this function:

◆ SSDPResultData_set_CtrlptCallback()

int SSDPResultData_set_CtrlptCallback	(	SSDPResultData *	p,
		Upnp_FunPtr	n
	)

SSDPResultData_set_CtrlptCallback.

Definition at line 105 of file SSDPResultData.cpp.

Here is the caller graph for this function:
