Manage "Step 1: Discovery" of the UPnP+™ specification for UPnP Devices with SSDP. More...

#include <ssdp_device.hpp>
#include <httpreadwrite.hpp>
#include <statcodes.hpp>
#include <upnpapi.hpp>
#include <webserver.hpp>
#include <UPnPsdk/socket.hpp>
#include <UPnPsdk/sockaddr.hpp>
#include <umock/sys_socket.hpp>
#include <umock/netdb.hpp>

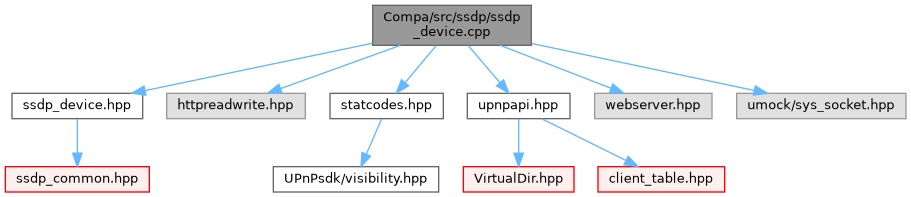

Include dependency graph for ssdp_device.cpp:

Go to the source code of this file.

Functions
void	ssdp_handle_device_request (http_message_t hmsg, struct sockaddr_storage dest_addr)
	Handles the search request.

int	DeviceAdvertisement (char DevType, int RootDev, char Udn, char *Location, int Duration, int AddressFamily, int PowerState, int SleepPeriod, int RegistrationState)
	Creates the device advertisement request.

int	SendReply (struct sockaddr DestAddr, char DevType, int RootDev, char Udn, char Location, int Duration, int ByType, int PowerState, int SleepPeriod, int RegistrationState)
	Creates the reply packet and send it to the Control Point addesss.

int	DeviceReply (struct sockaddr DestAddr, char DevType, int RootDev, char Udn, char Location, int Duration, int PowerState, int SleepPeriod, int RegistrationState)
	Creates the reply packet and send it to the Control Point address.

int	ServiceAdvertisement (char Udn, char ServType, char *Location, int Duration, int AddressFamily, int PowerState, int SleepPeriod, int RegistrationState)
	Creates the advertisement packet and send it to the multicast channel.

int	ServiceReply (struct sockaddr DestAddr, char ServType, char Udn, char Location, int Duration, int PowerState, int SleepPeriod, int RegistrationState)
	Creates the advertisement packet and send it to the multicast channel.

int	ServiceShutdown (char Udn, char ServType, char *Location, int Duration, int AddressFamily, int PowerState, int SleepPeriod, int RegistrationState)
	Creates a HTTP service shutdown request packet and sends it to the multicast channel through RequestHandler.

int	DeviceShutdown (char DevType, int RootDev, char Udn, char *Location, int Duration, int AddressFamily, int PowerState, int SleepPeriod, int RegistrationState)
	Creates a HTTP device shutdown request packet and send it to the multicast channel through RequestHandler.

int	AdvertiseAndReply (int AdFlag, UpnpDevice_Handle Hnd, enum SsdpSearchType SearchType, struct sockaddr DestAddr, char DeviceType, char DeviceUDN, char ServiceType, int Exp)
	Sends SSDP advertisements, replies and shutdown messages.

void	advertiseAndReplyThread (void *data)
	Wrapper function to reply the search request coming from the control point.

Functions scope restricted to file
int	anonymous_namespace{ssdp_device.cpp}::send_stateless (sockaddr a_dest_saddr, int a_num_packet, char *a_rq_packet)
	Works as a request handler which passes the HTTP request string to multicast channel.

int	anonymous_namespace{ssdp_device.cpp}::NewRequestHandler (struct sockaddr a_dest_saddr, int a_num_packet, char *a_rq_packet)
	Works as a request handler which passes the HTTP request string to multicast channel.

int	anonymous_namespace{ssdp_device.cpp}::extractIPv6address (char url, char address)
	Extract IPv6 address.

int	anonymous_namespace{ssdp_device.cpp}::isUrlV6UlaGua (char *descdocUrl)
	Test if a Url contains an ULA or GUA IPv6 address.

void	anonymous_namespace{ssdp_device.cpp}::CreateServicePacket (int msg_type, const char nt, char usn, char location, int duration, char *packet, int AddressFamily, int PowerState, int SleepPeriod, int RegistrationState)
	Creates a HTTP request packet.

Variables
Variables scope restricted to file
constexpr int	anonymous_namespace{ssdp_device.cpp}::MSGTYPE_SHUTDOWN {0}
	Message type.

constexpr int	anonymous_namespace{ssdp_device.cpp}::MSGTYPE_ADVERTISEMENT {1}
	Message type.

constexpr int	anonymous_namespace{ssdp_device.cpp}::MSGTYPE_REPLY {2}
	Message type.

Detailed Description

Manage "Step 1: Discovery" of the UPnP+™ specification for UPnP Devices with SSDP.

Definition in file ssdp_device.cpp.

Function Documentation

◆ ssdp_handle_device_request()

void ssdp_handle_device_request	(	http_message_t *	hmsg,
		struct sockaddr_storage *	dest_addr
	)

Handles the search request.

It does the sanity checks of the request and then schedules a thread to send a random time reply (random within maximum time given by the control point to reply).

Note: Only available when the SSDP option for Devices was enabled on compiling the library.

Parameters

[in]	hmsg
[in]	dest_addr

Definition at line 474 of file ssdp_device.cpp.

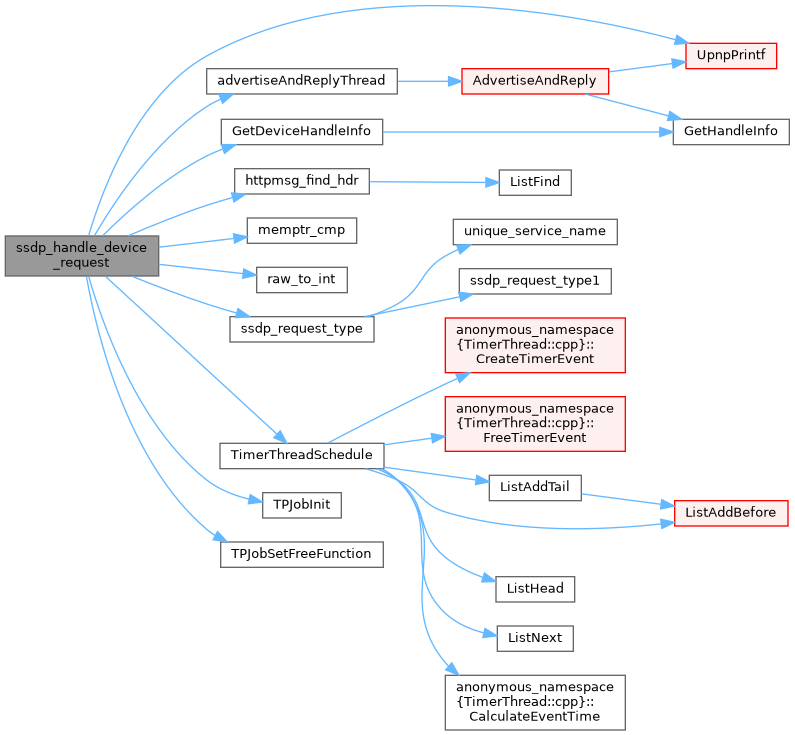

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DeviceAdvertisement()

int DeviceAdvertisement	(	char *	DevType,
		int	RootDev,
		char *	Udn,
		char *	Location,
		int	Duration,
		int	AddressFamily,
		int	PowerState,
		int	SleepPeriod,
		int	RegistrationState
	)

Creates the device advertisement request.

Create it based on the input parameter, and send it to the multicast channel.

Returns

On success: UPNP_E_SUCCESS
On error:

UPNP_E_OUTOF_MEMORY
UPNP_E_INVALID_PARAM
UPNP_E_NETWORK_ERROR
UPNP_E_SOCKET_WRITE

Definition at line 563 of file ssdp_device.cpp.

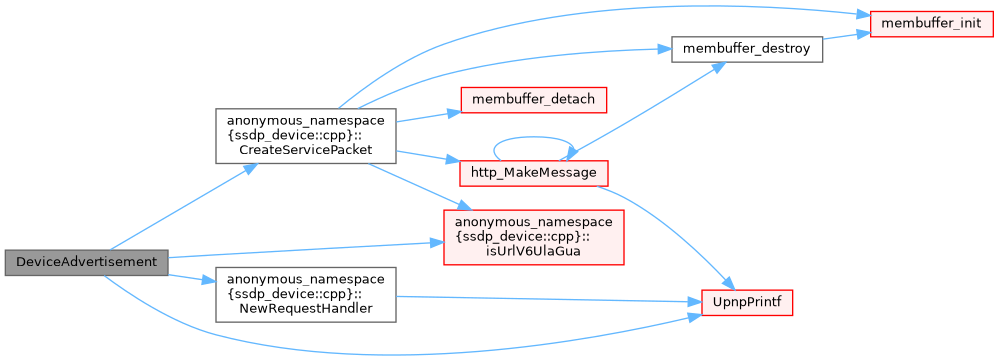

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendReply()

int SendReply	(	struct sockaddr *	DestAddr,
		char *	DevType,
		int	RootDev,
		char *	Udn,
		char *	Location,
		int	Duration,
		int	ByType,
		int	PowerState,
		int	SleepPeriod,
		int	RegistrationState
	)

Creates the reply packet and send it to the Control Point addesss.

Creates the reply packet based on the input parameter, and send it to the Control Point addesss given in its input parameter DestAddr.

Returns

On success: UPNP_E_SUCCESS
On error:

UPNP_E_OUTOF_MEMORY
UPNP_E_INVALID_PARAM
UPNP_E_NETWORK_ERROR
UPNP_E_SOCKET_WRITE

Parameters

[in]	DestAddr	destination IP address.
[in]	DevType	Device type.
[in]	RootDev	1 means root device 0 means embedded device.
[in]	Udn	Device UDN.
[in]	Location	Location of Device description document.
[in]	Duration	Life time of this device.
[in]	ByType
[in]	PowerState	PowerState as defined by UPnP Low Power.
[in]	SleepPeriod	SleepPeriod as defined by UPnP Low Power.
[in]	RegistrationState	RegistrationState as defined by UPnP Low Power.

Definition at line 644 of file ssdp_device.cpp.

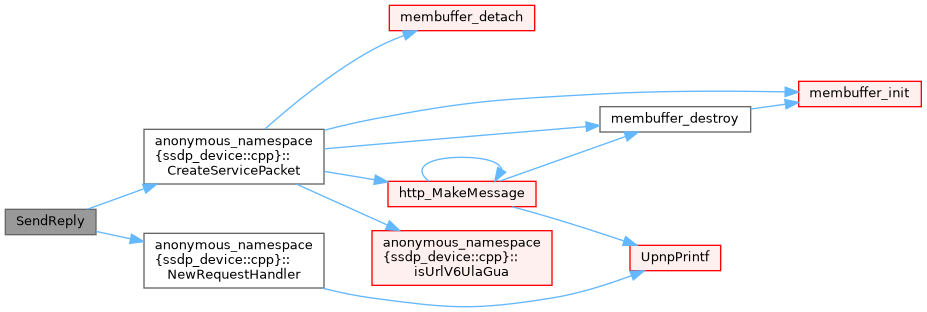

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DeviceReply()

int DeviceReply	(	struct sockaddr *	DestAddr,
		char *	DevType,
		int	RootDev,
		char *	Udn,
		char *	Location,
		int	Duration,
		int	PowerState,
		int	SleepPeriod,
		int	RegistrationState
	)

Creates the reply packet and send it to the Control Point address.

Creates the reply packet based on the input parameter, and send it to the Control Point address given in its input parameter DestAddr.

Returns

On success: UPNP_E_SUCCESS
On error:

UPNP_E_OUTOF_MEMORY
UPNP_E_INVALID_PARAM
UPNP_E_OUTOF_SOCKET
UPNP_E_NETWORK_ERROR
UPNP_E_SOCKET_WRITE

Parameters

[in]	DestAddr	destination IP address.
[in]	DevType	Device type.
[in]	RootDev	1 means root device 0 means embedded device.
[in]	Udn	Device UDN.
[in]	Location	Location of Device description document.
[in]	Duration	Life time of this device.
[in]	PowerState	PowerState as defined by UPnP Low Power.
[in]	SleepPeriod	SleepPeriod as defined by UPnP Low Power.
[in]	RegistrationState	RegistrationState as defined by UPnP Low Power.

Definition at line 702 of file ssdp_device.cpp.

Here is the call graph for this function:

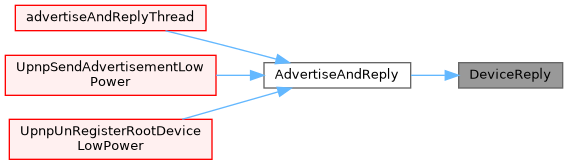

Here is the caller graph for this function:

◆ ServiceAdvertisement()

int ServiceAdvertisement	(	char *	Udn,
		char *	ServType,
		char *	Location,
		int	Duration,
		int	AddressFamily,
		int	PowerState,
		int	SleepPeriod,
		int	RegistrationState
	)

Creates the advertisement packet and send it to the multicast channel.

Returns

On success: UPNP_E_SUCCESS
On error:

UPNP_E_OUTOF_MEMORY
UPNP_E_INVALID_PARAM
UPNP_E_OUTOF_SOCKET
UPNP_E_NETWORK_ERROR
UPNP_E_SOCKET_WRITE

Parameters

[in]	Udn	Device UDN.
[in]	ServType	Service Type.
[in]	Location	Location of Device description document.
[in]	Duration	Life time of this device.
[in]	AddressFamily	Device address family.
[in]	PowerState	PowerState as defined by UPnP Low Power.
[in]	SleepPeriod	SleepPeriod as defined by UPnP Low Power.
[in]	RegistrationState	RegistrationState as defined by UPnP Low Power.

Definition at line 762 of file ssdp_device.cpp.

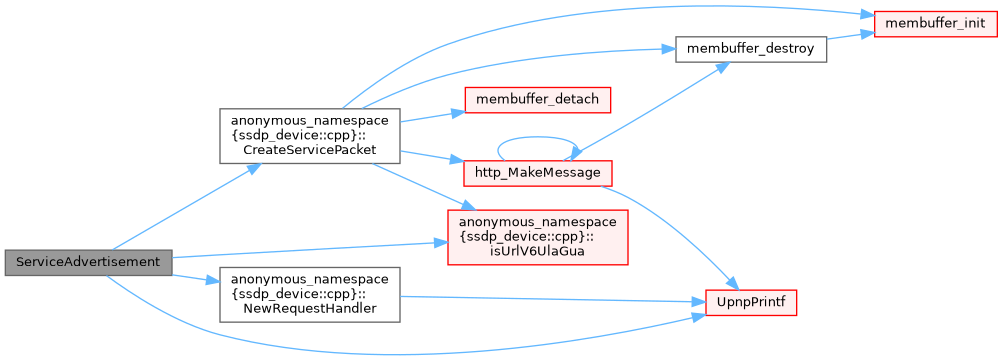

Here is the call graph for this function:

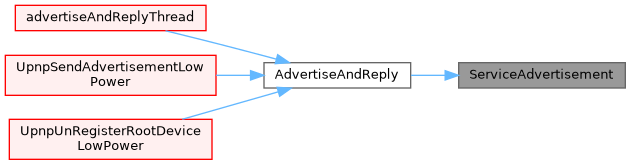

Here is the caller graph for this function:

◆ ServiceReply()

int ServiceReply	(	struct sockaddr *	DestAddr,
		char *	ServType,
		char *	Udn,
		char *	Location,
		int	Duration,
		int	PowerState,
		int	SleepPeriod,
		int	RegistrationState
	)

Creates the advertisement packet and send it to the multicast channel.

Returns

On success: UPNP_E_SUCCESS
On error:

UPNP_E_OUTOF_MEMORY
UPNP_E_INVALID_PARAM
UPNP_E_OUTOF_SOCKET
UPNP_E_NETWORK_ERROR
UPNP_E_SOCKET_WRITE

Parameters

[in]	DestAddr
[in]	ServType	Service Type.
[in]	Udn	Device UDN.
[in]	Location	Location of Device description document.
[in]	Duration	Life time of this device.
[in]	PowerState	PowerState as defined by UPnP Low Power.
[in]	SleepPeriod	SleepPeriod as defined by UPnP Low Power.
[in]	RegistrationState	RegistrationState as defined by UPnP Low Power.

Definition at line 813 of file ssdp_device.cpp.

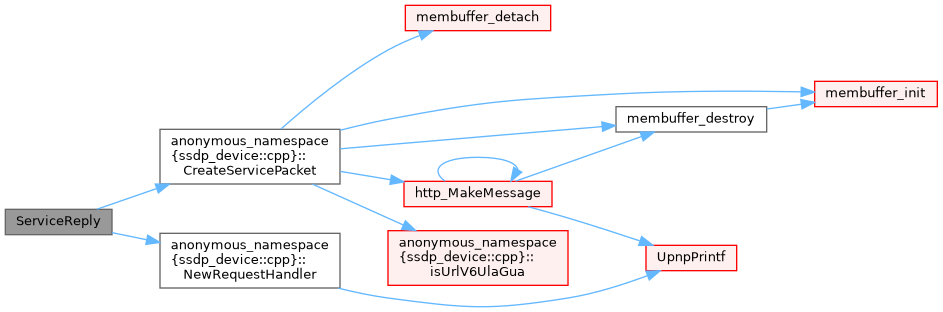

Here is the call graph for this function:

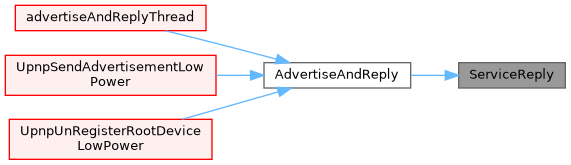

Here is the caller graph for this function:

◆ ServiceShutdown()

int ServiceShutdown	(	char *	Udn,
		char *	ServType,
		char *	Location,
		int	Duration,
		int	AddressFamily,
		int	PowerState,
		int	SleepPeriod,
		int	RegistrationState
	)

Creates a HTTP service shutdown request packet and sends it to the multicast channel through RequestHandler.

Returns

On success: UPNP_E_SUCCESS
On error:

UPNP_E_OUTOF_MEMORY
UPNP_E_INVALID_PARAM
UPNP_E_OUTOF_SOCKET
UPNP_E_NETWORK_ERROR
UPNP_E_SOCKET_WRITE

Definition at line 838 of file ssdp_device.cpp.

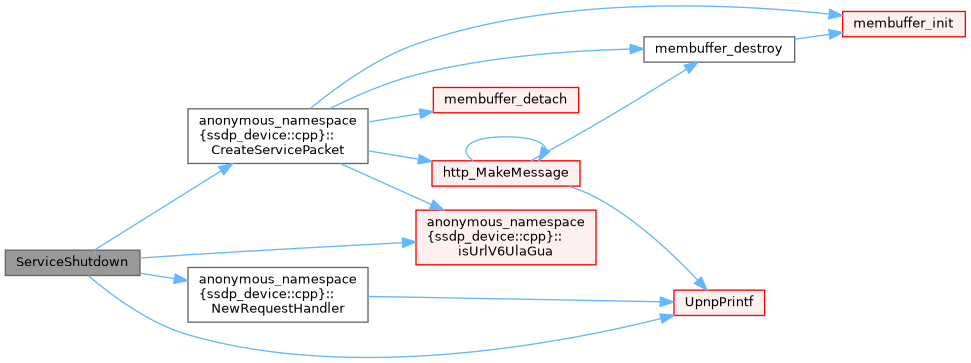

Here is the call graph for this function:

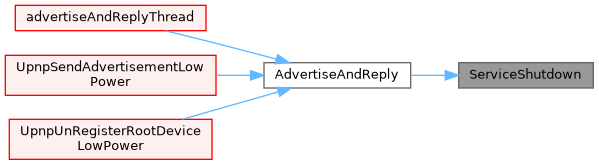

Here is the caller graph for this function:

◆ DeviceShutdown()

int DeviceShutdown	(	char *	DevType,
		int	RootDev,
		char *	Udn,
		char *	Location,
		int	Duration,
		int	AddressFamily,
		int	PowerState,
		int	SleepPeriod,
		int	RegistrationState
	)

Creates a HTTP device shutdown request packet and send it to the multicast channel through RequestHandler.

Returns

On success: UPNP_E_SUCCESS
On error:

UPNP_E_OUTOF_MEMORY
UPNP_E_INVALID_PARAM
UPNP_E_OUTOF_SOCKET
UPNP_E_NETWORK_ERROR
UPNP_E_SOCKET_WRITE

Parameters

[in]	DevType	Device Type.
[in]	RootDev	1 means root device.
[in]	Udn	Device UDN.
[in]	Location	Location URL.
[in]	Duration	Device duration in sec.
[in]	AddressFamily	Device address family.
[in]	PowerState	PowerState as defined by UPnP Low Power.
[in]	SleepPeriod	SleepPeriod as defined by UPnP Low Power.
[in]	RegistrationState	RegistrationState as defined by UPnP Low Power.

Definition at line 889 of file ssdp_device.cpp.

Here is the call graph for this function:

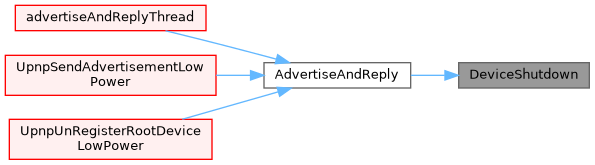

Here is the caller graph for this function:

◆ advertiseAndReplyThread()

void advertiseAndReplyThread ( void * data )

Wrapper function to reply the search request coming from the control point.

Parameters

[in] data Structure containing the search request.

Definition at line 1310 of file ssdp_device.cpp.

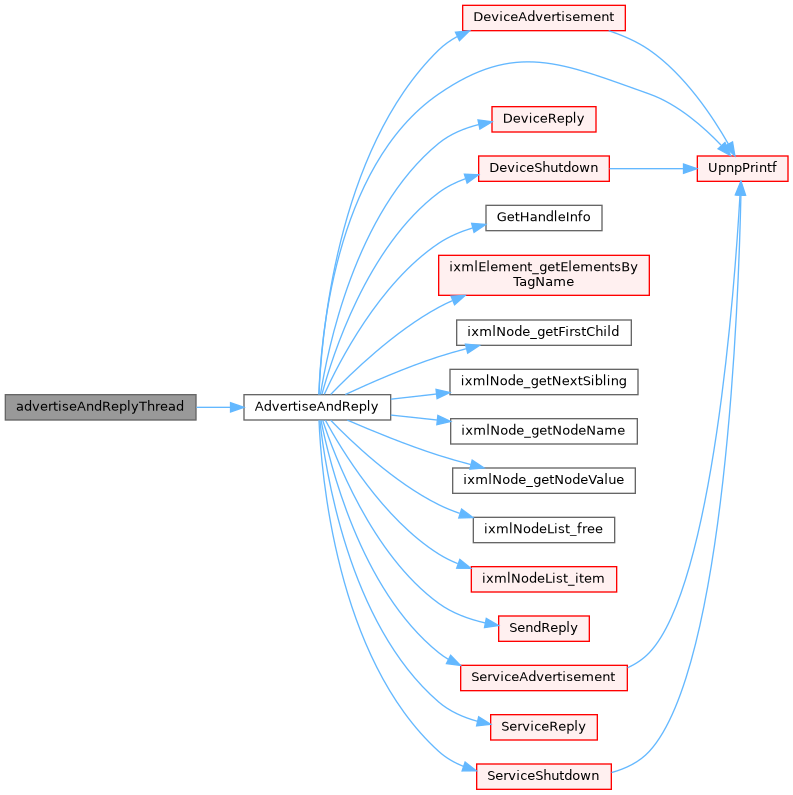

Here is the call graph for this function:

Here is the caller graph for this function:
