UPnPsdk::SSockaddr Struct Reference

Trivial ::sockaddr structures enhanced with methods. More...

#include <sockaddr.hpp>

Public Member Functions
	SSockaddr (const SSockaddr &)
	Copy constructor, also needed for copy assignment operator.
SSockaddr &	operator= (SSockaddr)
	Copy assignment operator, needs user defined copy contructor.
bool	is_loopback () const
	Get if the socket address is a loopback address.
Setter
void	operator= (std::string_view a_addr_str)
	Set socket address from a netaddress.
void	operator= (const in_port_t a_port)
	Set port number from integer.
void	operator= (const ::sockaddr_storage &a_ss)
	Set socket address from a trivial socket address structure.
Getter
bool	operator== (const SSockaddr &) const
	Test if another socket address is logical equal to this.
const std::string	netaddr () noexcept
	Get the assosiated netaddress without port.
const std::string	netaddrp () noexcept
	Get the assosiated netaddress with port.
in_port_t	port () const
	Get the numeric port.
socklen_t	sizeof_saddr () const
	Get sizeof the current filled (sin6 or sin) Sockaddr Structure.

Public Attributes
sockaddr_storage &	ss = m_sa_union.ss
	Reference to sockaddr_storage struct.
sockaddr_un &	sun = m_sa_union.sun
	Reference to sockaddr_un struct.
sockaddr_in6 &	sin6 = m_sa_union.sin6
	Reference to sockaddr_in6 struct.
sockaddr_in &	sin = m_sa_union.sin
	Reference to sockaddr_in struct.
sockaddr &	sa = m_sa_union.sa
	Reference to sockaddr struct.

Detailed Description

Trivial ::sockaddr structures enhanced with methods.

// Usage e.g.:
::sockaddr_storage saddr{};
SSockaddr saObj;
::memcpy(&saObj.ss, &saddr, sizeof(saObj.ss));
std::cout << "netaddress of saObj is " << saObj << "\n";

This structure should be usable on a low level like the trival C struct ::sockaddr_storage but provides additional methods to manage its data. When ever this SDK manage a network address it uses an object of this class.

Definition at line 133 of file sockaddr.hpp.

Constructor & Destructor Documentation

SSockaddr() [1/2]

UPnPsdk::SSockaddr::SSockaddr

(

)

Definition at line 316 of file sockaddr.cpp.

~SSockaddr()

UPnPsdk::SSockaddr::~SSockaddr ( )

virtual

Definition at line 321 of file sockaddr.cpp.

SSockaddr() [2/2]

UPnPsdk::SSockaddr::SSockaddr

(

const SSockaddr &

that

)

Copy constructor, also needed for copy assignment operator.

// Usage e.g.:
SSockaddr saddr2 = saddr1; // saddr1 is an instantiated object.
// or
SSockaddr saddr2{saddr1};

Definition at line 335 of file sockaddr.cpp.

Member Function Documentation

operator=() [1/4]

SSockaddr & UPnPsdk::SSockaddr::operator=

(

SSockaddr

that

)

Copy assignment operator, needs user defined copy contructor.

// Usage e.g.:
saddr2 = saddr1; // saddr? are two instantiated valid objects.

Definition at line 342 of file sockaddr.cpp.

operator=() [2/4]

void UPnPsdk::SSockaddr::operator=

(

std::string_view

a_addr_str

)

Set socket address from a netaddress.

// Usage e.g.:
SSockaddr saObj;
saObj = ""; // Clears the address storage.
saObj = "[2001:db8::1]";
saObj = "[2001:db8::1]:50001";
saObj = "192.168.1.1";
saObj = "192.168.1.1:50001";

Assign rules are:
a netaddress consists of two parts, ip address and port. A netaddress has always a port. A cleared socket address is empty. On an empty socket address
SSockaddr::netaddr() returns "" (empty string)
SSockaddr::netaddrp() returns ":0"

Valid special cases are these well defined unspecified addresses:

""              results to  ":0"
":0"            results to  ":0"
"65535"         results to  ":65535"
"::"            results to  "[::]:0"
"[::]"          results to  "[::]:0"
"[::]:"         results to  "[::]:0"
"[::]:0"        results to  "[::]:0"
"[::]:65535"    results to  "[::]:65535" // port 0 to 65535
"0.0.0.0"       results to  "0.0.0.0:0"
"0.0.0.0:"      results to  "0.0.0.0:0"
"0.0.0.0:0"     results to  "0.0.0.0:0"
"0.0.0.0:65535" results to  "0.0.0.0:65535" // port 0 to 65535

A valid address with an invalid port results to port 0, for example

"[2001:db8::51]:98765" results to "[2001:db8::51]:0"

Setting only the port number does not modify the address part.

"[2001:db8::52]:50001" results to "[2001:db8::52]:50001"
              ":55555" results to "[2001:db8::52]:55555" (address prev setting)
               "55556" same as before with leading colon.

Exceptions

std::invalid_argument

Invalid netaddress.

Parameters

[in]

a_addr_str

String with a possible netaddress

Definition at line 352 of file sockaddr.cpp.

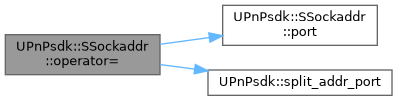

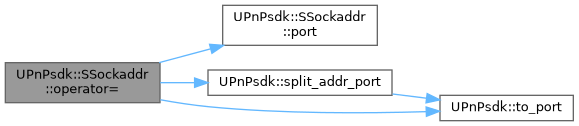

Here is the call graph for this function:

operator=() [3/4]

void UPnPsdk::SSockaddr::operator=

(

const in_port_t

a_port

)

Set port number from integer.

// Usage e.g.:
SSockaddr saObj;
saObj = 50001;

Definition at line 411 of file sockaddr.cpp.

operator=() [4/4]

void UPnPsdk::SSockaddr::operator=

(

const ::sockaddr_storage &

a_ss

)

Set socket address from a trivial socket address structure.

// Usage e.g.:
::sockaddr_storage ss{};
SSockaddr saObj;
saObj = ss;

Definition at line 420 of file sockaddr.cpp.

operator==()

bool UPnPsdk::SSockaddr::operator==

(

const SSockaddr &

a_saddr

)

const

Test if another socket address is logical equal to this.

Returns

true  if socket addresses are logical equal
false otherwise

It only supports AF_INET6 and AF_INET. For all other address families false is returned.

Definition at line 426 of file sockaddr.cpp.

netaddr()

const std::string UPnPsdk::SSockaddr::netaddr ( )

noexcept

Get the assosiated netaddress without port.

// Usage e.g.:
SSockaddr saObj;
if (saObj.netaddr() == "[::1]") { manage_localhost(); }

Definition at line 433 of file sockaddr.cpp.

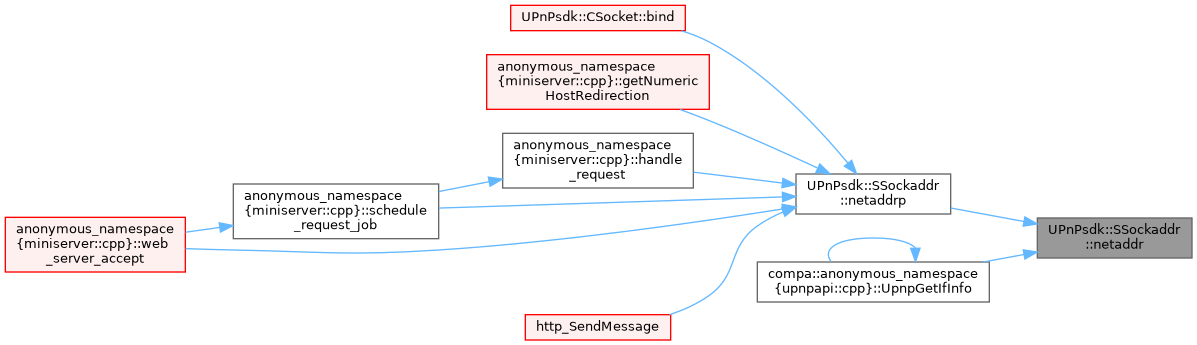

Here is the caller graph for this function:

netaddrp()

const std::string UPnPsdk::SSockaddr::netaddrp ( )

noexcept

Get the assosiated netaddress with port.

// Usage e.g.:
SSockaddr saObj;
if (saObj.netaddrp() == "[::1]:49494") { manage_localhost(); }

Definition at line 484 of file sockaddr.cpp.

Here is the call graph for this function:

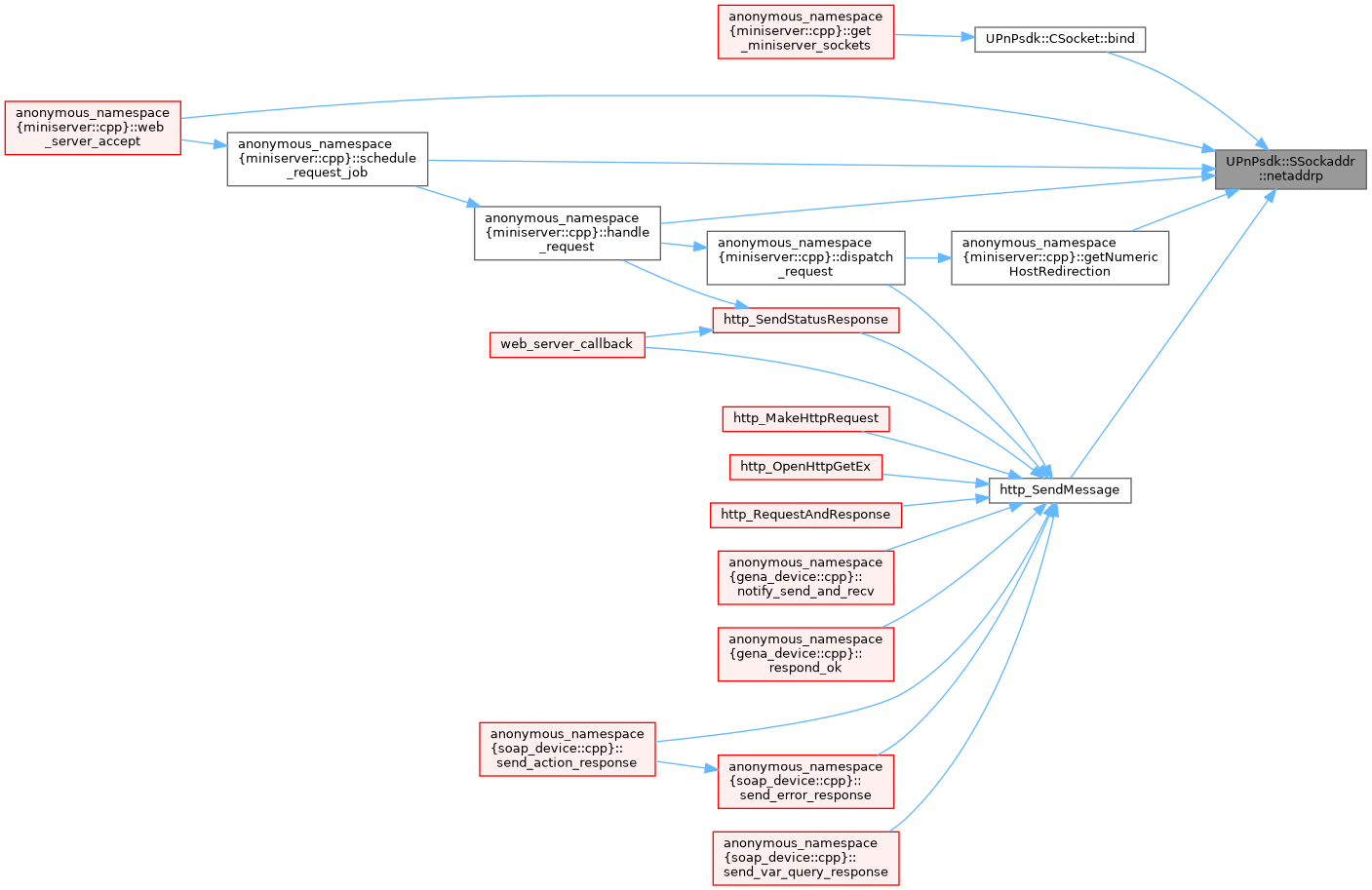

Here is the caller graph for this function:

port()

in_port_t UPnPsdk::SSockaddr::port

(

)

const

Get the numeric port.

Definition at line 510 of file sockaddr.cpp.

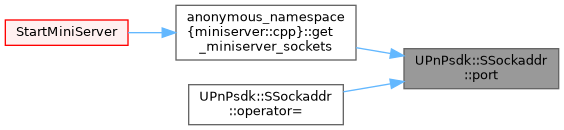

Here is the caller graph for this function:

sizeof_saddr()

socklen_t UPnPsdk::SSockaddr::sizeof_saddr

(

)

const

Get sizeof the current filled (sin6 or sin) Sockaddr Structure.

Definition at line 520 of file sockaddr.cpp.

Here is the caller graph for this function:

is_loopback()

bool UPnPsdk::SSockaddr::is_loopback

(

)

const

Get if the socket address is a loopback address.

Definition at line 536 of file sockaddr.cpp.

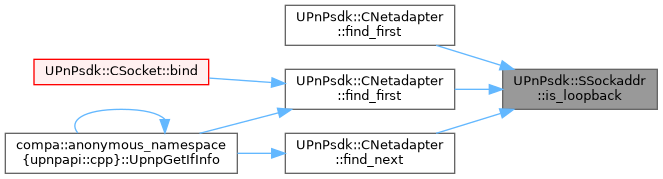

Here is the caller graph for this function:

Member Data Documentation

ss

sockaddr_storage& UPnPsdk::SSockaddr::ss = m_sa_union.ss

Reference to sockaddr_storage struct.

Definition at line 135 of file sockaddr.hpp.

sun

sockaddr_un& UPnPsdk::SSockaddr::sun = m_sa_union.sun

Reference to sockaddr_un struct.

Definition at line 137 of file sockaddr.hpp.

sin6

sockaddr_in6& UPnPsdk::SSockaddr::sin6 = m_sa_union.sin6

Reference to sockaddr_in6 struct.

Definition at line 139 of file sockaddr.hpp.

sin

sockaddr_in& UPnPsdk::SSockaddr::sin = m_sa_union.sin

Reference to sockaddr_in struct.

Definition at line 141 of file sockaddr.hpp.

sa

sockaddr& UPnPsdk::SSockaddr::sa = m_sa_union.sa

Reference to sockaddr struct.

Definition at line 143 of file sockaddr.hpp.

---

The documentation for this struct was generated from the following files:

• UPnPsdk/include/UPnPsdk/sockaddr.hpp
• UPnPsdk/src/net/sockaddr.cpp
