Contains functions for scanner and parser for http messages. More...

#include <httpparser.hpp>
#include <statcodes.hpp>
#include <upnpdebug.hpp>
#include <UPnPsdk/synclog.hpp>

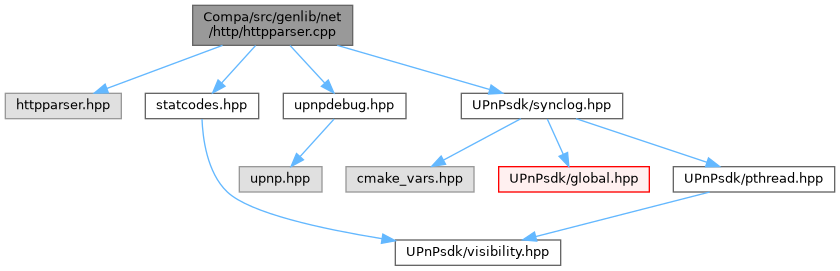

Include dependency graph for httpparser.cpp:

Enumerations
enum	anonymous_namespace{httpparser.cpp}::token_type_t { TT_IDENTIFIER , TT_WHITESPACE , TT_CRLF , TT_CTRL , TT_SEPARATOR , TT_QUOTEDSTRING }
	Used to represent different types of tokens in input. More...

Functions
void	anonymous_namespace{httpparser.cpp}::scanner_init (scanner_t scanner, membuffer bufptr)
	Initialize scanner.

int	anonymous_namespace{httpparser.cpp}::is_separator_char (int c)
	Determines if the passed value is a separator.

int	anonymous_namespace{httpparser.cpp}::is_identifier_char (int c)
	Determines if the passed value is permissible in token.

int	anonymous_namespace{httpparser.cpp}::is_control_char (int c)
	Determines if the passed value is a control character.

int	anonymous_namespace{httpparser.cpp}::is_qdtext_char (int c)
	Determines if the passed value is permissible in qdtext.

parse_status_t	anonymous_namespace{httpparser.cpp}::scanner_get_token (scanner_t scanner, memptr token, token_type_t *tok_type)
	Reads next token from the input stream.

char *	anonymous_namespace{httpparser.cpp}::scanner_get_str (scanner_t *scanner)
	Get pointer to next character in string.

int	anonymous_namespace{httpparser.cpp}::httpmsg_compare (void param1, void param2)
	Compares name id in the http headers.

void	anonymous_namespace{httpparser.cpp}::httpheader_free (void *msg)
	Free memory allocated for the http header.

parse_status_t	anonymous_namespace{httpparser.cpp}::skip_blank_lines (scanner_t *scanner)
	Skips blank lines at the start of a msg.

parse_status_t	anonymous_namespace{httpparser.cpp}::skip_lws (scanner_t *scanner)
	Skip linear whitespace.

parse_status_t	anonymous_namespace{httpparser.cpp}::match_non_ws_string (scanner_t scanner, memptr str)
	Match a string without whitespace or CRLF (S)

parse_status_t	anonymous_namespace{httpparser.cpp}::match_raw_value (scanner_t scanner, memptr raw_value)
	Matches a raw value in a the input.

parse_status_t	anonymous_namespace{httpparser.cpp}::match_int (scanner_t scanner, int base, int value)
	Matches an unsigned integer value in the input.

parse_status_t	anonymous_namespace{httpparser.cpp}::read_until_crlf (scanner_t scanner, memptr str)
	Reads data until end of line.

parse_status_t	anonymous_namespace{httpparser.cpp}::match_char (scanner_t *scanner, char c, int case_sensitive)
	Compares a character to the next char in the scanner.

parse_status_t	anonymous_namespace{httpparser.cpp}::vfmatch (scanner_t scanner, const char fmt, va_list argp)
	Extracts variable parameters depending on the passed in format parameter.

parse_status_t	anonymous_namespace{httpparser.cpp}::match (scanner_t scanner, const char fmt,...)
	Matches a variable parameter list and takes necessary actions based on the data type specified.

void	anonymous_namespace{httpparser.cpp}::httpmsg_init (http_message_t *msg)
	Initialize and allocate memory for http message.

void	anonymous_namespace{httpparser.cpp}::parser_init (http_parser_t *parser)
	Initializes the parser object.

parse_status_t	anonymous_namespace{httpparser.cpp}::parser_parse_requestline (http_parser_t *parser)
	Get HTTP Method, URL location and version information.

parse_status_t	anonymous_namespace{httpparser.cpp}::parser_parse_entity_using_clen (http_parser_t *parser)
	Reads entity using content-length.

parse_status_t	anonymous_namespace{httpparser.cpp}::parser_parse_chunky_body (http_parser_t *parser)
	Read data in the chunks.

parse_status_t	anonymous_namespace{httpparser.cpp}::parser_parse_chunky_headers (http_parser_t *parser)
	Read headers at the end of the chunked entity.

parse_status_t	anonymous_namespace{httpparser.cpp}::parser_parse_chunky_entity (http_parser_t *parser)
	Read entity using chunked transfer encoding.

parse_status_t	anonymous_namespace{httpparser.cpp}::parser_parse_entity_until_close (http_parser_t *parser)
	Keep reading entity until the connection is closed.

void	httpmsg_destroy (http_message_t *msg)
	Free memory allocated for the http message.

http_header_t *	httpmsg_find_hdr_str (http_message_t msg, const char header_name)
	Compares the header name with the header names stored in the linked list of messages.

http_header_t *	httpmsg_find_hdr (http_message_t msg, int header_name_id, memptr value)
	Finds header from a list, with the given 'name_id'.

parse_status_t	matchstr (char str, size_t slen, const char fmt,...)
	Matches a variable parameter list with a string and takes actions based on the data type specified.

parse_status_t	parser_parse_responseline (http_parser_t *parser)
	Get HTTP Method, URL location and version information.

parse_status_t	parser_parse_headers (http_parser_t *parser)
	Get HTTP Method, URL location and version information.

parse_status_t	parser_get_entity_read_method (http_parser_t *parser)
	Determines method to read entity.

parse_status_t	parser_parse_entity (http_parser_t *parser)
	Determines method to read entity.

void	parser_request_init (http_parser_t *parser)
	Initializes parser object for a request.

void	parser_response_init (http_parser_t *parser, http_method_t request_method)
	Initializes parser object for a response.

parse_status_t	parser_parse (http_parser_t *parser)
	The parser function.

parse_status_t	parser_append (http_parser_t parser, const char buf, size_t buf_length)
	Append date to HTTP parser, and do the parsing.

int	raw_to_int (memptr *raw_value, int base)
	Converts raw character data to integer value.

int	raw_find_str (memptr raw_value, const char str)
	Find a substring from raw character string buffer.

const char *	method_to_str (http_method_t method)
	A wrapper function that maps a method id to a method.

void	print_http_headers (std::string_view log_msg, http_message_t *hmsg)
	Print the HTTP headers.

Variables
constexpr std::array< const UPnPsdk::str_int_entry, 11 >	anonymous_namespace{httpparser.cpp}::Http_Method_Table
	Defines the HTTP methods.

Detailed Description

Contains functions for scanner and parser for http messages.

Definition in file httpparser.cpp.

Function Documentation

◆ httpmsg_destroy()

void httpmsg_destroy ( http_message_t * msg )

Free memory allocated for the http message.

Parameters

[in,out] msg HTTP Message Object.

Definition at line 1273 of file httpparser.cpp.

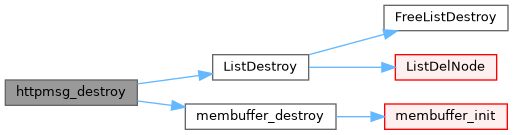

Here is the call graph for this function:

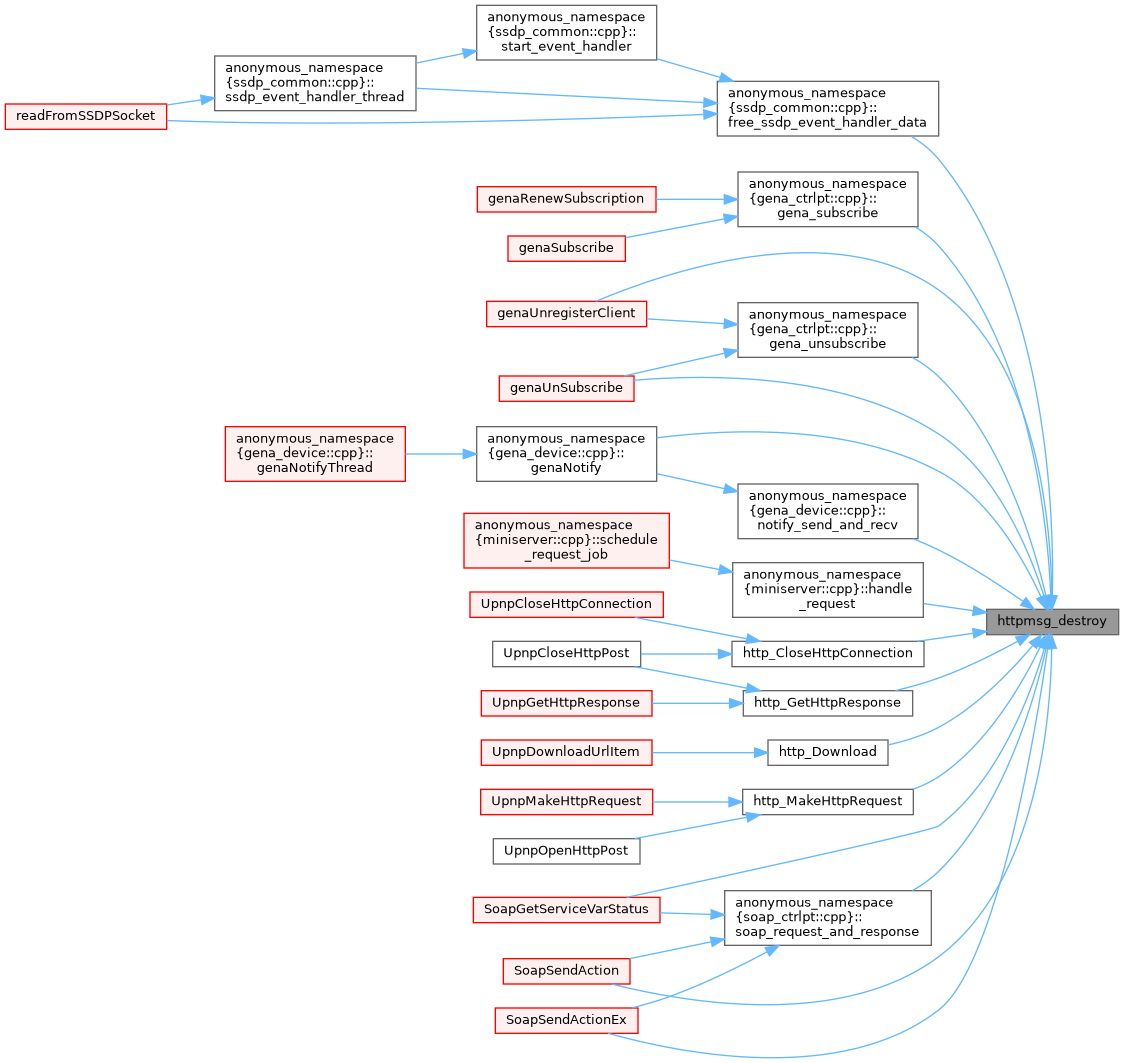

Here is the caller graph for this function:

◆ httpmsg_find_hdr_str()

http_header_t * httpmsg_find_hdr_str	(	http_message_t *	msg,
		const char *	header_name
	)

Compares the header name with the header names stored in the linked list of messages.

Returns

Pointer to a header on success
nullptr on failure

Parameters

[in]	msg	HTTP Message Object.
[in]	header_name	Header name to be compared with.

Definition at line 1286 of file httpparser.cpp.

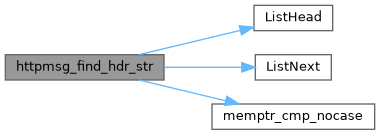

Here is the call graph for this function:

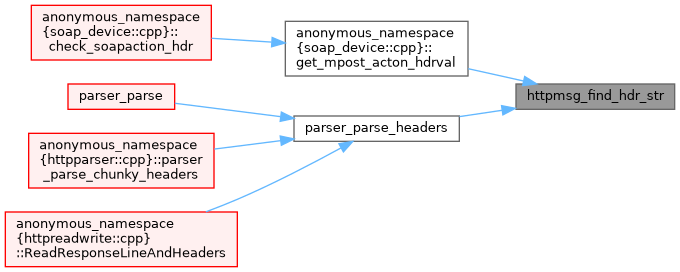

Here is the caller graph for this function:

◆ httpmsg_find_hdr()

http_header_t * httpmsg_find_hdr	(	http_message_t *	msg,
		int	header_name_id,
		memptr *	value
	)

Finds header from a list, with the given 'name_id'.

Returns

Pointer to a header on success
nullptr on failure

Parameters

[in]	msg	HTTP Message Object.
[in]	header_name_id	Header Name ID to be compared with.
[out]	value	Buffer to get the ouput to.

Definition at line 1307 of file httpparser.cpp.

Here is the call graph for this function:

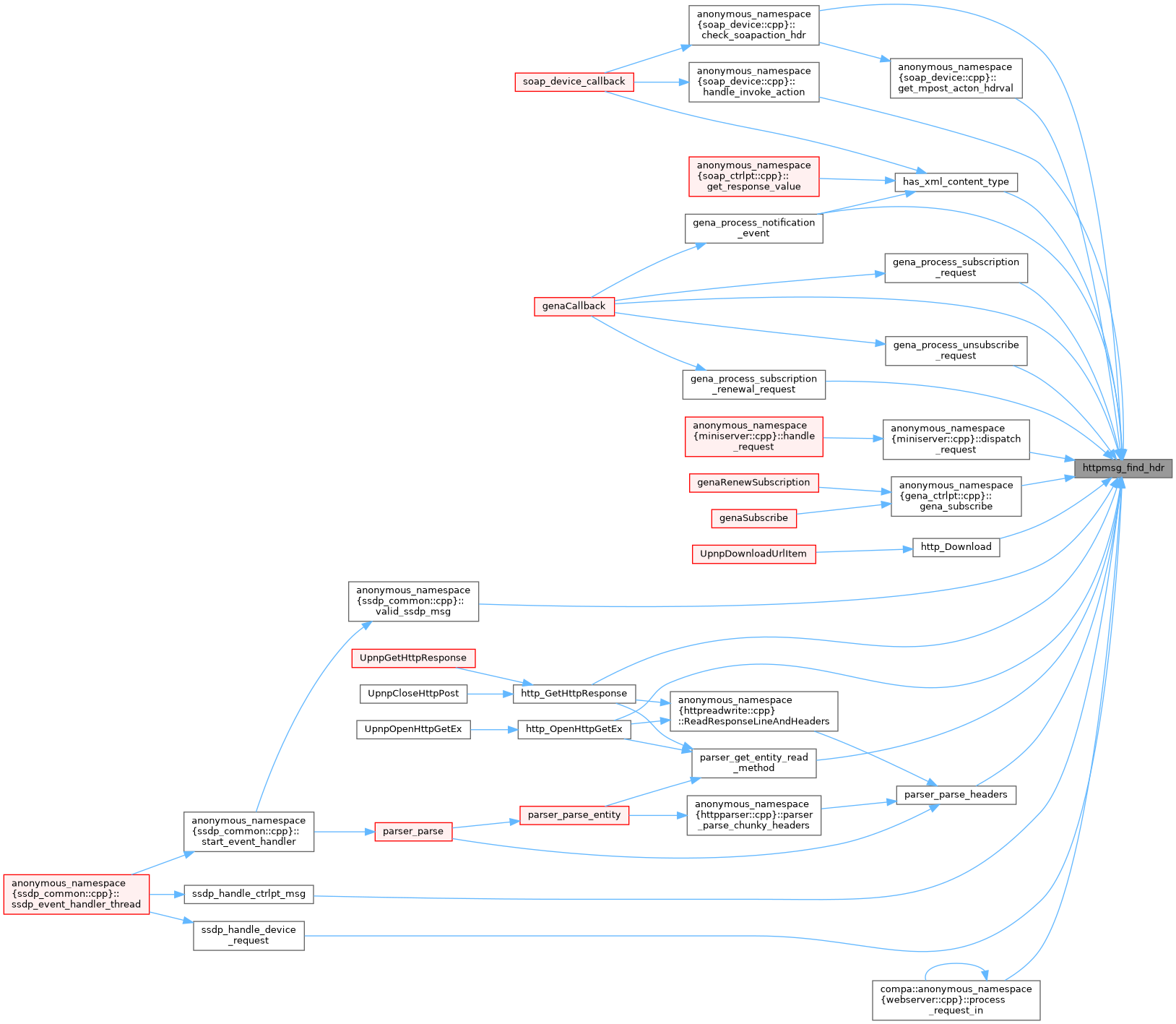

Here is the caller graph for this function:

◆ matchstr()

parse_status_t matchstr	(	char *	str,
		size_t	slen,
		const char *	fmt,
			...
	)

Matches a variable parameter list with a string and takes actions based on the data type specified.

Returns

PARSE_OK
PARSE_NO_MATCH – failure to match pattern 'fmt'
PARSE_FAILURE – 'str' is bad input

Parameters

[in]	str	String to be matched.
[in]	slen	Length of the string.
[in]	fmt	Pattern format for arguments (like printf()).
[in]	...	Variable list of arguments (like printf()).

Definition at line 1328 of file httpparser.cpp.

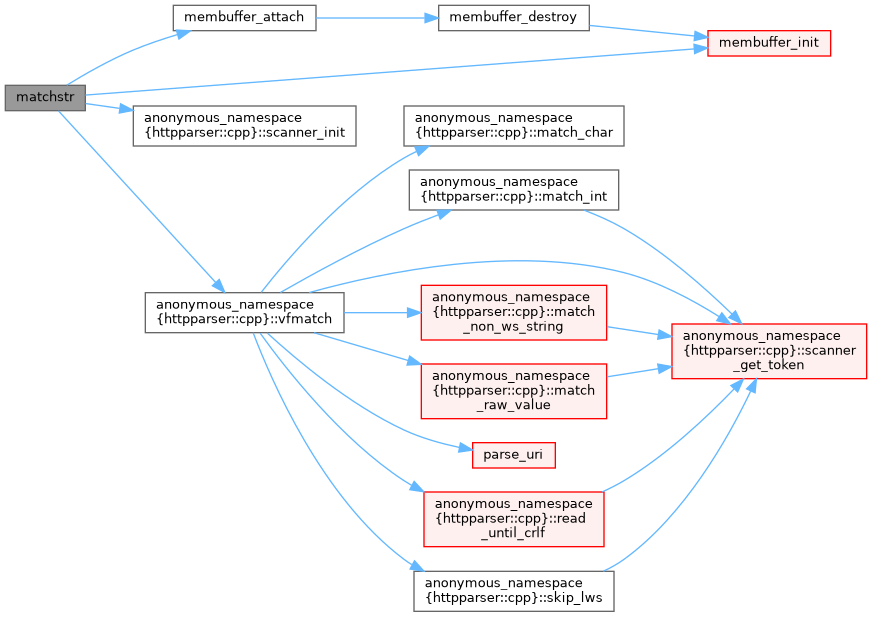

Here is the call graph for this function:

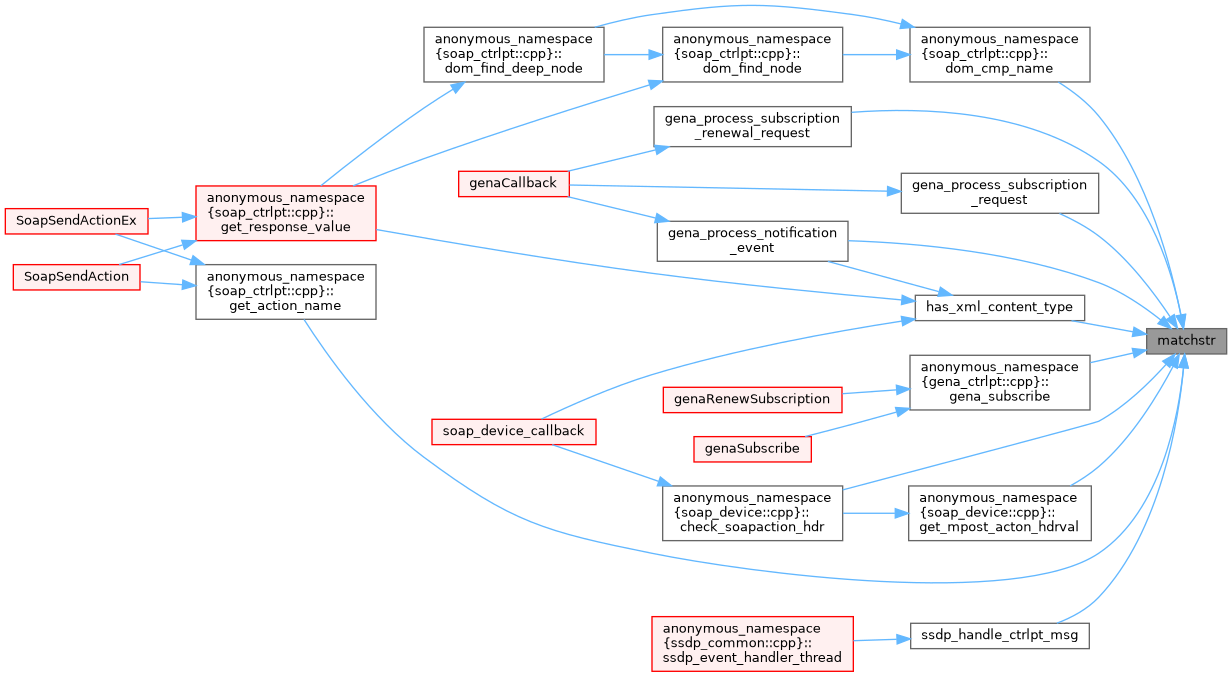

Here is the caller graph for this function:

◆ parser_parse_responseline()

parse_status_t parser_parse_responseline ( http_parser_t * parser )

Get HTTP Method, URL location and version information.

Returns

PARSE_OK
PARSE_SUCCESS
PARSE_FAILURE

Todo:: Check what function description is the right one. There was another found.

Parameters

[in,out] parser HTTP Parser object.

Definition at line 1362 of file httpparser.cpp.

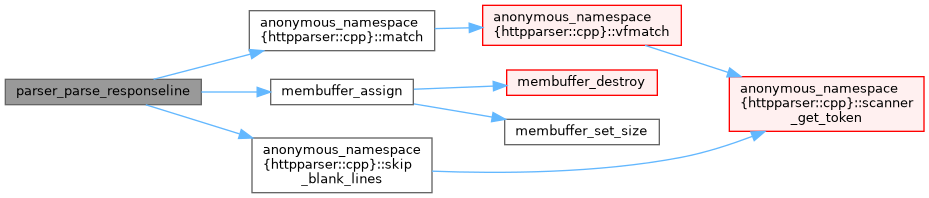

Here is the call graph for this function:

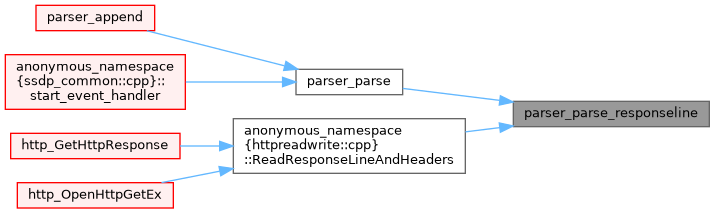

Here is the caller graph for this function:

◆ parser_parse_headers()

parse_status_t parser_parse_headers ( http_parser_t * parser )

Get HTTP Method, URL location and version information.

Returns

PARSE_OK
PARSE_SUCCESS
PARSE_FAILURE

Todo:: Check what function description is the right one. There was another found.

Parameters

[in,out] parser HTTP Parser object.

Definition at line 1429 of file httpparser.cpp.

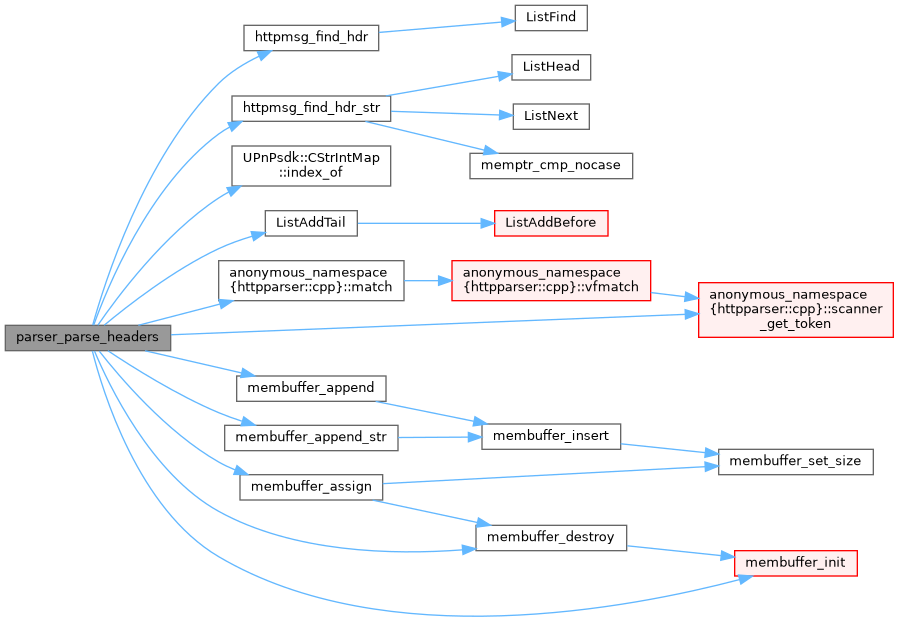

Here is the call graph for this function:

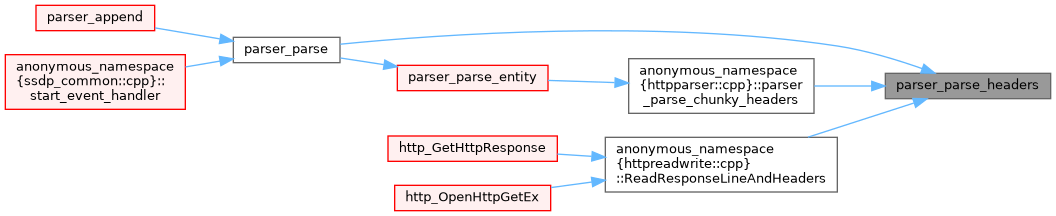

Here is the caller graph for this function:

◆ parser_get_entity_read_method()

parse_status_t parser_get_entity_read_method ( http_parser_t * parser )

Determines method to read entity.

Returns

On success: PARSE_CONTINUE_1
On error:

PARSE_FAILURE
PARSE_SUCCESS – no more reading to do

Parameters

[in,out] parser HTTP Parser object.

Definition at line 1552 of file httpparser.cpp.

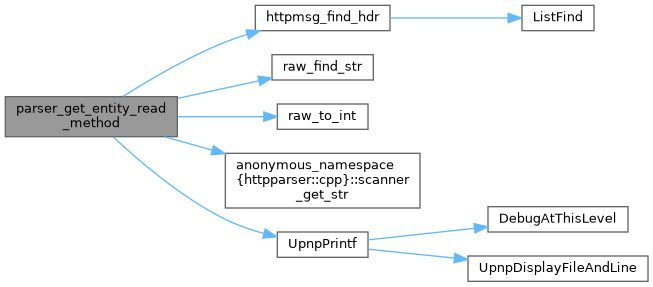

Here is the call graph for this function:

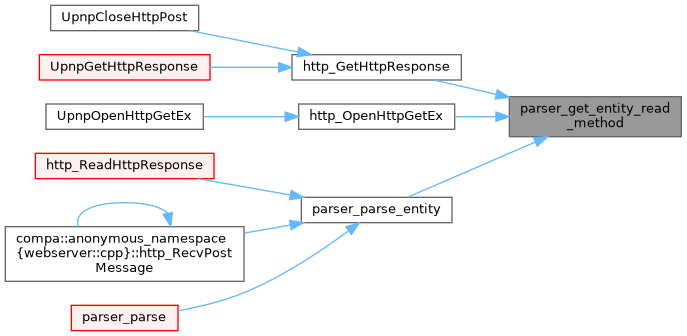

Here is the caller graph for this function:

◆ parser_parse_entity()

parse_status_t parser_parse_entity ( http_parser_t * parser )

Determines method to read entity.

Returns

PARSE_OK
PARSE_FAILURE
PARSE_COMPLETE – no more reading to do

Todo:: Check what function description is the right one. There was another found.

Parameters

[in,out] parser HTTP Parser object.

Definition at line 1637 of file httpparser.cpp.

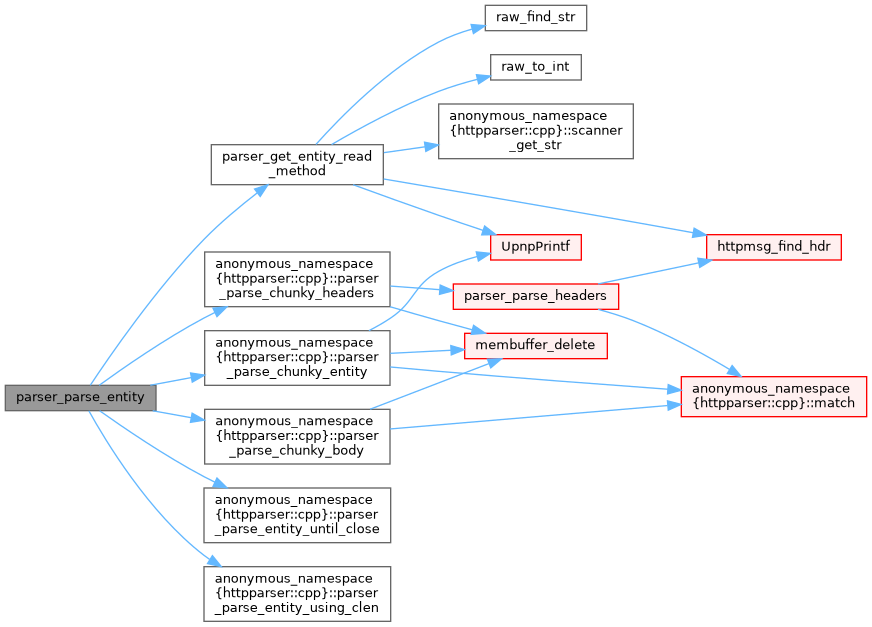

Here is the call graph for this function:

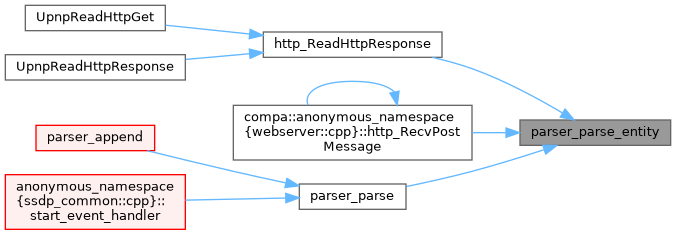

Here is the caller graph for this function:

◆ parser_request_init()

void parser_request_init ( http_parser_t * parser )

Initializes parser object for a request.

Parameters

[out] parser HTTP Parser Object.

Definition at line 1679 of file httpparser.cpp.

Here is the call graph for this function:

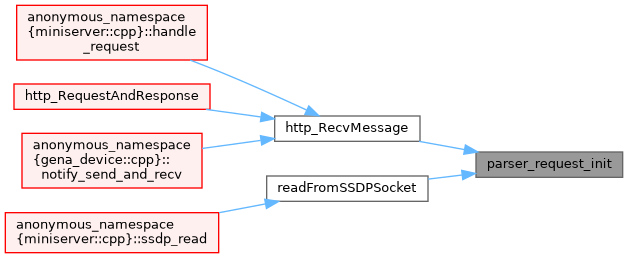

Here is the caller graph for this function:

◆ parser_response_init()

void parser_response_init	(	http_parser_t *	parser,
		http_method_t	request_method
	)

Initializes parser object for a response.

Parameters

[out]	parser	HTTP Parser object.
[in]	request_method	Request method.

Definition at line 1686 of file httpparser.cpp.

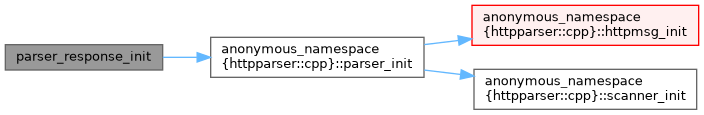

Here is the call graph for this function:

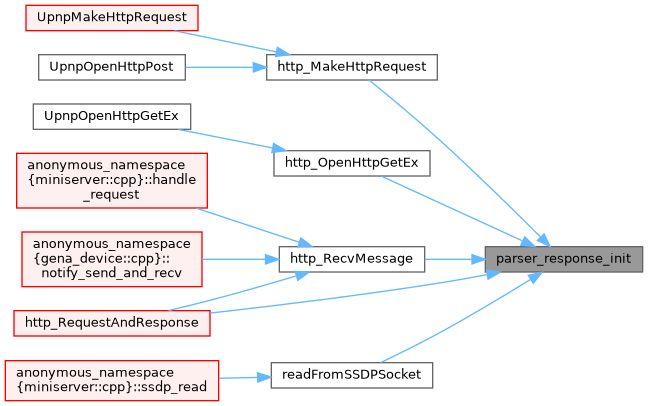

Here is the caller graph for this function:

◆ parser_parse()

parse_status_t parser_parse ( http_parser_t * parser )

The parser function.

Depending on the position of the parser object the actual parsing function is invoked.

Returns

On success: PARSE_SUCCESS
On error:

PARSE_FAILURE
PARSE_INCOMPLETE
PARSE_INCOMPLETE_ENTITY
PARSE_NO_MATCH

Parameters

[in,out] parser HTTP Parser Object.

Definition at line 1695 of file httpparser.cpp.

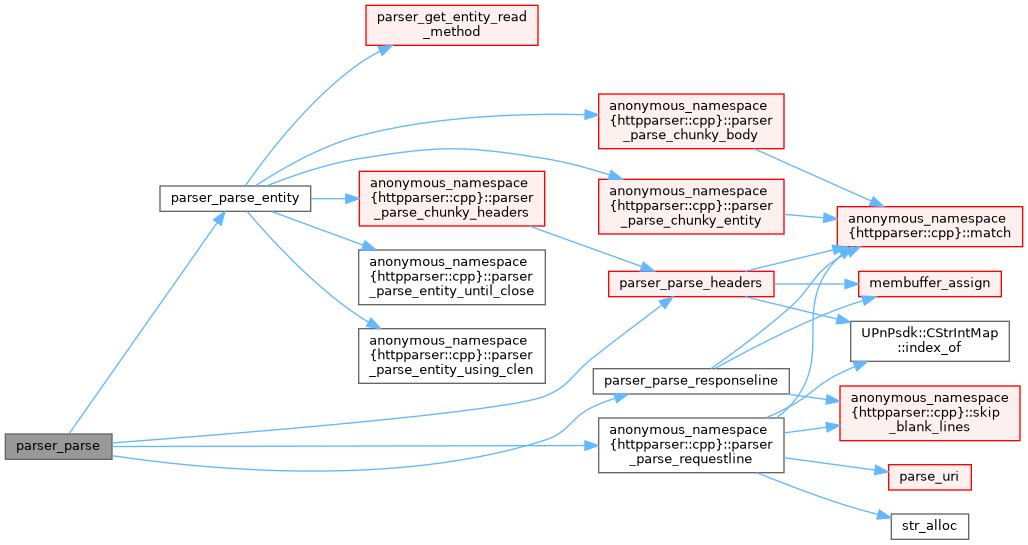

Here is the call graph for this function:

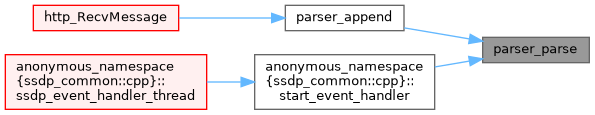

Here is the caller graph for this function:

◆ parser_append()

parse_status_t parser_append	(	http_parser_t *	parser,
		const char *	buf,
		size_t	buf_length
	)

Append date to HTTP parser, and do the parsing.

Returns

On success: PARSE_SUCCESS
On error:

PARSE_FAILURE
PARSE_INCOMPLETE
PARSE_INCOMPLETE_ENTITY
PARSE_NO_MATCH

Parameters

[in,out]	parser	HTTP Parser object.
[in]	buf	buffer to be appended to the parser.
[in]	buf_length	Size of the buffer.

Definition at line 1736 of file httpparser.cpp.

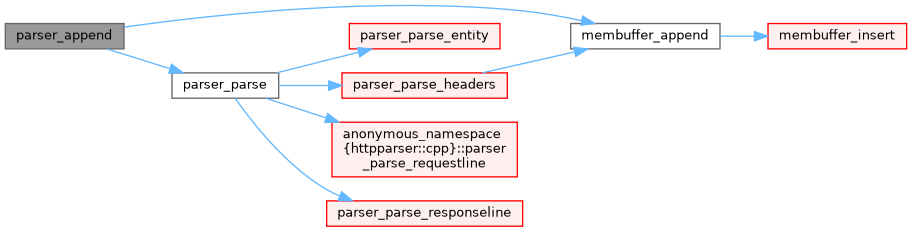

Here is the call graph for this function:

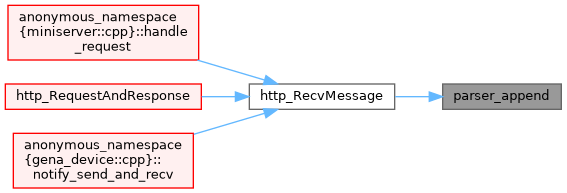

Here is the caller graph for this function:

◆ raw_to_int()

int raw_to_int	(	memptr *	raw_value,
		int	base
	)

Converts raw character data to integer value.

Returns: integer

Parameters

[in]	raw_value	Buffer to be converted.
	base	Base to use for conversion.

Definition at line 1753 of file httpparser.cpp.

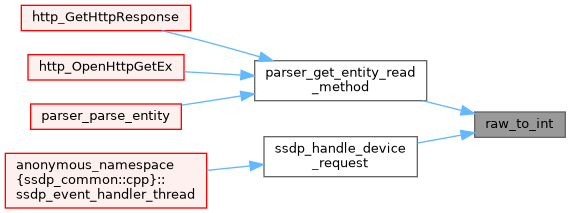

Here is the caller graph for this function:

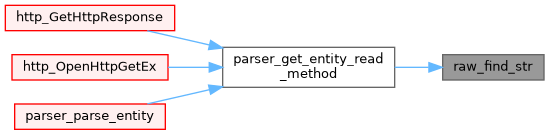

◆ raw_find_str()

int raw_find_str	(	memptr *	raw_value,
		const char *	str
	)

Find a substring from raw character string buffer.

Side effects: raw_value is transformed to lowercase.

Returns: integer - index at which the substring is found.

Parameters

[in]	raw_value	Buffer containg the string.
[in]	str	Substring to be found.

Definition at line 1771 of file httpparser.cpp.

Here is the caller graph for this function:

◆ method_to_str()

const char * method_to_str ( http_method_t method )

A wrapper function that maps a method id to a method.

nameConverts a http_method id stored in the HTTP Method.

Returns: Pointer to the HTTP Method.

Parameters

[in] method HTTP method.

Definition at line 1801 of file httpparser.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ print_http_headers()

void print_http_headers	(	std::string_view	log_msg,
		http_message_t *	hmsg
	)

Print the HTTP headers.

Function is mainly used for debugging.

Parameters

[in]	log_msg	log message number ("MSGxxxx").
[in]	hmsg	HTTP Message object.

Definition at line 1815 of file httpparser.cpp.

Here is the call graph for this function:

UPnPsdk 0.1 Universal Plug and Play +, Software Development Kit

Enumerations

Functions

Variables

Detailed Description

Function Documentation

◆ httpmsg_destroy()

◆ httpmsg_find_hdr_str()

◆ httpmsg_find_hdr()

◆ matchstr()

◆ parser_parse_responseline()

◆ parser_parse_headers()

◆ parser_get_entity_read_method()

◆ parser_parse_entity()

◆ parser_request_init()

◆ parser_response_init()

◆ parser_parse()

◆ parser_append()

◆ raw_to_int()

◆ raw_find_str()

◆ method_to_str()

◆ print_http_headers()
