anonymous_namespace{gena_device.cpp} Namespace Reference

Functions
int	GeneratePropertySet (char **names, char **values, int count, DOMString *out)
	Generates XML property set for notifications.
void	free_notify_struct (notify_thread_struct *input)
	Frees memory used in notify_threads if the reference count is 0, otherwise decrements the refrence count.
int	notify_send_and_recv (uri_type *destination_url, membuffer *mid_msg, char *propertySet, http_parser_t *response)
	Sends the notify message and returns a reply.
int	genaNotify (char *headers, char *propertySet, subscription *sub)
	Function to Notify a particular subscription of a particular event.
void	genaNotifyThread (void *input)
	Thread job to Notify a control point.
char *	AllocGenaHeaders (const DOMString propertySet)
	Allocates the GENA header.
int	genaInitNotifyCommon (UpnpDevice_Handle device_handle, char *UDN, char *servId, DOMString propertySet, const Upnp_SID sid)
	We take ownership of propertySet and will free it.
void	maybeDiscardEvents (LinkedList *listp)
	This gets called before queuing a new event.
int	genaNotifyAllCommon (UpnpDevice_Handle device_handle, char *UDN, char *servId, DOMString propertySet)
	We take ownership of propertySet and will free it.
int	respond_ok (SOCKINFO *info, int time_out, subscription *sub, http_message_t *request)
	Returns OK message in the case of a subscription request.
int	create_url_list (memptr *url_list, URL_list *out)
	Function to parse the Callback header value in subscription requests.

Function Documentation

GeneratePropertySet()

int anonymous_namespace{gena_device.cpp}::GeneratePropertySet	(	char **	names,
		char **	values,
		int	count,
		DOMString *	out
	)

Generates XML property set for notifications.

Returns

UPNP_E_SUCCESS if successful else returns GENA_E_BAD_HANDLE.

Note

The XML_VERSION comment is NOT sent due to interoperability issues with other UPnP vendors.

Parameters

[in]	names	Array of variable names (go in the event notify).
[in]	values	Array of variable values (go in the event notify).
[in]	count	number of variables.
[out]	out	PropertySet node in the string format.

Definition at line 69 of file gena_device.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

free_notify_struct()

void anonymous_namespace{gena_device.cpp}::free_notify_struct

(

notify_thread_struct *

input

)

Frees memory used in notify_threads if the reference count is 0, otherwise decrements the refrence count.

Parameters

[in]

input

Notify structure.

Definition at line 118 of file gena_device.cpp.

Here is the call graph for this function:

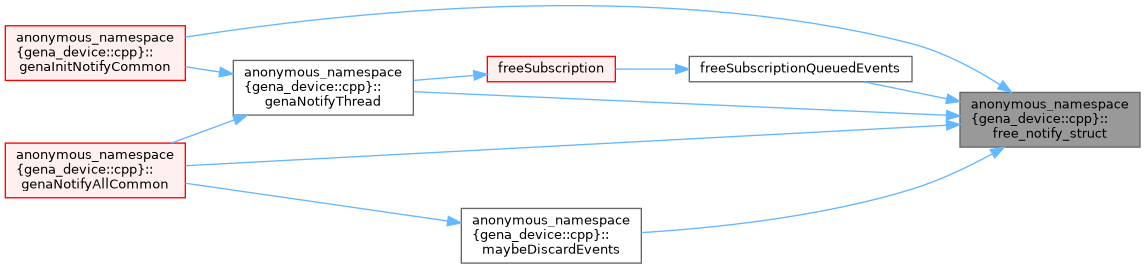

Here is the caller graph for this function:

notify_send_and_recv()

int anonymous_namespace{gena_device.cpp}::notify_send_and_recv ( uri_type *  destination_url, membuffer *  mid_msg, char *  propertySet, http_parser_t *  response  )

inline

Sends the notify message and returns a reply.

Returns

on success returns UPNP_E_SUCCESS, otherwise returns a UPNP error.

Note

called by genaNotify

Parameters

[in]	destination_url	subscription callback URL (URL of the control point).
[in]	mid_msg	Common HTTP headers.
[in]	propertySet	The evented XML.
[out]	response	The response from the control point.

Definition at line 139 of file gena_device.cpp.

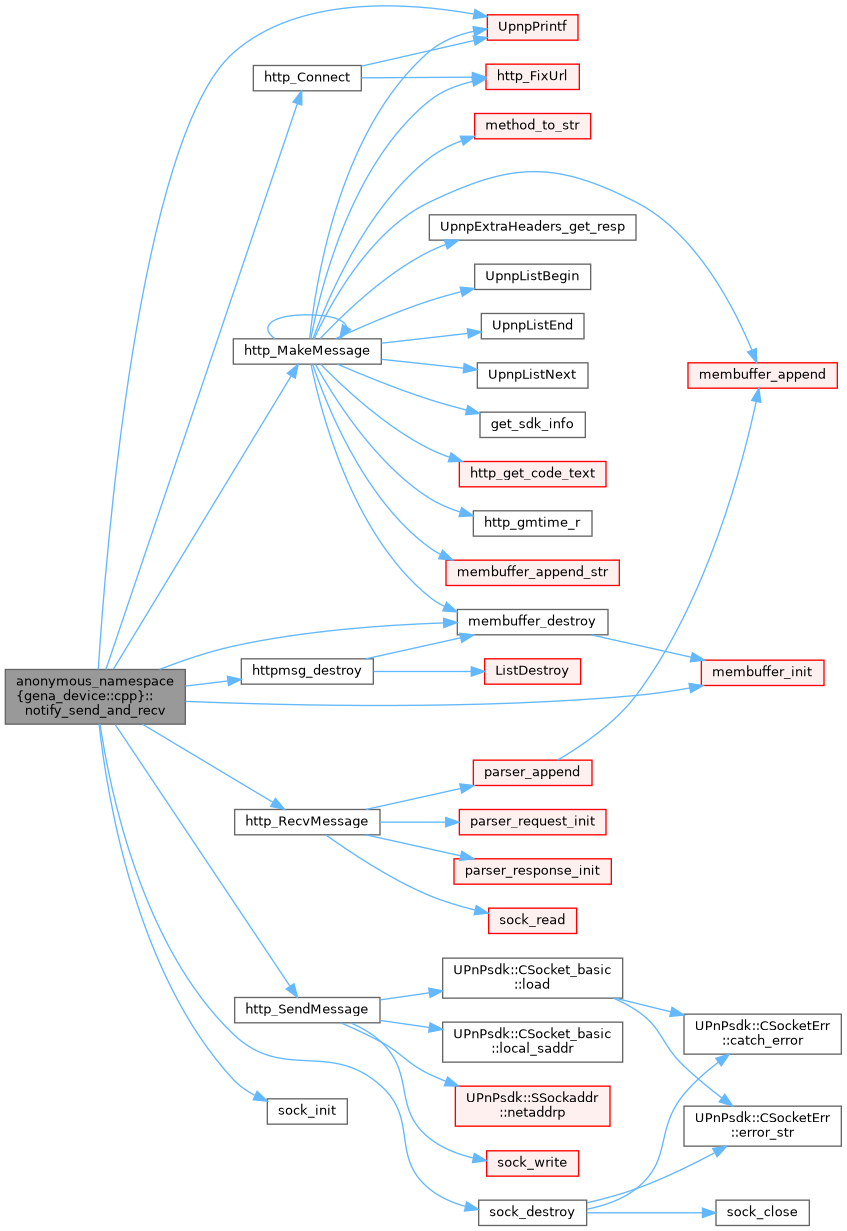

Here is the call graph for this function:

Here is the caller graph for this function:

genaNotify()

int anonymous_namespace{gena_device.cpp}::genaNotify	(	char *	headers,
		char *	propertySet,
		subscription *	sub
	)

Function to Notify a particular subscription of a particular event.

In general the service should NOT be blocked around this call (this may cause deadlock with a client).

NOTIFY http request is sent and the reply is processed.

Returns

GENA_SUCCESS if the event was delivered, otherwise returns the appropriate error code.

Parameters

[in]	headers	Null terminated, includes all headers (including \r\n) except SID and SEQ.
[in]	propertySet	The evented XML.
[in]	sub	subscription to be Notified, assumes this is valid for life of function.

Definition at line 218 of file gena_device.cpp.

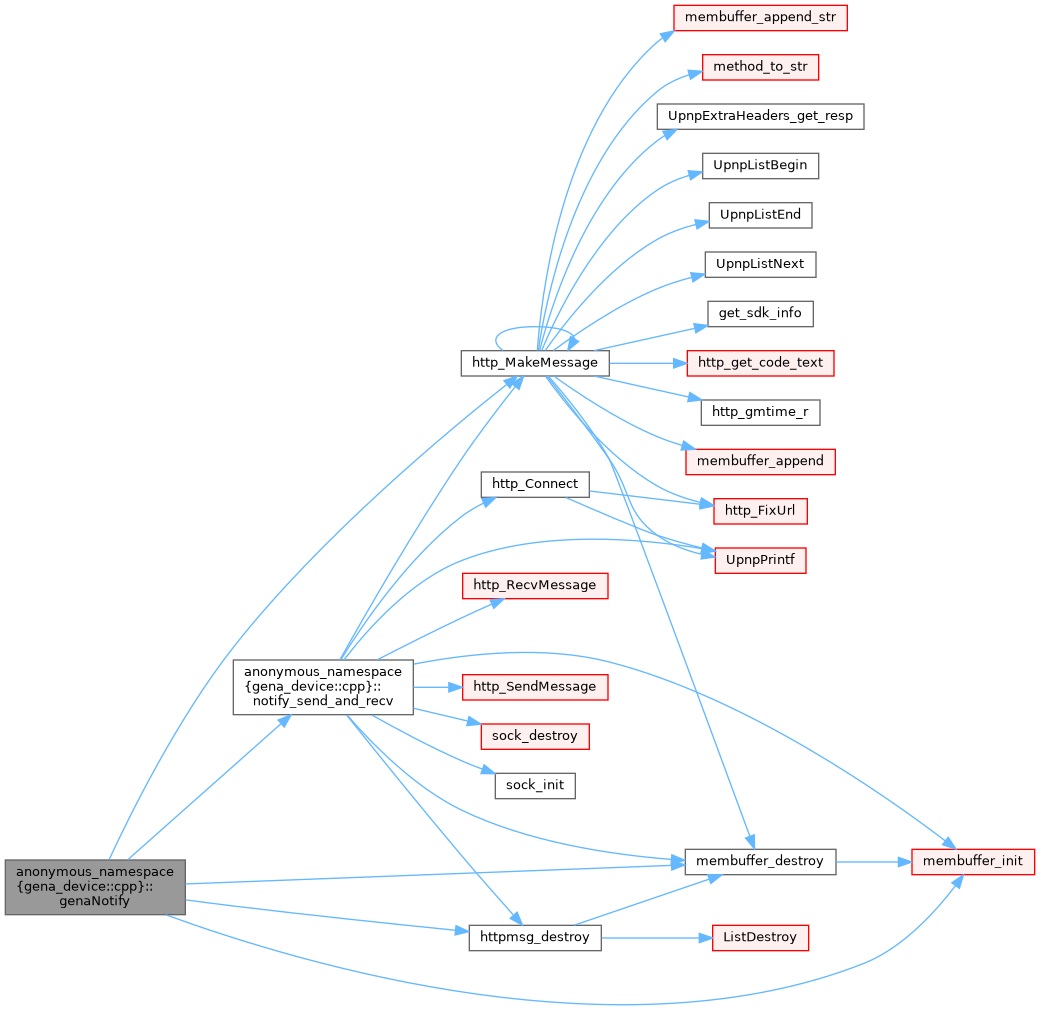

Here is the call graph for this function:

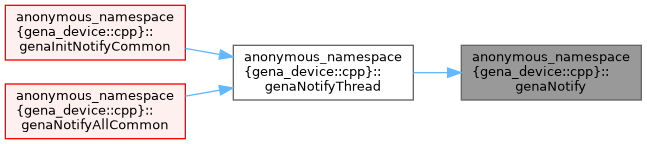

Here is the caller graph for this function:

genaNotifyThread()

void anonymous_namespace{gena_device.cpp}::genaNotifyThread

(

void *

input

)

Thread job to Notify a control point.

It validates the subscription and copies the subscription. Also make sure that events are sent in order.

Note

calls the genaNotify to do the actual work.

Parameters

[in]

input

notify thread structure containing all the headers and property set info.

Definition at line 276 of file gena_device.cpp.

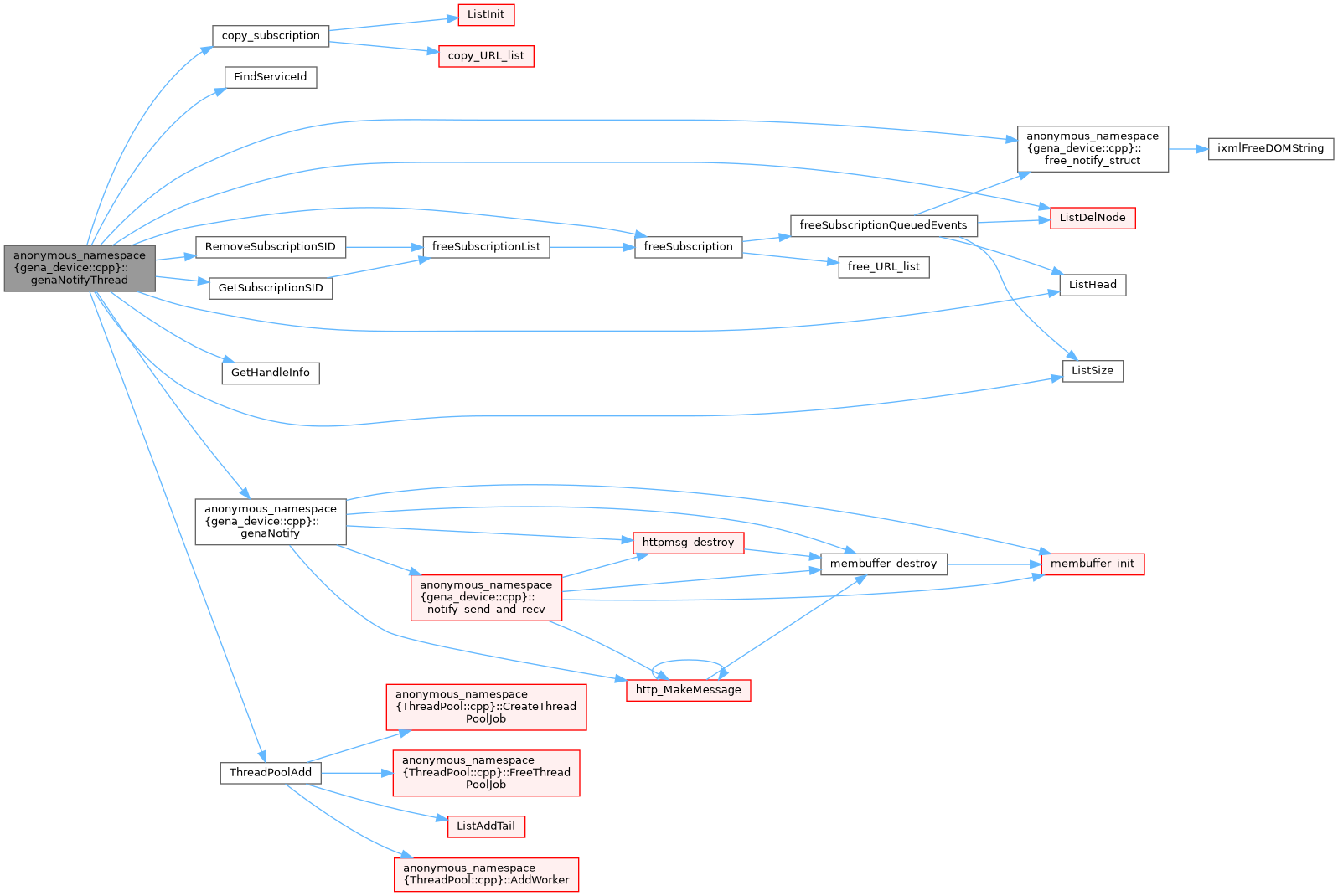

Here is the call graph for this function:

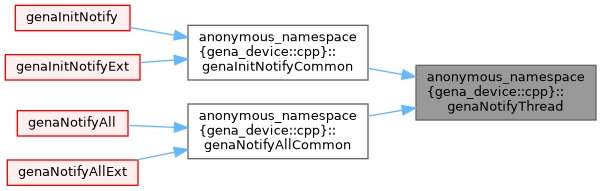

Here is the caller graph for this function:

AllocGenaHeaders()

char * anonymous_namespace{gena_device.cpp}::AllocGenaHeaders

(

const DOMString

propertySet

)

Allocates the GENA header.

Note

The header must be destroyed after with a call to free(), otherwise there will be a memory leak.

Returns

Pointer to the constructed header string.

Parameters

[in]

propertySet

Pointer to the property set string.

Definition at line 369 of file gena_device.cpp.

Here is the call graph for this function:

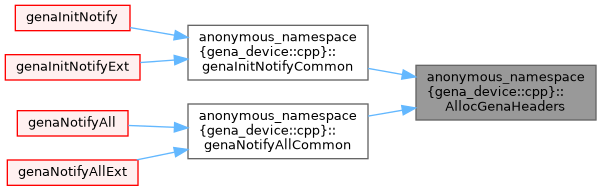

Here is the caller graph for this function:

genaInitNotifyCommon()

int anonymous_namespace{gena_device.cpp}::genaInitNotifyCommon	(	UpnpDevice_Handle	device_handle,
		char *	UDN,
		char *	servId,
		DOMString	propertySet,
		const Upnp_SID	sid
	)

We take ownership of propertySet and will free it.

Definition at line 404 of file gena_device.cpp.

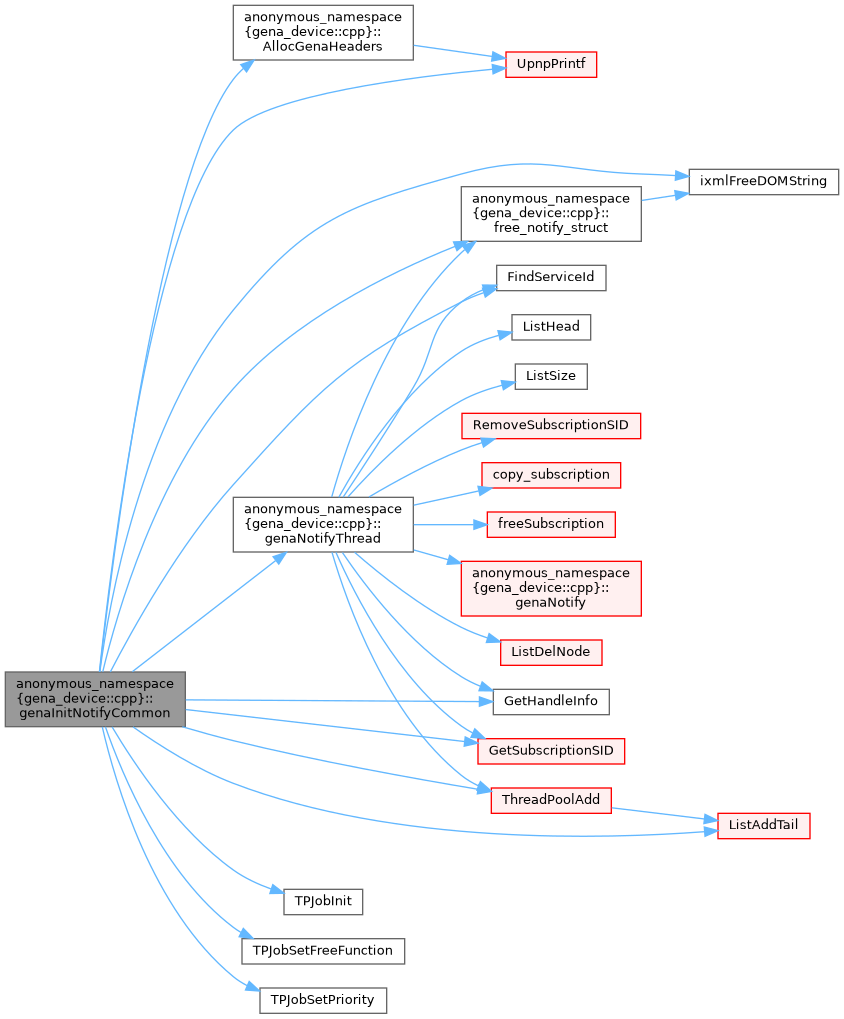

Here is the call graph for this function:

Here is the caller graph for this function:

maybeDiscardEvents()

void anonymous_namespace{gena_device.cpp}::maybeDiscardEvents

(

LinkedList *

listp

)

This gets called before queuing a new event.

• The list size can never go over MAX_SUBSCRIPTION_QUEUED_EVENTS so we discard the oldest non-active event if it is already at the max
• We also discard any non-active event older than MAX_SUBSCRIPTION_EVENT_AGE. non-active: any but the head of queue, which is already copied to the thread pool

Definition at line 557 of file gena_device.cpp.

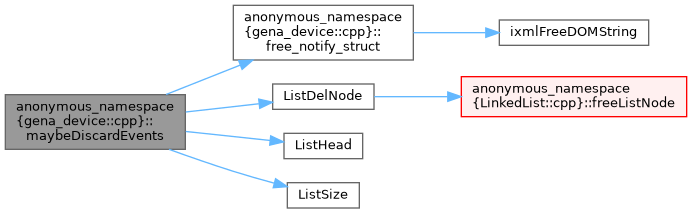

Here is the call graph for this function:

Here is the caller graph for this function:

genaNotifyAllCommon()

int anonymous_namespace{gena_device.cpp}::genaNotifyAllCommon	(	UpnpDevice_Handle	device_handle,
		char *	UDN,
		char *	servId,
		DOMString	propertySet
	)

We take ownership of propertySet and will free it.

Definition at line 586 of file gena_device.cpp.

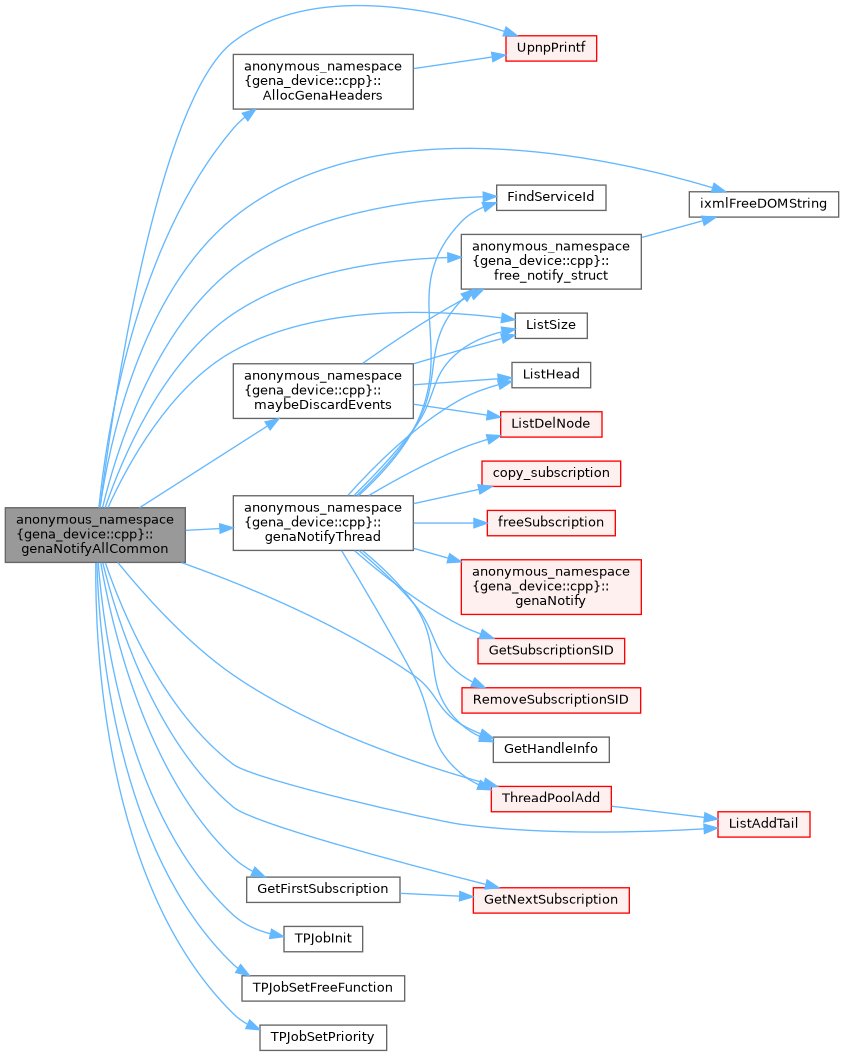

Here is the call graph for this function:

Here is the caller graph for this function:

respond_ok()

int anonymous_namespace{gena_device.cpp}::respond_ok	(	SOCKINFO *	info,
		int	time_out,
		subscription *	sub,
		http_message_t *	request
	)

Returns OK message in the case of a subscription request.

Returns

UPNP_E_SUCCESS if successful, otherwise the appropriate error code.

Parameters

[in]	info	Socket connection of request.
[in]	time_out	Accepted duration.
[in]	sub	Accepted subscription.
[in]	request	Http request.

Definition at line 732 of file gena_device.cpp.

Here is the call graph for this function:

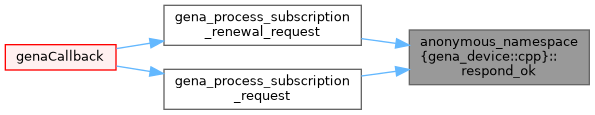

Here is the caller graph for this function:

create_url_list()

int anonymous_namespace{gena_device.cpp}::create_url_list	(	memptr *	url_list,
		URL_list *	out
	)

Function to parse the Callback header value in subscription requests.

Takes in a buffer containing URLS delimited by '<' and '>'. The entire buffer is copied into dynamic memory and stored in the URL_list. Pointers to the individual urls within this buffer are allocated and stored in the URL_list. Only URLs with network addresses are considered (i.e. host:port or domain name).

Returns

The number of URLs parsed if successful, otherwise UPNP_E_OUTOF_MEMORY.

Parameters

[in]	url_list	.
[out]	out	.

Definition at line 802 of file gena_device.cpp.

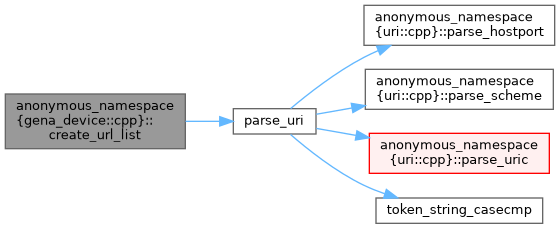

Here is the call graph for this function:

Here is the caller graph for this function:
