anonymous_namespace{httpreadwrite.cpp} Namespace Reference

Classes
struct	http_connection_handle_t
	Handle for a connection. More...

Functions
Scope restricted to file
int	Check_Connect_And_Wait_Connection (const SOCKET a_sock, const int connect_res)
	Checks socket connection and wait if it is not connected.
int	get_hoststr (const char *url_str, const char **hoststr, size_t *hostlen)
	Point to the hostname within a URL C-string.
void	copy_msg_headers (LinkedList *msgHeaders, UpnpString *headers)
	Dummy function. It do nothing since years. Do we need it?
int	MakeGenericMessage (http_method_t method, const char *url_str, membuffer *request, uri_type *url, int contentLength, const char *contentType, const UpnpString *headers)
	Make a generic message, what ever this mean.
int	ReadResponseLineAndHeaders (SOCKINFO *info, http_parser_t *parser, int *timeout_secs, int *http_error_code)
	Parses already exiting data.
int	MakeGetMessageEx (const char *url_str, membuffer *request, uri_type *url, SendInstruction *pRangeSpecifier)
	Make extended GetMessage.

Variables
constexpr size_t	CHUNK_HEADER_SIZE {10}
	???
constexpr size_t	CHUNK_TAIL_SIZE {10}
	???
constexpr time_t	DEFAULT_TCP_CONNECT_TIMEOUT {5}
	Default TCP connection timeout.

---

Class Documentation

anonymous_namespace{httpreadwrite.cpp}::http_connection_handle_t

struct anonymous_namespace{httpreadwrite.cpp}::http_connection_handle_t

Handle for a connection.

Definition at line 317 of file httpreadwrite.cpp.

Collaboration diagram for anonymous_namespace{httpreadwrite.cpp}::http_connection_handle_t:

Class Members
SOCKINFO	sock_info
int	contentLength
http_parser_t	response
int	requestStarted
int	cancel

Function Documentation

Check_Connect_And_Wait_Connection()

int anonymous_namespace{httpreadwrite.cpp}::Check_Connect_And_Wait_Connection	(	const SOCKET	a_sock,
		const int	connect_res
	)

Checks socket connection and wait if it is not connected.

It should be called just after connect.

Returns

0 if successful, else -1.

Parameters

[in]	a_sock	Socket file descriptor.
[in]	connect_res	Result of connect that has been executed before calling this.

Definition at line 108 of file httpreadwrite.cpp.

Here is the caller graph for this function:

get_hoststr()

int anonymous_namespace{httpreadwrite.cpp}::get_hoststr	(	const char *	url_str,
		const char **	hoststr,
		size_t *	hostlen
	)

Point to the hostname within a URL C-string.

Returns

On success: UPNP_E_SUCCESS
On error: UPNP_E_INVALID_URL

Todo:

Check if this can be taken from the httpparser.

Parameters

[in]	url_str	Pointer to URL string.
[out]	hoststr	Filled with a pointer to the start of the host string within url_str. On error this remains untouched.
[out]	hostlen	Filled with the length (without terminating '\0') of the host string. On error this remains untouched.

Definition at line 175 of file httpreadwrite.cpp.

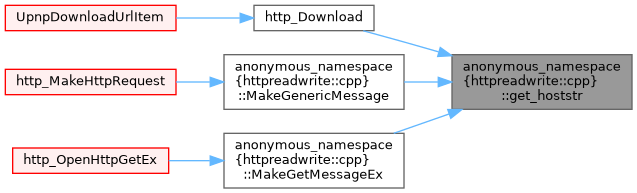

Here is the caller graph for this function:

copy_msg_headers()

void anonymous_namespace{httpreadwrite.cpp}::copy_msg_headers	(	LinkedList *	msgHeaders,
		UpnpString *	headers
	)

Dummy function. It do nothing since years. Do we need it?

Todo:

Dummy function. It do nothing since years. Do we need it?

Definition at line 217 of file httpreadwrite.cpp.

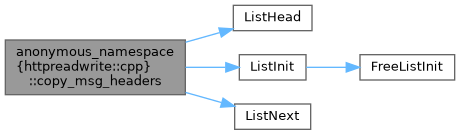

Here is the call graph for this function:

Here is the caller graph for this function:

MakeGenericMessage()

int anonymous_namespace{httpreadwrite.cpp}::MakeGenericMessage	(	http_method_t	method,
		const char *	url_str,
		membuffer *	request,
		uri_type *	url,
		int	contentLength,
		const char *	contentType,
		const UpnpString *	headers
	)

Make a generic message, what ever this mean.

Todo:

Need to be documented.

Definition at line 250 of file httpreadwrite.cpp.

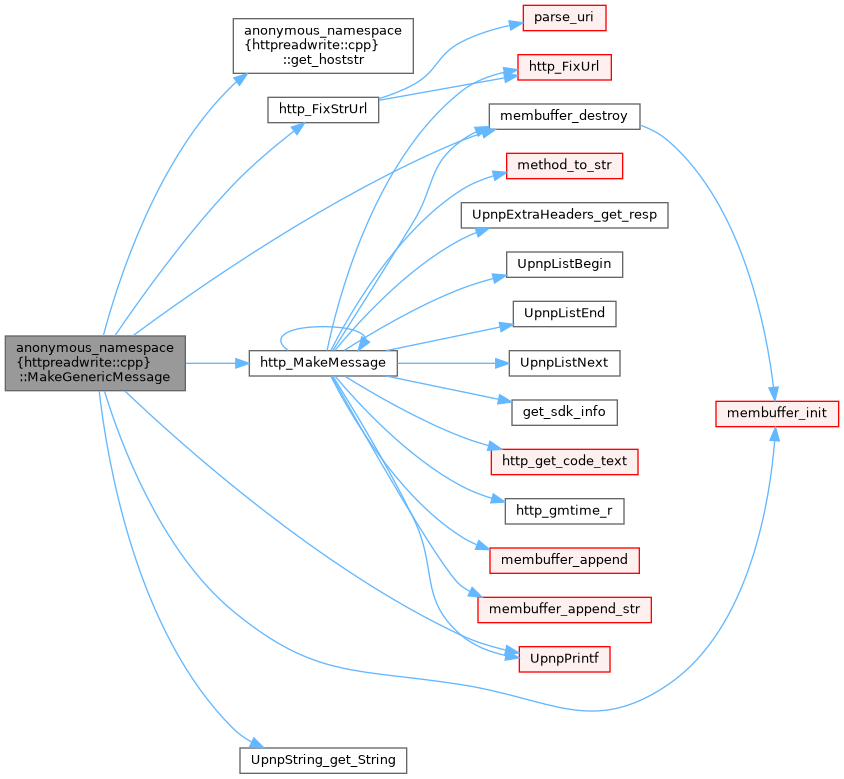

Here is the call graph for this function:

Here is the caller graph for this function:

ReadResponseLineAndHeaders()

int anonymous_namespace{httpreadwrite.cpp}::ReadResponseLineAndHeaders	(	SOCKINFO *	info,
		http_parser_t *	parser,
		int *	timeout_secs,
		int *	http_error_code
	)

Parses already exiting data.

If not complete reads more data on the connected socket. The read data is then parsed. The same methid is carried out for headers.

Returns

On success: PARSE_OK
On error:

• PARSE_FAILURE - Failure to parse data correctly
• UPNP_E_BAD_HTTPMSG - Socker read() returns an error

Parameters

info	Socket information object.
parser	HTTP Parser object.
timeout_secs	Time out value.
http_error_code	HTTP errror code returned.

Definition at line 337 of file httpreadwrite.cpp.

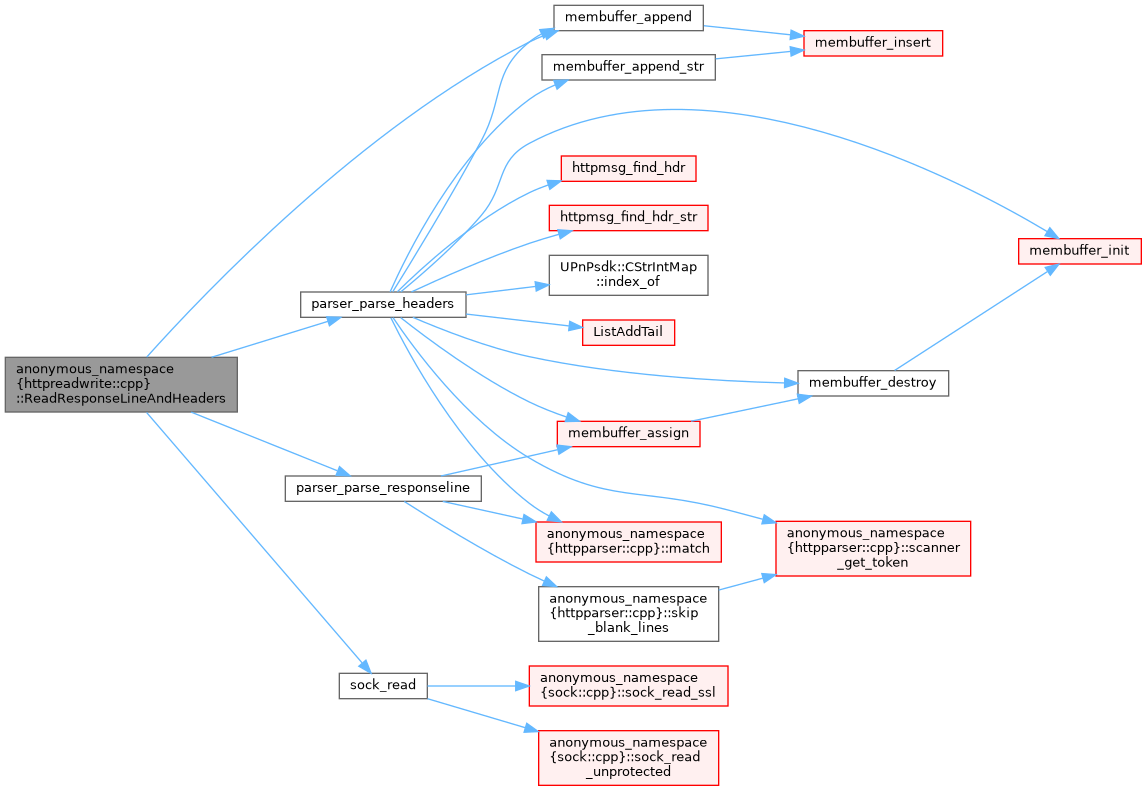

Here is the call graph for this function:

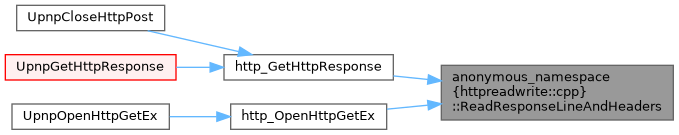

Here is the caller graph for this function:

MakeGetMessageEx()

int anonymous_namespace{httpreadwrite.cpp}::MakeGetMessageEx	(	const char *	url_str,
		membuffer *	request,
		uri_type *	url,
		SendInstruction *	pRangeSpecifier
	)

Make extended GetMessage.

Todo:

Needs documentation. There was no information found.

Definition at line 444 of file httpreadwrite.cpp.

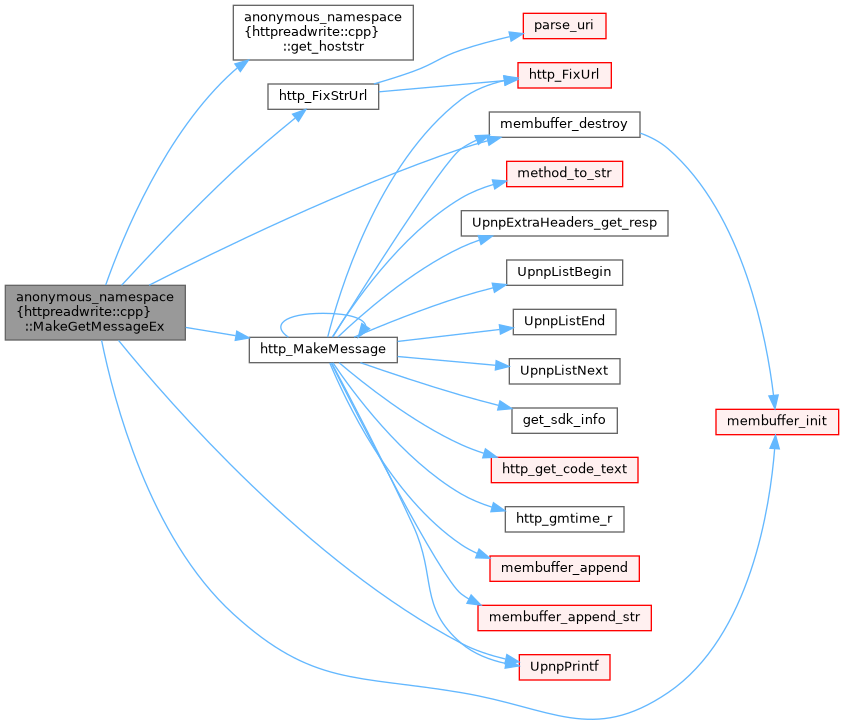

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

CHUNK_HEADER_SIZE

constexpr size_t anonymous_namespace{httpreadwrite.cpp}::CHUNK_HEADER_SIZE {10}

constexpr

???

Definition at line 83 of file httpreadwrite.cpp.

CHUNK_TAIL_SIZE

constexpr size_t anonymous_namespace{httpreadwrite.cpp}::CHUNK_TAIL_SIZE {10}

constexpr

???

Definition at line 85 of file httpreadwrite.cpp.

DEFAULT_TCP_CONNECT_TIMEOUT

constexpr time_t anonymous_namespace{httpreadwrite.cpp}::DEFAULT_TCP_CONNECT_TIMEOUT {5}

constexpr

Default TCP connection timeout.

Definition at line 90 of file httpreadwrite.cpp.
