Classes
struct	active_connection_t

struct	mserv_request_t
	miniserver received request message. More...

Enumerations
enum	MiniServerState { MSERV_IDLE , MSERV_RUNNING , MSERV_STOPPING }
	miniserver state More...

Variables
in_port_t	miniStopSockPort
	Port of the stop socket.

MiniServerState	gMServState {MSERV_IDLE}
	miniserver state

MiniServerCallback	gSoapCallback {nullptr}
	SOAP callback.

MiniServerCallback	gGenaCallback {nullptr}
	GENA callback.

Scope restricted to file
static LinkedList	gActiveConnections

static pthread_mutex_t	gActiveConnectionsMutex

static int	gActiveConnectionsInitialized = 0

static int	active_connection_cmp (void first, void second)
	Compare function for active connections, return true if equal (found)

static void	add_active_connection (SOCKET sock)
	Add a socket to the active connections list.

static void	remove_active_connection (SOCKET sock)
	Remove a socket from the active connections list.

void	shutdown_all_active_connections (void)
	Shutdown all active socket connections.

int	host_header_is_numeric (char *a_host_port, size_t a_host_port_len)
	Check if a network address is numeric.

int	getNumericHostRedirection (SOCKET a_socket, char *a_host_port, size_t a_hp_size)
	Returns the ip address with port as text that is bound to a socket.

int	dispatch_request (SOCKINFO a_info, http_parser_t a_hparser)
	Based on the type of message, appropriate callback is issued.

void	free_handle_request_arg (void *args)
	Free memory assigned for handling request and unitialize socket functionality.

void	handle_request (void *args)
	Receive the request and dispatch it for handling.

void	schedule_request_job (SOCKET a_sock, UPnPsdk::SSockaddr &clientAddr)
	Initilize the thread pool to handle an incomming request, sets priority for the job and adds the job to the thread pool.

void	fdset_if_valid (SOCKET a_sock, fd_set *a_set)
	Add a socket file descriptor to an `'fd_set'` structure as needed for `::select()`.

int	web_server_accept (SOCKET listen_sock, fd_set &set)
	Accept requested connection from a remote control point and run it in a new thread.

void	ssdp_read (SOCKET rsock, fd_set set)
	Read data from the SSDP socket.

int	receive_from_stopSock (SOCKET ssock, fd_set *set)
	Check if we have received a packet that shall stop the miniserver.

void	RunMiniServer (MiniServerSockArray *miniSock)
	Run the miniserver.

void	RunMiniServer_f (MiniServerSockArray *miniSock)

int	get_port (SOCKET sockfd, uint16_t *port)
	Returns port to which socket, sockfd, is bound.

int	get_miniserver_sockets (MiniServerSockArray *out, in_port_t listen_port4, in_port_t listen_port6, in_port_t listen_port6UlaGua)
	Create STREAM sockets, binds to local network interfaces and listens for incoming connections.

int	get_miniserver_stopsock (MiniServerSockArray *out)
	Creates the miniserver STOP socket, usable to listen for stopping the miniserver.

void	InitMiniServerSockArray (MiniServerSockArray *miniSocket)
	Initialize a miniserver Socket Array.

Class Documentation

◆ anonymous_namespace{miniserver.cpp}::active_connection_t

struct anonymous_namespace{miniserver.cpp}::active_connection_t

Structure to hold active connection info

Definition at line 110 of file miniserver.cpp.

Class Members
SOCKET	socket
time_t	connect_time

◆ anonymous_namespace{miniserver.cpp}::mserv_request_t

struct anonymous_namespace{miniserver.cpp}::mserv_request_t

miniserver received request message.

This defines the structure of a UPnP request that has income from a remote control point.

Definition at line 70 of file miniserver.cpp.

Class Members
SOCKET	sock	Connection socket file descriptor.
sockaddr_storage	foreign_sockaddr	Socket address of the remote control point.

Enumeration Type Documentation

◆ MiniServerState

enum anonymous_namespace{miniserver.cpp}::MiniServerState

miniserver state

Enumerator
MSERV_IDLE	miniserver is idle.
MSERV_RUNNING	miniserver is running.
MSERV_STOPPING	miniserver is running to stop.

Definition at line 78 of file miniserver.cpp.

Function Documentation

◆ active_connection_cmp()

static int anonymous_namespace{miniserver.cpp}::active_connection_cmp	(	void *	first,
		void *	second
	)

static

Compare function for active connections, return true if equal (found)

Definition at line 118 of file miniserver.cpp.

Here is the caller graph for this function:

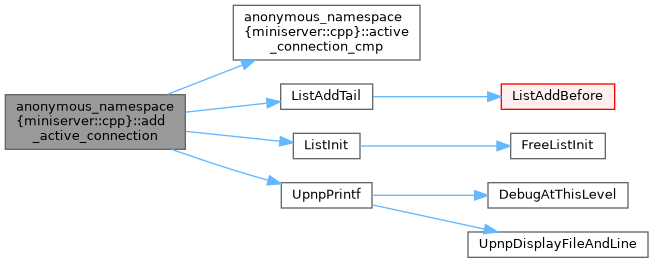

◆ add_active_connection()

static void anonymous_namespace{miniserver.cpp}::add_active_connection ( SOCKET sock )

static

Add a socket to the active connections list.

Definition at line 130 of file miniserver.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

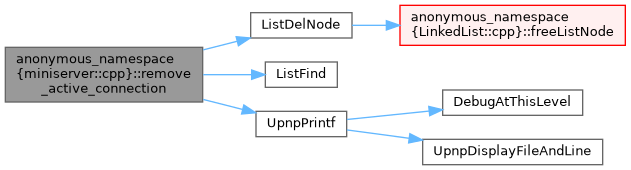

◆ remove_active_connection()

static void anonymous_namespace{miniserver.cpp}::remove_active_connection ( SOCKET sock )

static

Remove a socket from the active connections list.

Definition at line 158 of file miniserver.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

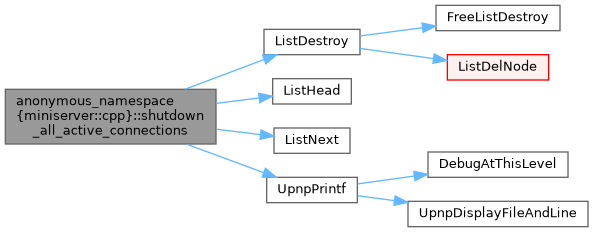

◆ shutdown_all_active_connections()

void anonymous_namespace{miniserver.cpp}::shutdown_all_active_connections ( void )

Shutdown all active socket connections.

Definition at line 183 of file miniserver.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ host_header_is_numeric()

int anonymous_namespace{miniserver.cpp}::host_header_is_numeric	(	char *	a_host_port,
		size_t	a_host_port_len
	)

Check if a network address is numeric.

An empty netaddress or an unspecified one ("[::]", "0.0.0.0") is not valid.

Parameters

a_host_port	network address
a_host_port_len	length of a_host_port excl. terminating '\0'.

Definition at line 224 of file miniserver.cpp.

Here is the caller graph for this function:

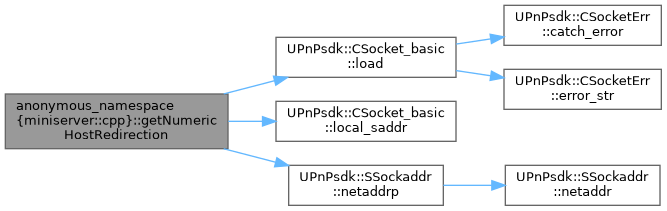

◆ getNumericHostRedirection()

int anonymous_namespace{miniserver.cpp}::getNumericHostRedirection	(	SOCKET	a_socket,
		char *	a_host_port,
		size_t	a_hp_size
	)

Returns the ip address with port as text that is bound to a socket.

Example: may return "[2001:db8::ab]:50044" or "192.168.1.2:54321".

Returns: On success: true
On error: false, The result buffer remains unmodified.

Parameters

[in]	a_socket	Socket file descriptor.
[in,out]	a_host_port	Pointer to buffer that will be filled.
[in]	a_hp_size	size of the buffer.

Definition at line 251 of file miniserver.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

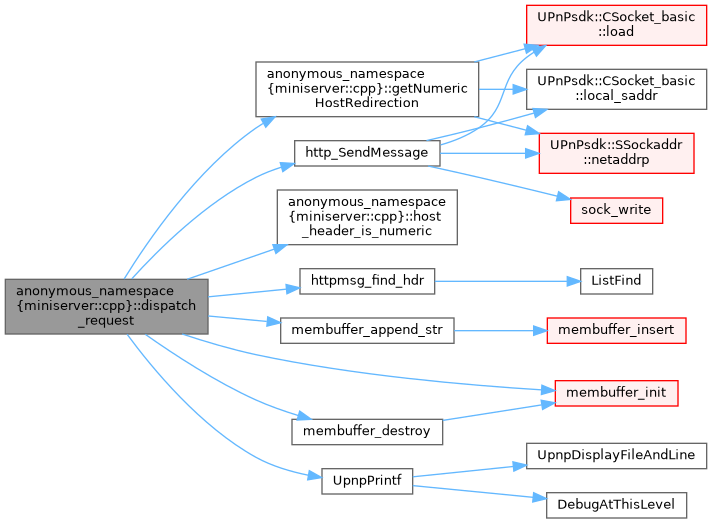

◆ dispatch_request()

int anonymous_namespace{miniserver.cpp}::dispatch_request	(	SOCKINFO *	a_info,
		http_parser_t *	a_hparser
	)

Based on the type of message, appropriate callback is issued.

Returns: On success: 0
On error: HTTP_INTERNAL_SERVER_ERROR if Callback is NULL.

Parameters

[in]	a_info	Socket Information object.
[in]	a_hparser	HTTP parser object.

Definition at line 278 of file miniserver.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ free_handle_request_arg()

void anonymous_namespace{miniserver.cpp}::free_handle_request_arg ( void * args )

Free memory assigned for handling request and unitialize socket functionality.

Parameters

[in] args Request Message to be freed.

Definition at line 382 of file miniserver.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

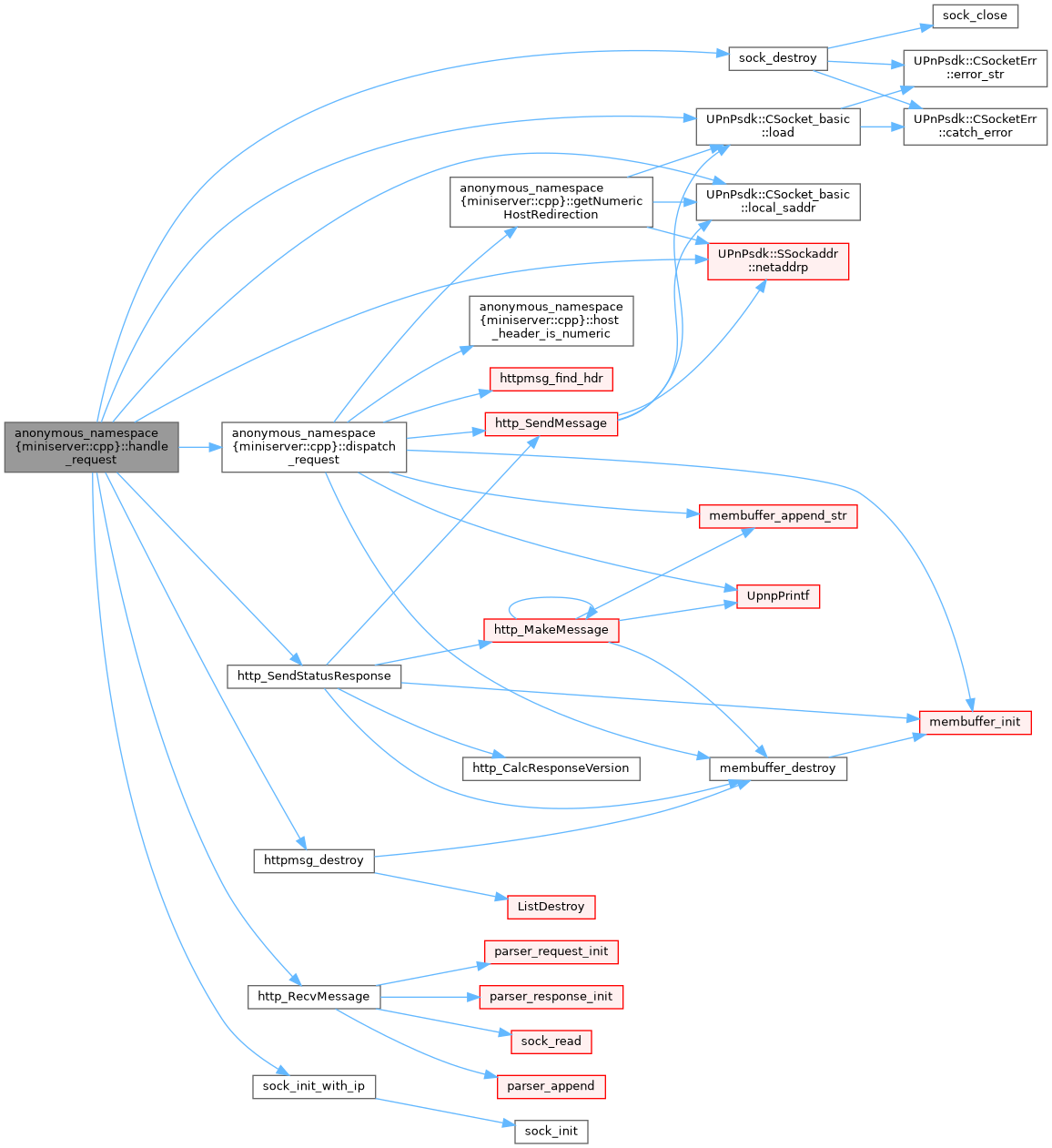

◆ handle_request()

void anonymous_namespace{miniserver.cpp}::handle_request ( void * args )

Receive the request and dispatch it for handling.

Parameters

[in] args Pointer to Received Request Message to be handled. It's expected to be mserv_request_t*

Definition at line 398 of file miniserver.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

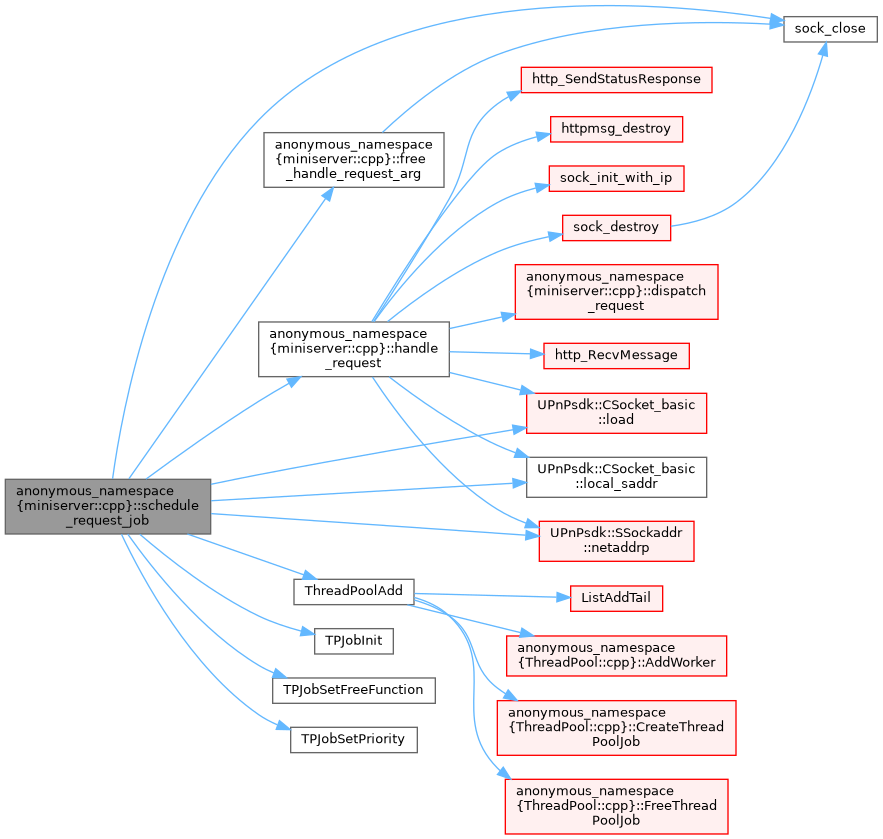

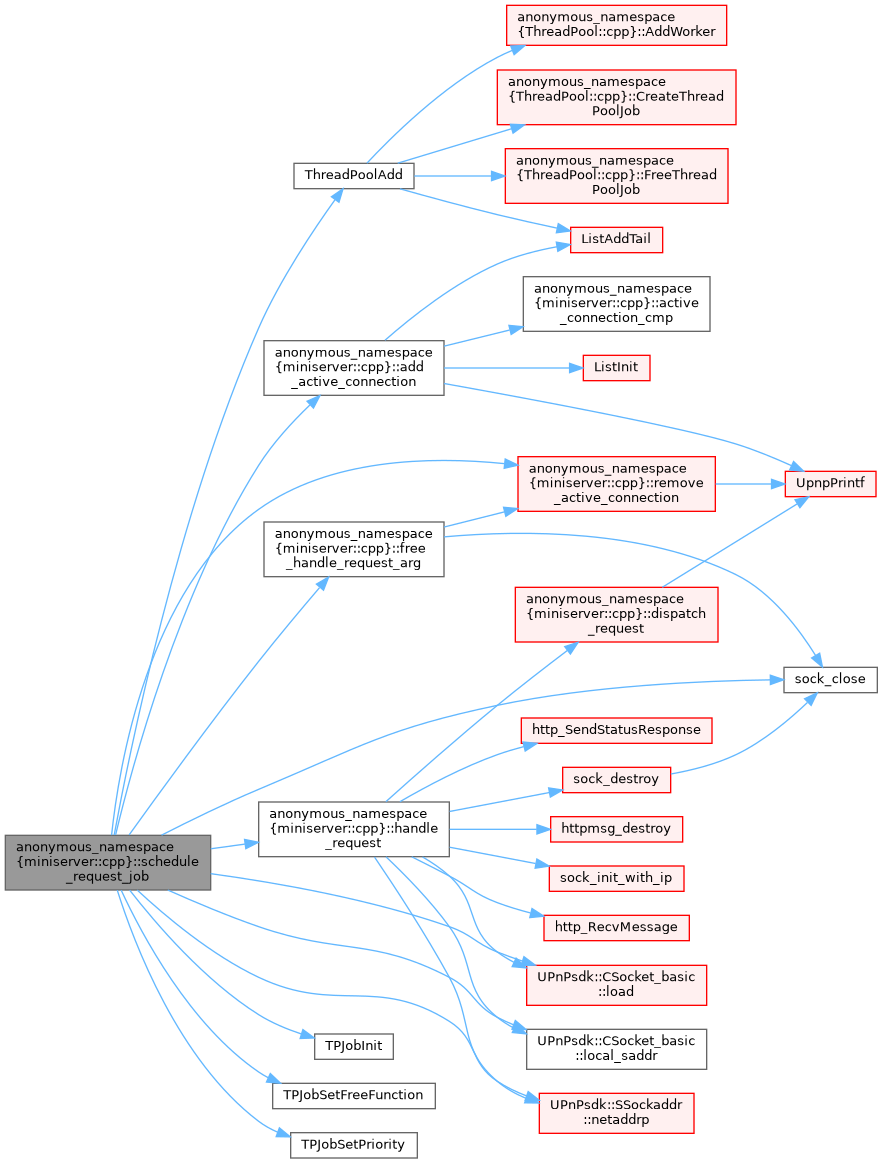

◆ schedule_request_job()

void anonymous_namespace{miniserver.cpp}::schedule_request_job	(	SOCKET	a_sock,
		UPnPsdk::SSockaddr &	clientAddr
	)

inline

Initilize the thread pool to handle an incomming request, sets priority for the job and adds the job to the thread pool.

Parameters

[in]	a_sock	Socket Descriptor on which connection is accepted.
[in]	clientAddr	Ctrlpnt address object.

Definition at line 468 of file miniserver.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

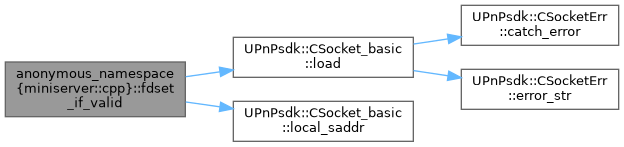

◆ fdset_if_valid()

void anonymous_namespace{miniserver.cpp}::fdset_if_valid	(	SOCKET	a_sock,
		fd_set *	a_set
	)

Add a socket file descriptor to an 'fd_set' structure as needed for ::select().

a_set may already contain file descriptors. The given a_sock is added to the set. It is ensured that ::select() is not fed with invalid socket file descriptors, in particular with the EBADF error. That could mean: closed socket, or an other network error was detected before adding to the set. It checks that we do not use closed or unbind sockets. It also has a guard that we do not exceed the maximum number FD_SETSIZE (1024) of selectable file descriptors, as noted in "man select".

Returns

Nothing. Not good, but needed for compatibility.
You can check if a_sock was added to a_set. There are messages to stderr if verbose logging is enabled.

Parameters

[in]	a_sock	socket file descriptor.
[out]	a_set	Pointer to an `'fd_set'` structure as needed for `::select()`. The structure is modified as documented for `::select()`.

Definition at line 531 of file miniserver.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

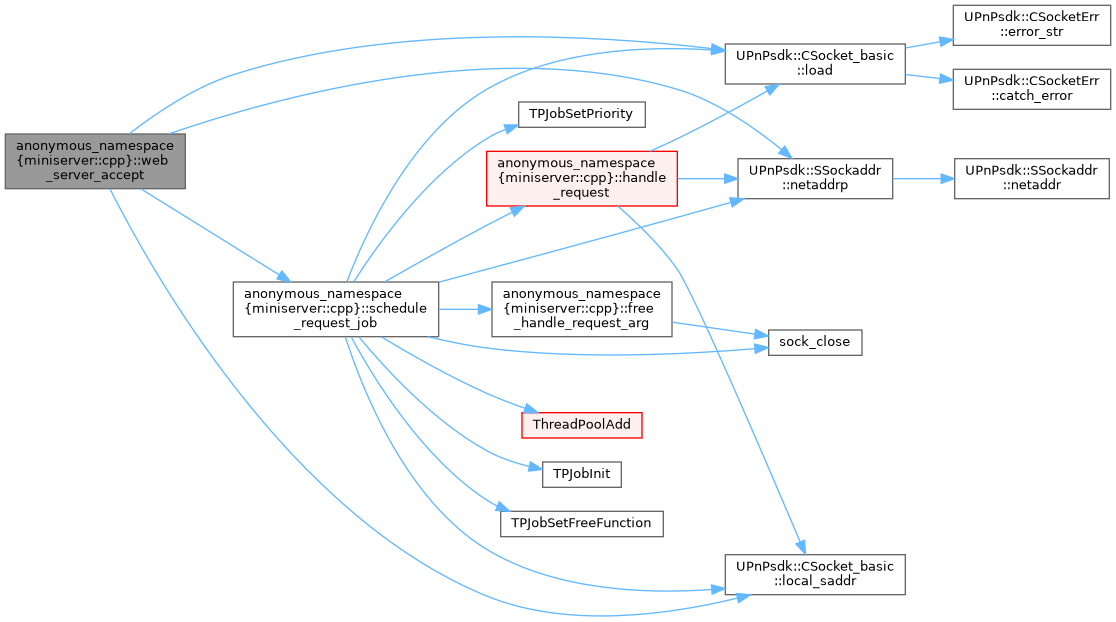

◆ web_server_accept()

int anonymous_namespace{miniserver.cpp}::web_server_accept	(	SOCKET	listen_sock,
		fd_set &	set
	)

Accept requested connection from a remote control point and run it in a new thread.

Returns

On success: UPNP_E_SUCCESS
On error:

UPNP_E_NO_WEB_SERVER
UPNP_E_SOCKET_ERROR
UPNP_E_SOCKET_ACCEPT

Parameters

[in]	listen_sock	File descriptor of socket that is listening on incomming requests.
[out]	set	Reference to a file descriptor set as needed for ::select().

Definition at line 580 of file miniserver.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

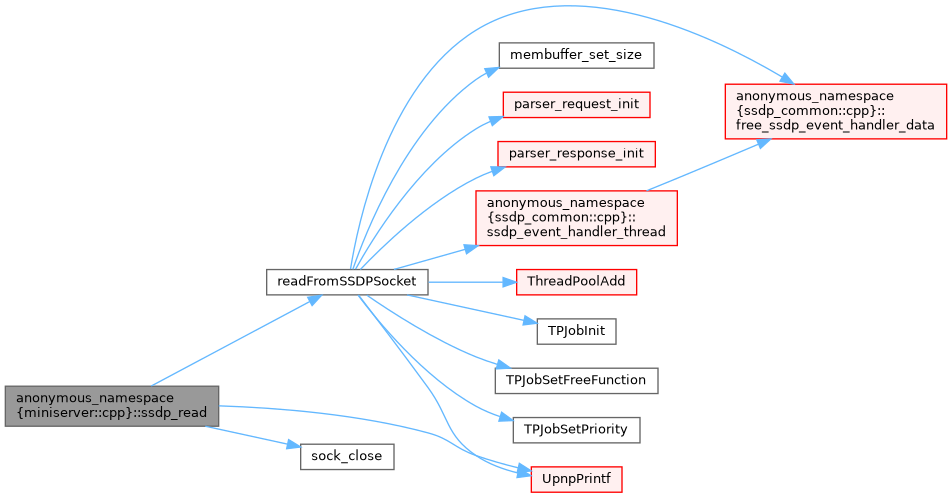

◆ ssdp_read()

void anonymous_namespace{miniserver.cpp}::ssdp_read	(	SOCKET *	rsock,
		fd_set *	set
	)

Read data from the SSDP socket.

Parameters

[in]	rsock	Pointer to a Socket file descriptor.
[in]	set	Pointer to a file descriptor set as needed for ::select().

Definition at line 636 of file miniserver.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ receive_from_stopSock()

int anonymous_namespace{miniserver.cpp}::receive_from_stopSock	(	SOCKET	ssock,
		fd_set *	set
	)

Check if we have received a packet that shall stop the miniserver.

The received datagram must exactly match the shutdown_str from 127.0.0.1. This is a security issue to avoid that the UPnPlib can be terminated from a remote ip address. Receiving 0 bytes on a datagram (there's a datagram here) indicates that a zero-length datagram was successful sent. This will not stop the miniserver.

Returns

1 - when the miniserver shall be stopped,
0 - otherwise.

Parameters

[in]	ssock	Socket file descriptor.
[in]	set	Pointer to a file descriptor set as needed for ::select().

Definition at line 672 of file miniserver.cpp.

Here is the caller graph for this function:

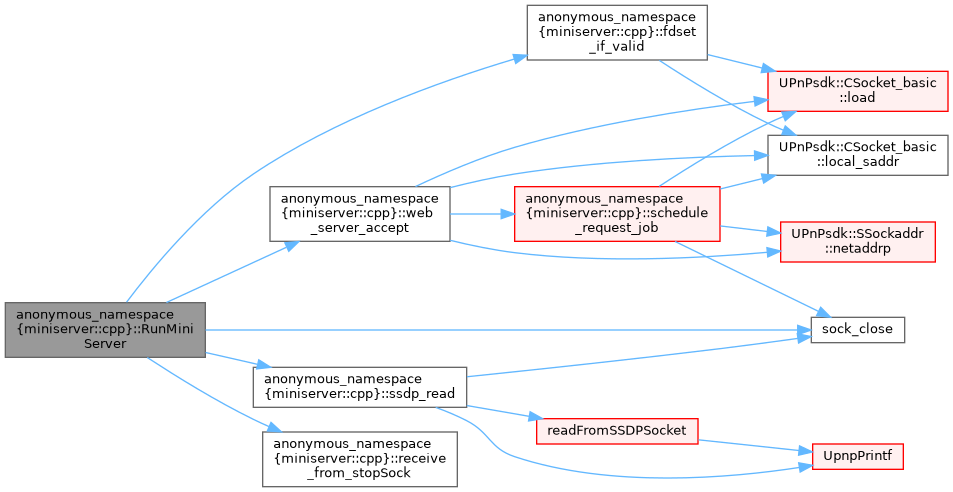

◆ RunMiniServer()

void anonymous_namespace{miniserver.cpp}::RunMiniServer ( MiniServerSockArray * miniSock )

Run the miniserver.

The MiniServer accepts a new request and schedules a thread to handle the new request. It checks for socket state and invokes appropriate read and shutdown actions for the Miniserver and SSDP sockets. This function itself runs in its own thread.

Attention: The miniSock parameter must be allocated on the heap before calling the function because it is freed by it.

Parameters

[in] miniSock Pointer to an Array containing valid sockets associated with different tasks like listen on a local interface for requests from control points or handle ssdp communication to a remote UPnP node.

Definition at line 735 of file miniserver.cpp.

Here is the call graph for this function:

◆ RunMiniServer_f()

void anonymous_namespace{miniserver.cpp}::RunMiniServer_f ( MiniServerSockArray * miniSock )

Global list to track active socket connections

Definition at line 907 of file miniserver.cpp.

Here is the caller graph for this function:

◆ get_port()

int anonymous_namespace{miniserver.cpp}::get_port	(	SOCKET	sockfd,
		uint16_t *	port
	)

Returns port to which socket, sockfd, is bound.

Returns: On success: 0
On error: -1 with unmodified system error (errno or WSAGetLastError()).

Parameters

[in]	sockfd	Socket descriptor.
[out]	port	The port value if successful, otherwise, untouched.

Definition at line 919 of file miniserver.cpp.

Here is the caller graph for this function:

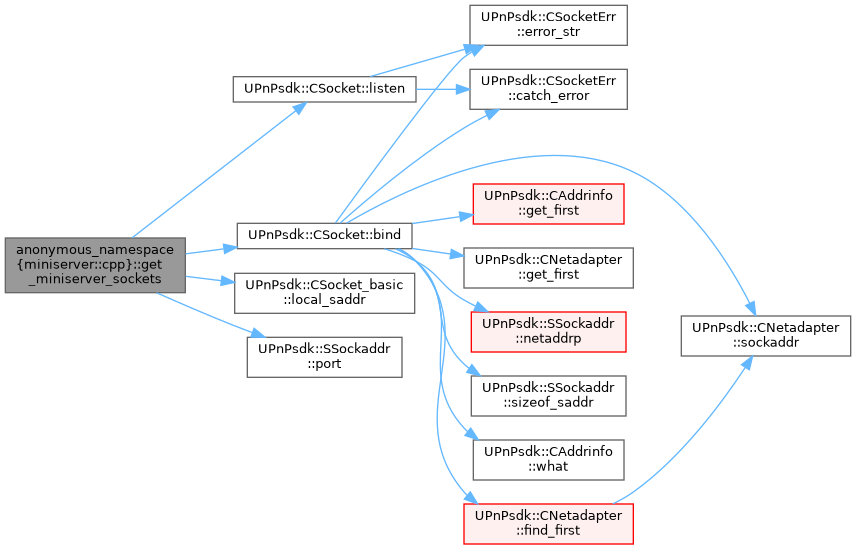

◆ get_miniserver_sockets()

int anonymous_namespace{miniserver.cpp}::get_miniserver_sockets	(	MiniServerSockArray *	out,
		in_port_t	listen_port4,
		in_port_t	listen_port6,
		in_port_t	listen_port6UlaGua
	)

Create STREAM sockets, binds to local network interfaces and listens for incoming connections.

This is part of starting the miniserver and only available with the webserver compiled in.

Returns

On success: UPNP_E_SUCCESS
On error:

UPNP_E_OUTOF_SOCKET - Failed to create a socket.
UPNP_E_SOCKET_BIND - Bind() failed.
UPNP_E_LISTEN - Listen() failed.
UPNP_E_INTERNAL_ERROR - Port returned by the socket layer is < 0.

Parameters

[out]	out	Pointer to a Socket Array that following members will be filled: .miniServerSock6 .miniServerPort6 .miniServerSock6UlaGua .miniServerPort6UlaGua .miniServerSock4 .miniServerPort4
[in]	listen_port4	port on which the UPnP Device shall listen for incoming IPv4 connections. If 0 then an available port number from the operating system is returned in out.
[in]	listen_port6	port on which the UPnP Device shall listen for incoming IPv6 LLA connections. If 0 then an available port number from the operating system is returned in out.
[in]	listen_port6UlaGua	port on which the UPnP Device shall listen for incoming IPv6 GUA connections. If 0 then an available port number from the operating system is returned in *out.

Definition at line 963 of file miniserver.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ get_miniserver_stopsock()

int anonymous_namespace{miniserver.cpp}::get_miniserver_stopsock ( MiniServerSockArray * out )

Creates the miniserver STOP socket, usable to listen for stopping the miniserver.

This datagram socket is created and bound to "localhost". It does not listen now but will later be used to listen on to know when it is time to stop the Miniserver.

Returns

On success: UPNP_E_SUCCESS
On error:

UPNP_E_OUTOF_SOCKET: Failed to create a socket.
UPNP_E_SOCKET_BIND: Bind() failed.
UPNP_E_INTERNAL_ERROR: Port returned by the socket layer is < 0.

Parameters

[out] out Fills the socket file descriptor and the port it is bound to into the structure.

Definition at line 1076 of file miniserver.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ InitMiniServerSockArray()

void anonymous_namespace{miniserver.cpp}::InitMiniServerSockArray ( MiniServerSockArray * miniSocket )

Initialize a miniserver Socket Array.

Parameters

miniSocket Pointer to a miniserver Socket Array.

Definition at line 1124 of file miniserver.cpp.

Here is the caller graph for this function:

Variable Documentation

◆ miniStopSockPort

in_port_t anonymous_namespace{miniserver.cpp}::miniStopSockPort

Port of the stop socket.

With starting the miniserver there is also this port registered. Its socket is listing for a "ShutDown" message from a local network address (localhost). This is used to stop the miniserver from another thread.

Definition at line 89 of file miniserver.cpp.

◆ gMServState

MiniServerState anonymous_namespace{miniserver.cpp}::gMServState {MSERV_IDLE}

miniserver state

Definition at line 92 of file miniserver.cpp.

◆ gSoapCallback

MiniServerCallback anonymous_namespace{miniserver.cpp}::gSoapCallback {nullptr}

SOAP callback.

Definition at line 97 of file miniserver.cpp.

◆ gGenaCallback

MiniServerCallback anonymous_namespace{miniserver.cpp}::gGenaCallback {nullptr}

GENA callback.

Definition at line 99 of file miniserver.cpp.

◆ gActiveConnections

LinkedList anonymous_namespace{miniserver.cpp}::gActiveConnections

static

Global list to track active socket connections

Definition at line 105 of file miniserver.cpp.

◆ gActiveConnectionsMutex

pthread_mutex_t anonymous_namespace{miniserver.cpp}::gActiveConnectionsMutex

static

Global list to track active socket connections

Definition at line 106 of file miniserver.cpp.

◆ gActiveConnectionsInitialized

int anonymous_namespace{miniserver.cpp}::gActiveConnectionsInitialized = 0

static

Global list to track active socket connections

Definition at line 107 of file miniserver.cpp.

UPnPsdk 0.1 Universal Plug and Play +, Software Development Kit

Classes

Enumerations

Variables

Scope restricted to file

Class Documentation

◆ anonymous_namespace{miniserver.cpp}::active_connection_t

◆ anonymous_namespace{miniserver.cpp}::mserv_request_t

Enumeration Type Documentation

◆ MiniServerState

Function Documentation

◆ active_connection_cmp()

◆ add_active_connection()

◆ remove_active_connection()

◆ shutdown_all_active_connections()

◆ host_header_is_numeric()

◆ getNumericHostRedirection()

◆ dispatch_request()

◆ free_handle_request_arg()

◆ handle_request()

◆ schedule_request_job()

◆ fdset_if_valid()

◆ web_server_accept()

◆ ssdp_read()

◆ receive_from_stopSock()

◆ RunMiniServer()

◆ RunMiniServer_f()

◆ get_port()

◆ get_miniserver_sockets()

◆ get_miniserver_stopsock()

◆ InitMiniServerSockArray()

Variable Documentation

◆ miniStopSockPort

◆ gMServState

◆ gSoapCallback

◆ gGenaCallback

◆ gActiveConnections

◆ gActiveConnectionsMutex

◆ gActiveConnectionsInitialized
