Items for control points to manage UPnP Control. More...

#include <soap_common.hpp>
#include <soap_ctrlpt.hpp>
#include <httpreadwrite.hpp>
#include <parsetools.hpp>
#include <statcodes.hpp>
#include <upnpapi.hpp>

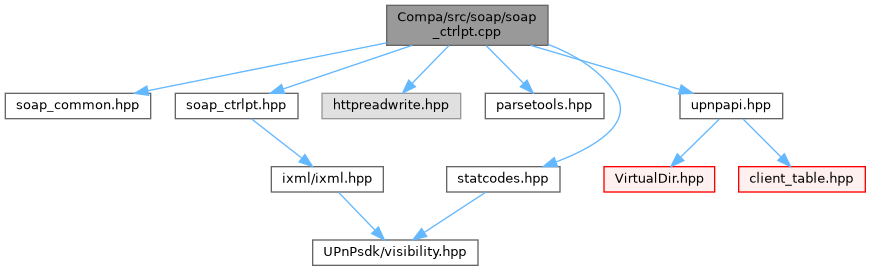

Include dependency graph for soap_ctrlpt.cpp:

Go to the source code of this file.

Functions
int	SoapSendAction (char action_url, char service_type, IXML_Document action_node, IXML_Document *response_node)
	This function is called by UPnP API to send the SOAP action request.

int	SoapSendActionEx (char action_url, char service_type, IXML_Document header, IXML_Document action_node, IXML_Document **response_node)
	This extended function is called by UPnP API to send the SOAP action request.

int	SoapGetServiceVarStatus (char action_url, DOMString var_name, DOMString var_value)
	This function creates a status variable query message send it to the specified URL. It also collect the response.

Functions scope restricted to file
int	anonymous_namespace{soap_ctrlpt.cpp}::dom_cmp_name (const char name, IXML_Node node)
	Compares 'name' and node's name.

int	anonymous_namespace{soap_ctrlpt.cpp}::dom_find_node (const char node_name, IXML_Node start_node, IXML_Node **matching_node)
	Goes thru each child of 'start_node' looking for a node having the name 'node_name'.

int	anonymous_namespace{soap_ctrlpt.cpp}::dom_find_deep_node (const char names[], int num_names, IXML_Node start_node, IXML_Node **matching_node)
	Searches for the node specifed by the last name in the 'name' array.

const DOMString	anonymous_namespace{soap_ctrlpt.cpp}::get_node_value (IXML_Node *node)
	This function returns the value of the text node.

int	anonymous_namespace{soap_ctrlpt.cpp}::get_host_and_path (char ctrl_url, const memptr host, const memptr path, uri_type url)
	This function retrives the host and path from the control URL.

int	anonymous_namespace{soap_ctrlpt.cpp}::get_action_name (char action, memptr name)
	This function retrives the action name in the buffer.

int	anonymous_namespace{soap_ctrlpt.cpp}::add_man_header (membuffer *headers)
	Adds "MAN" field in the HTTP header.

int	anonymous_namespace{soap_ctrlpt.cpp}::soap_request_and_response (membuffer request, uri_type destination_url, http_parser_t *response)
	This function sends the control point's request to the device and receives a response from it.

int	anonymous_namespace{soap_ctrlpt.cpp}::get_response_value (http_message_t hmsg, int code, char name, int upnp_error_code, IXML_Node action_value, DOMString str_value)
	This function handles the response coming back from the device.

Variables
Variable scope restricted to file
constexpr int	anonymous_namespace{soap_ctrlpt.cpp}::SOAP_ACTION_RESP {1}
	Control point SOAP status.

constexpr int	anonymous_namespace{soap_ctrlpt.cpp}::SOAP_VAR_RESP {2}
	Control point SOAP status.

constexpr int	anonymous_namespace{soap_ctrlpt.cpp}::SOAP_ACTION_RESP_ERROR {3}
	Control point SOAP status.

constexpr int	anonymous_namespace{soap_ctrlpt.cpp}::SOAP_VAR_RESP_ERROR {4}
	Control point SOAP status.

Detailed Description

Items for control points to manage UPnP Control.

This is only available if the option for Clients and the option for SOAP is enabled with compiling the library.

Definition in file soap_ctrlpt.cpp.

Function Documentation

◆ SoapSendAction()

int SoapSendAction	(	char *	action_url,
		char *	service_type,
		IXML_Document *	action_node,
		IXML_Document **	response_node
	)

This function is called by UPnP API to send the SOAP action request.

It waits till it gets the response from the device pass the response to the API layer.

Returns

On success: UPNP_E_SUCCESS
On error:

UPNP_E_OUTOF_MEMORY
UPNP_E_INVALID_ACTION
UPNP_E_INVALID_URL
UPNP_E_SOCKET_ERROR
UPNP_E_SOCKET_CONNECT
UPNP_E_FILE_READ_ERROR
UPNP_E_TIMEDOUT
UPNP_E_SOCKET_WRITE
UPNP_E_BAD_HTTPMSG
may have additional error codes

Parameters

[in]	action_url	device contrl URL.
[in]	service_type	device service type.
[in]	action_node	SOAP action node.
[out]	response_node	SOAP response node.

Definition at line 490 of file soap_ctrlpt.cpp.

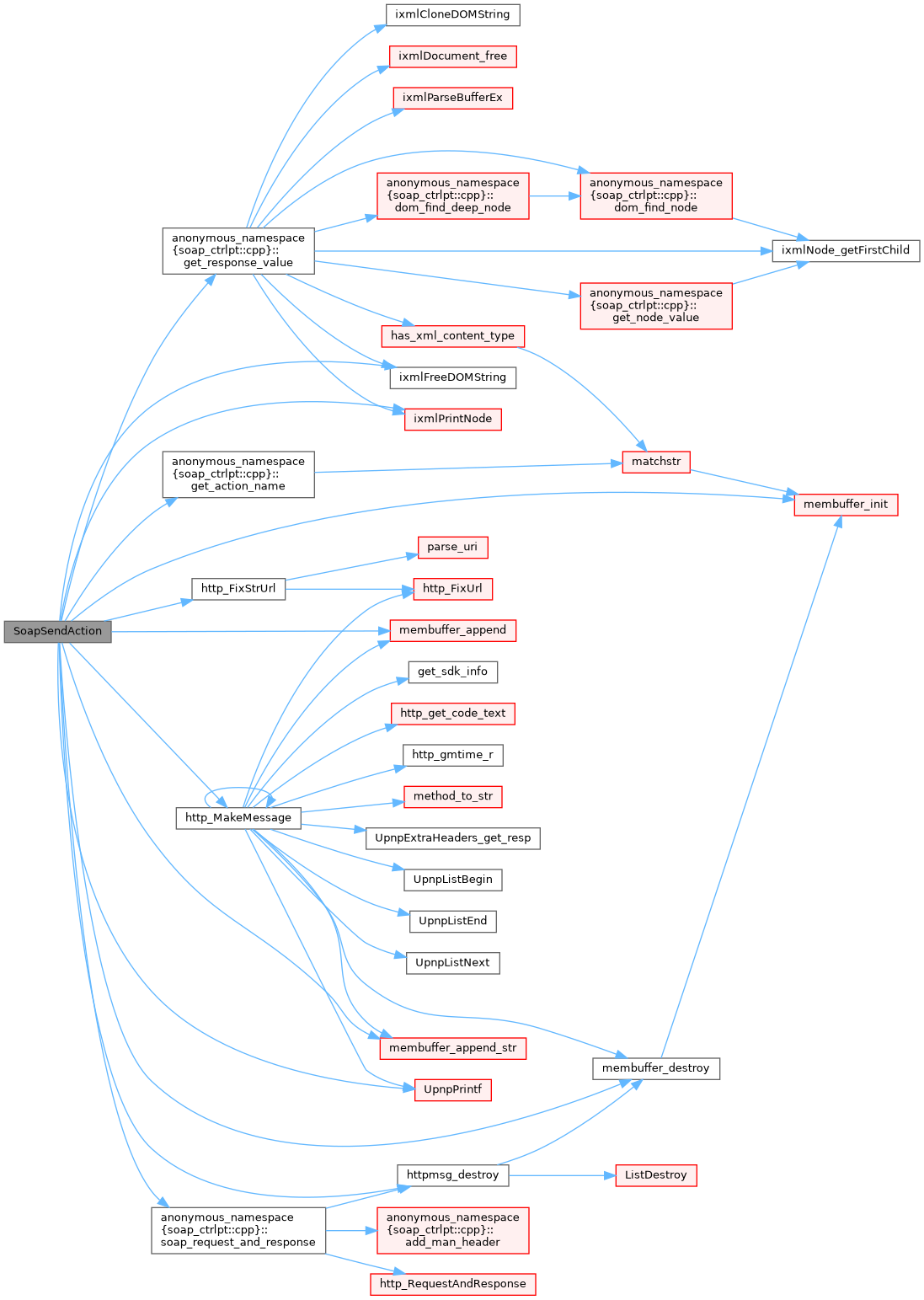

Here is the call graph for this function:

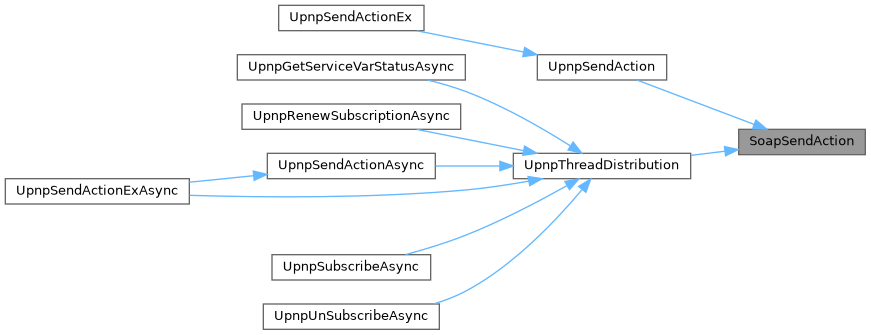

Here is the caller graph for this function:

◆ SoapSendActionEx()

int SoapSendActionEx	(	char *	action_url,
		char *	service_type,
		IXML_Document *	header,
		IXML_Document *	action_node,
		IXML_Document **	response_node
	)

This extended function is called by UPnP API to send the SOAP action request.

The function waits till it gets the response from the device pass the response to the API layer. This action is similar to the SoapSendAction() with only difference that it allows users to pass the SOAP header along the SOAP body (soap action request).

Returns

On success: UPNP_E_SUCCESS
On error:

UPNP_E_BAD_RESPONSE
UPNP_E_OUTOF_MEMORY
UPNP_E_INVALID_ACTION
UPNP_E_INVALID_URL
UPNP_E_SOCKET_ERROR
UPNP_E_SOCKET_CONNECT
UPNP_E_FILE_READ_ERROR
UPNP_E_TIMEDOUT
UPNP_E_SOCKET_WRITE
UPNP_E_BAD_HTTPMSG
SOAP_ACTION_RESP
SOAP_VAR_RESP
SOAP_VAR_RESP_ERROR
SOAP_ACTION_RESP_ERROR
HTTP error codes >400

Parameters

[in]	action_url	device contrl URL.
[in]	service_type	device service type.
[in]	header	Soap header.
[in]	action_node	SOAP action node (SOAP body).
[out]	response_node	SOAP response node.

Definition at line 605 of file soap_ctrlpt.cpp.

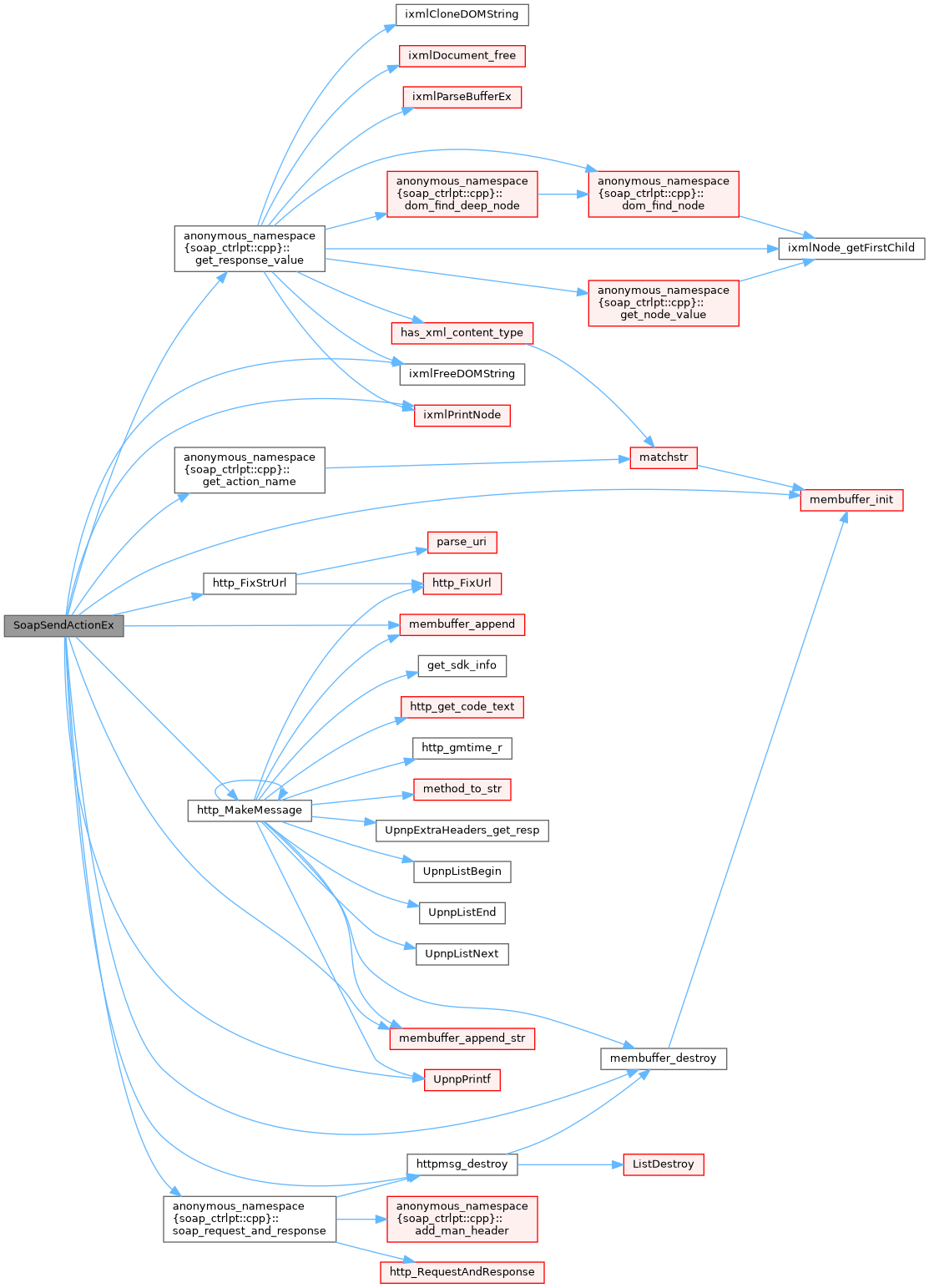

Here is the call graph for this function:

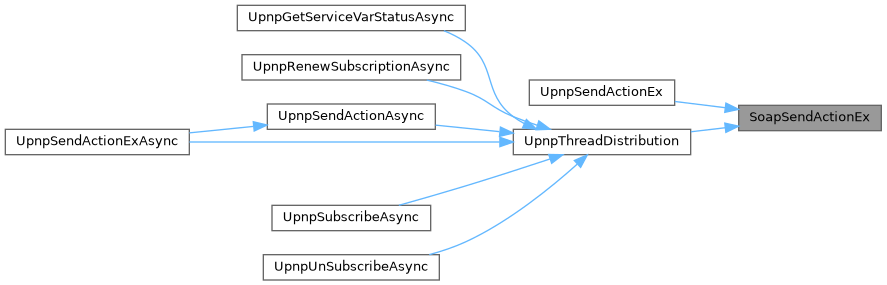

Here is the caller graph for this function:

◆ SoapGetServiceVarStatus()

int SoapGetServiceVarStatus	(	char *	action_url,
		DOMString	var_name,
		DOMString *	var_value
	)

This function creates a status variable query message send it to the specified URL. It also collect the response.

Returns

On success: UPNP_E_SUCCESS
On error:

UPNP_E_SOCKET_ERROR
UPNP_E_SOCKET_CONNECT
UPNP_E_OUTOF_MEMORY
UPNP_E_FILE_READ_ERROR
UPNP_E_TIMEDOUT
UPNP_E_SOCKET_WRITE
UPNP_E_BAD_HTTPMSG
UPNP_E_BAD_RESPONSE
SOAP_ACTION_RESP
SOAP_VAR_RESP
SOAP_VAR_RESP_ERROR
SOAP_ACTION_RESP_ERROR
HTTP error codes >400

Todo:: Returned error message IDs are ambiguous. Fix it.

Todo:: Verify the bug in the source code of this function with a unit test.

Parameters

[in]	action_url	Address to send this variable query message.
[in]	var_name	Name of the variable.
[out]	var_value	Output value.

Definition at line 748 of file soap_ctrlpt.cpp.

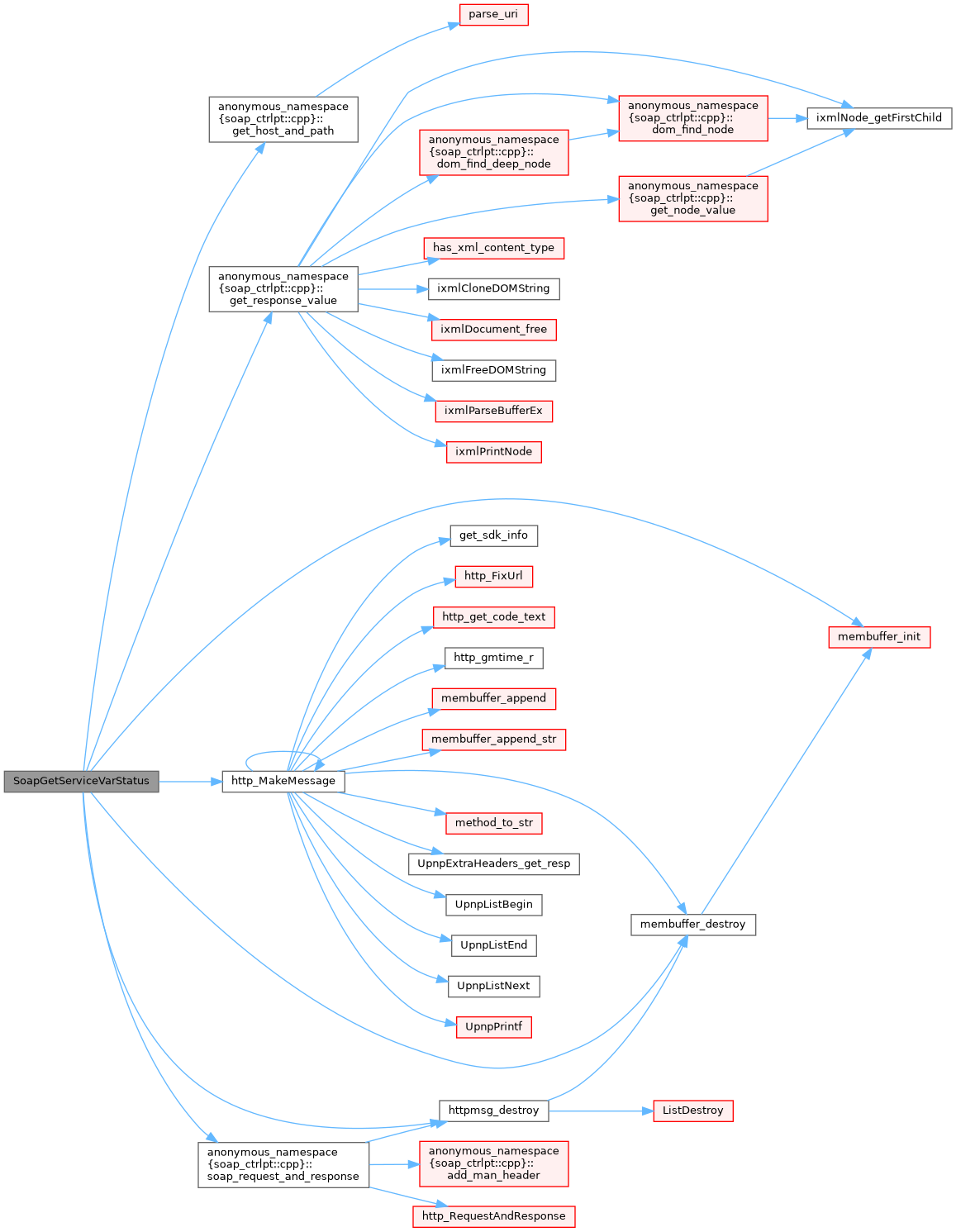

Here is the call graph for this function:

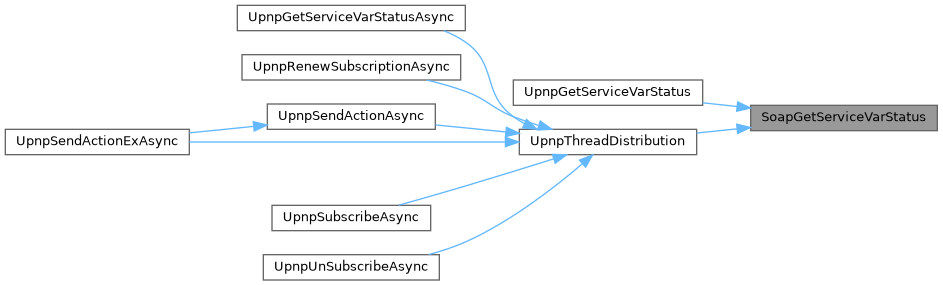

Here is the caller graph for this function:
