webserver.cpp File Reference

Internal Web Server and functions to carry out operations of it. More...

#include <webserver.hpp>
#include <UpnpExtraHeaders.hpp>
#include <UpnpIntTypes.hpp>
#include <httpreadwrite.hpp>
#include <ssdp_common.hpp>
#include <statcodes.hpp>
#include <upnpapi.hpp>
#include <UPnPsdk/synclog.hpp>
#include <UPnPsdk/port.hpp>
#include <UPnPsdk/webserver.hpp>
#include <umock/stdlib.hpp>
#include <umock/stdio.hpp>

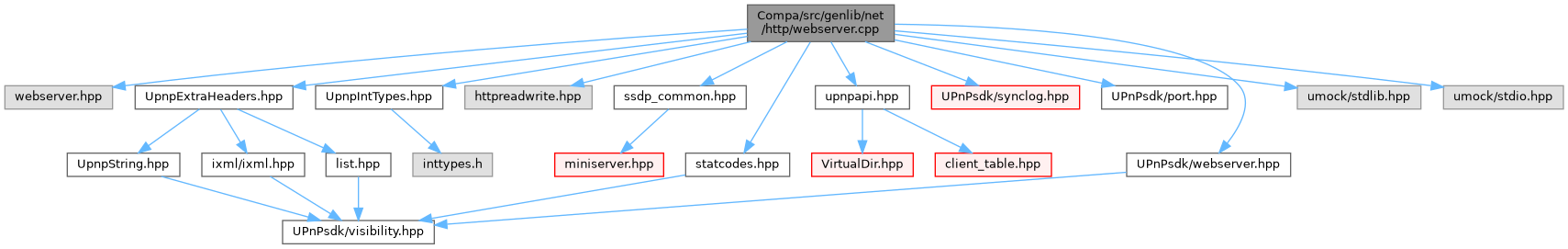

Include dependency graph for webserver.cpp:

Go to the source code of this file.

Classes
struct	compa::anonymous_namespace{webserver.cpp}::CXmlAlias
	Alias directory structure on the webserver for an XML document. More...

Namespaces
namespace	compa
	Refactored pupnp program code that is compatible to the original pupnp code.

Enumerations
enum	compa::anonymous_namespace{webserver.cpp}::resp_type {   RESP_UNSPEC , RESP_FILEDOC , RESP_XMLDOC , RESP_HEADERS ,   RESP_WEBDOC , RESP_POST }
	Response Types. More...

Functions
void	web_server_init ()
	Initilialize root directory for web server and different documents.
int	web_server_set_alias (const char *a_alias_name, const char *a_alias_content, size_t a_alias_content_length, time_t a_last_modified)
	Replaces current alias with the given alias.
int	web_server_set_root_dir (const char *root_dir)
	Assign the path to the global Document root directory.
int	web_server_set_cors (const char *cors_string)
	Assign the Access-Control-Allow-Origin specfied by the input const char* cors_string parameterto the global CORS string.
void	web_server_callback (http_parser_t *a_parser, http_message_t *a_req, SOCKINFO *a_info)
	Main entry point into web server.
void	SetHTTPGetCallback (MiniServerCallback callback)
	Set HTTP Get Callback.
void	web_server_destroy ()
	Release memory allocated for the global web server root directory and the global XML document.
Scope restricted to file
char *	compa::anonymous_namespace{webserver.cpp}::web_server_asctime_r (const struct tm *tm, char *buf)
	Multiplatform wrapper to make win32 asctime_s compatible to posix asctime_r.
int	compa::anonymous_namespace{webserver.cpp}::search_extension (const char *a_extension, const char **a_con_type, const char **a_con_subtype)
	Based on the extension, returns the content type and content subtype.
int	compa::anonymous_namespace{webserver.cpp}::get_content_type (const char *filename, UpnpFileInfo *fileInfo)
	Based on the extension of the filename, clones an XML string based on type and content subtype.
int	compa::anonymous_namespace{webserver.cpp}::get_file_info (const char *filename, UpnpFileInfo *info)
	Get file information.
int	compa::anonymous_namespace{webserver.cpp}::get_alias (const char *request_file, CXmlAlias *alias, UpnpFileInfo *info)
	Compare file names.
int	compa::anonymous_namespace{webserver.cpp}::isFileInVirtualDir (char *filePath, const void **cookie)
	Compares filePath with paths from the list of virtual directory lists.
void	compa::anonymous_namespace{webserver.cpp}::ToUpperCase (char *s)
	Converts C string in place to upper case.
char *	compa::anonymous_namespace{webserver.cpp}::StrStr (char *s1, const char *s2)
	Finds a substring from a string in a case insensitive way.
char *	compa::anonymous_namespace{webserver.cpp}::StrTok (char **Src, const char *Del)
	Finds next token in a string.
int	compa::anonymous_namespace{webserver.cpp}::GetNextRange (char **SrcRangeStr, off_t *FirstByte, off_t *LastByte)
	Returns a range of integers from a string.
int	compa::anonymous_namespace{webserver.cpp}::CreateHTTPRangeResponseHeader (char *ByteRangeSpecifier, off_t FileLength, struct SendInstruction *Instr)
	Fills in the Offset, read size and contents to send out as an HTTP Range Response.
int	compa::anonymous_namespace{webserver.cpp}::CheckOtherHTTPHeaders (http_message_t *Req, struct SendInstruction *RespInstr, off_t FileSize)
	Get header id from the request parameter.
void	compa::anonymous_namespace{webserver.cpp}::FreeExtraHTTPHeaders (UpnpListHead *extraHeadersList)
	Free extra HTTP headers.
int	compa::anonymous_namespace{webserver.cpp}::ExtraHTTPHeaders (http_message_t *Req, UpnpListHead *extraHeadersList)
	Build an array of unrecognized headers.
int	compa::anonymous_namespace{webserver.cpp}::process_request_in (SOCKINFO *info, http_message_t *req, enum resp_type *rtype, membuffer *headers, membuffer *filename, CXmlAlias *a_alias, SendInstruction *RespInstr)
	Process a remote request and return the result.
int	compa::anonymous_namespace{webserver.cpp}::http_RecvPostMessage (http_parser_t *parser, SOCKINFO *info, char *filename, struct SendInstruction *Instr)
	Receives the HTTP post message.

Variables
const char *	compa::anonymous_namespace{webserver.cpp}::gMediaTypes []
	Media types.
constexpr size_t	compa::anonymous_namespace{webserver.cpp}::APPLICATION_INDEX {4}
	index to get media type of application from the media types table.
constexpr size_t	compa::anonymous_namespace{webserver.cpp}::ASCTIME_R_BUFFER_SIZE {26}
	Number of elements for asctime_s on win32, means buffer size.
CXmlAlias	compa::anonymous_namespace{webserver.cpp}::gAliasDoc
	Global XML document object.

Detailed Description

Internal Web Server and functions to carry out operations of it.

Definition in file webserver.cpp.

Function Documentation

web_server_init()

void web_server_init

(

)

Initilialize root directory for web server and different documents.

Initilialize the different documents. Initialize the memory for root directory for web server. Sets bWebServerState to WEB_SERVER_ENABLED.

Definition at line 1518 of file webserver.cpp.

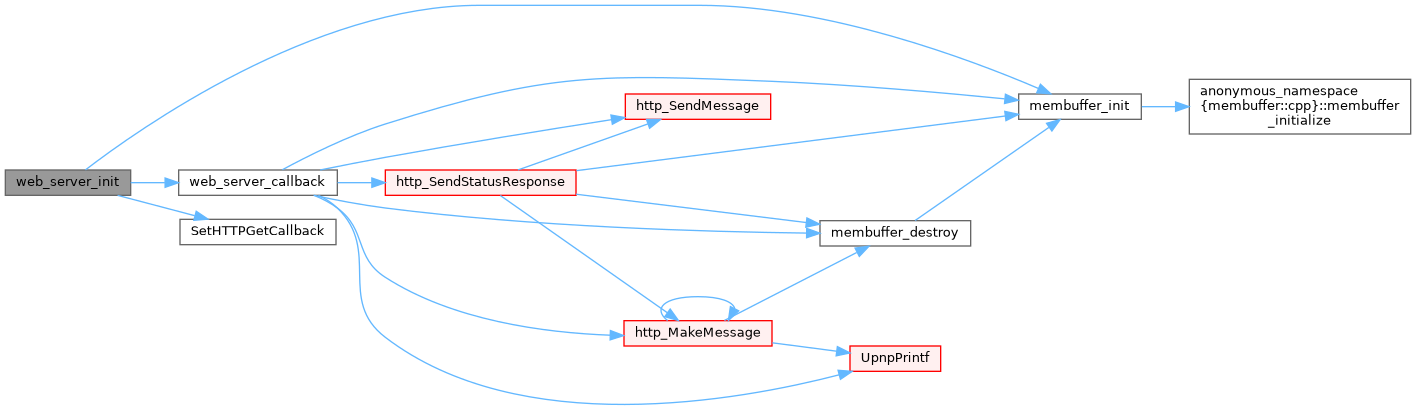

Here is the call graph for this function:

Here is the caller graph for this function:

web_server_set_alias()

int web_server_set_alias	(	const char *	a_alias_name,
		const char *	a_alias_content,
		size_t	a_alias_content_length,
		time_t	a_last_modified
	)

Replaces current alias with the given alias.

To remove the current alias, set a_alias_name to nullptr.

Returns

• UPNP_E_SUCCESS
• UPNP_E_INVALID_ARGUMENT

Parameters

[in]	a_alias_name	Pointer to webserver name of alias for a copy; the ownership of this C string with terminating '\0' remains by the caller. He is still responsible to manage it (e.g. deallocating if allocated etc.).
[in,out]	a_alias_content	Pointer to the xml doc. This string must be allocated by the caller. Ownership of this argument is then taken over by the web server to manage it, in particular also deallocate it. The caller hasn't to worry about memory management.
[in,out]	a_alias_content_length	Length of alias body in bytes. Document can also contain '\0' characters within its length.
[in]	a_last_modified	Time when contents of alias were last changed (local time).

Definition at line 1538 of file webserver.cpp.

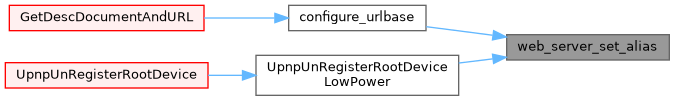

Here is the caller graph for this function:

web_server_set_root_dir()

int web_server_set_root_dir

(

const char *

root_dir

)

Assign the path to the global Document root directory.

Also check for path names ending in '/'.

Returns

On success: 0
On error:

• UPNP_E_INVALID_ARGUMENT
• UPNP_E_OUTOF_MEMORY

Parameters

[in]

root_dir

String having the root directory for the document.

Definition at line 1546 of file webserver.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

web_server_set_cors()

int web_server_set_cors

(

const char *

cors_string

)

Assign the Access-Control-Allow-Origin specfied by the input const char* cors_string parameterto the global CORS string.

Returns

Integer.

Parameters

[in]

cors_string

String having the Access-Control-Allow-Origin string.

Definition at line 1564 of file webserver.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

web_server_callback()

void web_server_callback	(	http_parser_t *	a_parser,
		http_message_t *	a_req,
		SOCKINFO *	a_info
	)

Main entry point into web server.

Handles HTTP GET and HEAD requests.

Parameters

[in]	a_parser	.
[in]	a_req	.
[in,out]	a_info	.

Definition at line 1574 of file webserver.cpp.

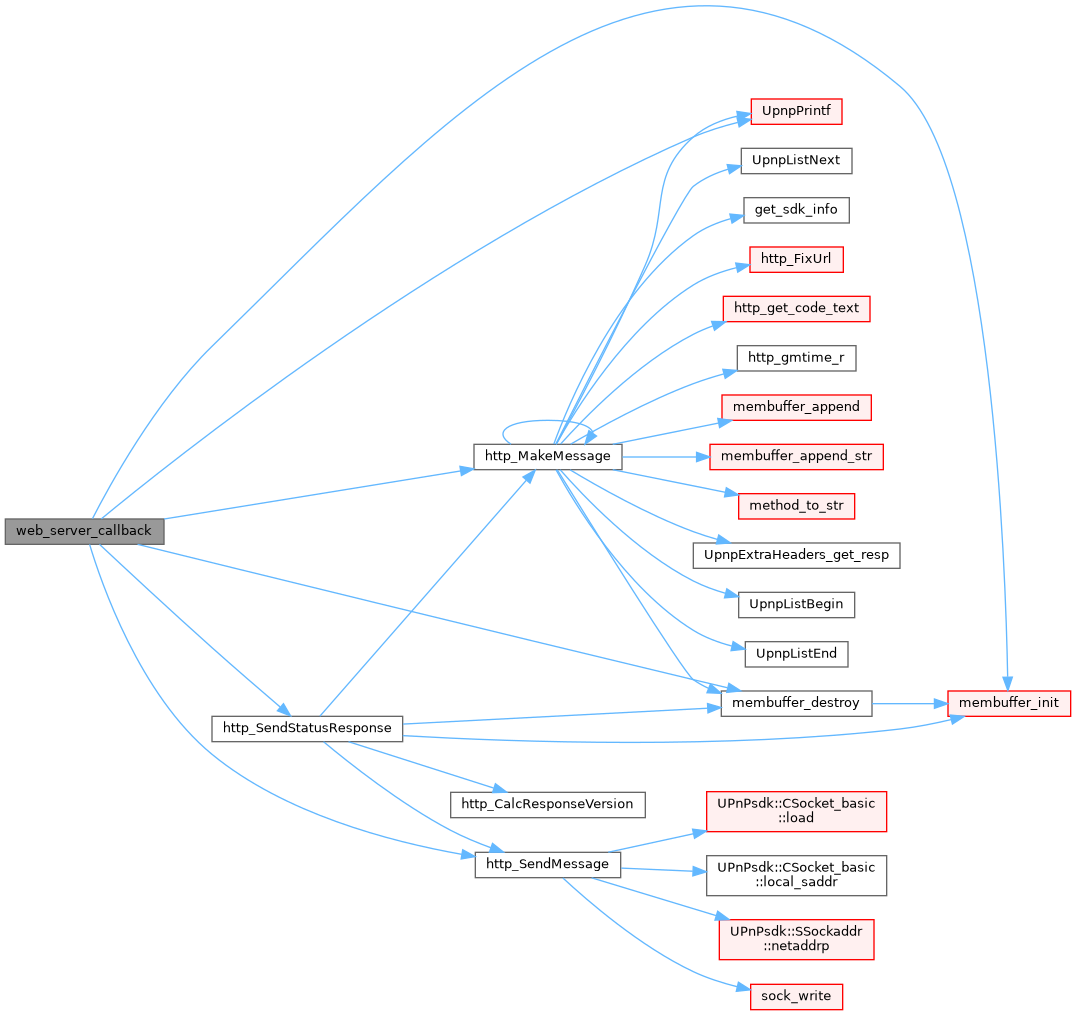

Here is the call graph for this function:

Here is the caller graph for this function:

SetHTTPGetCallback()

void SetHTTPGetCallback

(

MiniServerCallback

callback

)

Set HTTP Get Callback.

Parameters

[in]

callback

HTTP Callback to be invoked.

Definition at line 1645 of file webserver.cpp.

Here is the caller graph for this function:

web_server_destroy()

void web_server_destroy

(

)

Release memory allocated for the global web server root directory and the global XML document.

Resets the flag bWebServerState to WEB_SERVER_DISABLED.

Definition at line 1650 of file webserver.cpp.

Here is the call graph for this function:

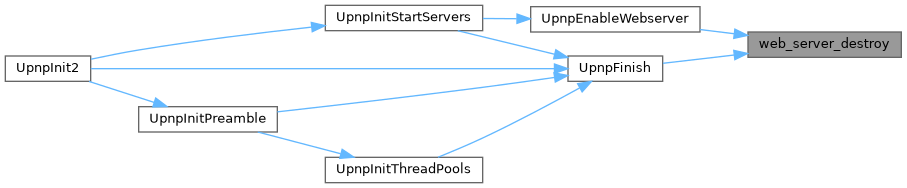

Here is the caller graph for this function:
