miniserver.cpp File Reference

Implements the functionality and utility functions used by the Miniserver module. More...

#include <miniserver.hpp>
#include <httpreadwrite.hpp>
#include <ssdp_common.hpp>
#include <statcodes.hpp>
#include <upnpapi.hpp>
#include <umock/sys_socket.hpp>
#include <umock/stdlib.hpp>
#include <umock/pupnp_miniserver.hpp>
#include <umock/pupnp_ssdp.hpp>

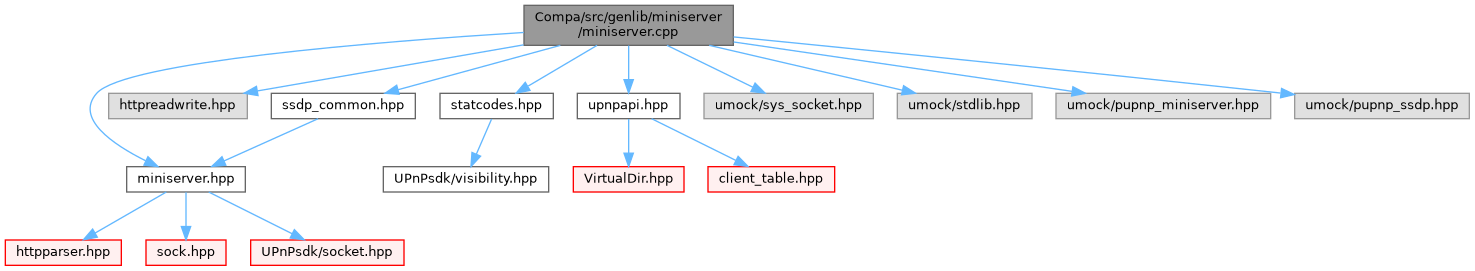

Include dependency graph for miniserver.cpp:

Go to the source code of this file.

Classes
struct	anonymous_namespace{miniserver.cpp}::mserv_request_t
	miniserver received request message. More...

Enumerations
enum	anonymous_namespace{miniserver.cpp}::MiniServerState { anonymous_namespace{miniserver.cpp}::MSERV_IDLE , anonymous_namespace{miniserver.cpp}::MSERV_RUNNING , anonymous_namespace{miniserver.cpp}::MSERV_STOPPING }
	miniserver state More...

Functions
void	SetSoapCallback (MiniServerCallback callback)
	Set SOAP Callback.
void	SetGenaCallback (MiniServerCallback callback)
	Set GENA Callback.
int	StartMiniServer (in_port_t *listen_port4, in_port_t *listen_port6, in_port_t *listen_port6UlaGua)
	Initialize the sockets functionality for the Miniserver.
int	StopMiniServer ()
	Stop and Shutdown the MiniServer and free socket resources.
Scope restricted to file
int	anonymous_namespace{miniserver.cpp}::host_header_is_numeric (char *a_host_port, size_t a_host_port_len)
	Check if a network address is numeric.
int	anonymous_namespace{miniserver.cpp}::getNumericHostRedirection (SOCKET a_socket, char *a_host_port, size_t a_hp_size)
	Returns the ip address with port as text that is bound to a socket.
int	anonymous_namespace{miniserver.cpp}::dispatch_request (SOCKINFO *a_info, http_parser_t *a_hparser)
	Based on the type of message, appropriate callback is issued.
void	anonymous_namespace{miniserver.cpp}::free_handle_request_arg (void *args)
	Free memory assigned for handling request and unitialize socket functionality.
void	anonymous_namespace{miniserver.cpp}::handle_request (void *args)
	Receive the request and dispatch it for handling.
void	anonymous_namespace{miniserver.cpp}::schedule_request_job (SOCKET a_connfd, UPnPsdk::SSockaddr &clientAddr)
	Initilize the thread pool to handle an incomming request, sets priority for the job and adds the job to the thread pool.
void	anonymous_namespace{miniserver.cpp}::fdset_if_valid (SOCKET a_sock, fd_set *a_set)
	Add a socket file descriptor to an 'fd_set' structure as needed for ::select().
int	anonymous_namespace{miniserver.cpp}::web_server_accept (SOCKET listen_sock, fd_set &set)
	Accept requested connection from a remote control point and run it in a new thread.
void	anonymous_namespace{miniserver.cpp}::ssdp_read (SOCKET *rsock, fd_set *set)
	Read data from the SSDP socket.
int	anonymous_namespace{miniserver.cpp}::receive_from_stopSock (SOCKET ssock, fd_set *set)
	Check if we have received a packet that shall stop the miniserver.
void	anonymous_namespace{miniserver.cpp}::RunMiniServer (MiniServerSockArray *miniSock)
	Run the miniserver.
void	anonymous_namespace{miniserver.cpp}::RunMiniServer_f (MiniServerSockArray *miniSock)
	Check if a network address is numeric.
int	anonymous_namespace{miniserver.cpp}::get_port (SOCKET sockfd, uint16_t *port)
	Returns port to which socket, sockfd, is bound.
int	anonymous_namespace{miniserver.cpp}::get_miniserver_sockets (MiniServerSockArray *out, in_port_t listen_port4, in_port_t listen_port6, in_port_t listen_port6UlaGua)
	Create STREAM sockets, binds to local network interfaces and listens for incoming connections.
int	anonymous_namespace{miniserver.cpp}::get_miniserver_stopsock (MiniServerSockArray *out)
	Creates the miniserver STOP socket, usable to listen for stopping the miniserver.
void	anonymous_namespace{miniserver.cpp}::InitMiniServerSockArray (MiniServerSockArray *miniSocket)
	Initialize a miniserver Socket Array.

Variables
in_port_t	anonymous_namespace{miniserver.cpp}::miniStopSockPort
	Port of the stop socket.
MiniServerState	anonymous_namespace{miniserver.cpp}::gMServState {MSERV_IDLE}
	miniserver state
MiniServerCallback	anonymous_namespace{miniserver.cpp}::gSoapCallback {nullptr}
	SOAP callback.
MiniServerCallback	anonymous_namespace{miniserver.cpp}::gGenaCallback {nullptr}
	GENA callback.

Detailed Description

Implements the functionality and utility functions used by the Miniserver module.

The miniserver is a central point for processing all network requests. It is made of:

• The HTTP listeners for description / control / eventing.
• The SSDP sockets for discovery.

Definition in file miniserver.cpp.

---

Class Documentation

anonymous_namespace{miniserver.cpp}::mserv_request_t

struct anonymous_namespace{miniserver.cpp}::mserv_request_t

miniserver received request message.

This defines the structure of a UPnP request that has income from a remote control point.

Definition at line 70 of file miniserver.cpp.

Class Members
SOCKET	connfd	Connection socket file descriptor.
sockaddr_storage	foreign_sockaddr	Socket address of the remote control point.

Function Documentation

SetSoapCallback()

void SetSoapCallback

(

MiniServerCallback

callback

)

Set SOAP Callback.

Parameters

[in]

callback

SOAP Callback to be invoked.

Definition at line 1029 of file miniserver.cpp.

Here is the caller graph for this function:

SetGenaCallback()

void SetGenaCallback

(

MiniServerCallback

callback

)

Set GENA Callback.

Parameters

[in]

callback

GENA Callback to be invoked.

Definition at line 1036 of file miniserver.cpp.

Here is the caller graph for this function:

StartMiniServer()

int StartMiniServer	(	in_port_t *	listen_port4,
		in_port_t *	listen_port6,
		in_port_t *	listen_port6UlaGua
	)

Initialize the sockets functionality for the Miniserver.

Initialize a thread pool job to run the MiniServer and the job to the thread pool. If a listening port is specified to 0, then the port number is dynamically picked. Use timer mechanism to start the MiniServer, failure to meet the allowed delay aborts the attempt to launch the MiniServer.

The three parameter are only used if we have also a webserver built in. The miniserver does not need them.

I use a simple random number generator for unspecified port numbers. This is needed because I do not reuse addresses before TIME_WAIT has expired (socket option SO_REUSEADDR = false). I must use different socket addresses to be able to restart a device immediately without TIME_WAIT and that is already given with different port numbers on the same ip address.

Returns

• On success: UPNP_E_SUCCESS

• On error: UPNP_E_*

Parameters

[in,out]	listen_port4	Port on which the server listens for incoming IPv4 connections.
[in,out]	listen_port6	Port on which the server listens for incoming IPv6 LLA connections.
[in,out]	listen_port6UlaGua	Port on which the server listens for incoming IPv6 ULA or GUA connections.

Definition at line 1042 of file miniserver.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

StopMiniServer()

int StopMiniServer

(

)

Stop and Shutdown the MiniServer and free socket resources.

Returns

Always returns 0.

Definition at line 1156 of file miniserver.cpp.

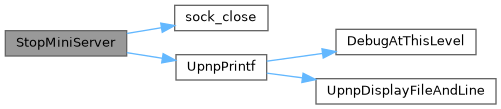

Here is the call graph for this function:

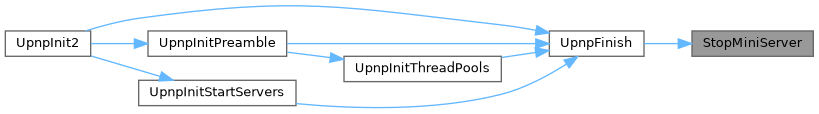

Here is the caller graph for this function:
