TimerThread.cpp File Reference

Manage threads that start at a given time (for internal use only). More...

#include "TimerThread.hpp"
#include <assert.h>

Include dependency graph for TimerThread.cpp:

Go to the source code of this file.

Classes
struct	anonymous_namespace{TimerThread.cpp}::TimerEvent
	Structure to contain information for a timer event. More...

Macros
#define	INVALID_EVENT_ID   (-10 & 1 << 29)
	Invalid event ID.

Functions
int	TimerThreadInit (TimerThread *timer, ThreadPool *tp)
	Initializes and starts timer thread.
int	TimerThreadSchedule (TimerThread *timer, time_t timeout, TimeoutType type, ThreadPoolJob *job, Duration duration, int *id)
	Schedules an event to run at a specified time.
int	TimerThreadRemove (TimerThread *timer, int id, ThreadPoolJob *out)
	Removes an event from the timer Q.
int	TimerThreadShutdown (TimerThread *timer)
	Shutdown the timer thread.
Scope restricted to file
TimerEvent *	anonymous_namespace{TimerThread.cpp}::CreateTimerEvent (TimerThread *timer, ThreadPoolJob *job, Duration persistent, time_t eventTime, int id)
	Creates a Timer Event.
void	anonymous_namespace{TimerThread.cpp}::FreeTimerEvent (TimerThread *timer, TimerEvent *event)
	Deallocates a dynamically allocated TimerEvent.
void	anonymous_namespace{TimerThread.cpp}::TimerThreadWorker (void *arg)
	Implements timer thread.
int	anonymous_namespace{TimerThread.cpp}::CalculateEventTime (time_t *timeout, TimeoutType type)
	Calculates the appropriate timeout in absolute seconds since Jan 1, 1970.

Detailed Description

Manage threads that start at a given time (for internal use only).

Because this is for internal use, parameters are NOT checked for validity. The caller must ensure valid parameters.

Definition in file TimerThread.cpp.

---

Class Documentation

anonymous_namespace{TimerThread.cpp}::TimerEvent

struct anonymous_namespace{TimerThread.cpp}::TimerEvent

Structure to contain information for a timer event.

Internal to the TimerThread.

Definition at line 58 of file TimerThread.cpp.

Collaboration diagram for anonymous_namespace{TimerThread.cpp}::TimerEvent:

Class Members
ThreadPoolJob	job
time_t	eventTime	Absolute time for event in seconds since Jan 1, 1970.
Duration	persistent	Long term or short term job.
int	id	Id of timer event. (can be null?).

Macro Definition Documentation

INVALID_EVENT_ID

#define INVALID_EVENT_ID   (-10 & 1 << 29)

Invalid event ID.

Definition at line 49 of file TimerThread.cpp.

Function Documentation

TimerThreadInit()

int TimerThreadInit	(	TimerThread *	timer,
		ThreadPool *	tp
	)

Initializes and starts timer thread.

Returns

On success: 0
On error: nonzero, returns error from ThreadPoolAddPersistent().

Parameters

[in]	timer	Valid timer thread pointer.
[in]	tp	Valid thread pool to use. Must be started. Must be valid for lifetime of timer. Timer must be shutdown BEFORE thread pool.

Definition at line 221 of file TimerThread.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

TimerThreadSchedule()

int TimerThreadSchedule	(	TimerThread *	timer,
		time_t	timeout,
		TimeoutType	type,
		ThreadPoolJob *	job,
		Duration	duration,
		int *	id
	)

Schedules an event to run at a specified time.

Returns

On success: 0
On error: nonzero

• EOUTOFMEM if not enough memory to schedule job.

Parameters

[in]	timer	Valid timer thread pointer.
[in]	timeout	time of event. Either in absolute seconds, or relative seconds in the future.
[in]	type	either ABS_SEC, or REL_SEC. If REL_SEC, then the event will be scheduled at the current time + REL_SEC.
[in]	job	Valid Thread pool job with following fields.
[in]	duration
[out]	id	Id of timer event. (can be null).

Definition at line 276 of file TimerThread.cpp.

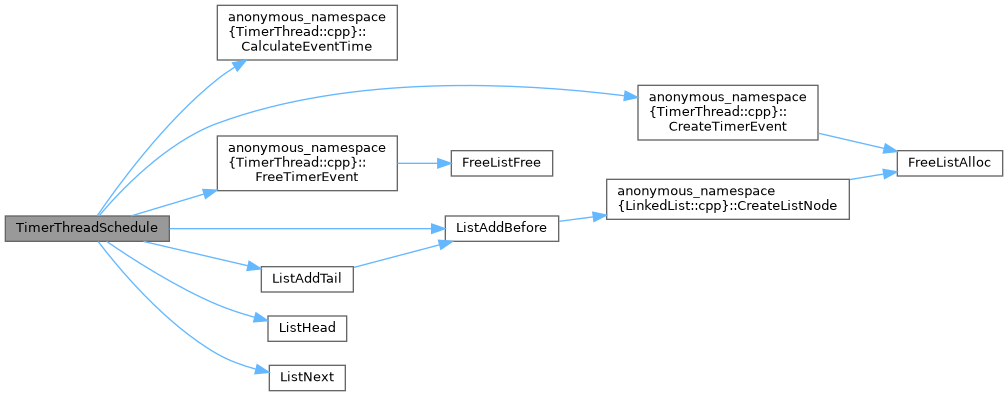

Here is the call graph for this function:

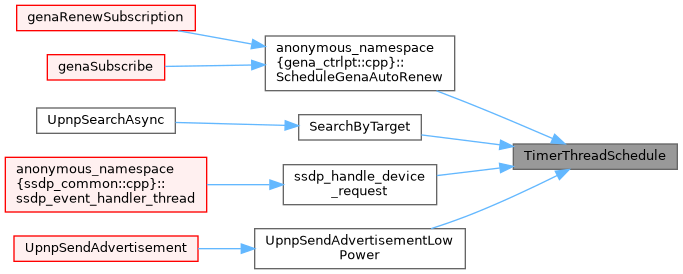

Here is the caller graph for this function:

TimerThreadRemove()

int TimerThreadRemove	(	TimerThread *	timer,
		int	id,
		ThreadPoolJob *	out
	)

Removes an event from the timer Q.

Events can only be removed before they have been placed in the thread pool.

Returns

On success: 0
On error: INVALID_EVENT_ID

Parameters

[in]	timer	Valid timer thread pointer.
[in]	id	Id of event to remove.
[out]	out	Thread pool job.

Definition at line 339 of file TimerThread.cpp.

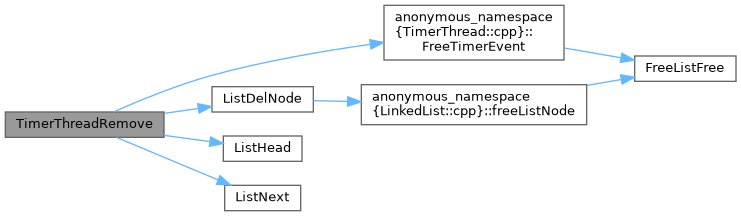

Here is the call graph for this function:

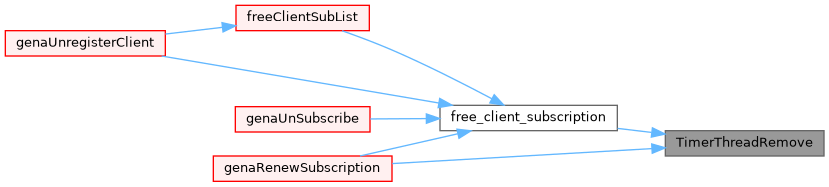

Here is the caller graph for this function:

TimerThreadShutdown()

int TimerThreadShutdown

(

TimerThread *

timer

)

Shutdown the timer thread.

Events scheduled in the future will NOT be run. Timer thread should be shutdown BEFORE it's associated thread pool.

Returns

Always 0

Parameters

[in]

timer

Valid timer thread pointer.

Definition at line 372 of file TimerThread.cpp.

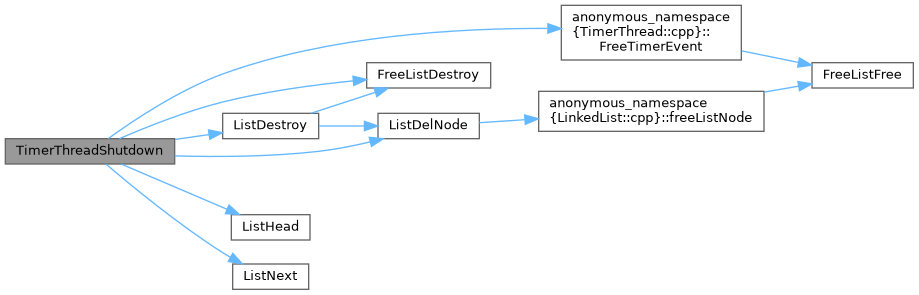

Here is the call graph for this function:

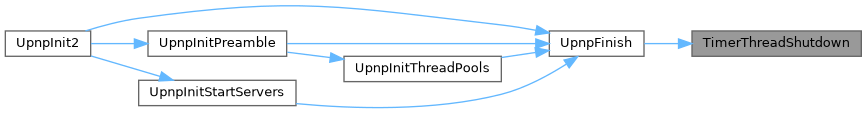

Here is the caller graph for this function:
