Manage GENA Devices. More...

#include <assert.h>
#include <gena.hpp>
#include <httpreadwrite.hpp>
#include <parsetools.hpp>
#include <ssdp_common.hpp>
#include <statcodes.hpp>
#include <unixutil.hpp>
#include <upnpapi.hpp>
#include <uuid.hpp>
#include <UpnpSubscriptionRequest.hpp>
#include <webserver.hpp>

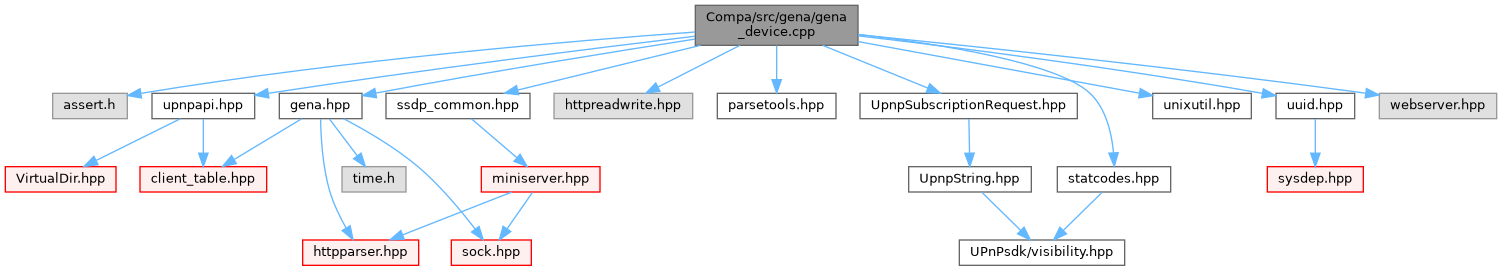

Include dependency graph for gena_device.cpp:

Go to the source code of this file.

Macros
#define	STALE_JOBID (INVALID_JOB_ID - 1)
	Invalid job id.

Functions
int	anonymous_namespace{gena_device.cpp}::GeneratePropertySet (char names, char values, int count, DOMString *out)
	Generates XML property set for notifications.

void	anonymous_namespace{gena_device.cpp}::free_notify_struct (void *input)
	Frees memory used in notify_threads if the reference count is 0, otherwise decrements the refrence count.

int	anonymous_namespace{gena_device.cpp}::notify_send_and_recv (uri_type destination_url, membuffer mid_msg, char propertySet, http_parser_t response)
	Sends the notify message and returns a reply.

int	anonymous_namespace{gena_device.cpp}::genaNotify (char headers, char propertySet, subscription *sub)
	Function to Notify a particular subscription of a particular event.

void	anonymous_namespace{gena_device.cpp}::genaNotifyThread (void *input)
	Thread job to Notify a control point.

char *	anonymous_namespace{gena_device.cpp}::AllocGenaHeaders (const DOMString propertySet)
	Allocates the GENA header.

int	anonymous_namespace{gena_device.cpp}::genaInitNotifyCommon (UpnpDevice_Handle device_handle, char UDN, char servId, DOMString propertySet, const Upnp_SID sid)
	We take ownership of propertySet and will free it.

void	anonymous_namespace{gena_device.cpp}::maybeDiscardEvents (LinkedList *listp)
	This gets called before queuing a new event.

int	anonymous_namespace{gena_device.cpp}::genaNotifyAllCommon (UpnpDevice_Handle device_handle, char UDN, char servId, DOMString propertySet)
	We take ownership of propertySet and will free it.

int	anonymous_namespace{gena_device.cpp}::respond_ok (SOCKINFO info, int time_out, subscription sub, http_message_t *request)
	Returns OK message in the case of a subscription request.

int	genaUnregisterDevice (UpnpDevice_Handle device_handle)
	Cleans the service table of the device.

void	freeSubscriptionQueuedEvents (subscription *sub)
	???

int	genaInitNotify (UpnpDevice_Handle device_handle, char UDN, char servId, char VarNames, char VarValues, int var_count, const Upnp_SID sid)
	Sends the intial state table dump to newly subscribed control point.

int	genaInitNotifyExt (UpnpDevice_Handle device_handle, char UDN, char servId, IXML_Document *PropSet, const Upnp_SID sid)
	Similar to the genaInitNofity. The only difference is that it takes the xml document for the state table and sends the intial state table dump to newly subscribed control point.

int	genaNotifyAllExt (UpnpDevice_Handle device_handle, char UDN, char servId, IXML_Document *PropSet)
	Sends a notification to all the subscribed control points.

int	genaNotifyAll (UpnpDevice_Handle device_handle, char UDN, char servId, char VarNames, char VarValues, int var_count)
	Sends a notification to all the subscribed control points.

int	gena_validate_delivery_urls (SOCKINFO info, URL_list url_list)
	Validate that the URLs passed by the user are on the same network segment than the device.

void	gena_process_subscription_request (SOCKINFO info, http_message_t request)
	Handles a subscription request from a ctrl point. The socket is not closed on return.

void	gena_process_subscription_renewal_request (SOCKINFO info, http_message_t request)
	Handles a subscription renewal request from a ctrl point. The connection is not destroyed on return.

void	gena_process_unsubscribe_request (SOCKINFO info, http_message_t request)
	Handles a subscription cancellation request from a ctrl point. The connection is not destroyed on return.

Detailed Description

Manage GENA Devices.

Definition in file gena_device.cpp.

Macro Definition Documentation

◆ STALE_JOBID

#define STALE_JOBID (INVALID_JOB_ID - 1)

Invalid job id.

Definition at line 54 of file gena_device.cpp.

Function Documentation

◆ genaUnregisterDevice()

int genaUnregisterDevice ( UpnpDevice_Handle device_handle )

Cleans the service table of the device.

Returns: UPNP_E_SUCCESS if successful, otherwise returns GENA_E_BAD_HANDLE

Parameters

[in] device_handle Handle of the root device

Definition at line 798 of file gena_device.cpp.

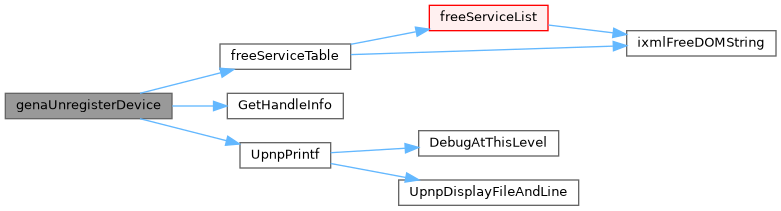

Here is the call graph for this function:

Here is the caller graph for this function:

◆ freeSubscriptionQueuedEvents()

void freeSubscriptionQueuedEvents ( subscription * sub )

???

Definition at line 816 of file gena_device.cpp.

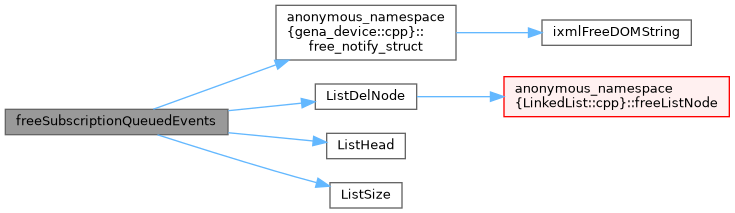

Here is the call graph for this function:

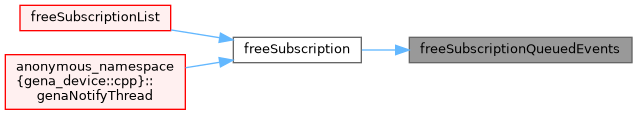

Here is the caller graph for this function:

◆ genaInitNotify()

int genaInitNotify	(	UpnpDevice_Handle	device_handle,
		char *	UDN,
		char *	servId,
		char **	VarNames,
		char **	VarValues,
		int	var_count,
		const Upnp_SID	sid
	)

Sends the intial state table dump to newly subscribed control point.

Returns: GENA_E_SUCCESS if successful, otherwise the appropriate error code.

Note: No other event will be sent to this control point before the intial state table dump.

Parameters

[in]	device_handle	Device handle.
[in]	UDN	Device udn.
[in]	servId	Service ID.
[in]	VarNames	Array of variable names.
[in]	VarValues	Array of variable values.
[in]	var_count	Array size.
[in]	sid	Subscription ID.

Definition at line 839 of file gena_device.cpp.

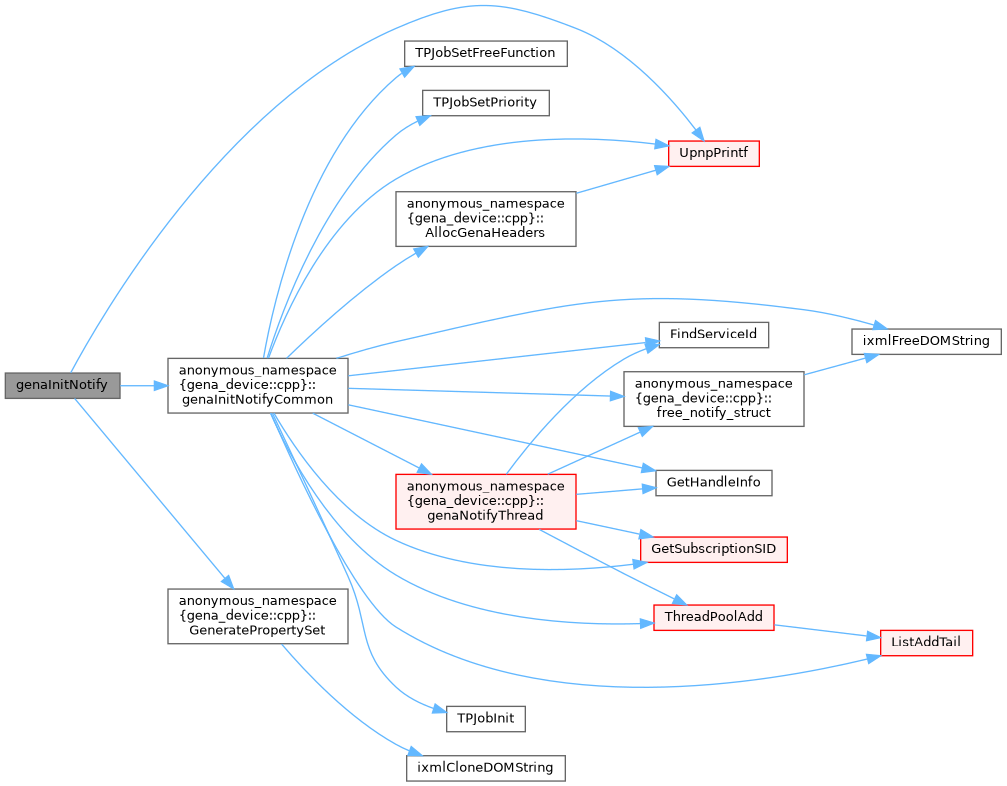

Here is the call graph for this function:

Here is the caller graph for this function:

◆ genaInitNotifyExt()

int genaInitNotifyExt	(	UpnpDevice_Handle	device_handle,
		char *	UDN,
		char *	servId,
		IXML_Document *	PropSet,
		const Upnp_SID	sid
	)

Similar to the genaInitNofity. The only difference is that it takes the xml document for the state table and sends the intial state table dump to newly subscribed control point.

Returns: GENA_E_SUCCESS if successful, otherwise the appropriate error code.

Note: No other event will be sent to this control point before the intial state table dump.

Parameters

[in]	device_handle	Device handle.
[in]	UDN	Device udn.
[in]	servId	Service ID.
[in]	PropSet	Document of the state table.
[in]	sid	subscription ID.

Definition at line 873 of file gena_device.cpp.

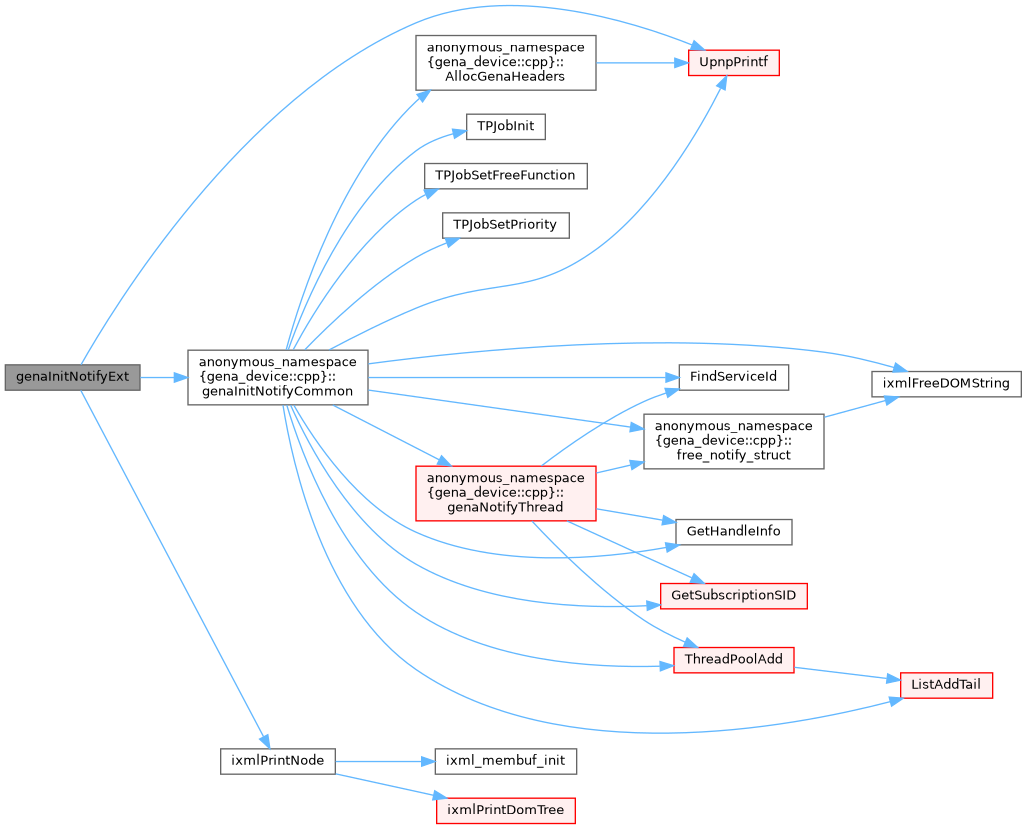

Here is the call graph for this function:

Here is the caller graph for this function:

◆ genaNotifyAllExt()

int genaNotifyAllExt	(	UpnpDevice_Handle	device_handle,
		char *	UDN,
		char *	servId,
		IXML_Document *	PropSet
	)

Sends a notification to all the subscribed control points.

Returns: int

Note: This function is similar to the genaNotifyAll. the only difference is it takes the document instead of event variable array.

Parameters

[in]	device_handle	Device handle.
[in]	UDN	Device udn.
[in]	servId	Service ID.
[in]	PropSet	XML document Event varible property set.

Definition at line 908 of file gena_device.cpp.

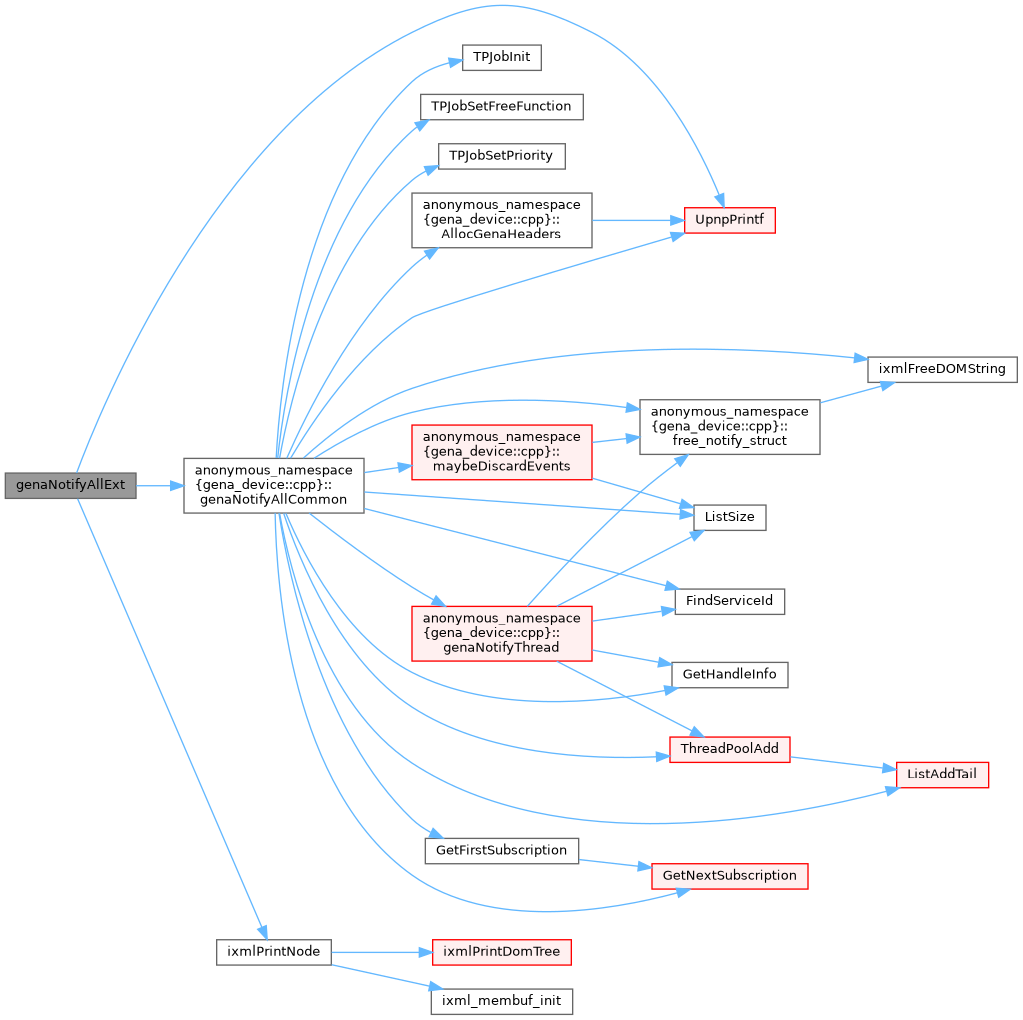

Here is the call graph for this function:

Here is the caller graph for this function:

◆ genaNotifyAll()

int genaNotifyAll	(	UpnpDevice_Handle	device_handle,
		char *	UDN,
		char *	servId,
		char **	VarNames,
		char **	VarValues,
		int	var_count
	)

Sends a notification to all the subscribed control points.

Returns: int

Note: This function is similar to the genaNotifyAllExt. The only difference is it takes event variable array instead of xml document.

Parameters

[in]	device_handle	Device handle.
[in]	UDN	Device udn.
[in]	servId	Service ID.
[in]	VarNames	Array of varible names.
[in]	VarValues	Array of variable values.
[in]	var_count	Number of variables.

Definition at line 937 of file gena_device.cpp.

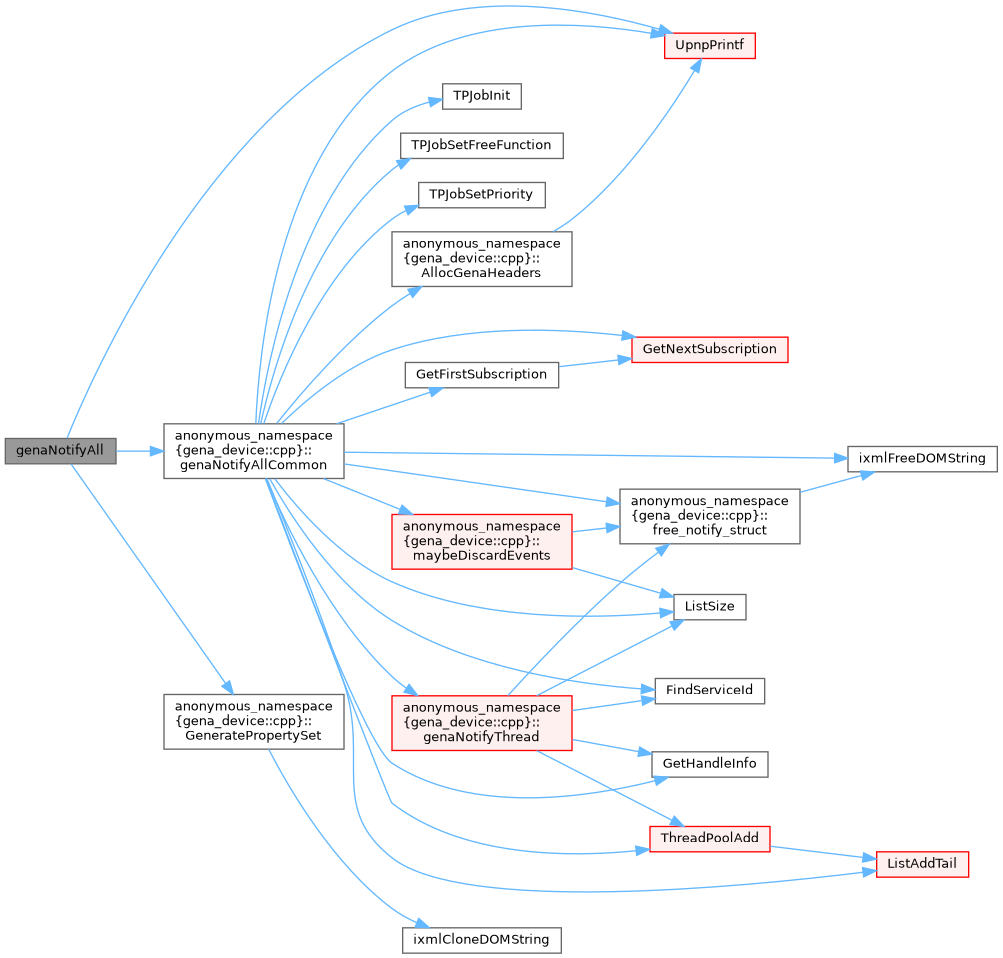

Here is the call graph for this function:

Here is the caller graph for this function:

◆ gena_validate_delivery_urls()

int gena_validate_delivery_urls	(	SOCKINFO *	info,
		URL_list *	url_list
	)

Validate that the URLs passed by the user are on the same network segment than the device.

Note: This is a fix for CallStanger a.k.a. CVE-2020-12695

Returns: 0 if all URLs are on the same segment or -1 otherwise.

Parameters

[in]	info	.
[in]	url_list	.

Definition at line 972 of file gena_device.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ gena_process_subscription_request()

void gena_process_subscription_request	(	SOCKINFO *	info,
		http_message_t *	request
	)

Handles a subscription request from a ctrl point. The socket is not closed on return.

Parameters

[in]	info	Socket info of the device.
[in]	request	Subscription request from the control point.

Definition at line 1059 of file gena_device.cpp.

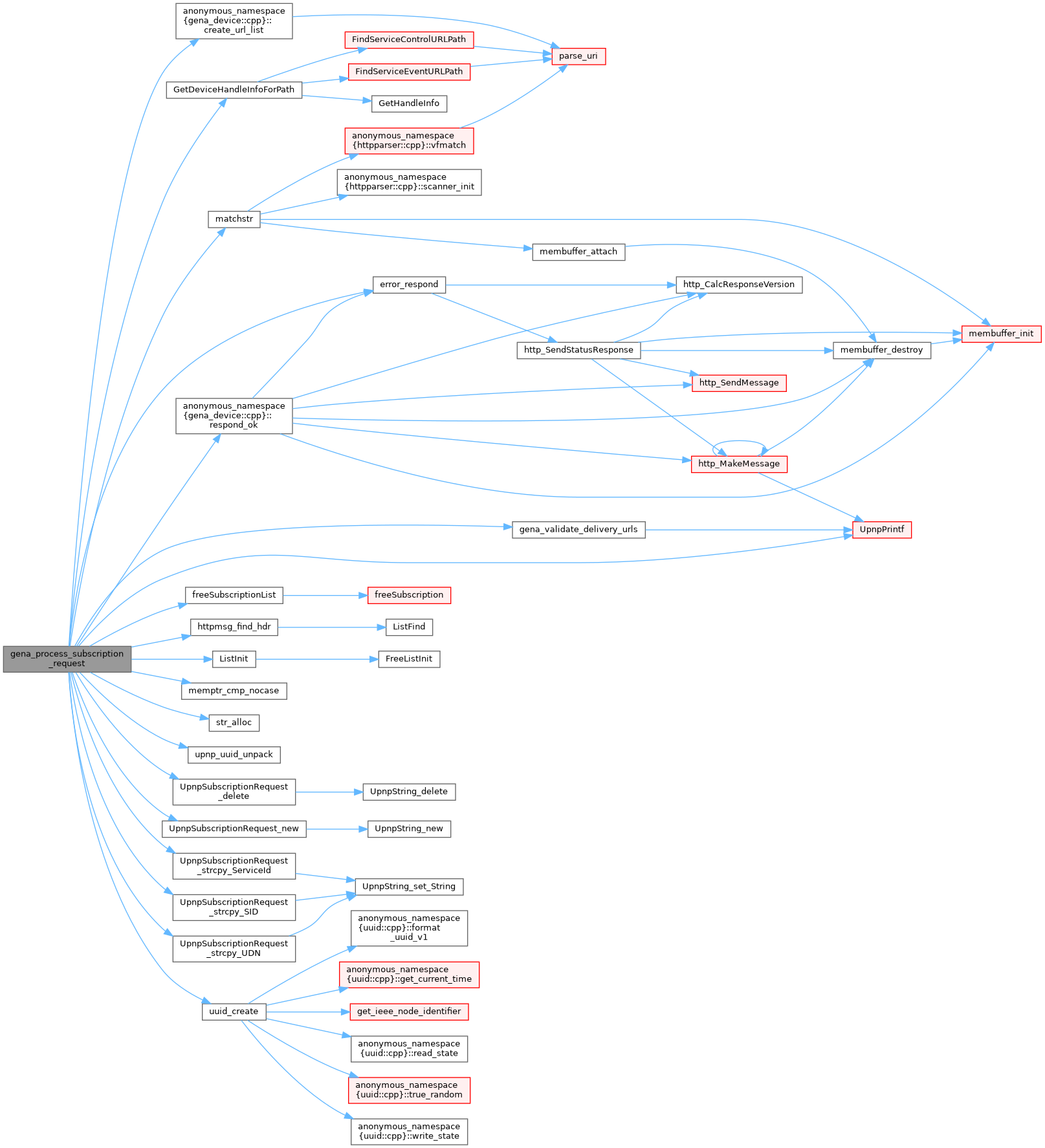

Here is the call graph for this function:

Here is the caller graph for this function:

◆ gena_process_subscription_renewal_request()

void gena_process_subscription_renewal_request	(	SOCKINFO *	info,
		http_message_t *	request
	)

Handles a subscription renewal request from a ctrl point. The connection is not destroyed on return.

Parameters

[in]	info	Socket info of the device.
[in]	request	Subscription renewal request from the control point.

Definition at line 1251 of file gena_device.cpp.

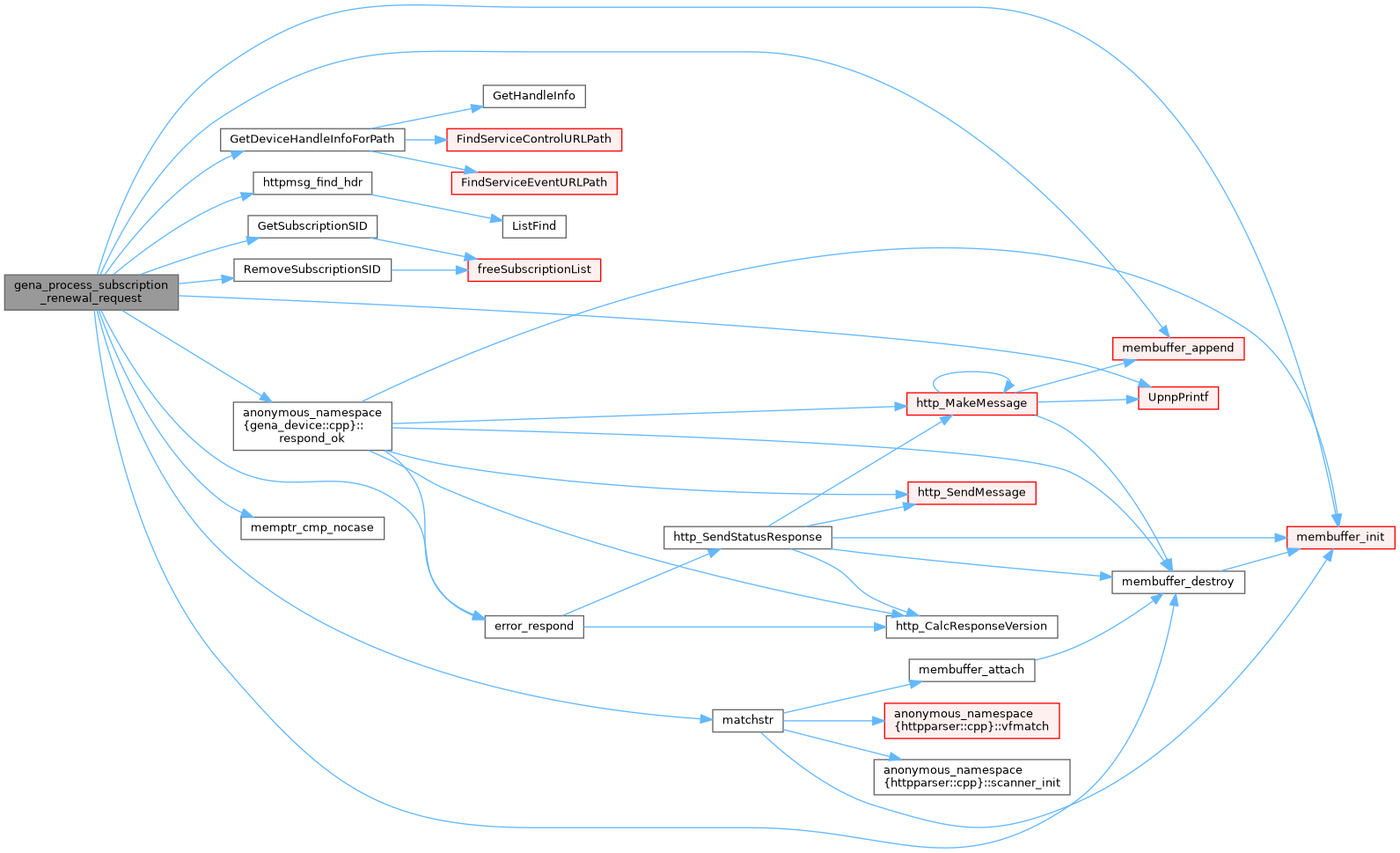

Here is the call graph for this function:

Here is the caller graph for this function:

◆ gena_process_unsubscribe_request()

void gena_process_unsubscribe_request	(	SOCKINFO *	info,
		http_message_t *	request
	)

Handles a subscription cancellation request from a ctrl point. The connection is not destroyed on return.

Parameters

[in]	info	Socket info of the device.
[in]	request	UNSUBSCRIBE request from the control point.

Definition at line 1354 of file gena_device.cpp.

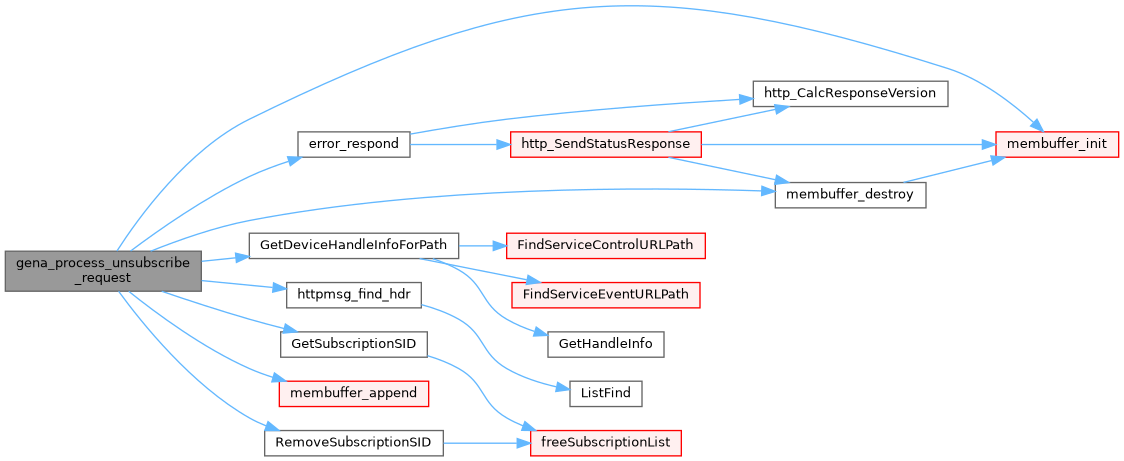

Here is the call graph for this function:

Here is the caller graph for this function:
