This file defines the functionality making use of the http. More...

#include <httpreadwrite.hpp>
#include <UPnPsdk/synclog.hpp>
#include <UPnPsdk/sockaddr.hpp>
#include <UpnpExtraHeaders.hpp>
#include <UpnpIntTypes.hpp>
#include <statcodes.hpp>
#include <upnpapi.hpp>
#include <webserver.hpp>
#include <umock/pupnp_sock.hpp>
#include <umock/pupnp_httprw.hpp>
#include <umock/stdio.hpp>
#include <umock/sys_socket.hpp>
#include <umock/winsock2.hpp>
#include <umock/sysinfo.hpp>

Include dependency graph for httpreadwrite.cpp:

Go to the source code of this file.

Classes
struct	anonymous_namespace{httpreadwrite.cpp}::http_connection_handle_t
	Handle for a connection. More...

Functions
tm *	http_gmtime_r (const time_t clock, tm result)
	Portable gmtime_r for Microsoft Windows.

int	http_FixUrl (uri_type url, uri_type fixed_url)
	Validates URL.

int	http_FixStrUrl (const char urlstr, size_t urlstrlen, uri_type fixed_url)
	Parses URL and then validates URL.

SOCKET	http_Connect (uri_type destination_url, uri_type url)
	Gets destination address from URL and then connects to the remote end.

int	http_RecvMessage (SOCKINFO info, http_parser_t parser, http_method_t request_method, int timeout_secs, int http_error_code)
	Get the data on the socket and take actions based on the read data to modify the parser objects buffer.

int	http_SendMessage (SOCKINFO info, int TimeOut, const char *fmt,...)
	Sends a message to the destination based on the format parameter.

int	http_RequestAndResponse (uri_type destination, const char request, size_t request_length, http_method_t req_method, int timeout_secs, http_parser_t *response)
	Initiates socket, connects to the remote host, sends a request and waits for the response from the remote end.

int	http_Download (const char url_str, int timeout_secs, char document, size_t doc_length, char *content_type)
	Download the document message and extract the document from the message.

int	http_HttpGetProgress (void Handle, size_t length, size_t *total)
	Extracts information from the Handle to the HTTP get object.

int	http_CancelHttpGet (void *Handle)
	Set the cancel flag of the HttpGet handle.

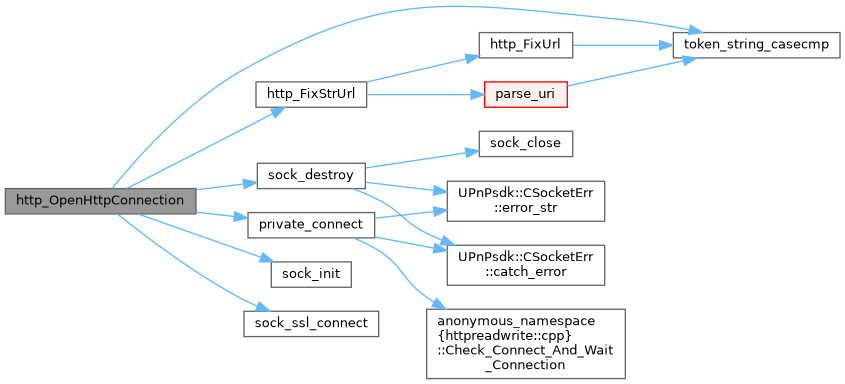

int	http_OpenHttpConnection (const char url_str, void *Handle, int timeout)
	Opens a connection to the server.

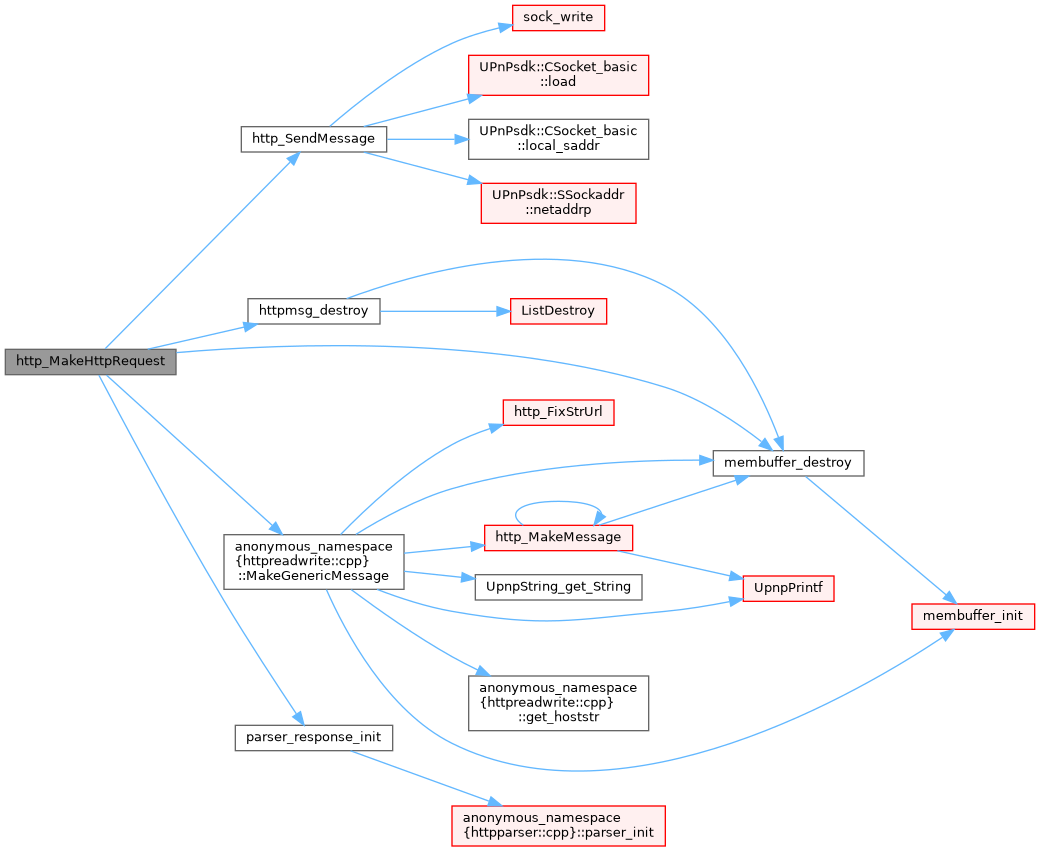

int	http_MakeHttpRequest (Upnp_HttpMethod method, const char url_str, void Handle, UpnpString headers, const char contentType, int contentLength, int timeout)
	Makes a HTTP request using a connection previously created by UpnpOpenHttpConnection().

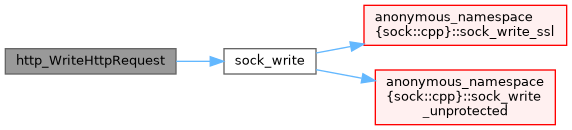

int	http_WriteHttpRequest (void Handle, char buf, size_t *size, int timeout)
	Writes the content of a HTTP request initiated by a UpnpMakeHttpRequest() call. The end of the content should be indicated by a call to UpnpEndHttpRequest().

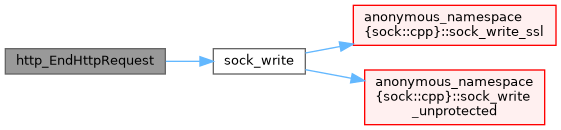

int	http_EndHttpRequest (void *Handle, int timeout)
	Indicates the end of a HTTP request previously made by UpnpMakeHttpRequest().

int	http_GetHttpResponse (void Handle, UpnpString headers, char *contentType, int contentLength, int *httpStatus, int timeout)
	Gets the response from the server using a connection previously created by UpnpOpenHttpConnection().

int	http_ReadHttpResponse (void Handle, char buf, size_t *size, int timeout)
	Reads the content of a response using a connection previously created by UpnpOpenHttpConnection().

int	http_CloseHttpConnection (void *Handle)
	Closes the connection created with UpnpOpenHttpConnection() and frees any memory associated with the connection.

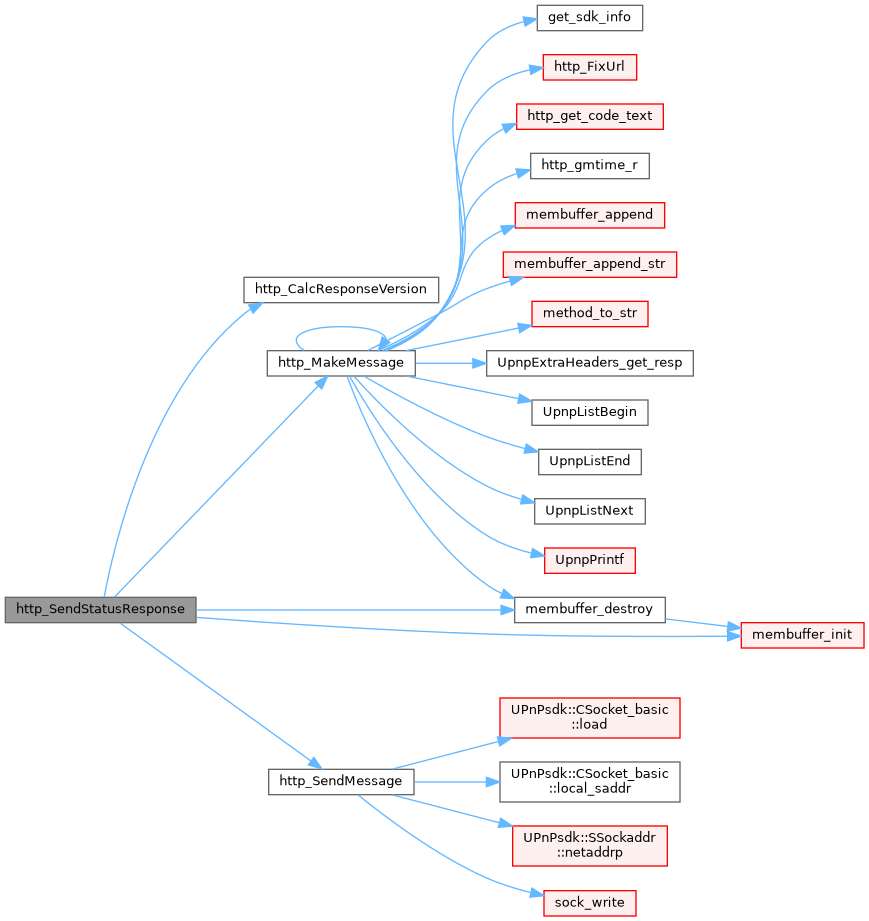

int	http_SendStatusResponse (SOCKINFO *info, int http_status_code, int request_major_version, int request_minor_version)
	Generate a response message for the status query and send the status response.

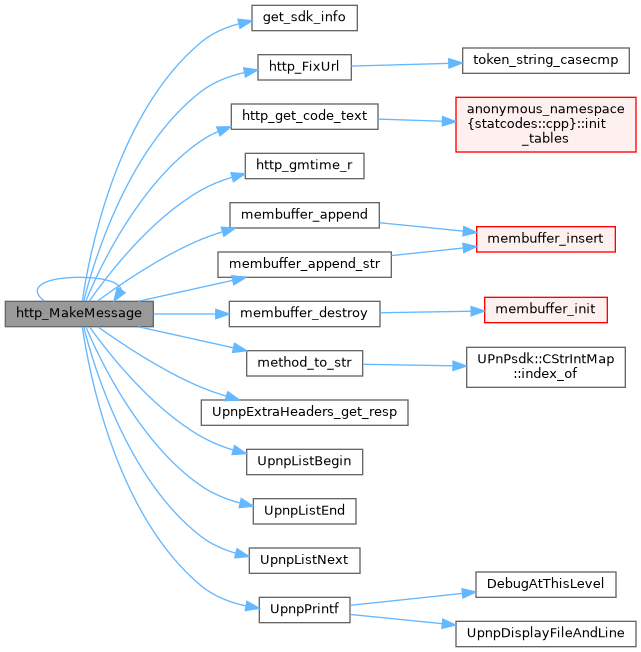

int	http_MakeMessage (membuffer buf, int http_major_version, int http_minor_version, const char fmt,...)
	Generate an HTTP message based on the format that is specified in the input parameters.

void	http_CalcResponseVersion (int request_major_vers, int request_minor_vers, int response_major_vers, int response_minor_vers)
	Calculate HTTP response versions based on the request versions.

int	http_OpenHttpGetEx (const char url_str, void Handle, char contentType, int contentLength, int *httpStatus, int lowRange, int highRange, int timeout)
	Makes the HTTP GET message, connects to the peer, sends the HTTP GET request, gets the response and parses the response.

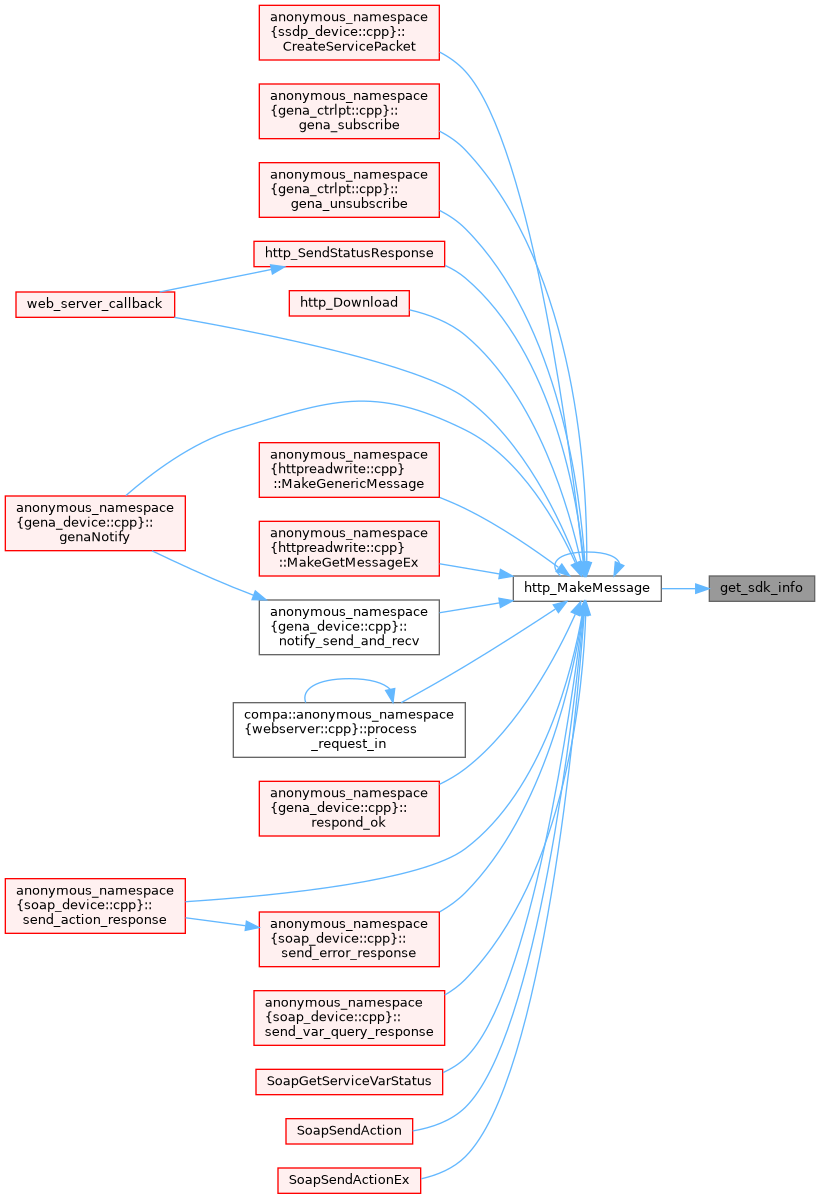

void	get_sdk_info (char *info, size_t infoSize)
	Returns the server information for the operating system.

Scope restricted to file
int	anonymous_namespace{httpreadwrite.cpp}::Check_Connect_And_Wait_Connection (const SOCKET a_sock, const int connect_res)
	Checks socket connection and wait if it is not connected.

int	anonymous_namespace{httpreadwrite.cpp}::get_hoststr (const char url_str, const char hoststr, size_t hostlen)
	Point to the hostname within a URL C-string.

void	anonymous_namespace{httpreadwrite.cpp}::copy_msg_headers (LinkedList msgHeaders, UpnpString headers)
	Dummy function. It do nothing since years. Do we need it?

int	anonymous_namespace{httpreadwrite.cpp}::MakeGenericMessage (http_method_t method, const char url_str, membuffer request, uri_type url, int contentLength, const char contentType, const UpnpString *headers)
	Make a generic message, what ever this mean.

int	anonymous_namespace{httpreadwrite.cpp}::ReadResponseLineAndHeaders (SOCKINFO info, http_parser_t parser, int timeout_secs, int http_error_code)
	Parses already exiting data.

int	anonymous_namespace{httpreadwrite.cpp}::MakeGetMessageEx (const char url_str, membuffer request, uri_type url, SendInstruction pRangeSpecifier)
	Make extended GetMessage.


static int	private_connect (const SOCKET sockfd, const sockaddr *const serv_addr, const socklen_t addrlen)
	Initiate a connection on a socket.

Variables
constexpr size_t	anonymous_namespace{httpreadwrite.cpp}::CHUNK_HEADER_SIZE {10}
	???

constexpr size_t	anonymous_namespace{httpreadwrite.cpp}::CHUNK_TAIL_SIZE {10}
	???

constexpr time_t	anonymous_namespace{httpreadwrite.cpp}::DEFAULT_TCP_CONNECT_TIMEOUT {5}
	Default TCP connection timeout.

Detailed Description

This file defines the functionality making use of the http.

It defines functions to receive messages, process messages, send messages.

Definition in file httpreadwrite.cpp.

Class Documentation

◆ anonymous_namespace{httpreadwrite.cpp}::http_connection_handle_t

struct anonymous_namespace{httpreadwrite.cpp}::http_connection_handle_t

Handle for a connection.

Definition at line 317 of file httpreadwrite.cpp.

Collaboration diagram for anonymous_namespace{httpreadwrite.cpp}::http_connection_handle_t:

Class Members
SOCKINFO	sock_info
int	contentLength
http_parser_t	response
int	requestStarted
int	cancel

Function Documentation

◆ private_connect()

static int private_connect	(	const SOCKET	sockfd,
		const sockaddr *const	serv_addr,
		const socklen_t	addrlen
	)

static

Initiate a connection on a socket.

Returns: On success: 0
On error: SOCKET_ERROR

Todo:: Return more detailed error codes, e.g. with 'getsockopt()' valopt == 111: ECONNREFUSED "Connection refused" if there is a remote host but no server service listening.

Parameters

[in]	sockfd	Socket file descriptor.
[in]	serv_addr	Socket address of a remote network node.
[in]	addrlen	Size of the socket address.

Definition at line 506 of file httpreadwrite.cpp.

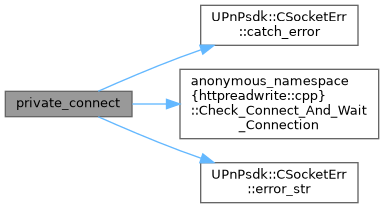

Here is the call graph for this function:

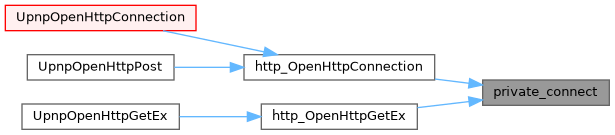

Here is the caller graph for this function:

◆ http_gmtime_r()

tm * http_gmtime_r	(	const time_t *	clock,
		tm *	result
	)

Portable gmtime_r for Microsoft Windows.

Definition at line 553 of file httpreadwrite.cpp.

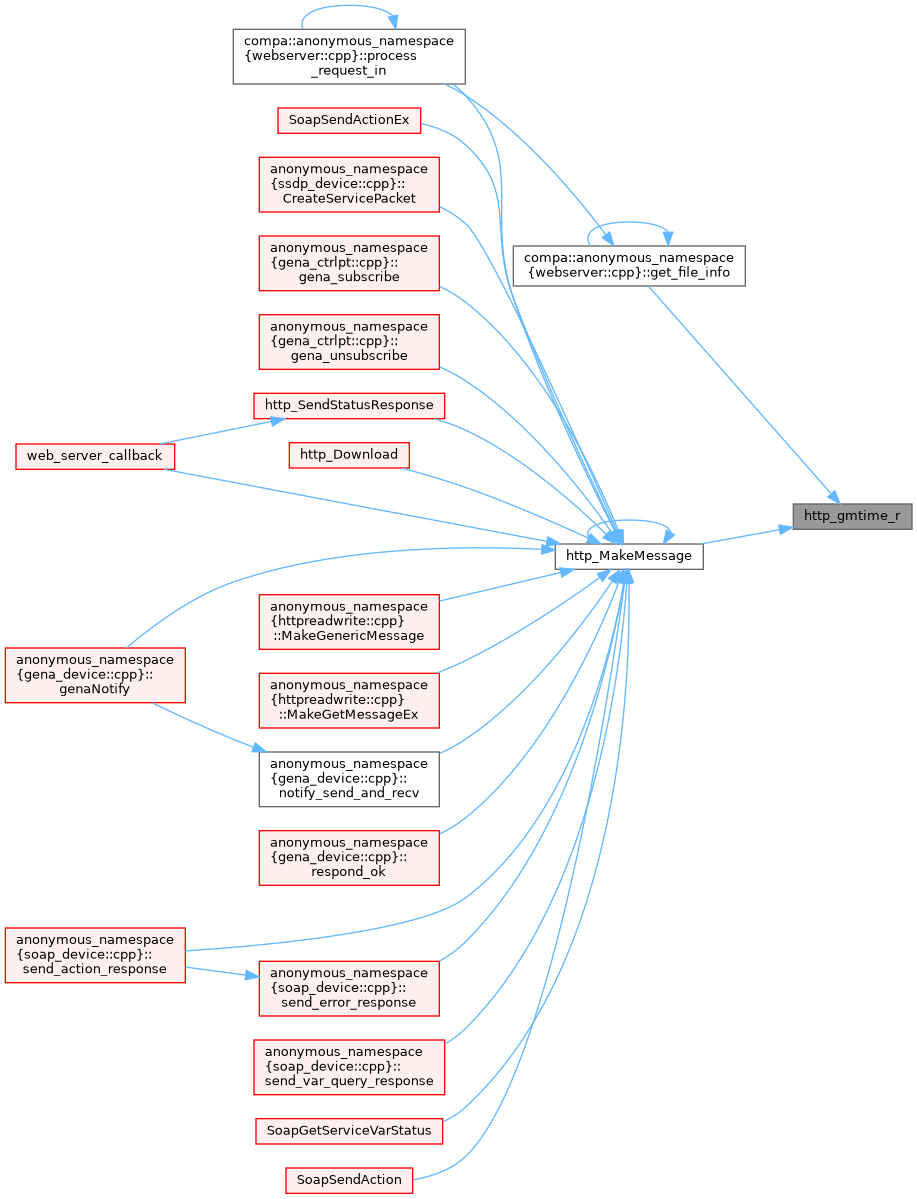

Here is the caller graph for this function:

◆ http_FixUrl()

int http_FixUrl	(	uri_type *	url,
		uri_type *	fixed_url
	)

Validates URL.

Returns

UPNP_E_INVALID_URL
UPNP_E_SUCCESS

Parameters

[in]	url	URL to be validated and fixed.
[out]	fixed_url	URL after being fixed.

Definition at line 563 of file httpreadwrite.cpp.

Here is the call graph for this function:

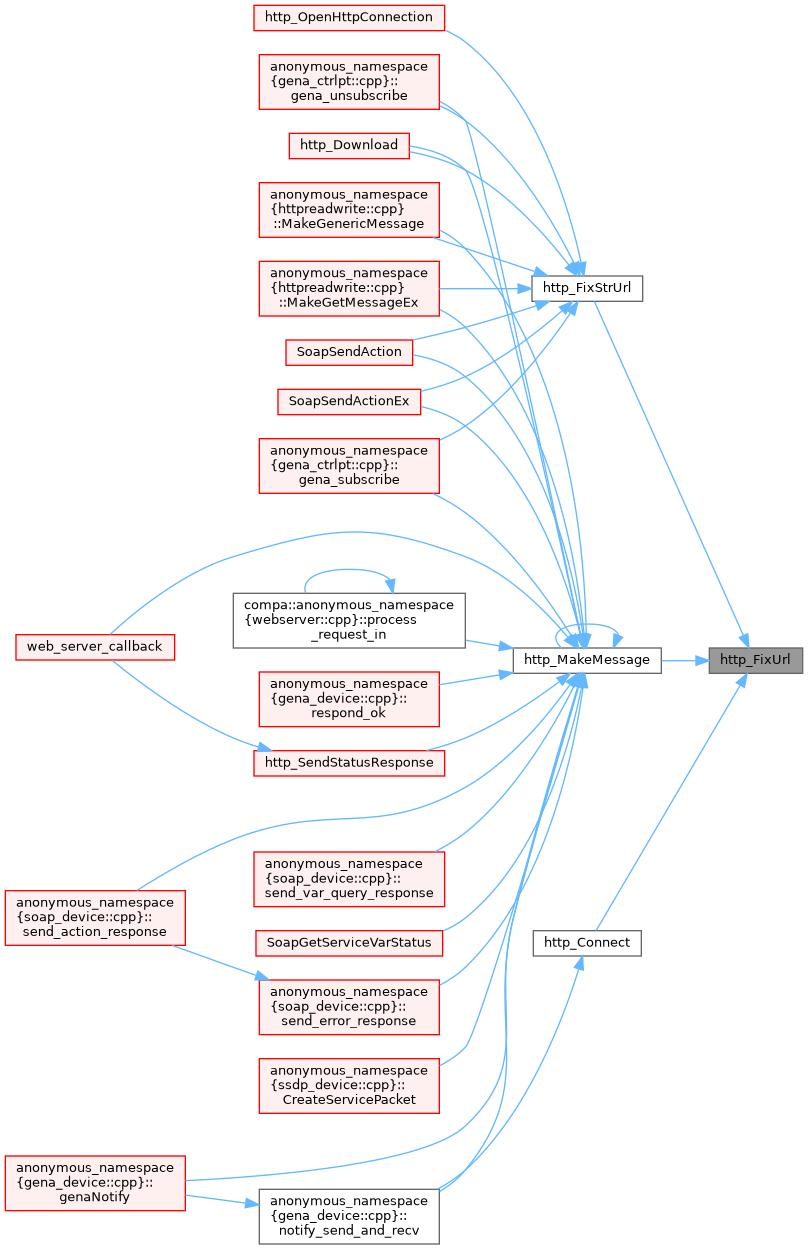

Here is the caller graph for this function:

◆ http_FixStrUrl()

int http_FixStrUrl	(	const char *	urlstr,
		size_t	urlstrlen,
		uri_type *	fixed_url
	)

Parses URL and then validates URL.

Returns

UPNP_E_INVALID_URL
UPNP_E_SUCCESS

Parameters

[in]	urlstr	Character string as a URL.
[in]	urlstrlen	Length of the character string.
[out]	fixed_url	Fixed and corrected URL.

Definition at line 589 of file httpreadwrite.cpp.

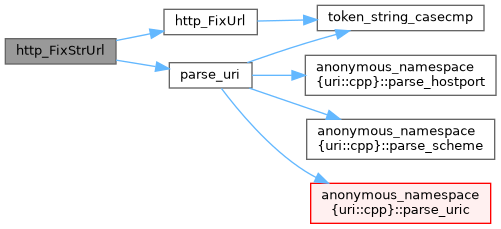

Here is the call graph for this function:

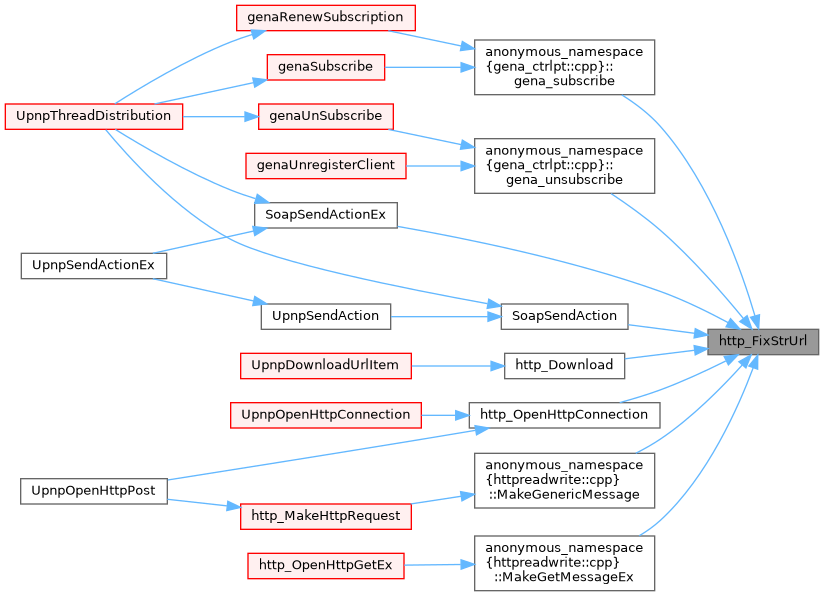

Here is the caller graph for this function:

◆ http_Connect()

SOCKET http_Connect	(	uri_type *	destination_url,
		uri_type *	url
	)

Gets destination address from URL and then connects to the remote end.

Returns

On success: Socket descriptor
On error:

UPNP_E_OUTOF_SOCKET
UPNP_E_SOCKET_CONNECT

Parameters

[in]	destination_url	URL containing destination information.
[out]	url	Fixed and corrected URL.

Definition at line 599 of file httpreadwrite.cpp.

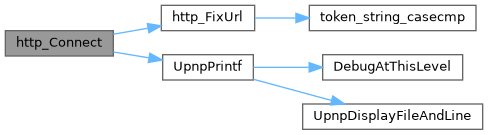

Here is the call graph for this function:

Here is the caller graph for this function:

◆ http_RecvMessage()

int http_RecvMessage	(	SOCKINFO *	info,
		http_parser_t *	parser,
		http_method_t	request_method,
		int *	timeout_secs,
		int *	http_error_code
	)

Get the data on the socket and take actions based on the read data to modify the parser objects buffer.

If an error is reported while parsing the data, the error code is passed in the http_error_code parameter.

Returns: On success: UPNP_E_SUCCESS
On error: UPNP_E_BAD_HTTPMSG

Parameters

[in]	info	Socket information object.
[out]	parser	HTTP parser object.
[in]	request_method	HTTP request method.
[in,out]	timeout_secs	time out.
[out]	http_error_code	HTTP error code returned.

Definition at line 633 of file httpreadwrite.cpp.

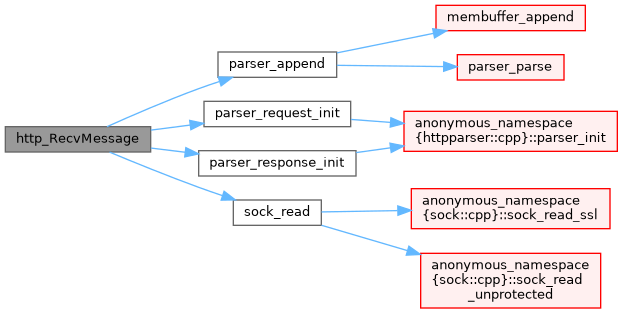

Here is the call graph for this function:

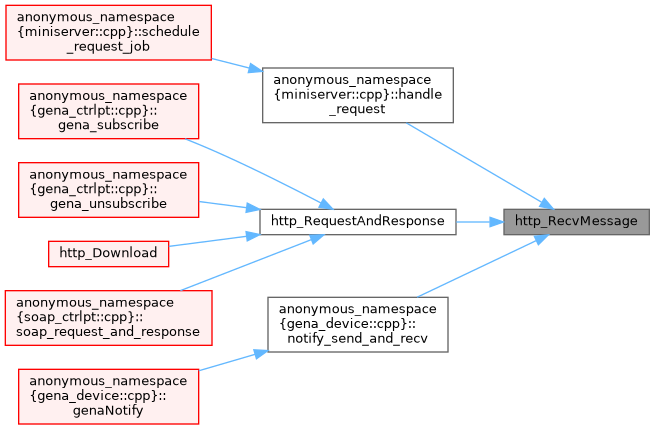

Here is the caller graph for this function:

◆ http_SendMessage()

int http_SendMessage	(	SOCKINFO *	info,
		int *	TimeOut,
		const char *	fmt,
			...
	)

Sends a message to the destination based on the format parameter.

format (fmt) types:

'f': arg = "const char*" file name
'b': arg1 = "const char*" mem_buffer, arg2 = "size_t" buffer length
'I': arg = "SendInstruction*" send instruction

Note

Sending from file (fmt = "If") always needs an instruction tag before with at least SendInstruction.ReadSendSize set. Otherwise nothing is sent.
.ReadSendSize > 0: amount of bytes to send
.ReadSendSize = 0: nothing to send
.ReadSendSize < 0: send until end from data in file or until internal sendbuffer size.
For example:

   char *buf = "POST /xyz.cgi http/1.1\r\n\r\n";
   char *filename = "foo.dat";
   SendInstruction instruct;
   instruct.ReadSendSize = -1;
   int status = http_SendMessage(tcpsock, "Ibf",
       &instruct,              // arg pointer to send instruction
       buf, strlen(buf),       // args for memory buffer
       filename);              // arg for file

Returns

On success: UPNP_E_SUCCESS
On error:

UPNP_E_OUTOF_MEMORY
UPNP_E_FILE_READ_ERROR
UPNP_E_TIMEDOUT
UPNP_E_SOCKET_WRITE
UPNP_E_SOCKET_ERROR

Parameters

[in]	info	Socket information object.
[in,out]	TimeOut	Time out value.
[in]	fmt	Pattern format to take actions upon (like printf()).
[in]	...	Variable argument list (like printf()).

Definition at line 740 of file httpreadwrite.cpp.

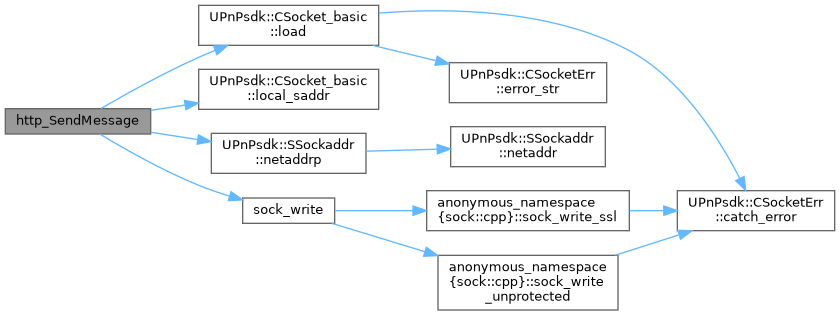

Here is the call graph for this function:

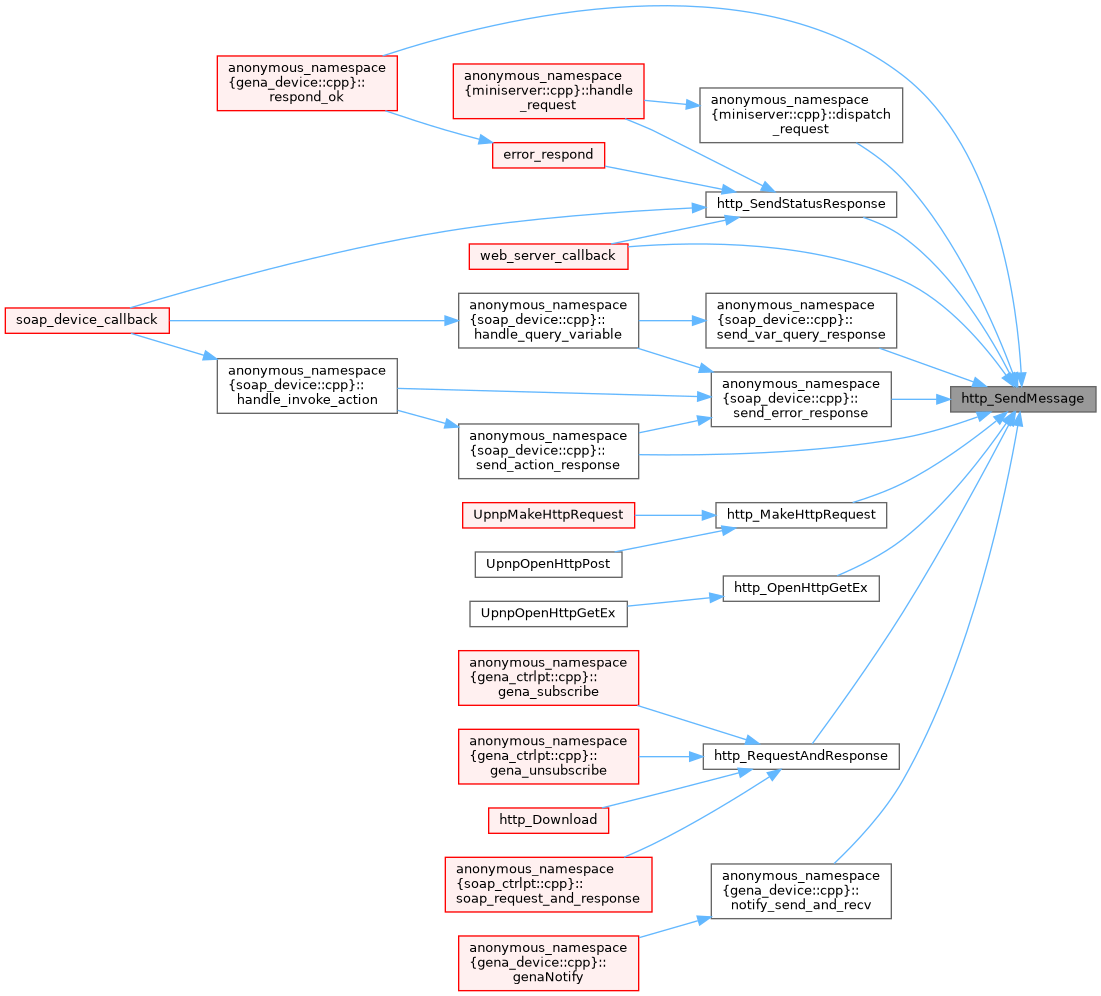

Here is the caller graph for this function:

◆ http_RequestAndResponse()

int http_RequestAndResponse	(	uri_type *	destination,
		const char *	request,
		size_t	request_length,
		http_method_t	req_method,
		int	timeout_secs,
		http_parser_t *	response
	)

Initiates socket, connects to the remote host, sends a request and waits for the response from the remote end.

Returns

On success: UPNP_E_SUCCESS
On error:

UPNP_E_SOCKET_ERROR
UPNP_E_SOCKET_CONNECT
UPNP_E_OUTOF_MEMORY
UPNP_E_FILE_READ_ERROR
UPNP_E_TIMEDOUT
UPNP_E_SOCKET_WRITE
UPNP_E_BAD_HTTPMSG

Parameters

[in]	destination	Destination URI object which contains remote IP address among other elements.
[in]	request	Request to be sent.
[in]	request_length	Length of the request.
[in]	req_method	HTTP Request method.
[in]	timeout_secs	time out value.
[in]	response	Parser object to receive the repsonse.

Definition at line 975 of file httpreadwrite.cpp.

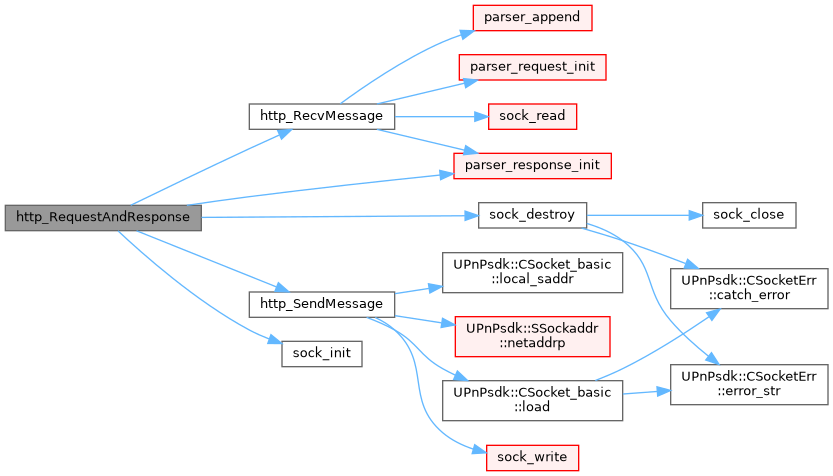

Here is the call graph for this function:

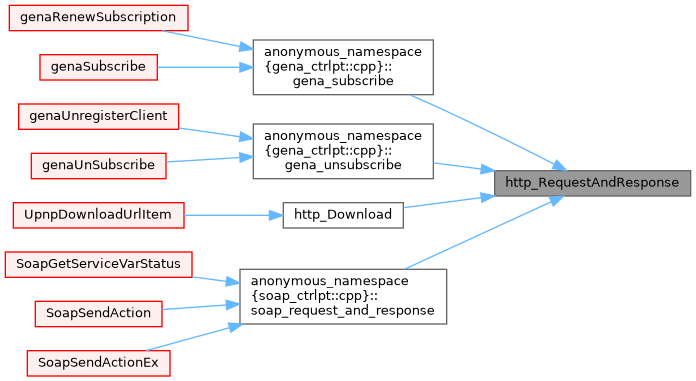

Here is the caller graph for this function:

◆ http_Download()

int http_Download	(	const char *	url_str,
		int	timeout_secs,
		char **	document,
		size_t *	doc_length,
		char *	content_type
	)

Download the document message and extract the document from the message.

Returns

On success: UPNP_E_SUCCESS
On error:

UPNP_E_INVALID_URL

Parameters

[in]	url_str	String as a URL.
[in]	timeout_secs	Time out value.
[out]	document	Buffer to store the document extracted from the donloaded message.
[out]	doc_length	Length of the extracted document.
[out]	content_type	Type of content.

Definition at line 1027 of file httpreadwrite.cpp.

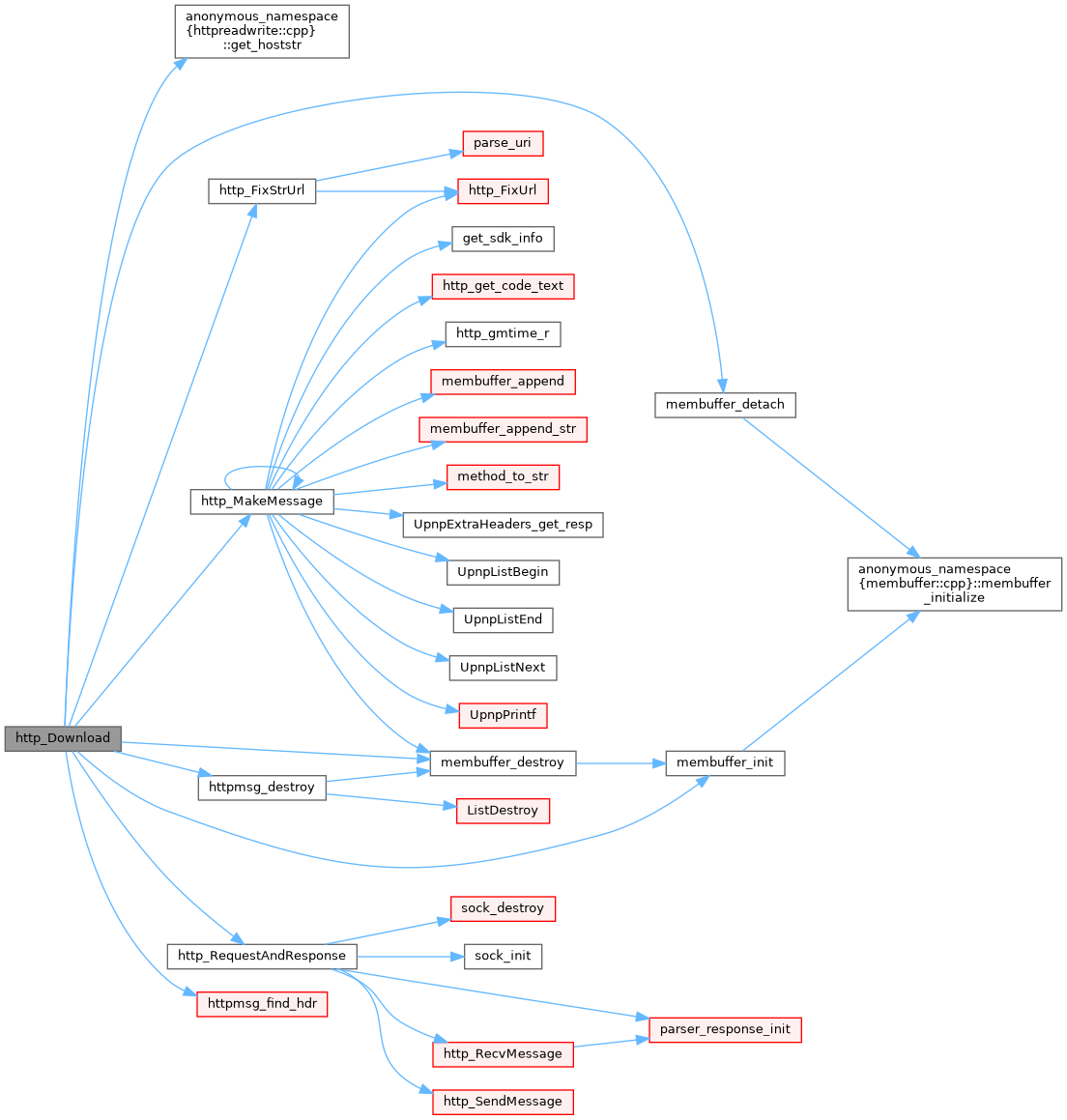

Here is the call graph for this function:

Here is the caller graph for this function:

◆ http_HttpGetProgress()

int http_HttpGetProgress	(	void *	Handle,
		size_t *	length,
		size_t *	total
	)

Extracts information from the Handle to the HTTP get object.

Returns

On success: UPNP_E_SUCCESS
On error:

UPNP_E_INVALID_PARAM

Parameters

[in]	Handle	Handle to the HTTP get object.
[out]	length	Buffer to get the read and parsed data.
[out]	total	Size of tge buffer passed.

Definition at line 1143 of file httpreadwrite.cpp.

Here is the caller graph for this function:

◆ http_CancelHttpGet()

int http_CancelHttpGet ( void * Handle )

Set the cancel flag of the HttpGet handle.

Returns

UPNP_E_SUCCESS - On Success
UPNP_E_INVALID_PARAM - Invalid Parameter

Parameters

[in] Handle Handle to HTTP get object.

Definition at line 1155 of file httpreadwrite.cpp.

Here is the caller graph for this function:

◆ http_OpenHttpConnection()

int http_OpenHttpConnection	(	const char *	url_str,
		void **	Handle,
		int	timeout
	)

Opens a connection to the server.

The SDK allocates the memory for the handle.

Note: The calling application is responsible for freeing the memory allocated for the handle.

Returns

On success: UPNP_E_SUCCESS
On error:

UPNP_E_INVALID_PARAM - Either url, or handle is not a valid pointer.
UPNP_E_INVALID_URL - The url is not a valid URL.
UPNP_E_OUTOF_MEMORY - Insufficient resources exist to download this file.
UPNP_E_SOCKET_ERROR - Error occured allocating a socket and resources or an error occurred binding a socket.
UPNP_E_SOCKET_WRITE - An error or timeout occurred writing to a socket.
UPNP_E_SOCKET_CONNECT - An error occurred connecting a socket.
UPNP_E_OUTOF_SOCKET - Too many sockets are currently allocated.

Parameters

[in]	url_str	The URL which contains the host, and the scheme to make the connection.
[in,out]	Handle	A pointer in which to store the handle for this connection. This handle is required for futher operations over this connection.
[in]	timeout	This argument isn't used anymore and only available for downstream compatibility. It can be set to any value.

Definition at line 1165 of file httpreadwrite.cpp.

Here is the call graph for this function:

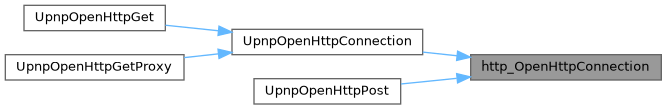

Here is the caller graph for this function:

◆ http_MakeHttpRequest()

int http_MakeHttpRequest	(	Upnp_HttpMethod	method,
		const char *	url_str,
		void *	Handle,
		UpnpString *	headers,
		const char *	contentType,
		int	contentLength,
		int	timeout
	)

Makes a HTTP request using a connection previously created by UpnpOpenHttpConnection().

Note: Trying to make another request while a request is already being processed results in undefined behavior. It's up to the user to end a previous request by calling UpnpEndHttpRequest().

Returns

An integer representing one of the following
On success: UPNP_E_SUCCESS - The operation completed successfully.
On error:

UPNP_E_INVALID_PARAM - Either url, handle or contentType is not a valid pointer.
UPNP_E_INVALID_URL - The url is not a valid URL.
UPNP_E_OUTOF_MEMORY - Insufficient resources exist to download this file.
UPNP_E_SOCKET_ERROR - Error occured allocating a socket and resources or an error occurred binding a socket.
UPNP_E_SOCKET_WRITE - An error or timeout occurred writing to a socket.
UPNP_E_SOCKET_CONNECT - An error occurred connecting a socket.
UPNP_E_OUTOF_SOCKET - Too many sockets are currently allocated.

Parameters

[in]	method	The method to use to make the request.
[in]	url_str	The URL to use to make the request. The URL should use the same host and scheme used to create the connection.
[in]	Handle	The handle to the connection.
[in]	headers	Headers to be used for the request. Each header should be terminated by a CRLF as specified in the HTTP specification. If NULL then the default headers will be used.
[in]	contentType	The media type of content being sent. Can be NULL.
[in]	contentLength	The length of the content being sent, in bytes. Set to UPNP_USING_CHUNKED to use chunked encoding, or UPNP_UNTIL_CLOSE to avoid specifying the content length to the server. In this case the request is considered unfinished until the connection is closed.
[in]	timeout	The time out value sent with the request during which a response is expected from the receiver, failing which, an error is reported. If value is negative, timeout is infinite.

Definition at line 1229 of file httpreadwrite.cpp.

Here is the call graph for this function:

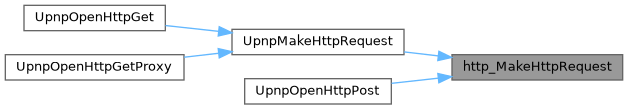

Here is the caller graph for this function:

◆ http_WriteHttpRequest()

int http_WriteHttpRequest	(	void *	Handle,
		char *	buf,
		size_t *	size,
		int	timeout
	)

Writes the content of a HTTP request initiated by a UpnpMakeHttpRequest() call. The end of the content should be indicated by a call to UpnpEndHttpRequest().

Returns

An integer representing one of the following
On success: UPNP_E_SUCCESS - The operation completed successfully.
On error:

UPNP_E_INVALID_PARAM - Either handle, buf or size is not a valid pointer.
UPNP_E_SOCKET_WRITE - An error or timeout occurred writing to a socket.
UPNP_E_OUTOF_SOCKET - Too many sockets are currently allocated.

Parameters

[in]	Handle	The handle of the connection created by the call to UpnpOpenHttpConnection().
[in]	buf	The buffer containing date to be written.
[in]	size	The size, in bytes of buf.
[in]	timeout	A timeout value sent with the request during which a response is expected from the server, failing which, an error is reported. If value is negative, timeout is infinite.

Definition at line 1258 of file httpreadwrite.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ http_EndHttpRequest()

int http_EndHttpRequest	(	void *	Handle,
		int	timeout
	)

Indicates the end of a HTTP request previously made by UpnpMakeHttpRequest().

Returns

On success: UPNP_E_SUCCESS - The operation completed successfully.
On error:

UPNP_E_INVALID_PARAM - handle is not a valid pointer.
UPNP_E_OUTOF_MEMORY - Insufficient resources exist.
UPNP_E_SOCKET_ERROR - Error occured on handling a socket.
UPNP_E_SOCKET_WRITE - An error or timeout occurred writing to a socket.
UPNP_E_SOCKET_CONNECT - An error occurred connecting a socket.
UPNP_E_OUTOF_SOCKET - Too many sockets are currently allocated.

Parameters

[in]	Handle	The handle to the connection.
[in]	timeout	The time out value sent with the request during which a response is expected from the receiver, failing which, an error is reported. If value is negative, timeout is infinite.

Definition at line 1302 of file httpreadwrite.cpp.

Here is the call graph for this function:

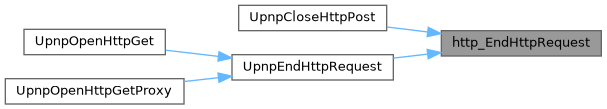

Here is the caller graph for this function:

◆ http_GetHttpResponse()

int http_GetHttpResponse	(	void *	Handle,
		UpnpString *	headers,
		char **	contentType,
		int *	contentLength,
		int *	httpStatus,
		int	timeout
	)

Gets the response from the server using a connection previously created by UpnpOpenHttpConnection().

Note: Memory for contentType is only valid until the next call to the HTTP API for the same connection.

Returns

On success: UPNP_E_SUCCESS - The operation completed successfully.
On error:

UPNP_E_INVALID_PARAM - Either handle, contentType, contentLength or httpStatus is not a valid pointer.
UPNP_E_INVALID_URL - The url is not a valid URL.
UPNP_E_OUTOF_MEMORY - Insufficient resources exist to download this file.
UPNP_E_NETWORK_ERROR - A network error occurred.
UPNP_E_SOCKET_WRITE - An error or timeout occurred writing to a socket.
UPNP_E_SOCKET_READ - An error or timeout occurred reading from a socket.
UPNP_E_SOCKET_BIND - An error occurred binding a socket.
UPNP_E_SOCKET_CONNECT - An error occurred connecting a socket.
UPNP_E_OUTOF_SOCKET - Too many sockets are currently allocated.
UPNP_E_BAD_RESPONSE - A bad response was received from the remote server.

Parameters

[in]	Handle	The handle of the connection created by the call to UpnpOpenHttpConnection().
[in]	headers	Headers sent by the server for the response. If nullptr then the headers are not copied.
[out]	contentType	A buffer to store the media type of the item.
[out]	contentLength	A pointer to store the length of the item.
[out]	httpStatus	The status returned on receiving a response message.
[in]	timeout	The time out value sent with the request during which a response is expected from the server, failing which, an error is reported back to the user. If value is negative, timeout is infinite.

Definition at line 1319 of file httpreadwrite.cpp.

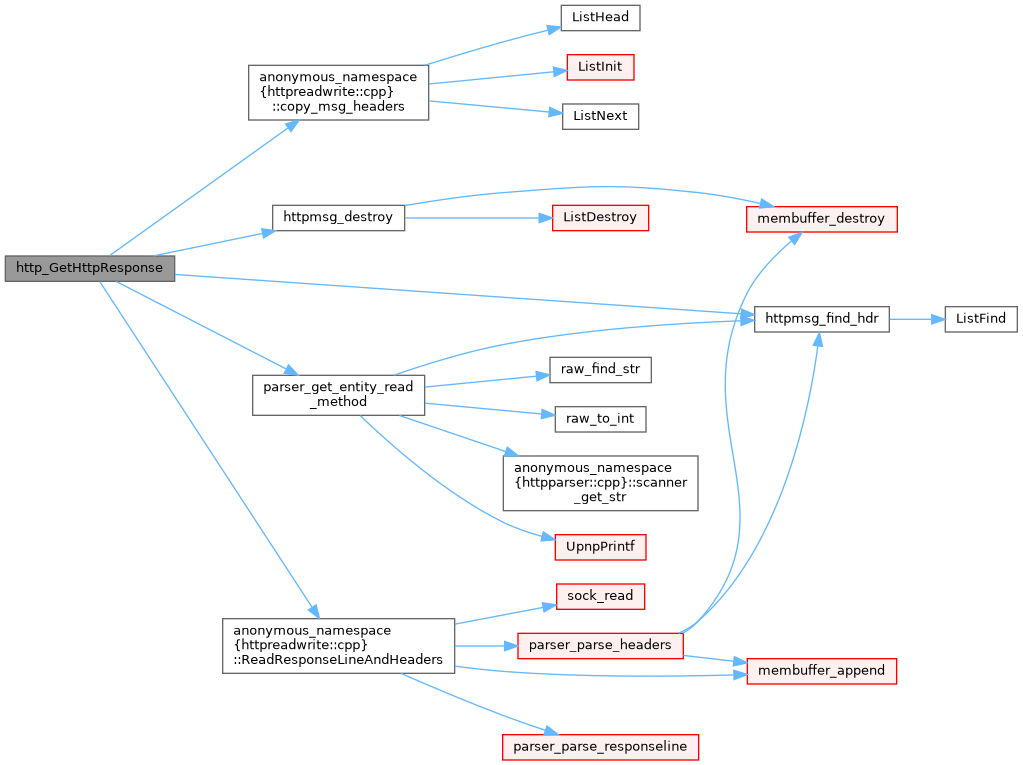

Here is the call graph for this function:

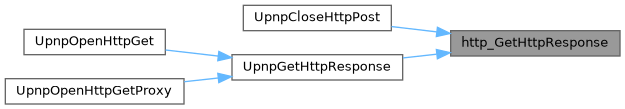

Here is the caller graph for this function:

◆ http_ReadHttpResponse()

int http_ReadHttpResponse	(	void *	Handle,
		char *	buf,
		size_t *	size,
		int	timeout
	)

Reads the content of a response using a connection previously created by UpnpOpenHttpConnection().

Returns

On success: UPNP_E_SUCCESS - The operation completed successfully.
On error:

UPNP_E_INVALID_PARAM - Either handle, buf or size is not a valid pointer.
UPNP_E_BAD_RESPONSE - A bad response was received from the remote server.
UPNP_E_BAD_HTTPMSG - Either the request or response was in the incorrect format.
UPNP_E_CANCELED - another thread called UpnpCancelHttpGet.

Note: In case of return values, the status code parameter of the passed in handle value may provide additional information on the return value.

Parameters

[in]	Handle	The handle of the connection created by the call to UpnpOpenHttpConnection().
[in,out]	buf	The buffer to store the read item.
[in,out]	size	The size of the buffer to be read.
[in]	timeout	The time out value sent with the request during which a response is expected from the server, failing which, an error is reported back to the user. If value is negative, timeout is infinite.

Definition at line 1374 of file httpreadwrite.cpp.

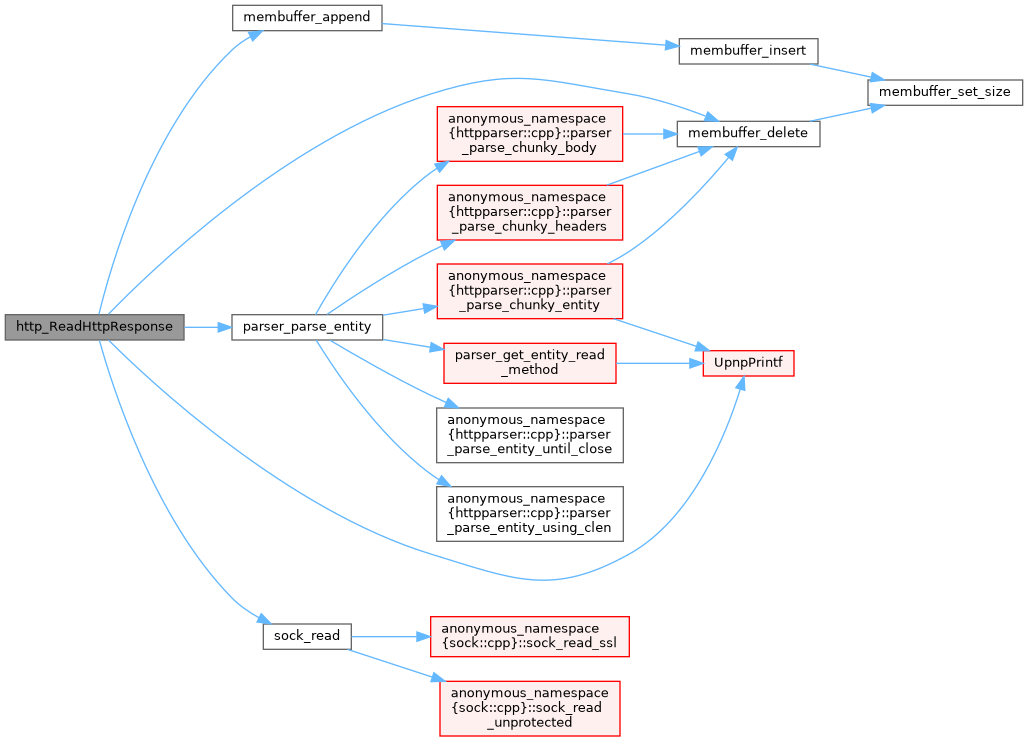

Here is the call graph for this function:

Here is the caller graph for this function:

◆ http_CloseHttpConnection()

int http_CloseHttpConnection ( void * Handle )

Closes the connection created with UpnpOpenHttpConnection() and frees any memory associated with the connection.

Returns

On success: UPNP_E_SUCCESS - The operation completed successfully.
On error:

UPNP_E_INVALID_PARAM - handle is not a valid pointer.
UPNP_E_SOCKET_READ - An error or timeout occurred reading from a socket.
UPNP_E_OUTOF_SOCKET - Too many sockets are currently allocated.

Parameters

[in] Handle The handle of the connection to close, created by the call to UpnpOpenHttpPost().

Definition at line 1472 of file httpreadwrite.cpp.

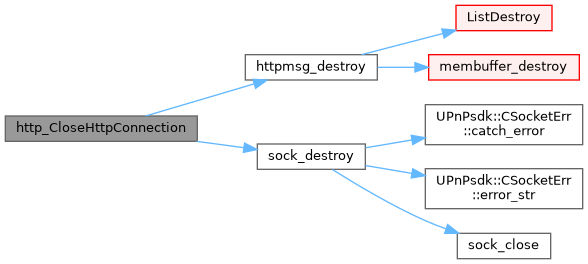

Here is the call graph for this function:

Here is the caller graph for this function:

◆ http_SendStatusResponse()

int http_SendStatusResponse	(	SOCKINFO *	info,
		int	http_status_code,
		int	request_major_version,
		int	request_minor_version
	)

Generate a response message for the status query and send the status response.

Returns

On success: UPNP_E_SUCCESS
On error:

UPNP_E_OUTOF_MEMORY
UPNP_E_SOCKET_WRITE
UPNP_E_TIMEDOUT

Parameters

[in]	info	Socket information object.
[in]	http_status_code	Error code returned while making or sending the response message.
[in]	request_major_version	Request major version.
[in]	request_minor_version	Request minor version.

Definition at line 1483 of file httpreadwrite.cpp.

Here is the call graph for this function:

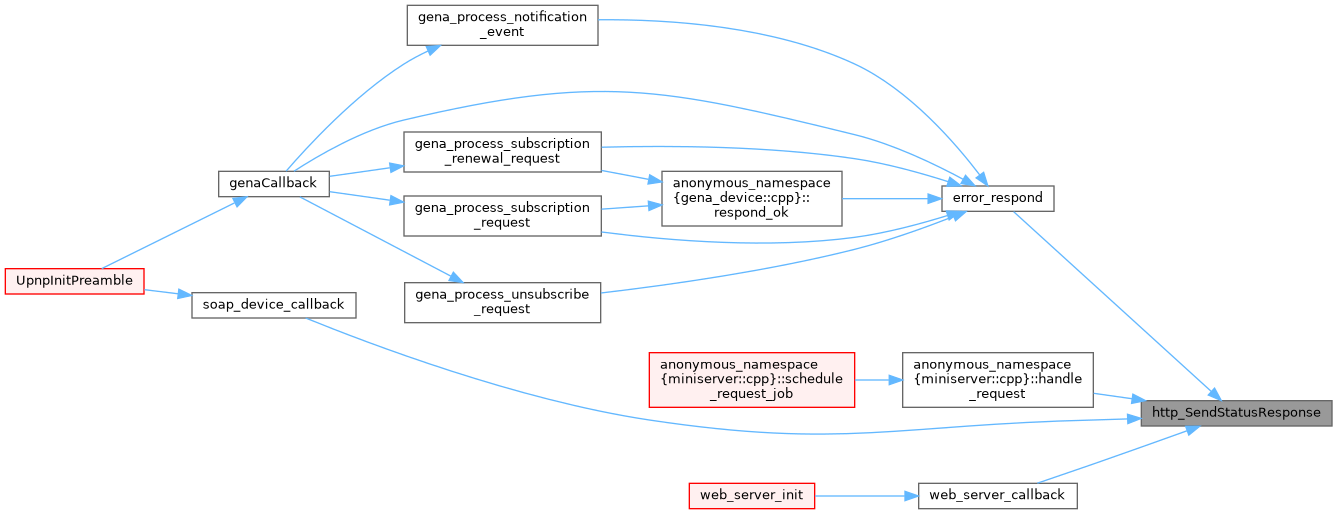

Here is the caller graph for this function:

◆ http_MakeMessage()

int http_MakeMessage	(	membuffer *	buf,
		int	http_major_version,
		int	http_minor_version,
		const char *	fmt,
			...
	)

Generate an HTTP message based on the format that is specified in the input parameters.

Format types:
  'B':  arg = int status_code        -- appends content-length, content-type
                                        and HTML body for given code.
  'b':  arg1 = const char* buf       -- appends content of the buffer
        arg2 = size_t buf_length        with this buffer size
  'C':  (no args)                    -- appends a HTTP CONNECTION: close header
                                        depending on major, minor version.
  'c':  (no args)                    -- appends CRLF "\r\n"
  'D':  (no args)                    -- appends HTTP DATE: header
  'd':  arg = int number             -- appends decimal number
  'G':  arg = range information      -- add range header
  'h':  arg = off_t number           -- appends off_t number
  'K':  (no args)                    -- add chunky header
  'L':  arg = language information   -- add Content-Language header if Accept-
                                        Language header is not empty and if
                                        WEB_SERVER_CONTENT_LANGUAGE is not
                                        empty
  'N':  arg1 = off_t content_length  -- content-length header
  'q':  arg1 = http_method_t         -- request start line and HOST header
        arg2 = (uri_type*)
  'Q':  arg1 = http_method_t         -- start line of request
        arg2 = char* url;
        arg3 = size_t url_length
  'R':  arg = int status_code        -- adds a response start line
  'S':  (no args)                    -- appends HTTP SERVER: header
  's':  arg = const char*            -- C_string
  'T':  arg = char* content_type     -- format e.g: "text/html";
                                        content-type header
  't':  arg = time_t* gmt_time       -- appends time in RFC 1123 fmt
  'U':  (no args)                    -- appends HTTP USER-AGENT: header
  'X':  arg = const char*            -- useragent; "redsonic"
                                        HTTP X-User-Agent: useragent

Returns

On success: 0
On error:

UPNP_E_OUTOF_MEMORY
UPNP_E_INVALID_URL

Parameters

[in,out]	buf	Buffer with the contents of the message.
[in]	http_major_version	HTTP major version.
[in]	http_minor_version	HTTP minor version.
[in]	fmt	Pattern format (like printf()).
[in]	...	Variable Format arguments (like printf()(.

Definition at line 1512 of file httpreadwrite.cpp.

Here is the call graph for this function:

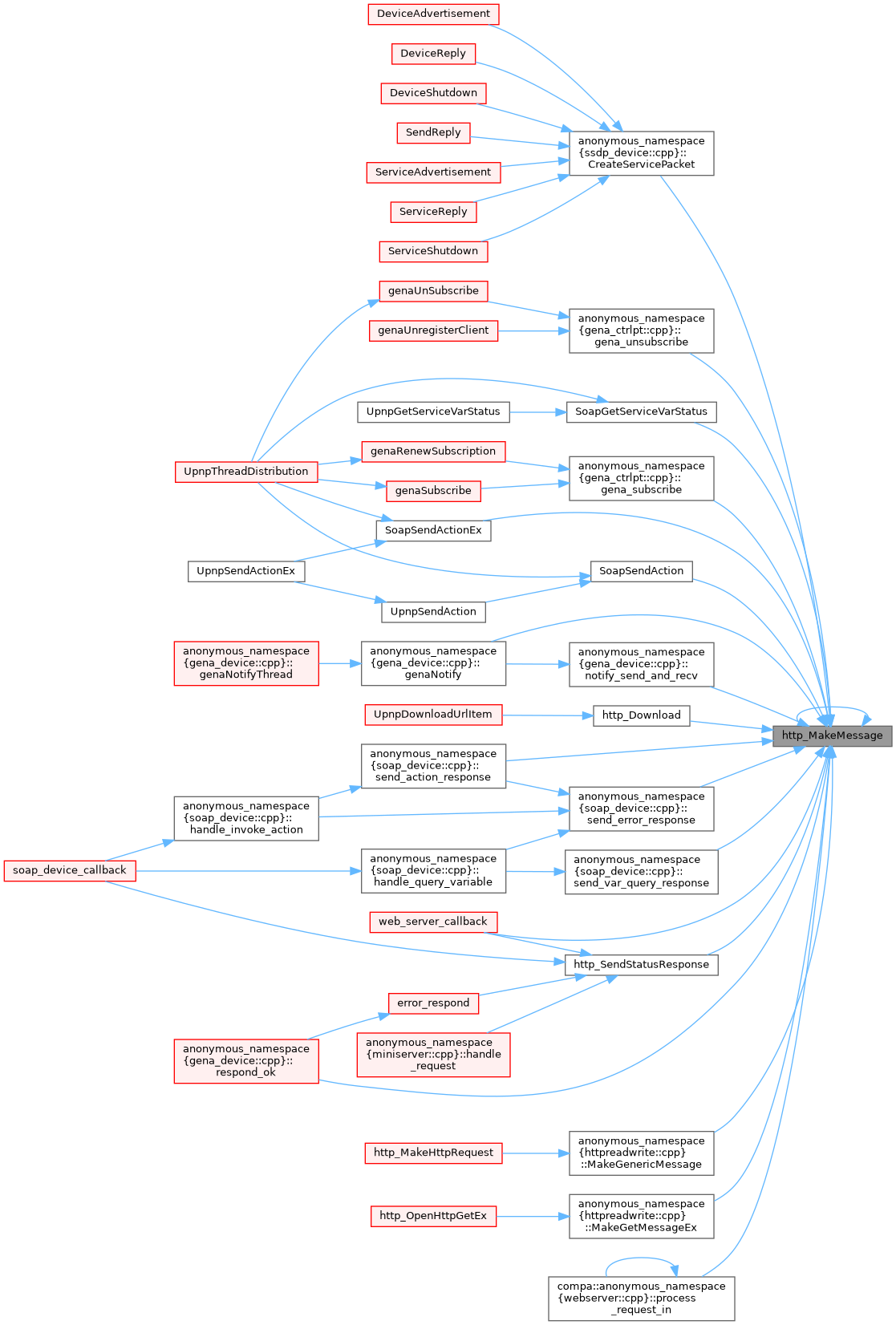

Here is the caller graph for this function:

◆ http_CalcResponseVersion()

void http_CalcResponseVersion	(	int	request_major_vers,
		int	request_minor_vers,
		int *	response_major_vers,
		int *	response_minor_vers
	)

Calculate HTTP response versions based on the request versions.

Parameters

[in]	request_major_vers	Request major version.
[in]	request_minor_vers	Request minor version.
[in]	response_major_vers	Response mojor version.
[in]	response_minor_vers	Response minor version.

Definition at line 1786 of file httpreadwrite.cpp.

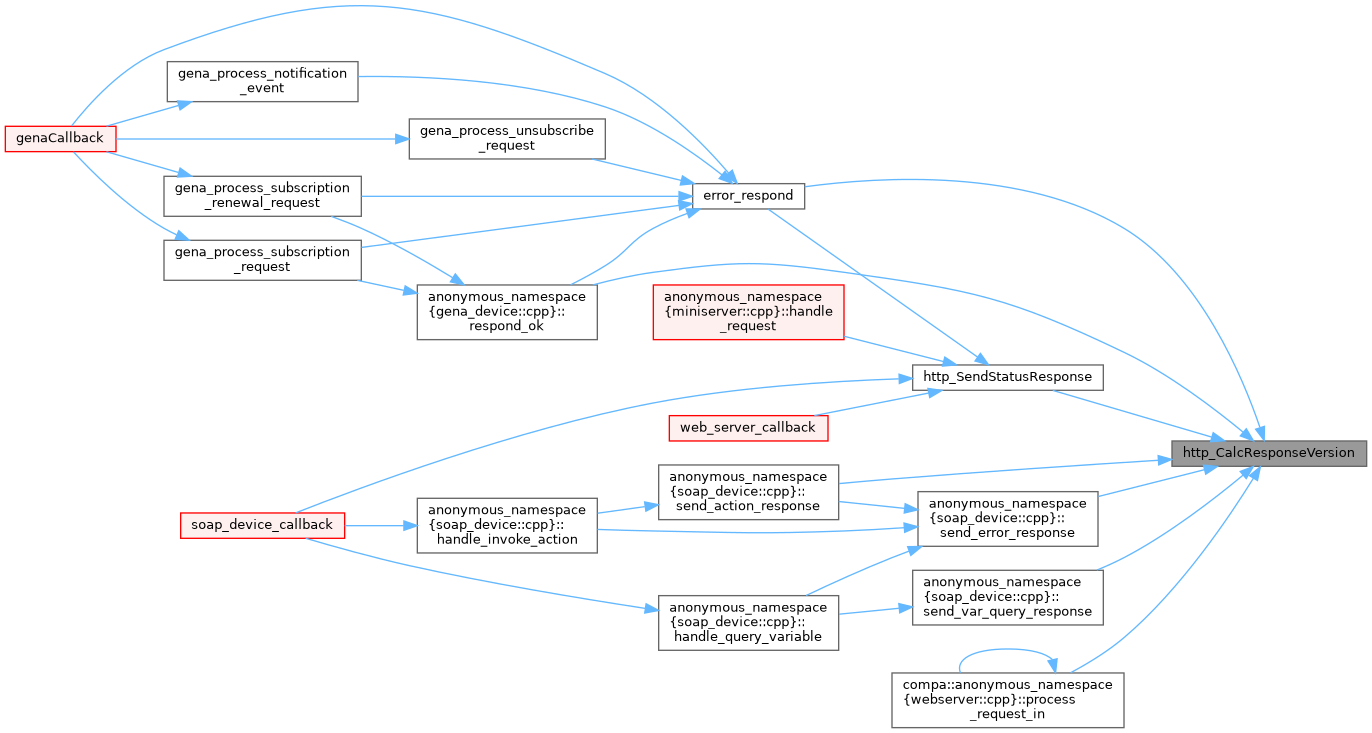

Here is the caller graph for this function:

◆ http_OpenHttpGetEx()

int http_OpenHttpGetEx	(	const char *	url_str,
		void **	Handle,
		char **	contentType,
		int *	contentLength,
		int *	httpStatus,
		int	lowRange,
		int	highRange,
		int	timeout
	)

Makes the HTTP GET message, connects to the peer, sends the HTTP GET request, gets the response and parses the response.

Returns

On success: UPNP_E_SUCCESS
On error:

UPNP_E_INVALID_PARAM
UPNP_E_OUTOF_MEMORY
UPNP_E_SOCKET_ERROR
UPNP_E_BAD_RESPONSE

Parameters

[in]	url_str	String as a URL.
[in,out]	Handle	Pointer to buffer to store HTTP post handle.
[in,out]	contentType	Type of content.
[out]	contentLength	length of content.
[out]	httpStatus	HTTP status returned on receiving a response message.
	lowRange	???
	highRange	???
[in]	timeout	time out value.

Definition at line 1800 of file httpreadwrite.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ get_sdk_info()

void get_sdk_info	(	char *	info,
		size_t	infoSize
	)

Returns the server information for the operating system.

Parameters

[out]	info	Buffer to store the operating system information.
[in]	infoSize	Size of buffer.

Definition at line 1922 of file httpreadwrite.cpp.

Here is the caller graph for this function:

UPnPsdk 0.1 Universal Plug and Play +, Software Development Kit

Classes

Functions

Variables

Detailed Description

Class Documentation

◆ anonymous_namespace{httpreadwrite.cpp}::http_connection_handle_t

Function Documentation

◆ private_connect()

◆ http_gmtime_r()

◆ http_FixUrl()

◆ http_FixStrUrl()

◆ http_Connect()

◆ http_RecvMessage()

◆ http_SendMessage()

◆ http_RequestAndResponse()

◆ http_Download()

◆ http_HttpGetProgress()

◆ http_CancelHttpGet()

◆ http_OpenHttpConnection()

◆ http_MakeHttpRequest()

◆ http_WriteHttpRequest()

◆ http_EndHttpRequest()

◆ http_GetHttpResponse()

◆ http_ReadHttpResponse()

◆ http_CloseHttpConnection()

◆ http_SendStatusResponse()

◆ http_MakeMessage()

◆ http_CalcResponseVersion()

◆ http_OpenHttpGetEx()

◆ get_sdk_info()
